APERA INSTRUMENTS / ORP60-Z / AI3717

A dedicated redox reading.
A deliberate testing routine.

Measure oxidation-reduction potential and temperature with a pocket instrument built for general aqueous samples. ORP60-Z combines a platinum sensing pin, the dedicated ORP60-DE replaceable probe and familiar button controls. Work directly from the meter, or connect your own compatible phone when you need ZenTest's recording tools.

Choose AI3717 for ORP in millivolts, not as a multiparameter starter body. Its dedicated probe connection does not establish a pH upgrade path. The kit brings the tester, checking standard and care essentials together in a carrying case for a repeatable routine between sampling locations.

The right head for this body

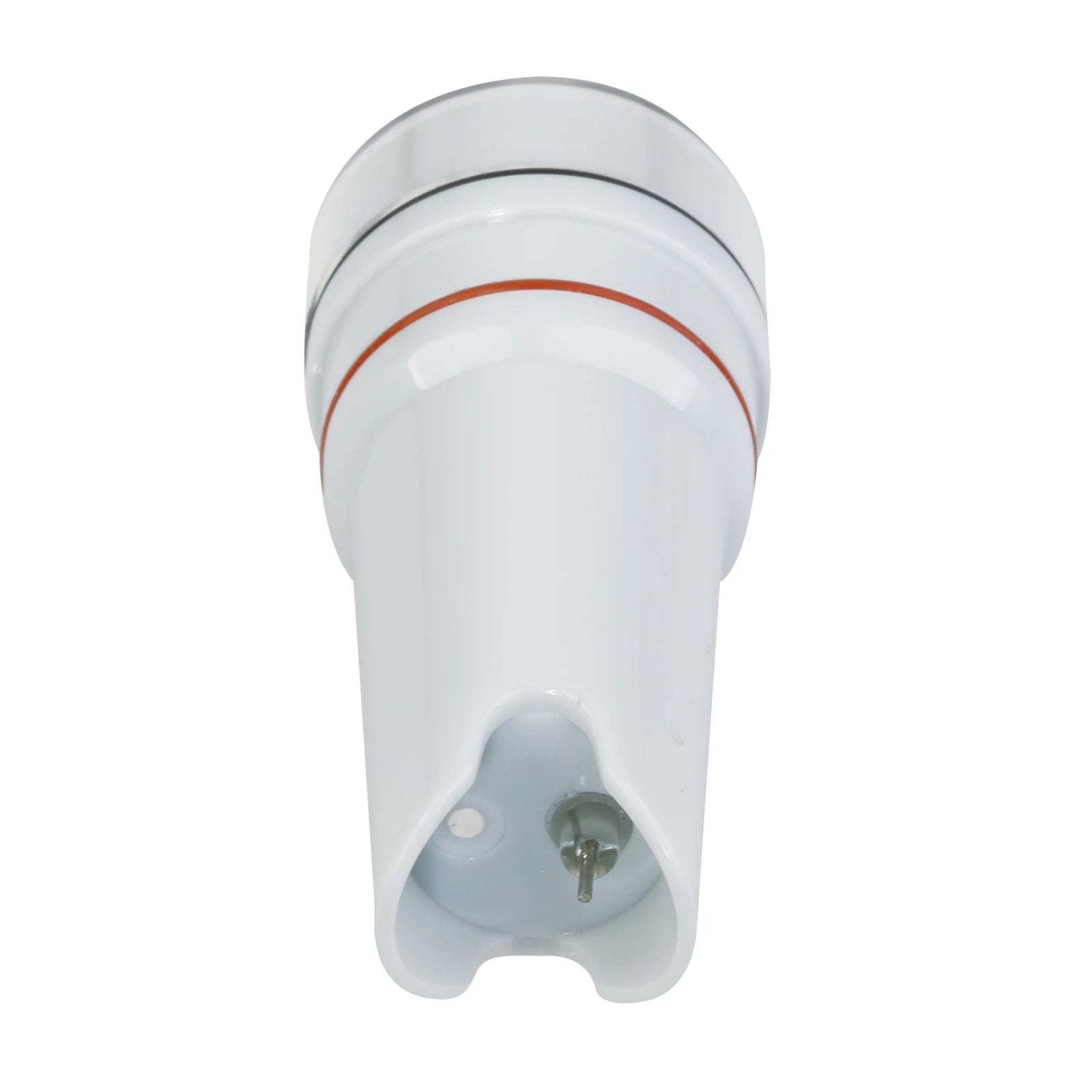

ORP60-DE combines a platinum sensing pin, double-junction reference structure and temperature sensor. It is the dedicated replacement for ORP60-Z. ORP60-DA, intended for other compatible ZenTest bodies, is not an alternate name for this head. Match the complete model and replacement code when ordering.

Read and hold at the meter

Measure and calibrate without a smartphone. A stable-reading indicator helps identify when to record the result; manual HOLD or adjustable automatic HOLD keeps a reading on screen. Temperature units, backlight timing and automatic power-off can be configured from the instrument to suit the task.

Add a connected record

Use ZenTest on your own compatible smartphone for manual or automatic recording and notes. The meter itself is not a measurement-history logger. Keep the powered tester and connected phone nearby for acquisition, and check the app workflow before making it part of a required reporting procedure.

Pool and spa checks

Follow redox conditions as part of an established water-care procedure. ORP is not a direct chlorine-concentration measurement or a substitute for the other chemistry checks your treatment method requires.

Aquarium and aquatic systems

Compare compatible water samples using consistent handling, temperature and timing. Interpret redox readings in the context of the system rather than treating one millivolt value as a universal water-quality verdict.

General water-treatment samples

Use spot measurements where a portable redox check supports your process. Confirm sample compatibility and cleaning requirements first; the measuring range alone does not establish suitability for every concentrated chemical or industrial stream.

Check the standard.
Use its value at temperature.

Rinse the probe with distilled water and dry it before testing. Immerse the sensing end in the sample, move it gently for a few seconds, then let it stand still. Read when the stable icon appears and remains. Keep handling consistent between samples and record temperature alongside the ORP result.

The manual says routine ORP calibration is usually unnecessary. After extended use, check performance in the supplied 222 mV standard and calibrate when a significant error is found. For calibration, half-fill the vial, rinse and dry the probe, enter calibration mode, immerse and stir gently, then wait for the stable icon before adjusting and confirming.

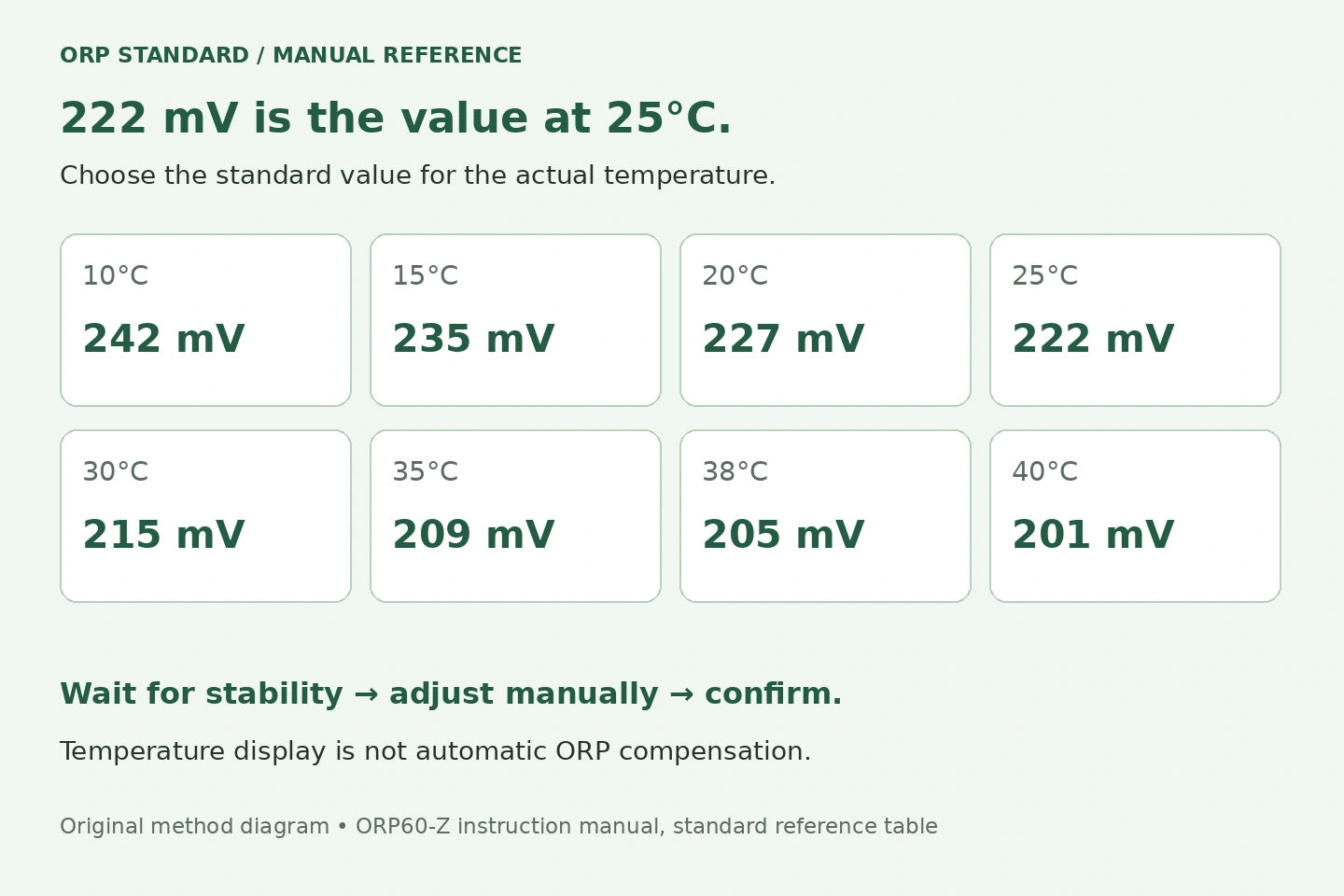

The standard is 222 mV at 25°C, not at every temperature. Manually select its reference value: 242 mV at 10°C, 235 at 15°C, 227 at 20°C, 222 at 25°C, 215 at 30°C, 209 at 35°C, 205 at 38°C or 201 at 40°C. This manual adjustment is not automatic ORP temperature compensation.

Keep the cap moist.
Condition only as directed.

After testing, rinse away sample residue. Between uses, the exact-model manual recommends one or two drops of tap water in the probe cap, then closing it without overfilling. Do not translate this into continuous KCl immersion, and do not leave the probe soaking for long periods in distilled or deionized water.

Use the supplied 3M KCl for the specified conditioning steps. Slow response calls for a 30-minute soak; a probe left dry for more than a month calls for eight hours. After prolonged purified-water exposure, the manual specifies three to five hours in KCl followed by recalibration. Replace contaminated conditioning solution.

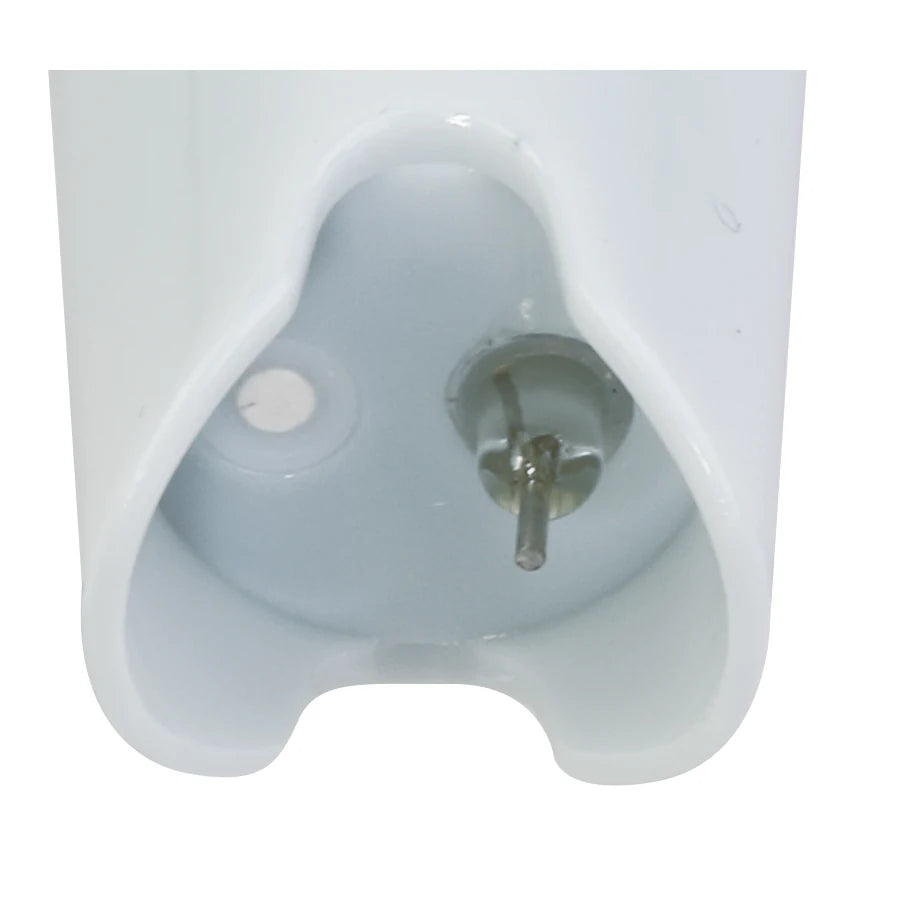

Deposits on the platinum pin or junction can affect response. Follow the manual's cleaning procedure for the contamination involved rather than improvising an abrasive treatment. For probe replacement, remove the cap and retaining ring, unplug the old head, align the ORP60-DE replacement and tighten the ring. Seat the battery cap fully after service.

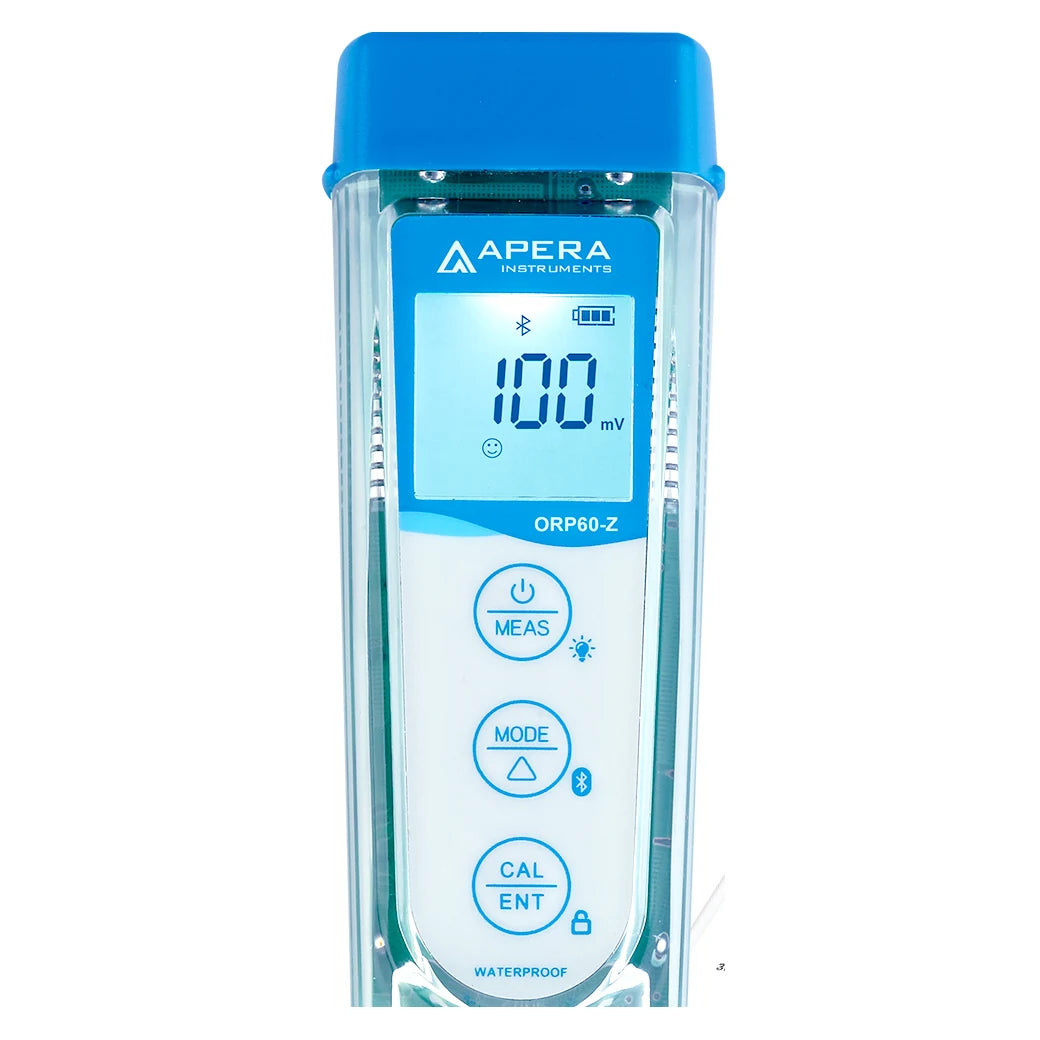

Read the meter.
Know what is held.

Use the physical controls for standalone measurement and calibration. The stable-reading indicator and HOLD help you read a result; a held display is not an onboard measurement-history logger for later upload.

Keep the connectors and battery compartment dry when changing parts. Follow the exact manual for key sequences, battery orientation and cap sealing. Screen values in photographs are illustrative, not test results or a promise of compatibility with another sensing head.

Choose a connected workflow.
Keep its limits clear.

The tester measures and calibrates without a phone. Connect a compatible smartphone inside ZenTest, rather than treating operating-system PIN pairing as the measurement workflow. Bluetooth, required phone permissions and a nearby powered tester are needed for new connected readings. A smartphone is not included.

ZenTest offers Simple, Dial, Graph and Table views, with manual and timed recording, measurement/calibration records, and tools for notes, photos and location tagging. Available parameters still depend on the exact body and fitted head. Display choices cannot add pH or conductivity to an unsupported model.

Account and cloud functions depend on the compatible app, service and internet connection. Reviewing already saved records while disconnected is not continuous measurement acquisition outside Bluetooth range. Keep an independent copy of important records and check the current app listing for device compatibility before purchase.

Publisher documentation describes data sharing/export, and Apple release history identifies CSV. Native Excel or PDF reports, exact current logging intervals, and identical export behavior on both operating systems are not promised. Neither the meter nor this app overview establishes an immutable audit trail, regulatory compliance, guaranteed background alarms or offsite safety monitoring. Check your recordkeeping procedure before relying on connected data.
