APERA INSTRUMENTS / EC60-Z / AI3718

One conductivity sensor.
Several useful ways to read water.

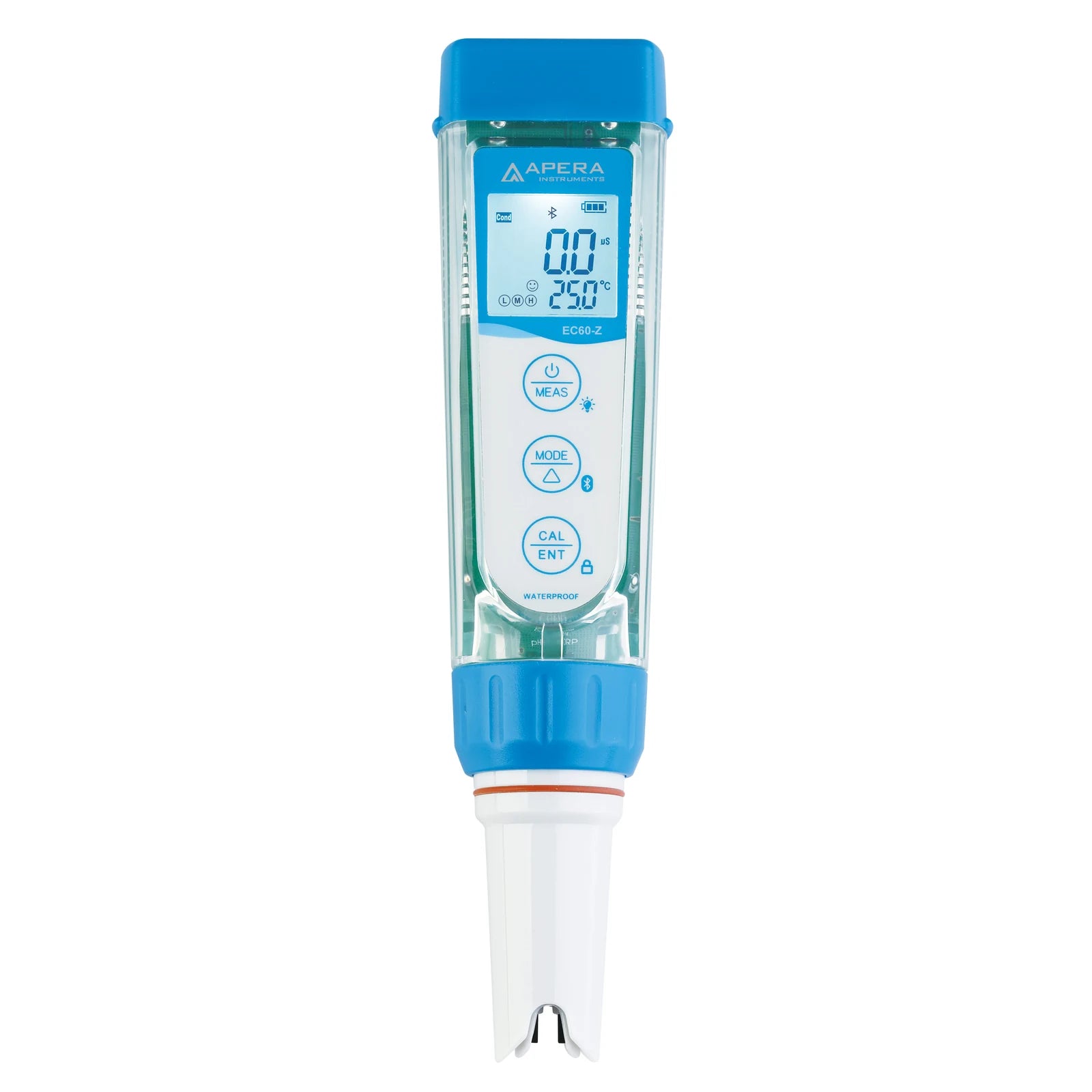

Follow nutrient strength, dilution and changes in dissolved ionic content with a pocket tester built around conductivity. EC60-Z combines the replaceable EC60-DE conductivity/temperature head with on-meter measurement and calibration, plus Bluetooth connectivity for a compatible phone when your workflow calls for ZenTest.

Choose this kit when conductivity is the primary measurement. TDS, salinity and resistivity are related readings derived from EC, not separate chemical analyses. EC60-Z does not measure pH or ORP and is not offered here as a platform for those upgrades.

Start with the direct measurement

The platinum-black conductivity sensor measures the solution’s electrical conductance, while the built-in temperature sensor supports compensation. EC is the useful starting point when comparing results across instruments. Its stated accuracy is ±1% of full scale, not ±1% of each reading.

Make ppm comparisons meaningful

The adjustable TDS factor lets you match an established reporting convention. At 1000 µS/cm, the factory factor of 0.71 gives 710 ppm; a factor of 0.50 gives 500 ppm. Those different numbers can describe the same conductivity, so record the factor alongside the result.

Keep the instrument in service

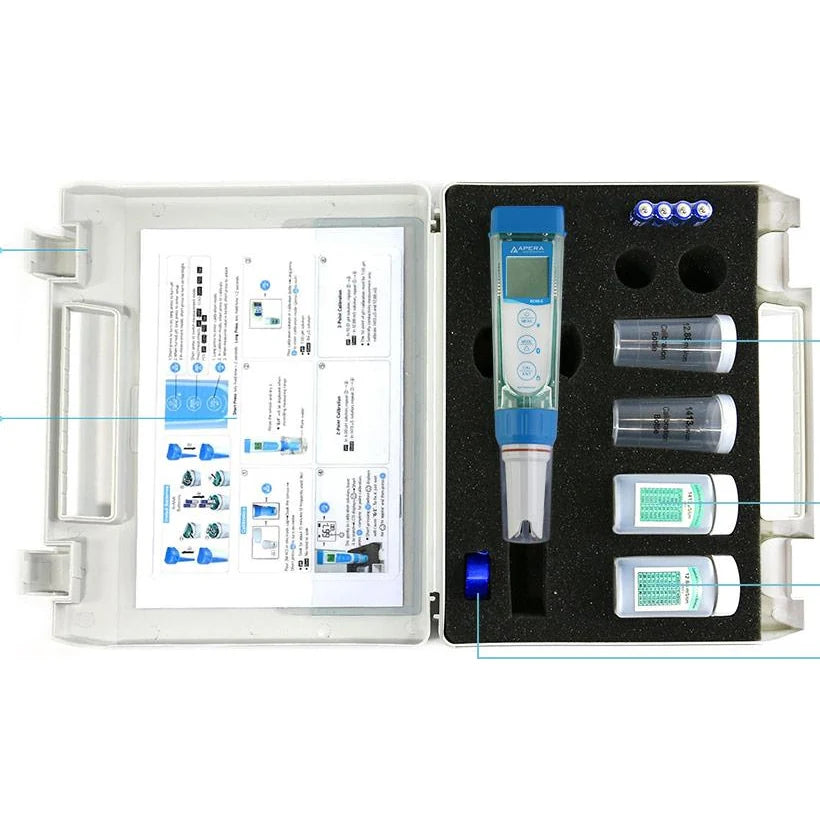

The EC60-DE head is replaceable without replacing the entire tester. The meter’s display and buttons handle everyday tests, calibration and hold functions independently of a phone. A carrying case keeps the instrument and calibration supplies together between sampling locations.

Know exactly what is supplied.

Nutrient-solution checks

Compare feed solution and dilution water within the measurement range. Use conductivity to follow overall ionic strength rather than expecting a reading to identify individual nutrients, their ratios or a specific deficiency.

Freshwater and rinse monitoring

Track changes between source water, process water and rinses using consistent sample handling. EC-derived TDS is an estimate, not a direct count of all dissolved substances or a drinking-water safety assessment.

Lower-salinity aqueous processes

Use the salinity display for compatible solutions up to 10.00 ppt. That ceiling is below normal seawater salinity, so this is not the choice for direct marine-aquarium or ordinary seawater salinity testing.

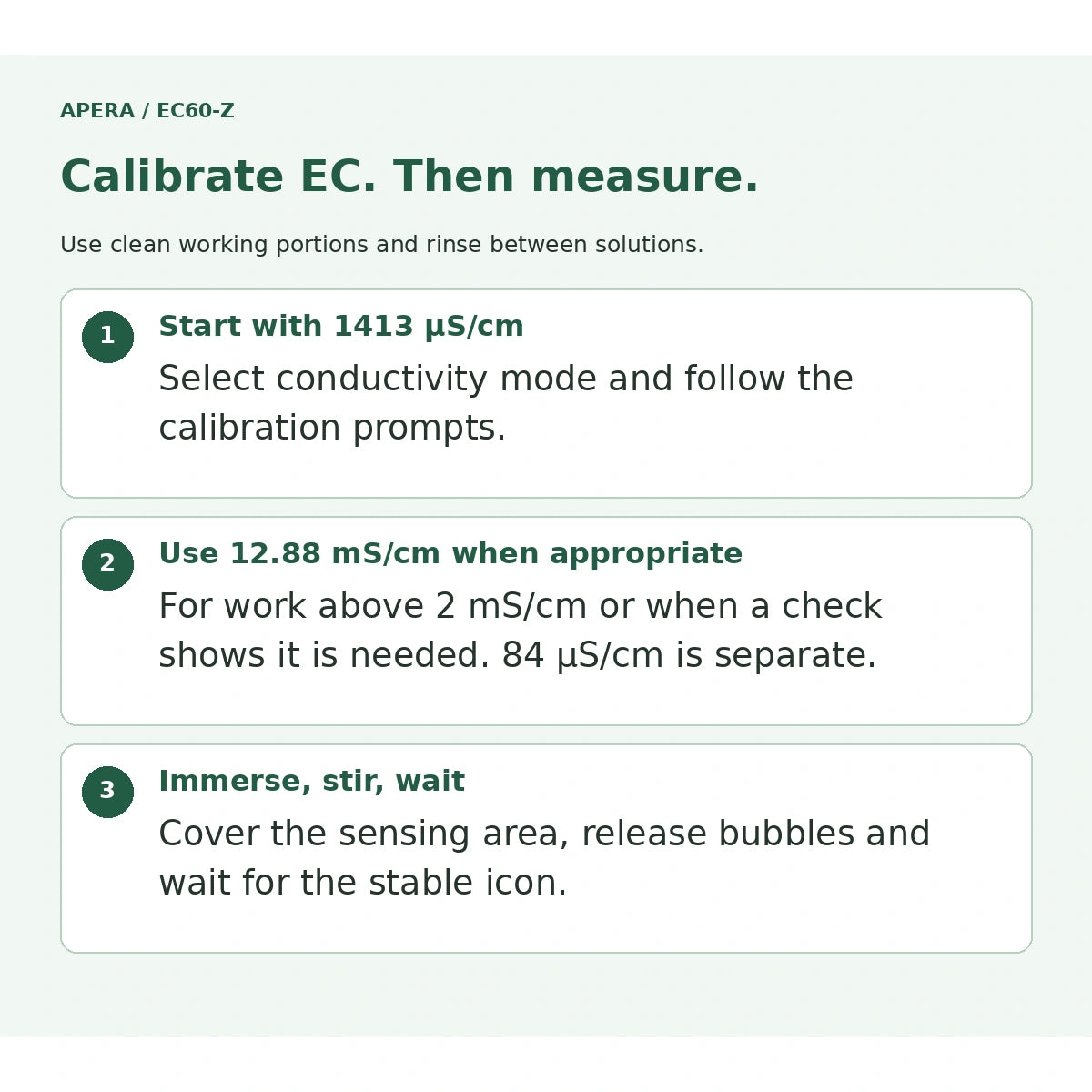

Calibrate the EC.
Then compare like with like.

Prepare clean portions of the supplied standards. In conductivity mode, begin with 1413 µS/cm; use 12.88 mS/cm when working above 2 mS/cm or when a check shows the need. The meter also recognizes 84 µS/cm for low-range calibration, but that standard is purchased separately. Do not pour used portions back into the stock bottle.

Remove the cap, rinse the probe and shake off excess water. Fully immerse the sensing area, stir briefly to release trapped bubbles, then hold still and wait for the stable-reading icon. Rinse between standards and samples. Use a clean vessel with enough sample to cover the sensors rather than trying to measure a shallow film.

Check the units and compensation settings before comparing results. The EC reference temperature defaults to 25 °C and the coefficient to 2.00%/°C; both are adjustable. TDS, salinity and resistivity follow EC calibration. There is no separate TDS calibration or invented zero-EC calibration step to perform.

Clean conductivity rods.
No pH storage routine required.

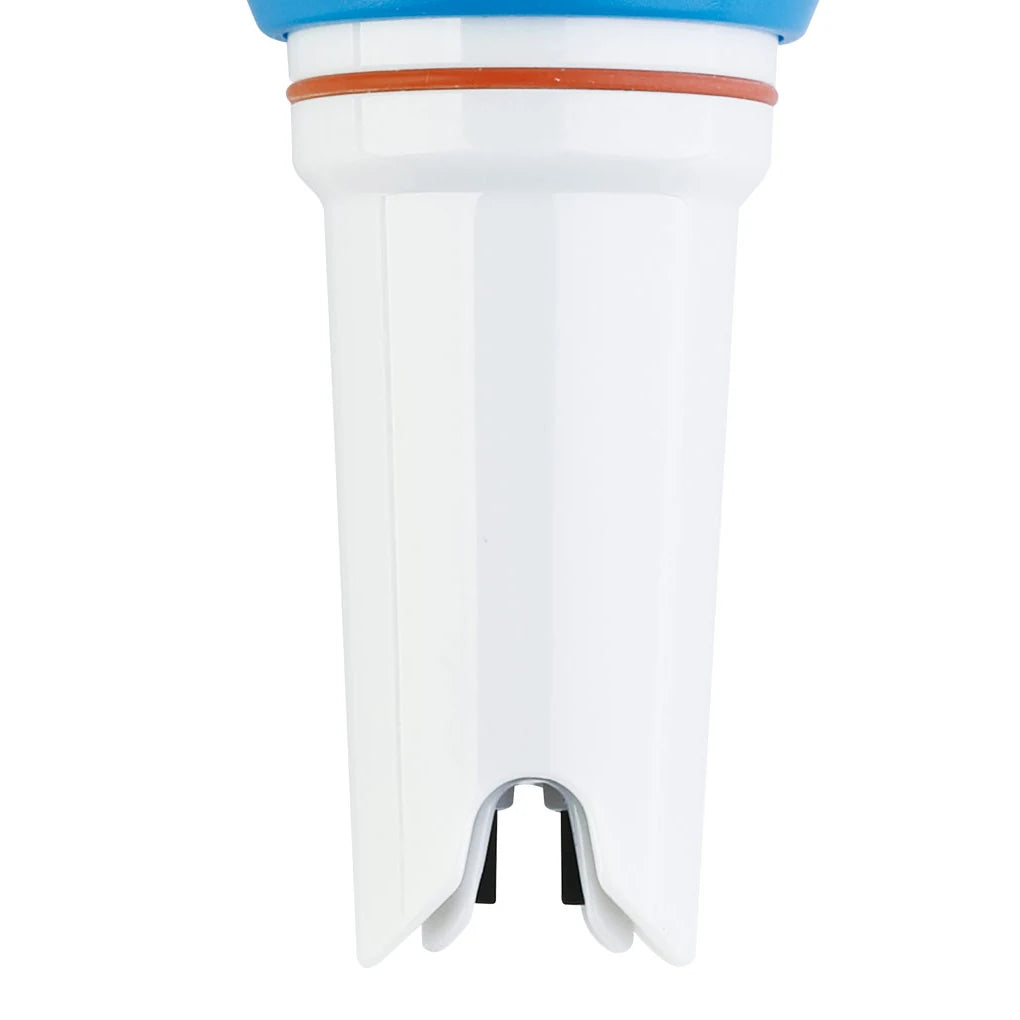

After each measurement, rinse with distilled or deionized water to remove residue. The EC60-DE has conductivity rods rather than a pH glass bulb. Do not transfer a combo pH probe’s KCl conditioning or storage directions to this sensor simply because the housings look similar.

For a sensor that has been unused, the manual gives conditioning options of 5 to 10 minutes in 12.88 mS/cm standard or 1 to 2 hours in tap water before use. These are preparation steps, not an instruction to leave the probe immersed indefinitely. Rinse before calibration or the next sample.

If the black rods become stained, gently clean them with a soft brush in warm water containing detergent or alcohol, following the manual. For an unexpected zero or unstable reading, first check immersion, bubbles, cleanliness, damage and fresh standard. Recondition and recalibrate before treating the result as a sample change.

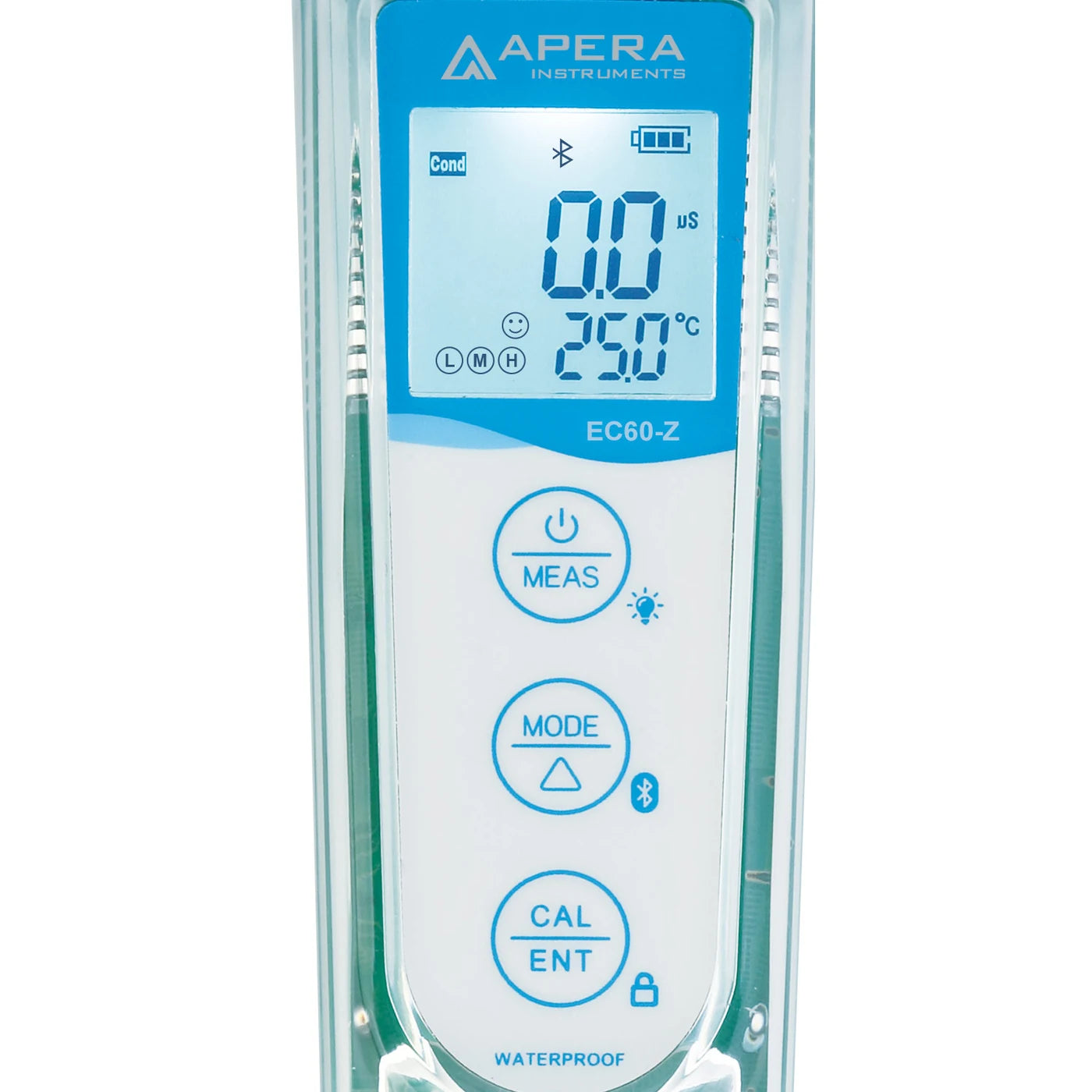

Read the meter.
Know what is held.

Use the physical controls for standalone measurement and calibration. The stable-reading indicator and HOLD help you read a result; a held display is not an onboard measurement-history logger for later upload.

Keep the connectors and battery compartment dry when changing parts. Follow the exact manual for key sequences, battery orientation and cap sealing. Screen values in photographs are illustrative, not test results or a promise of compatibility with another sensing head.
