Low-Profile Plates for Fast Blocks and qPCR
A 0.2 mL plate will not sit properly in a 0.1 mL fast block, and a poorly seated plate means uneven heating and unreliable data. These 96-well, 0.1 mL low-profile plates are sized for fast and low-profile blocks, with ultra-thin, uniform walls that move heat quickly for shorter run times.
Choose the skirt your cycler and workflow need: no skirt, semi or half skirt, full skirt for automation, or the ABI Fast-style elevated skirt. White wells reflect fluorescence for stronger qPCR signal; clear wells let you see every sample. Every plate is certified free of RNase, DNase, and DNA, with a molded alphanumeric grid.
0.1 mL
Low-profile, fast-block wells
4 Skirt Styles
None, semi/half, full, elevated
Clear or White
White for qPCR signal
11 Options
MTC PureAmp™ and ILP
Why Labs Choose These Low-Profile Plates
Ultra-Thin, Uniform Walls
Fast, even heat transfer across all 96 wells for shorter cycling.
White Wells for qPCR
Reflect fluorescence toward the detector for stronger, more consistent signal.
Every Skirt Style
Match your cycler, sealer, and robot without compromise.
Raised Rims
Rims on the SRR and ILP plates help heat seals and films seat evenly.
Alphanumeric Grid
Molded well labels and a corner notch for fast, correct orientation.
Certified Clean
Free of RNase, DNase, and DNA; ILP plates also certified pyrogen-free.

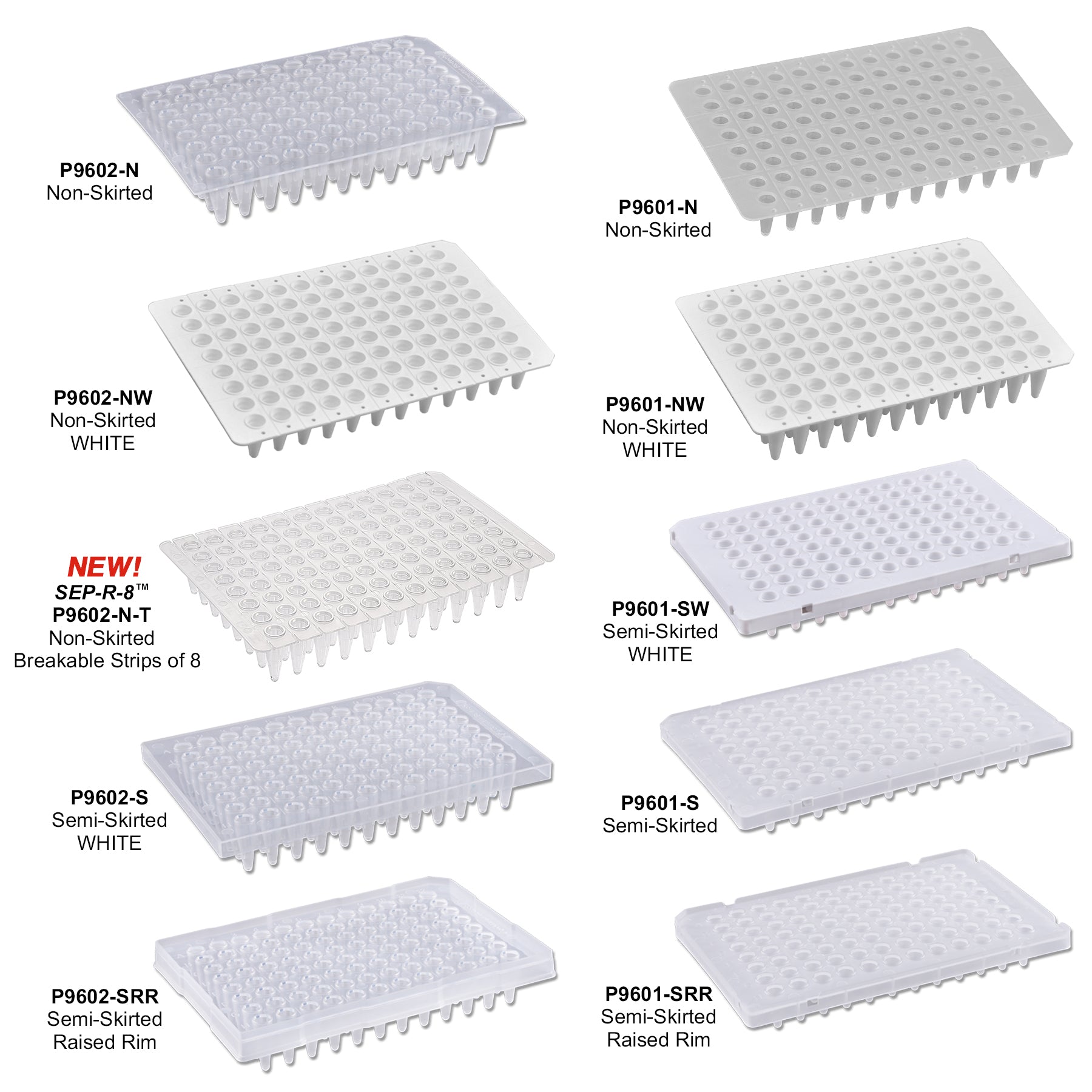

Which Skirt Do I Need?
Check your thermal cycler or qPCR manual for the plate style it accepts. If your block takes 0.2 mL wells, see our standard 0.2 mL PCR plates.

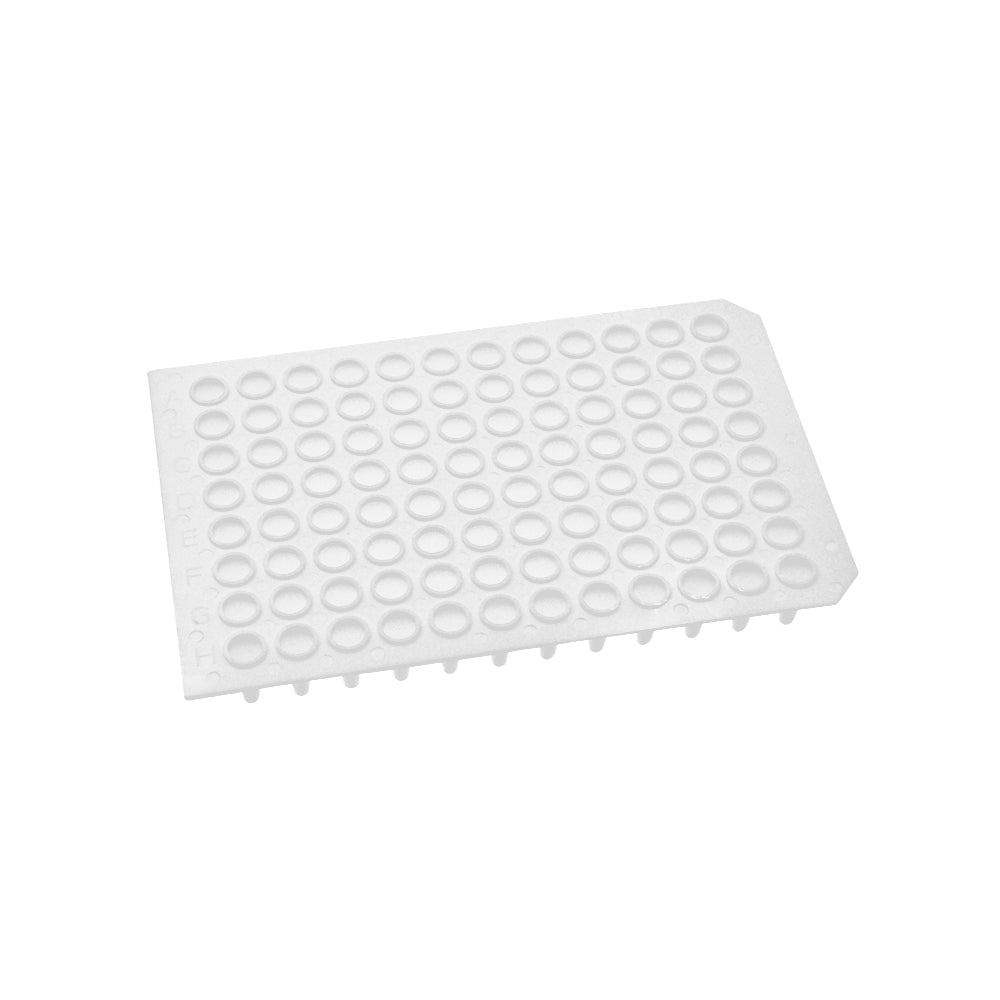

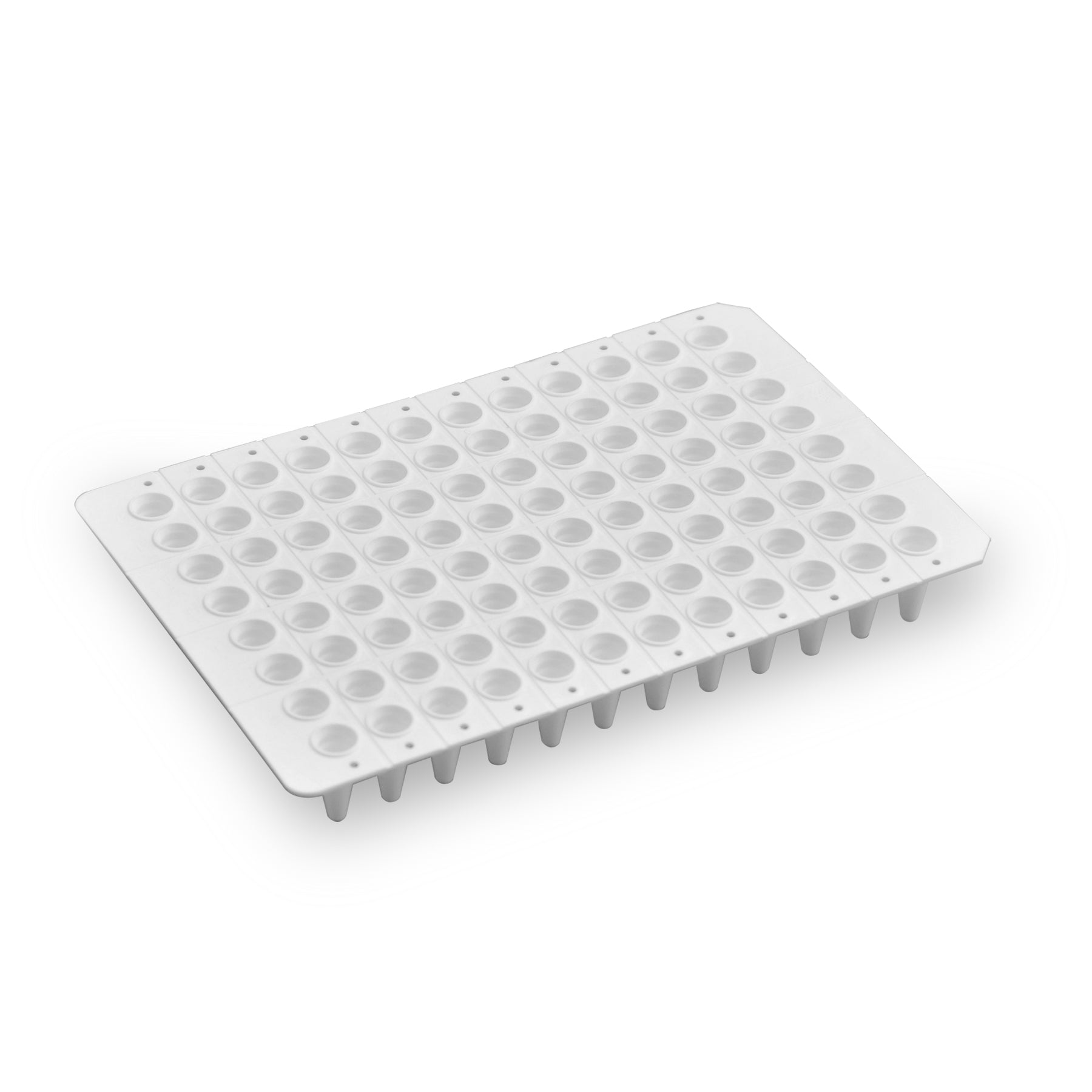

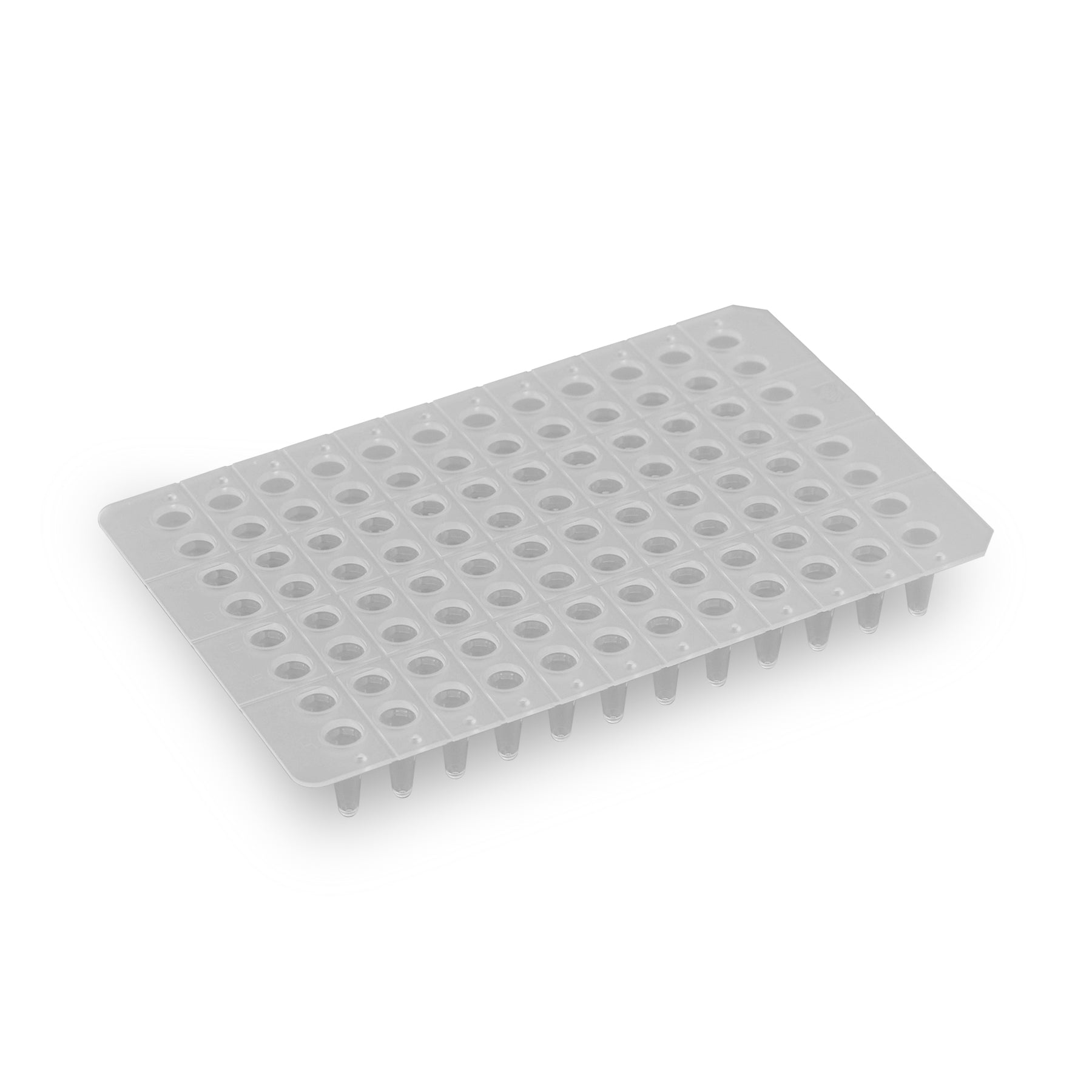

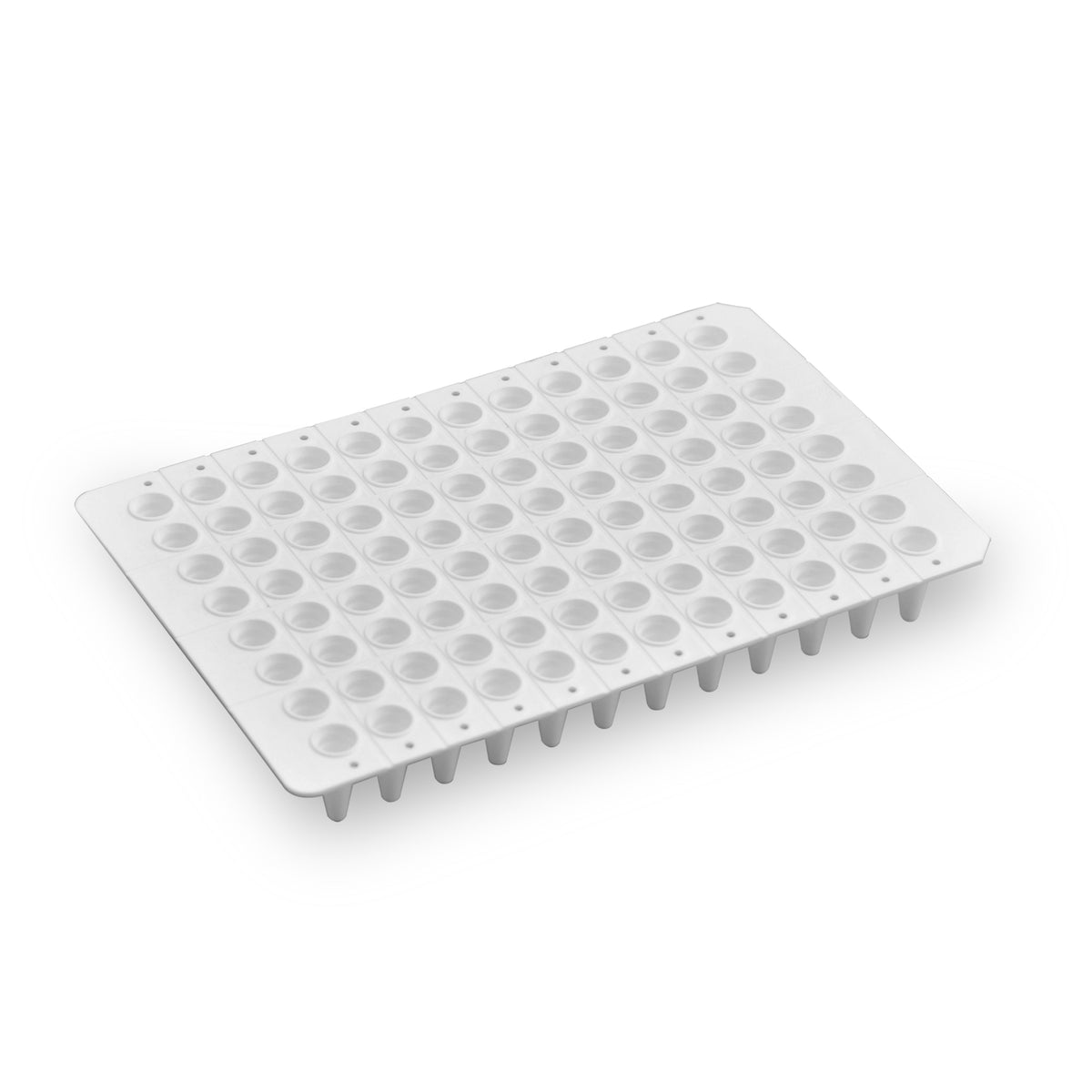

No Skirt
Catalog No.: P9601-N, P9601-NW, PC10NS-9-W
Best for: Fits the widest range of blocks; can be cut to size
Note: Use a plate holder for pipetting and robots

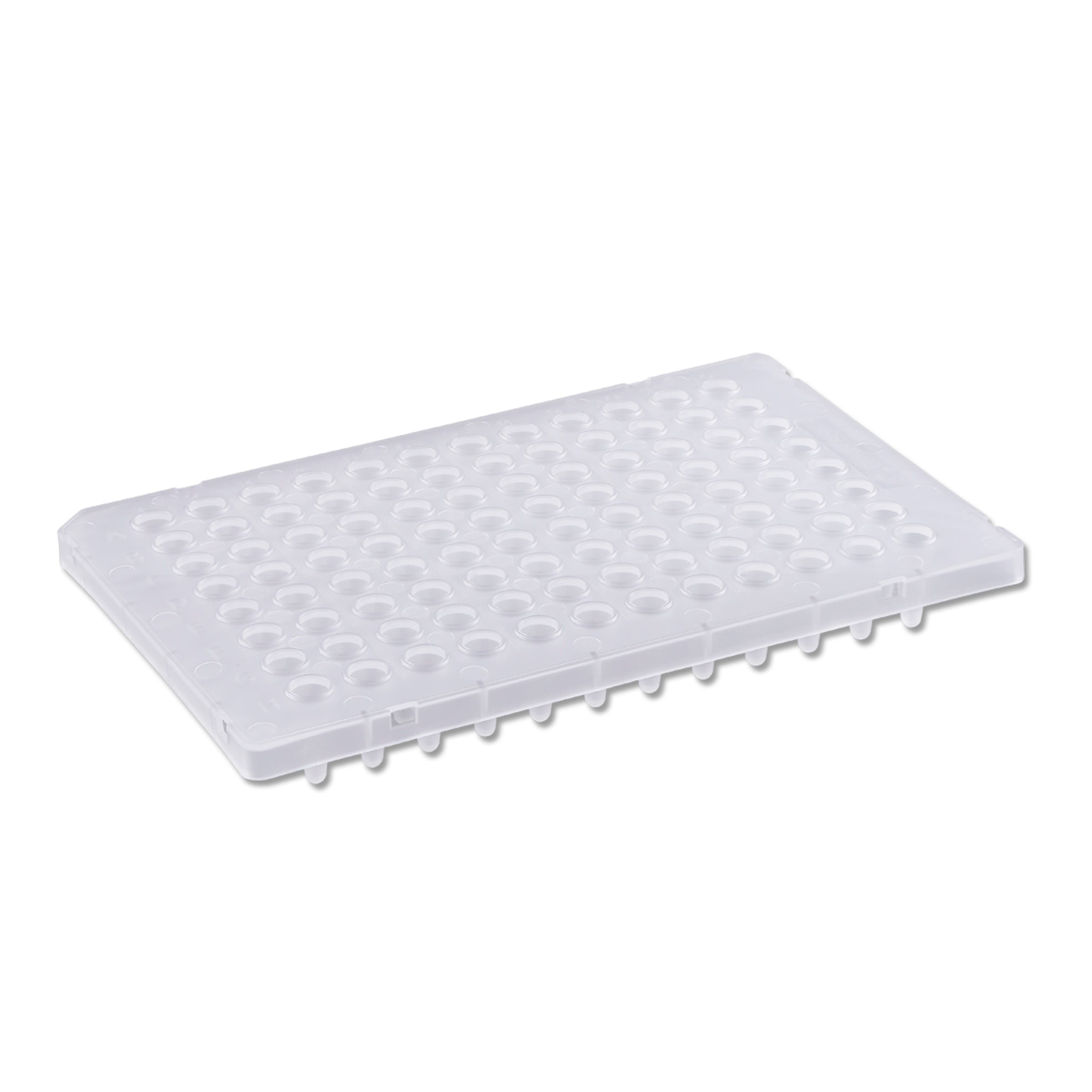

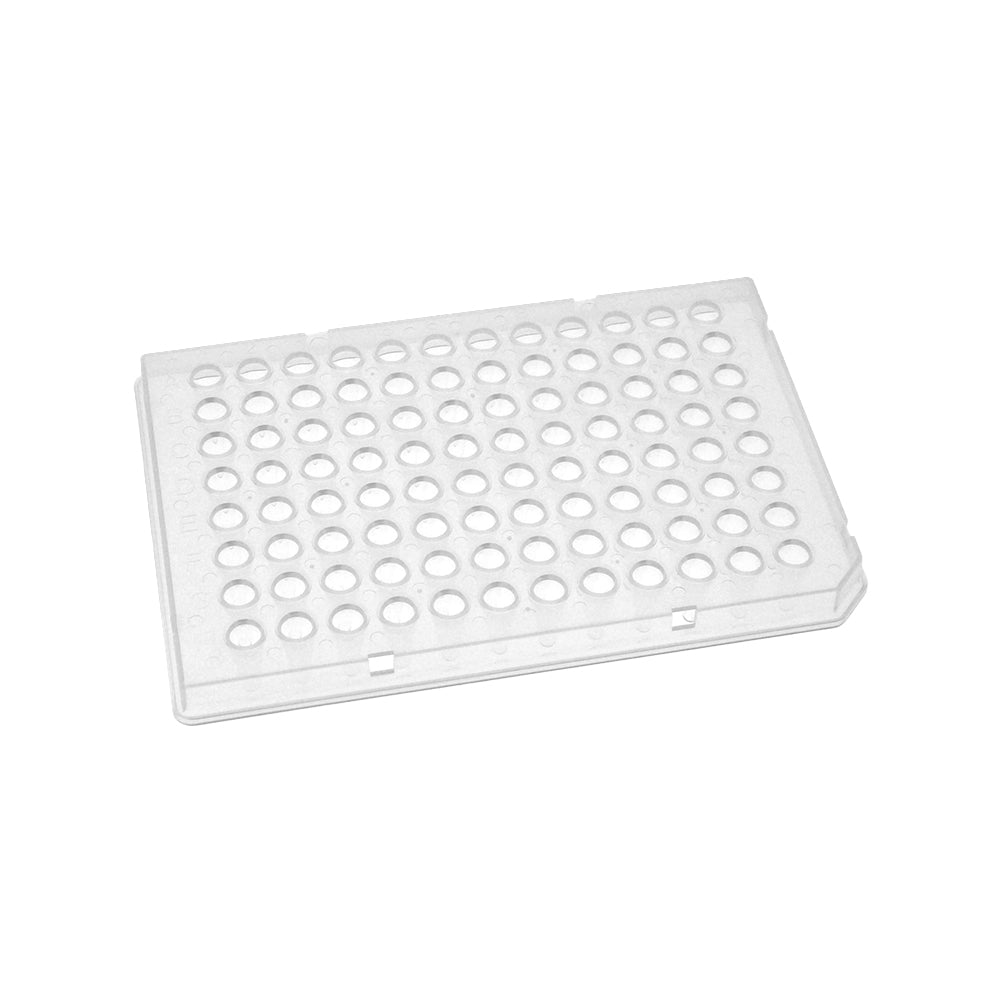

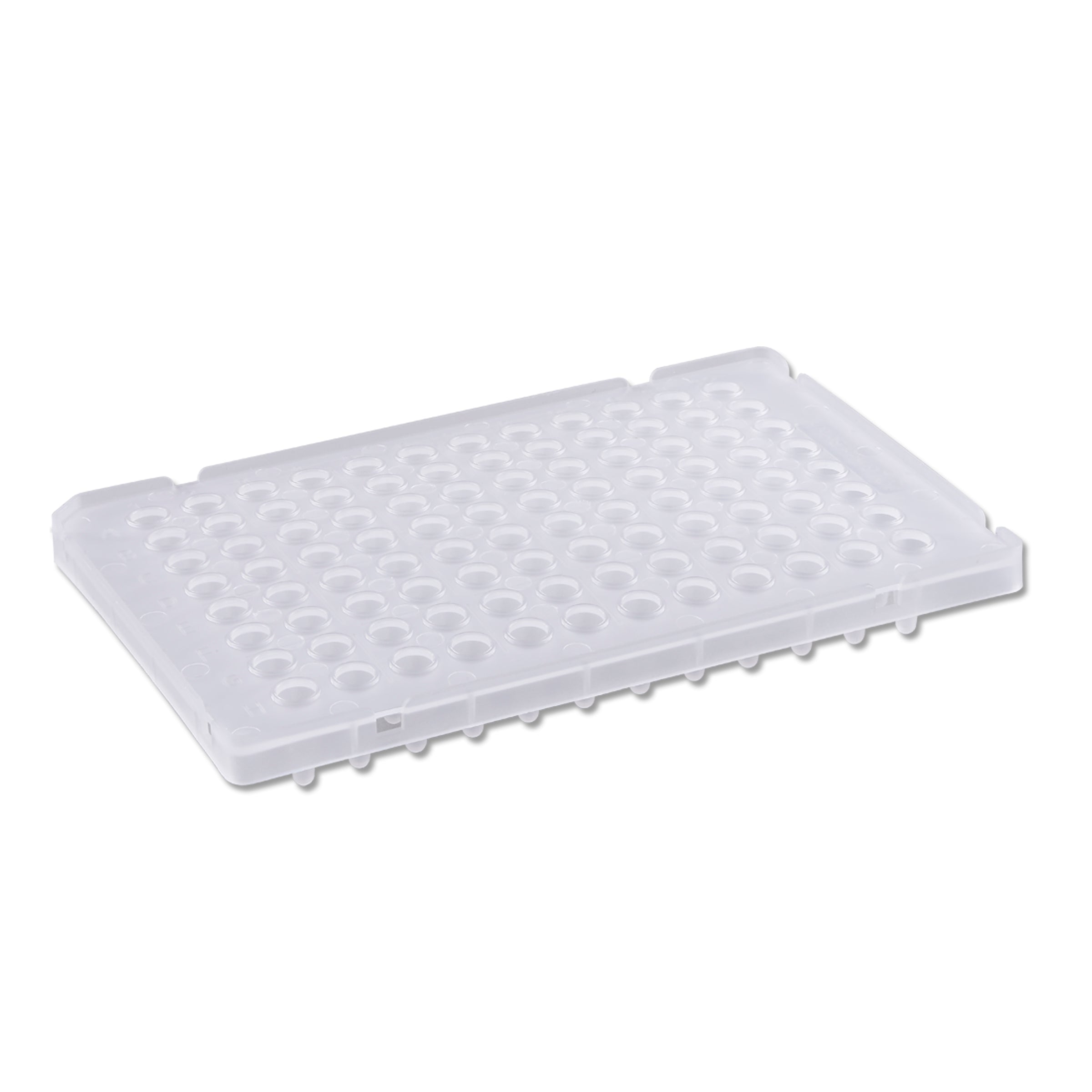

Semi / Half Skirt
Catalog No.: P9601-S, -SW, -SRR, PC10HS-9-N, PC10HS-9-W-LC
Best for: Extra rigidity for pipetting and sealing, on most cyclers
Note: PC10HS-9-W-LC is white, for LightCycler® instruments

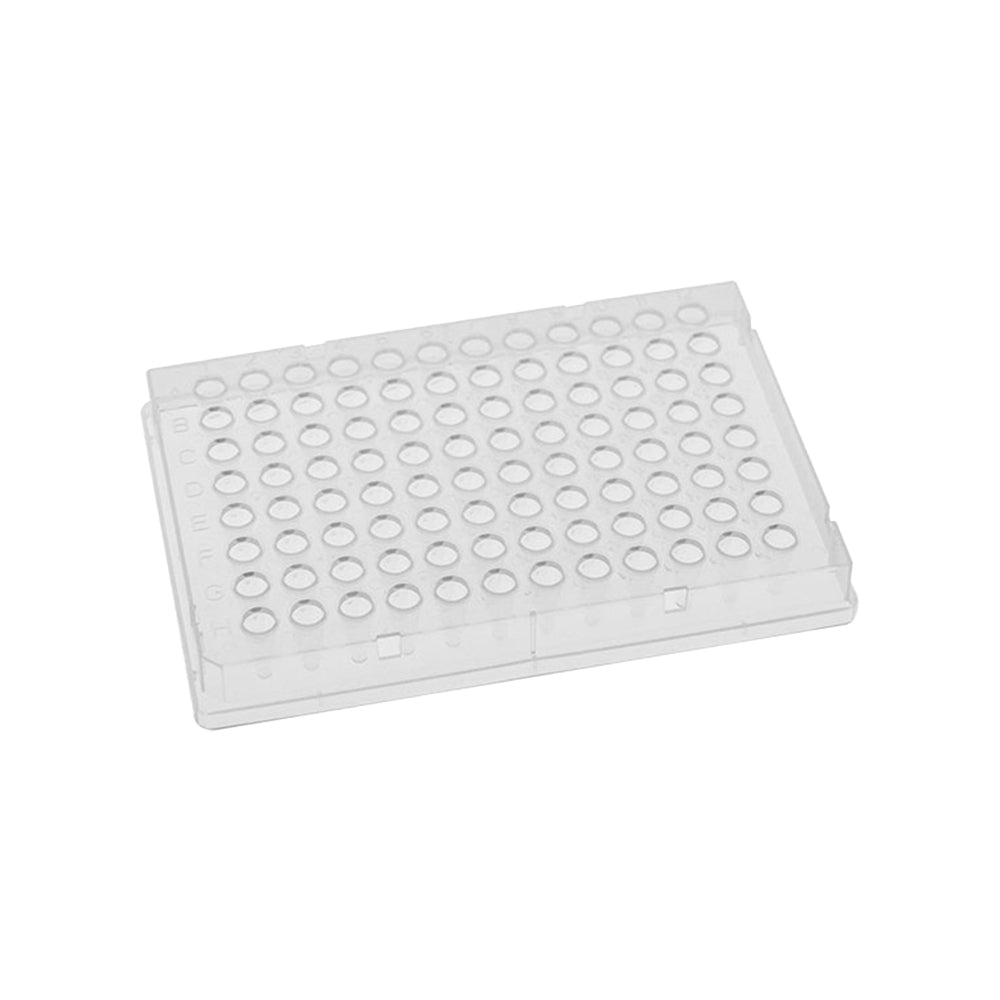

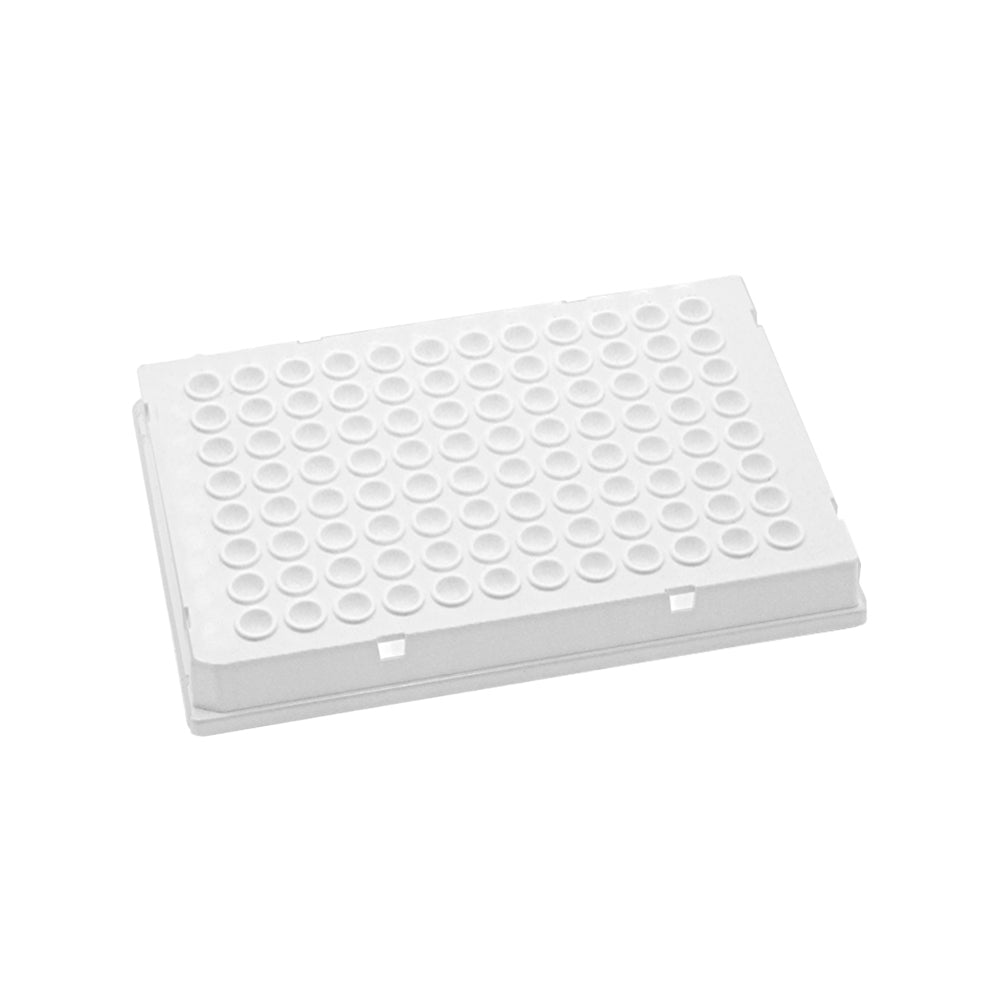

Full Skirt
Catalog No.: PC10FS-9-N, PC10FS-9-W
Best for: Automation, stacking, and barcode labels
Note: Standard SBS footprint for plate handlers

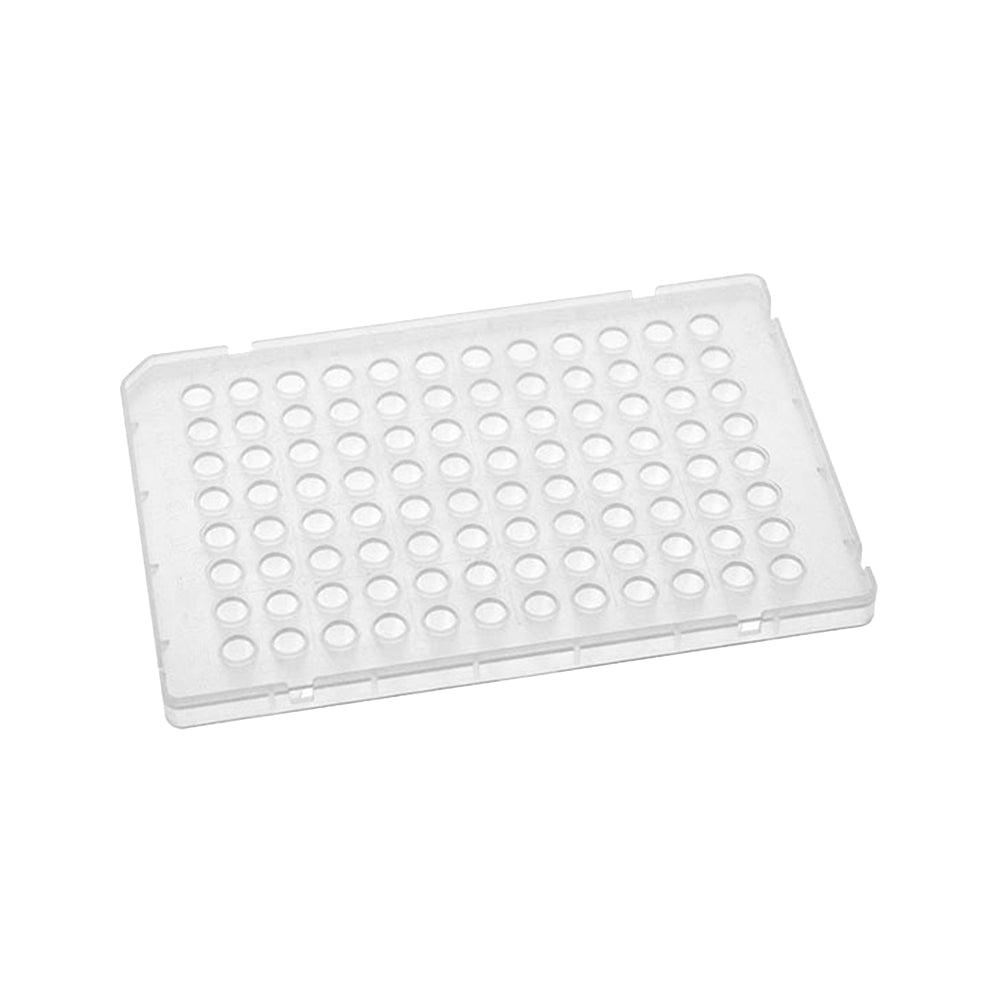

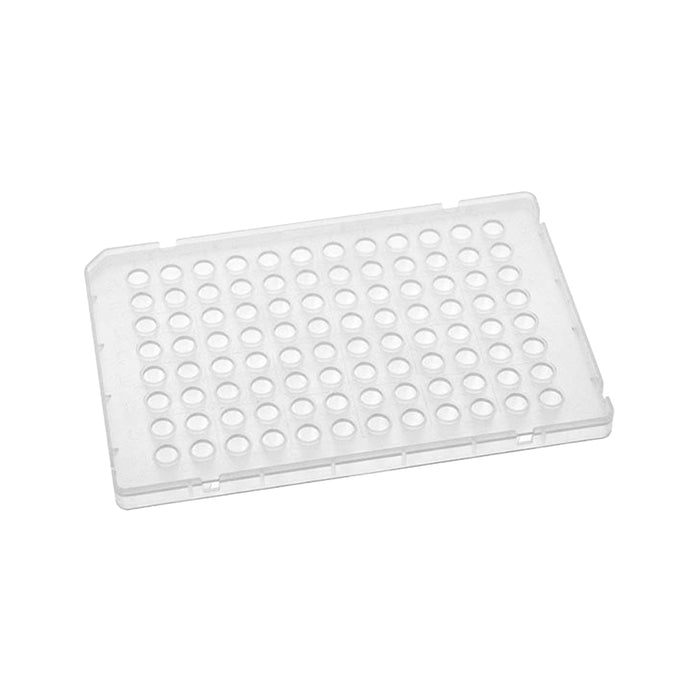

Elevated Skirt
Catalog No.: PC10ES-9-N-ABI
Best for: ABI Fast-style 0.1 mL blocks
Note: Raised rim assists heat sealing
White or Clear?
White wells reflect emitted light up toward a top-reading detector instead of letting it scatter through the plate. For qPCR, that can mean stronger, more uniform signal from well to well.
Clear wells are the standard for endpoint PCR and for any work where you want to see sample volume, bubbles, or pellets. For qPCR in strips instead of plates, see our PureAmp™ qPCR tubes and strips.
ILP Plates for Automation
ILP, now part of MTC Bio, builds its plates for high-throughput and automated labs. The full-skirt PC10FS plates are rigid, with ultra-flat surfaces and a standard SBS footprint that fits plate stackers, handlers, and fixtures. The skirt also gives you room for barcode labels.
ILP plates are made of ultra-clear, virgin, medical-grade polypropylene, with raised rims to help seals seat, and they are packed 10 per resealable bag. The PC10ES-9-N-ABI plate is styled for ABI Fast 0.1 mL blocks.
Typical Applications
- Fast PCR and fast-cycling protocols
- Real-time PCR and RT-qPCR
- Gene expression and genotyping
- High-throughput and automated PCR setup
- Pathogen detection assays
- Sequencing reaction setup
Tip for Even Seals
Seal the plate before it goes on the block, pressing firmly around every well and along the edges, and spin it briefly to pull droplets down. Poorly sealed edge wells lose volume first and are the usual cause of edge effects. Non-skirted plates store neatly in our cardboard PCR freezer boxes.
Frequently Asked Questions
Are these plates a good alternative to Applied Biosystems™ MicroAmp™ Fast or Bio-Rad® low-profile plates?
Yes, for most applications. They are 96-well, 0.1 mL low-profile plates with ultra-thin walls in every common skirt style, including an ABI Fast-style elevated skirt. Confirm the plate style your instrument accepts before ordering. Applied Biosystems™, MicroAmp™, Bio-Rad®, Roche®, and LightCycler® are trademarks of their respective owners; Blue Tiger Scientific is not affiliated.
Will a 0.1 mL plate fit my cycler?
Only if your instrument has a 0.1 mL fast or low-profile block. Standard blocks take 0.2 mL plates; see our 0.2 mL PCR plates. For 384-well blocks, see our 384-well PCR plates.
What is the difference between no skirt, semi-skirt, and full skirt?
A skirt is the plastic frame around the wells. No-skirt plates fit the most blocks and can be cut down. Semi or half skirts add rigidity for pipetting and sealing. Full skirts give a rigid, standard footprint for robots, stackers, and barcode labels.
Which plate fits ABI Fast instruments?
The ILP PC10ES-9-N-ABI plate has an elevated skirt styled for ABI Fast 0.1 mL blocks. Check your instrument manual to confirm.

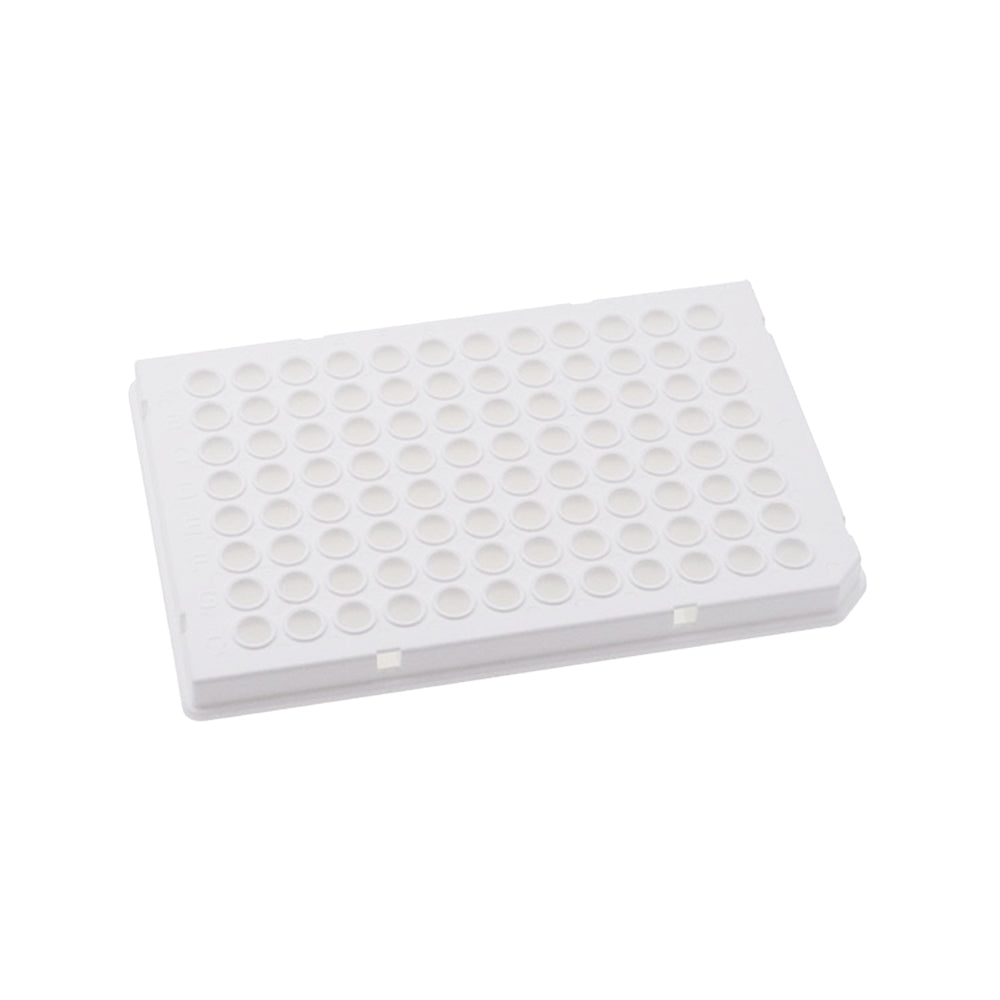

Which plate is for LightCycler® instruments?
PC10HS-9-W-LC is a white, half-skirt 0.1 mL plate designed for LightCycler® instruments.
How do I seal these plates?
Use adhesive sealing films, heat seals, silicone mats, or strip caps. Use optically clear film for qPCR. The raised rims on the P9601-SRR and ILP plates help seals seat evenly. Shop our PCR and qPCR sealing films and foils. For automation or long runs, our SureFrame™ two-component plates stay flat and will not warp.
