A Plate That Stays Flat, So Every Well Performs Alike
Ordinary one-piece polypropylene plates soften and warp in the heat of a thermal cycler. A warped plate lifts away from the heated lid at the edges, outer wells lose volume to evaporation, and amplification drifts across the plate.
SureFrame™ plates are molded from two materials. An ultra-rigid polycarbonate frame holds everything flat and square, while thin-walled polypropylene wells keep the fast, even heat transfer PCR depends on. The result is more uniform data from edge to center, and a plate that robot grippers can handle reliably, run after run.
2 Materials
PC frame, PP wells
No Warping
Flat through every cycle
Robot-Ready
Rigid SBS footprint
96 or 384
Clear or white wells
Why Labs Choose SureFrame™ Plates
Ultra-Rigid Frame
Polycarbonate stays flat and square where single-material plates flex and warp.
Thin-Walled PP Wells
Polypropylene wells keep fast, efficient thermal transfer.
Less Edge Evaporation
A flat plate seals evenly, so outer wells keep their volume.
Built for Automation
Rigid frame and H1 cut corner for grippers, stackers, and handlers.
Clear or White Wells
White wells reflect fluorescence for stronger qPCR signal.
Certified for PCR
Made for amplification from the frame to the wells.
Which SureFrame™ Plate Do I Need?
Match the plate height to your block. Check your instrument manual for low-profile or standard 96-well, or 384-well.
96-Well Low Profile

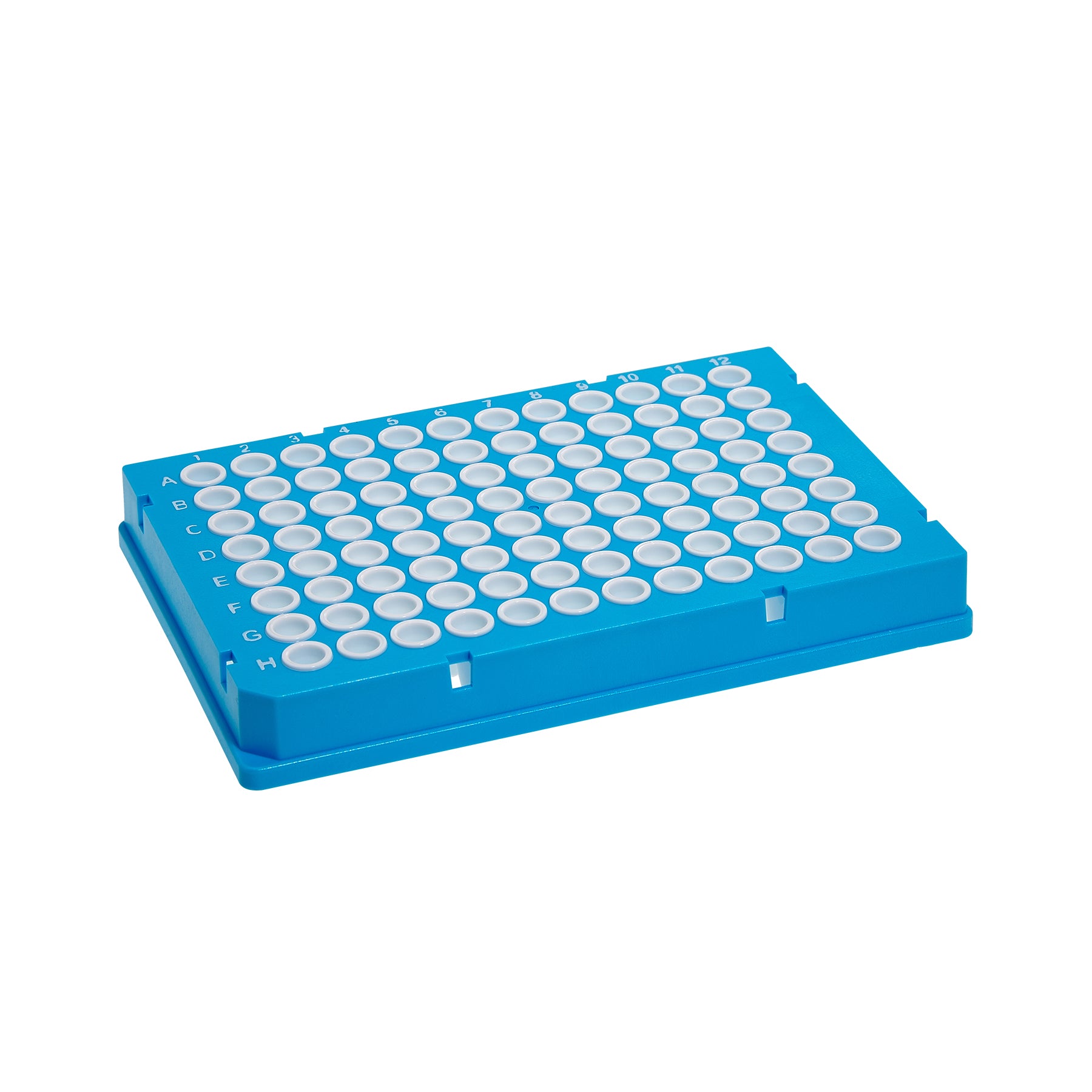

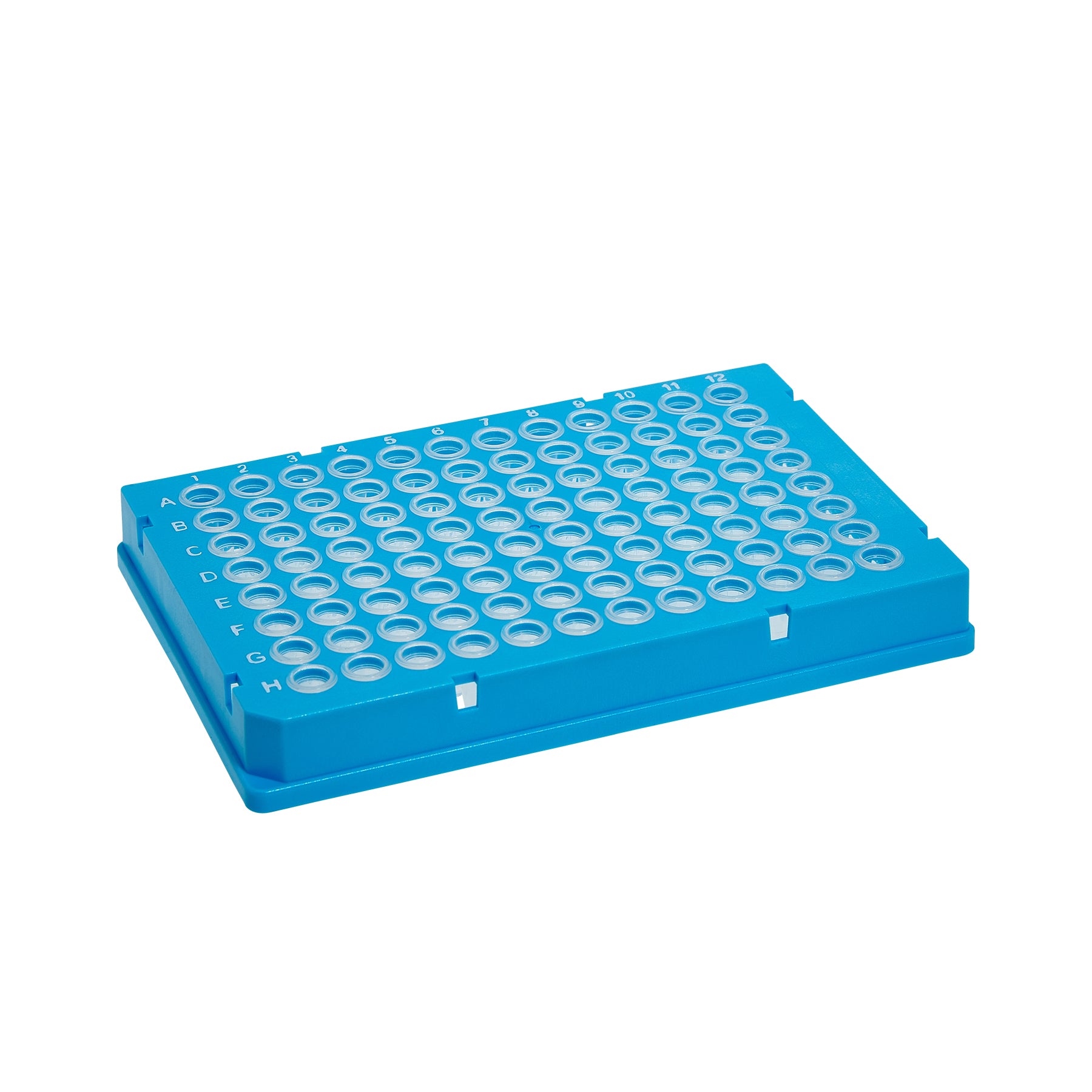

Catalog No.: P9096-FSC (clear), P9096-FSW (white)
Wells: 0.15 mL, full skirt
Best for: Fast and low-profile 96-well blocks
96-Well Standard

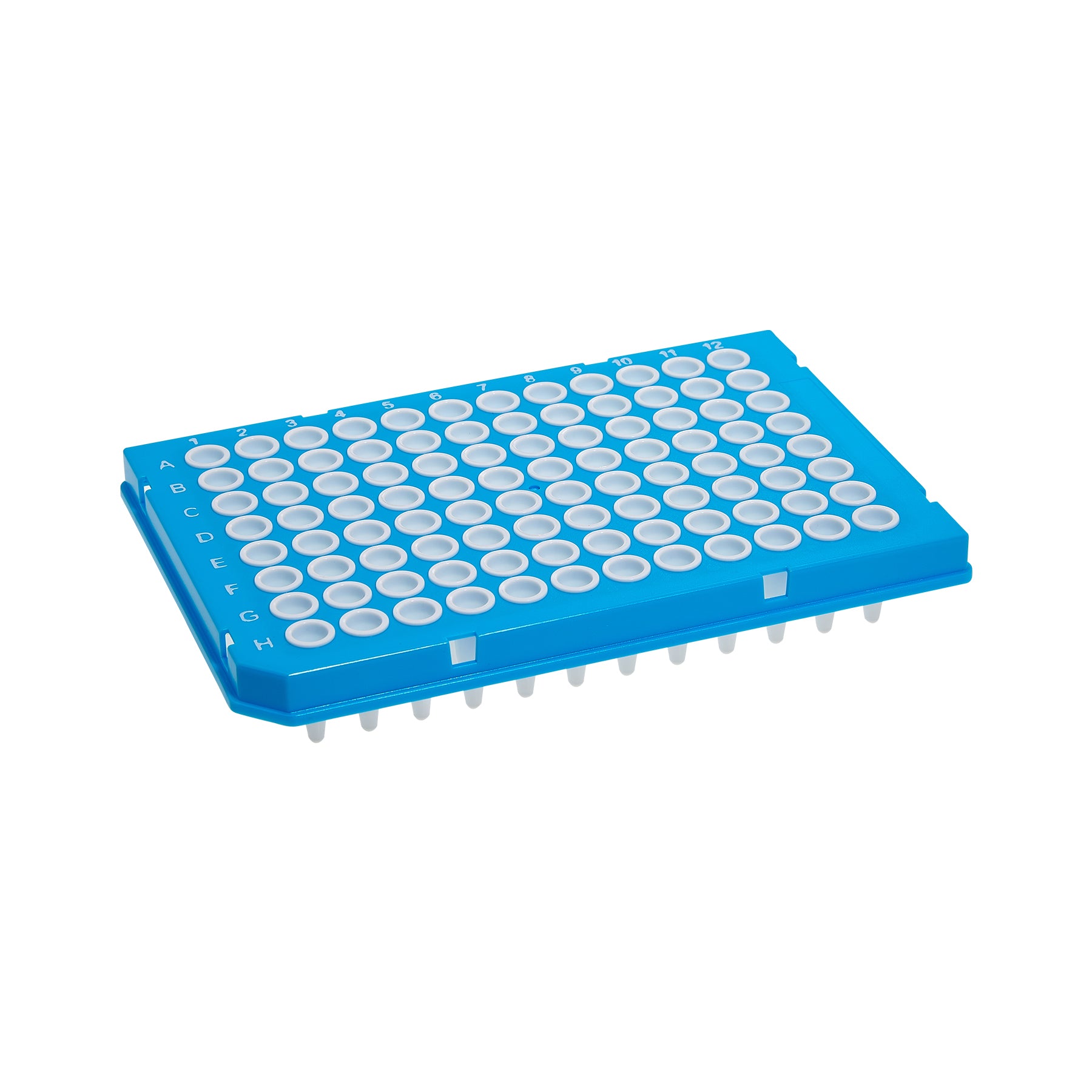

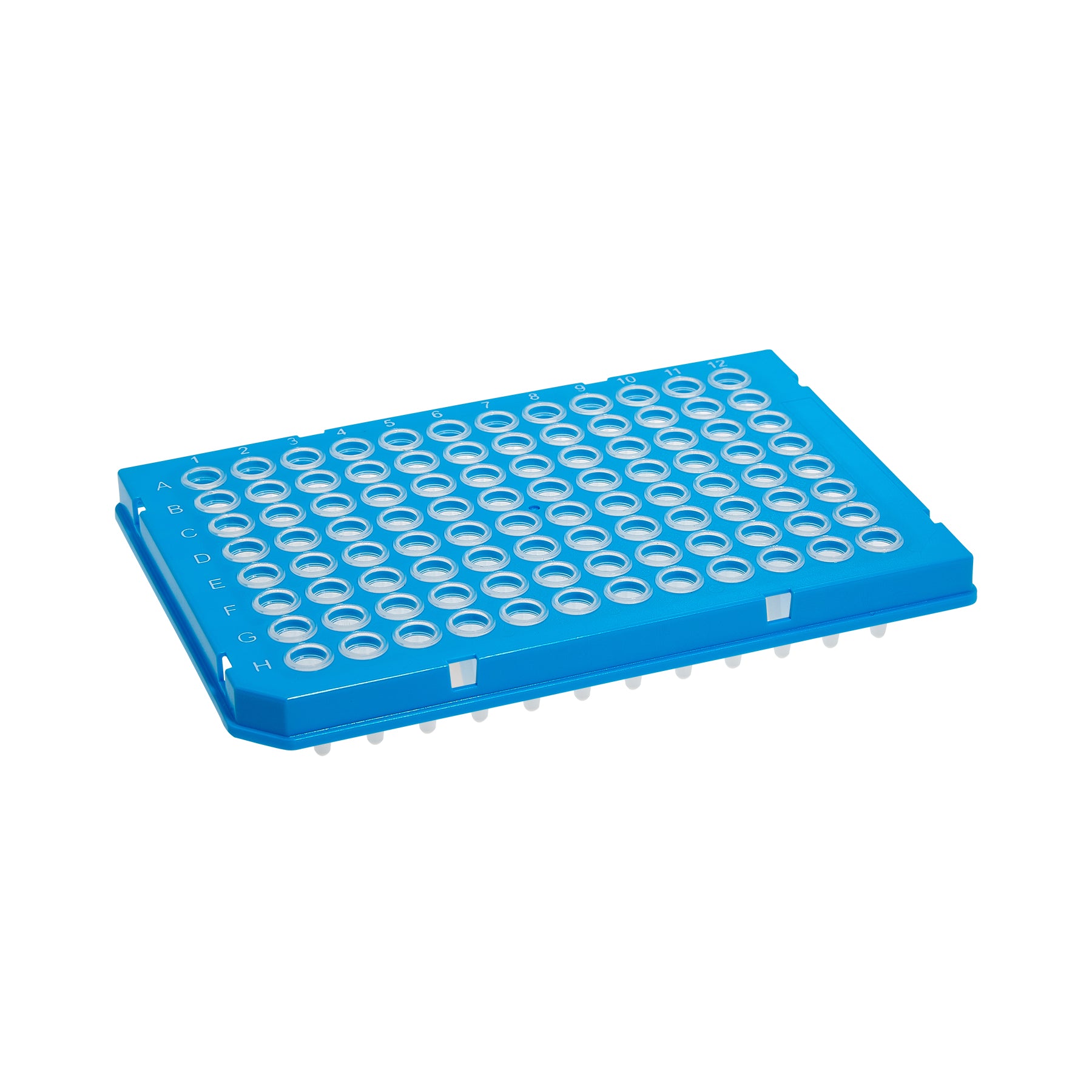

Catalog No.: P9096-HSC (clear), P9096-HSW (white)
Wells: 0.25 mL, semi-skirt
Best for: Standard 0.2 mL 96-well blocks
384-Well

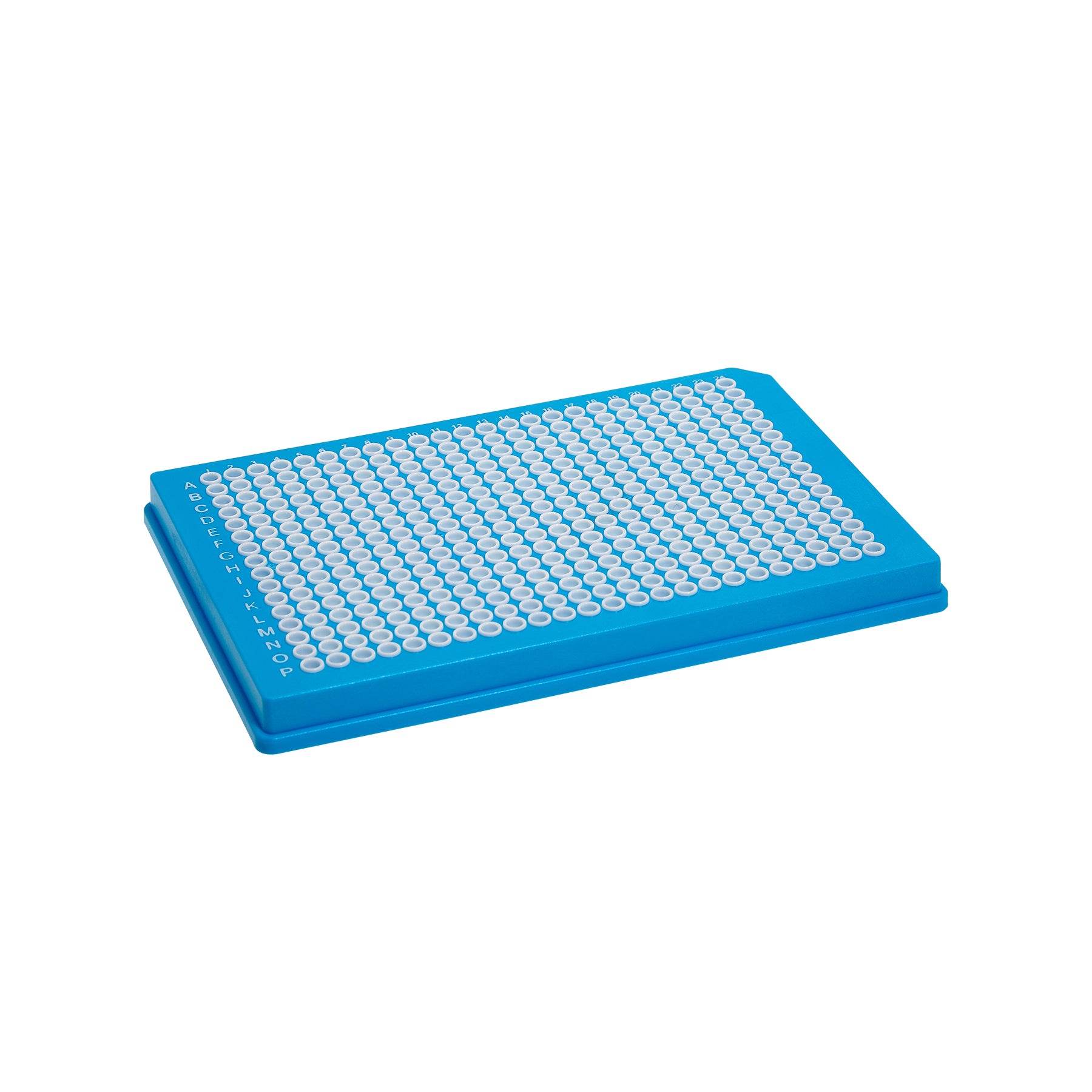

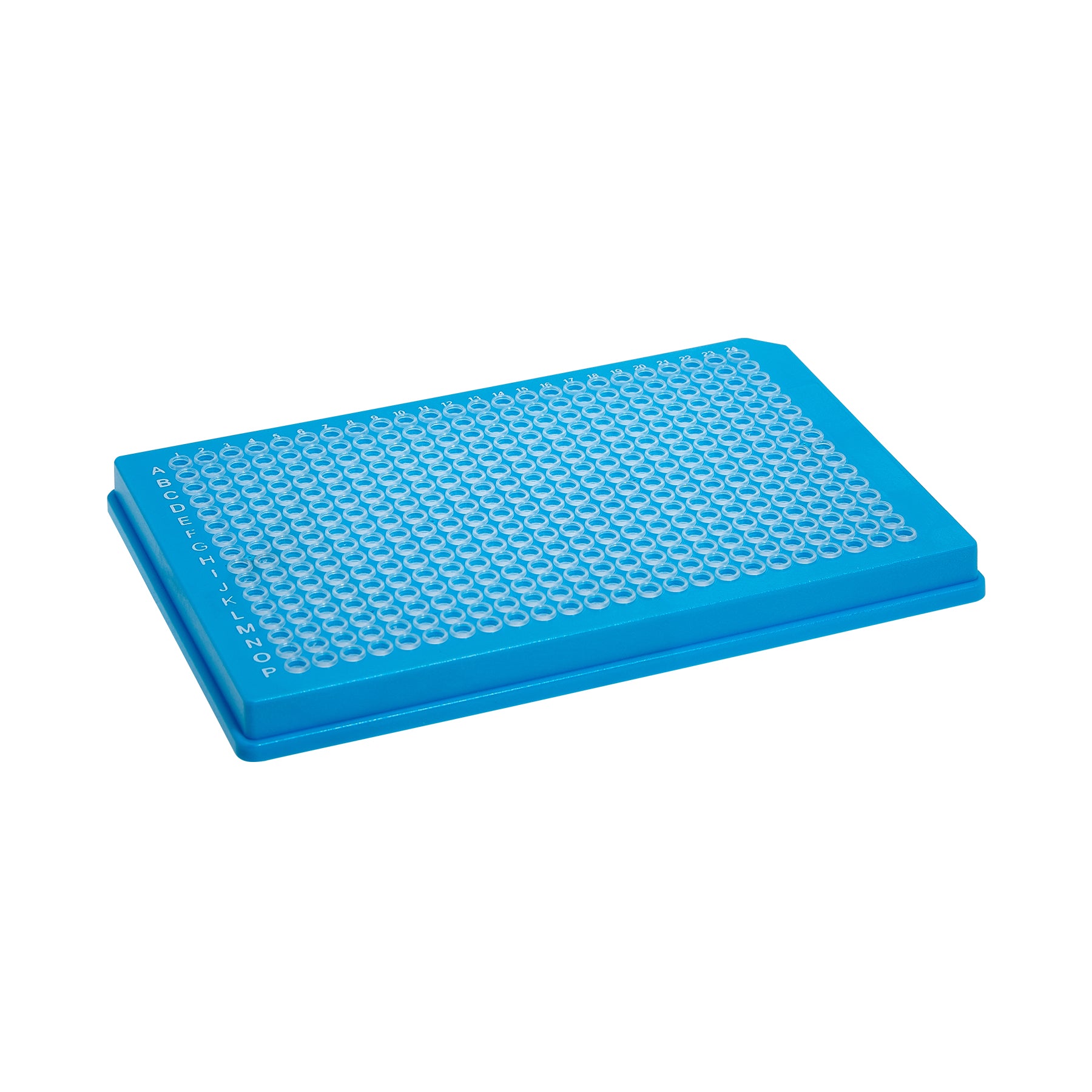

Catalog No.: P9384-FSC (clear), P9384-FSW (white)
Wells: 35 µL, full skirt
Best for: High-throughput 384-well blocks
Why Two Materials Beat One
Polypropylene is the right material for PCR wells: it is inert, thin-walled, and conducts heat well. But on its own it is soft at cycling temperatures, so a one-piece plate can bow and twist.
Polycarbonate is far stiffer. SureFrame™ combines the two, putting polycarbonate where rigidity matters and polypropylene where the sample sits. You get the thermal performance of a standard plate with a frame that holds its shape, which is why SureFrame™ is a strong choice for robotic workflows and long qPCR runs.
384-Well SureFrame™ for High Throughput
At 384-well density, flatness matters even more. Tiny 35 µL reaction volumes leave little margin for evaporation, and plate handlers need a rigid, predictable footprint.
P9384-FSC and P9384-FSW give you a full-skirted, two-component 384-well plate in clear or white. For standard single-material plates, see our 384-well PCR plates.
Typical Applications
- Automated and robotic PCR setup
- Real-time PCR and RT-qPCR
- Long or high-temperature cycling runs
- High-throughput genotyping
- Assays sensitive to edge effects
- 384-well screening
Tip for Uniform Results
A rigid plate only helps if the seal is even. Apply sealing film with firm pressure across every well and around the frame edge, and use an optically clear sealing film for qPCR. For standard single-material plates, see our 0.1 mL low-profile and 0.2 mL 96-well plates.
Frequently Asked Questions
Are SureFrame™ plates a good alternative to Bio-Rad® Hard-Shell® or Thermo Scientific™ Armadillo plates?
Yes, for most applications. Like those plates, SureFrame™ uses a two-component design with a rigid polycarbonate frame and thin-walled polypropylene wells, in 96-well low-profile, 96-well standard, and 384-well formats. Confirm the format your instrument accepts before ordering. Bio-Rad®, Hard-Shell®, Thermo Scientific™, and Armadillo are trademarks of their respective owners; Blue Tiger Scientific is not affiliated.
What does two-component mean?
The plate is molded from two materials: a rigid polycarbonate frame and polypropylene wells. The frame keeps the plate flat, and the wells give fast, even heat transfer.
Why does plate warping matter?
A warped plate does not seal evenly against the heated lid. Outer wells then lose more volume to evaporation, which leads to inconsistent amplification across the plate.
Which SureFrame™ plate fits my cycler?
Use P9096-FSC or -FSW (0.15 mL, full skirt) for low-profile 96-well blocks, P9096-HSC or -HSW (0.25 mL, semi-skirt) for standard 96-well blocks, and P9384-FSC or -FSW for 384-well blocks.
Are SureFrame™ plates good for automation?
Yes. The rigid polycarbonate frame and H1 cut corner give robot grippers and plate handlers a consistent, flat footprint.
Why choose white wells?
White wells reflect fluorescence toward the detector for stronger real-time PCR signal. Clear wells are standard for endpoint PCR.
