APERA INSTRUMENTS / SX721 / AI463

pH and ORP in one case.
Two sensors, measured one at a time.

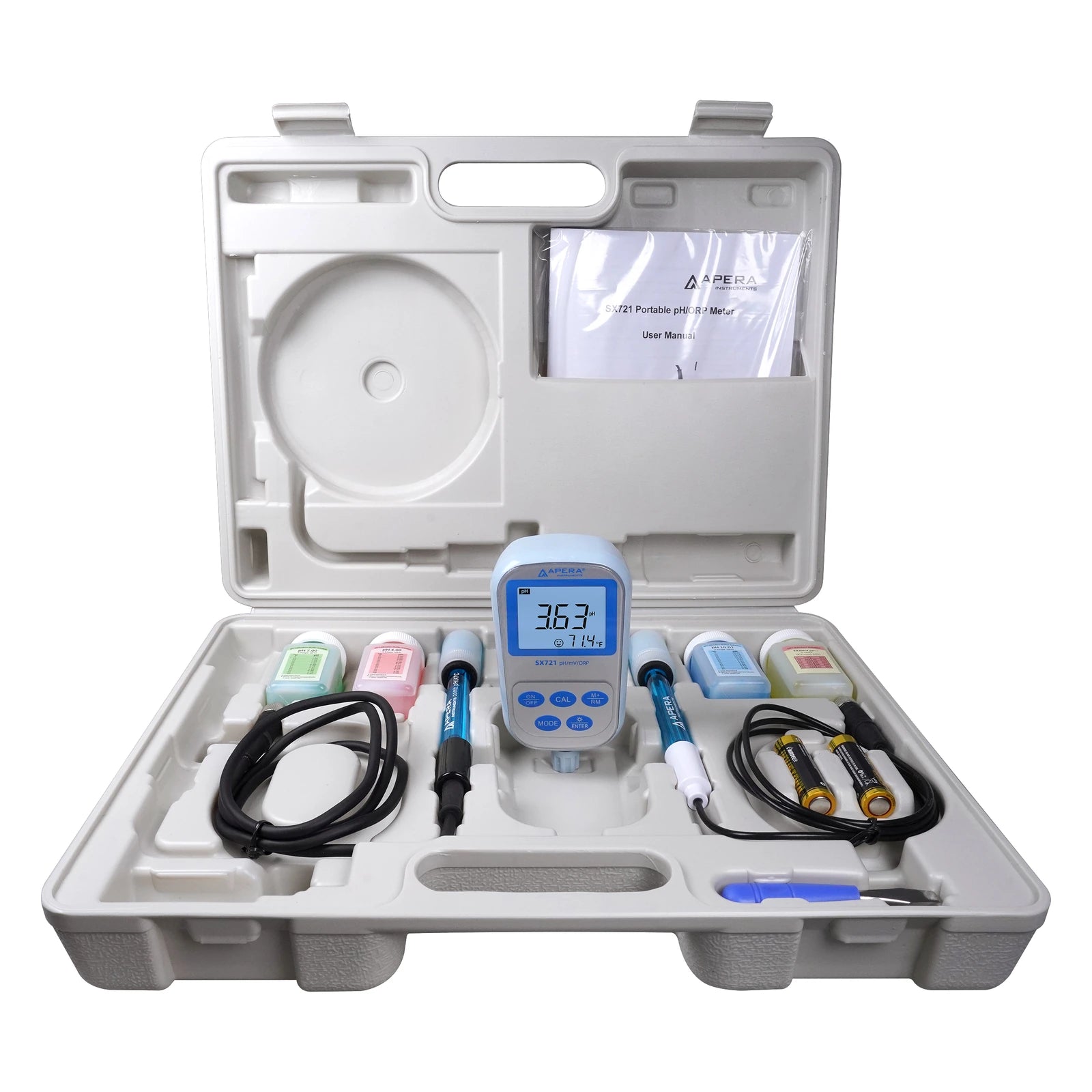

SX721 combines the 201T-S pH/temperature electrode and 301Pt-S platinum ORP electrode with a portable meter, pH buffers and an ORP check solution. Exchange the probes at the locking 8-pin input and the meter recognizes the connected electrode. This is a sequential pH/ORP workflow, not simultaneous two-channel measurement.

Choose AI463 when both acidity and oxidation-reduction potential matter during a field round. The two supplied probes serve different measurements: pH glass with temperature sensing, and a platinum ORP ring with an Ag/AgCl reference. Local memory can support a worksheet, but this model is not a timed USB logger.

Automatic recognition is a mode change

Connect the pH electrode for pH measurement, then disconnect it and connect the ORP electrode for ORP. The manual shows one locking input, and each procedure specifies the electrode to install. A manufacturer composite image showing both probes describes the kit selection, not a promise that both sensors can measure together through a splitter.

Treat ORP as its own measurement

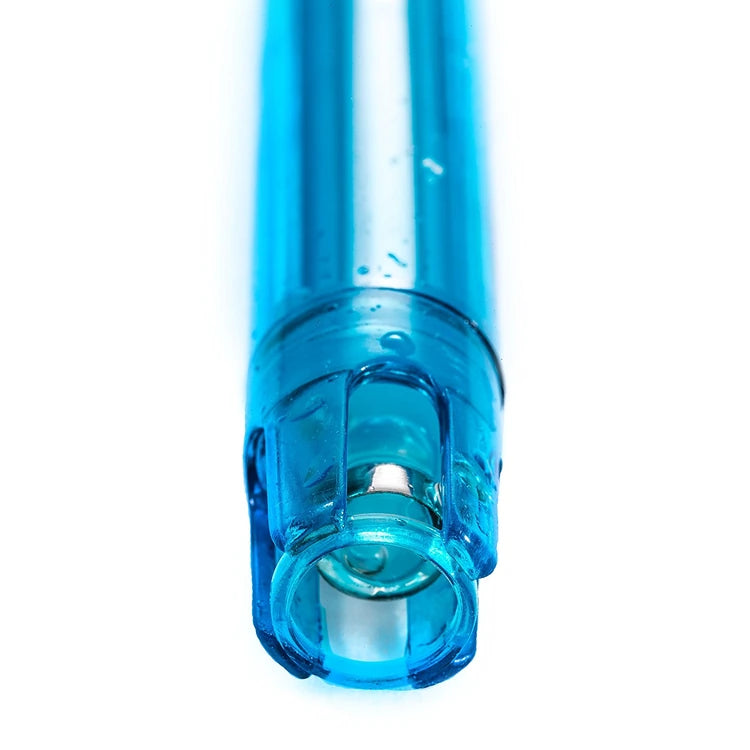

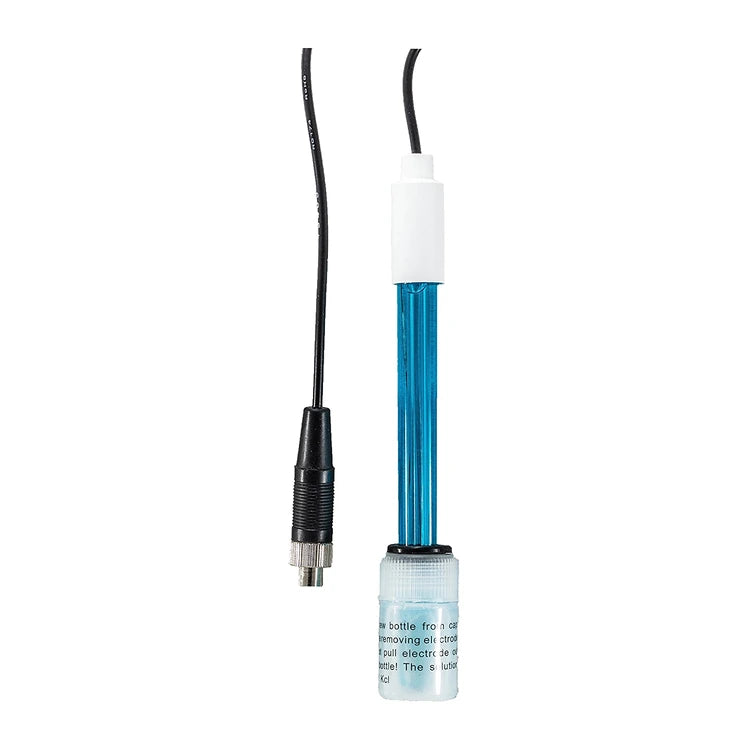

The supplied 301Pt-S uses a platinum sensing ring and gel KCl reference system. The SX721 manual says ORP does not require user calibration; the 222 mV solution checks electrode response and can help condition the sensor. The expected value depends on temperature: the manual lists 227 mV at 20°C, 222 mV at 25°C and 215 mV at 30°C. No ORP ATC is documented.

Choose useful controls over software complexity

A stability icon, backlight and manual save/recall controls help keep the measurement process visible. Set the backlight duration and automatic power-off to suit the round. These timers do not schedule measurements. The instrument retains values for local review, while sample names, actual collection times, probe checks and operator observations belong in your separate record.

Know what this configuration supplies.

Water-treatment pH and redox rounds

Use separate pH and ORP observations to track compatible aqueous process conditions. Keep sample collection, mixing, dwell time and sensor cleanliness consistent. ORP is influenced by multiple chemical species and the reference system; it is not a direct concentration assay for chlorine or another disinfectant.

Aquaculture and environmental comparisons

Compare the same sites under a consistent procedure instead of treating a single redox number as a universal target. Measure pH with the 201T-S, then fit the ORP probe. Note sample temperature independently for ORP interpretation because the pH electrode’s temperature sensor is not simultaneously connected during the ORP reading.

A practical upgrade from a pH-only kit

AI463 already includes the separate ORP sensor and a current-page ORP checking solution, avoiding the mistaken assumption that pH mV alone measures redox. It remains a compact field instrument rather than a multi-channel station. Conductivity and dissolved oxygen require different equipment; neither capability is added by the ORP probe.

Calibrate the pH channel.
Keep recognition separate from point count.

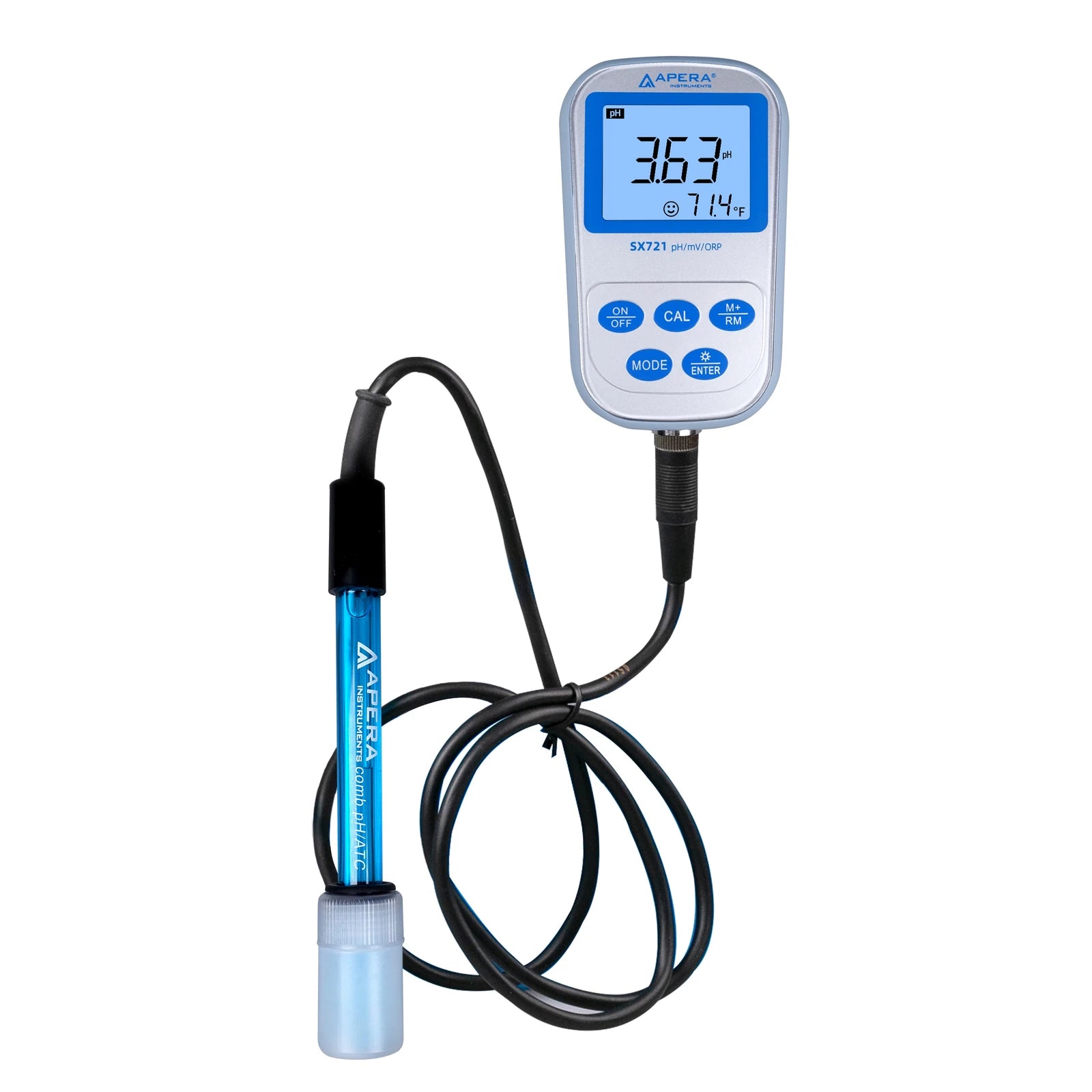

Connect the 201T-S with the notch aligned to the meter socket. Push straight in while holding the metal ring, then tighten that ring. Do not rotate the black rubber cable sleeve. Remove the storage bottle without spilling its KCl, rinse the tip with distilled or deionized water, and gently remove excess rinse water without rubbing the glass membrane.

For the supplied USA buffers, begin with pH 7.00. Press CAL, immerse the electrode, stir briefly and hold it still. Wait until the stability symbol stays on, then confirm as directed by the manual. Rinse between solutions and continue with pH 4.00 and pH 10.01 for three-point calibration. Use fresh, separate portions and never return used buffer to the original bottle.

The meter supports one, two or three calibration points. Select buffers that bracket the expected samples; a new pH electrode requires three-point calibration. The USA set lists 1.68, 4.00, 7.00, 10.01 and 12.45; NIST lists 1.68, 4.01, 6.86, 9.18 and 12.45. A China series is also selectable. The current page’s “13 kinds” wording describes recognition, not thirteen calibration points or thirteen included bottles. Match the selected series to the actual bottle labels.

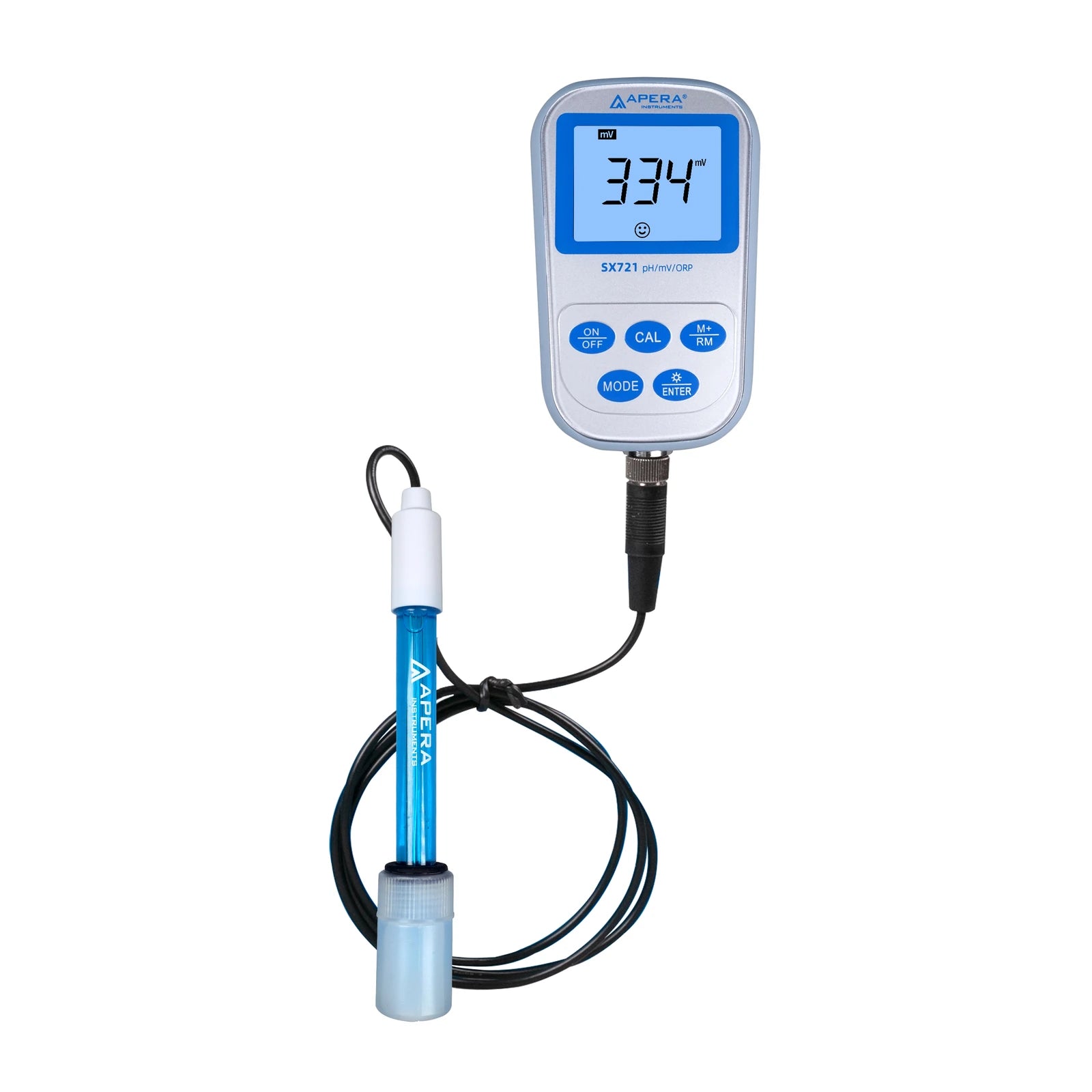

For ORP, connect the 301Pt-S, remove its storage bottle, rinse and immerse the sensing end. Stir briefly, then allow the result to stabilize. Check performance using the supplied 222 mV standard and the temperature table in the exact SX721 manual. This is verification of response, not a pH-style calibration point. Do not judge an ORP check against 222 mV at every sample temperature.

Store the pH sensor in KCl.
Protect the connector and the glass.

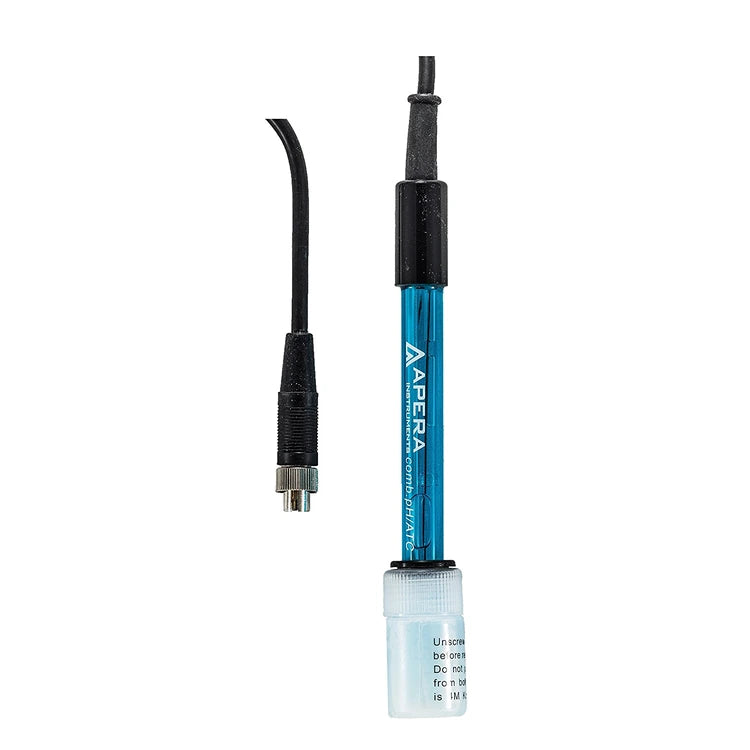

Rinse the 201T-S before and after each measurement, then return it to its cap with enough Apera 3M KCl storage solution to cover the sensing tip. Pure water is appropriate for rinsing, not for storing this pH electrode. Keep the bottle upright and renew contaminated storage solution. The gel reference electrolyte is not user-refillable.

The current 201T-S page specifies 0 to 13 pH and 0 to 60°C, while its PDF specifies 0 to 14 pH and 0 to 80°C. Treat the narrower current-page limits as the buying guide and confirm demanding applications before ordering. The PDF additionally cautions against prolonged use above 50°C, frequent strong acid or alkali measurements, low-ionic-strength water and liquids that attack the polycarbonate housing. A wide meter display does not remove those probe limitations.

Clean according to the exact electrode guide, using a treatment suitable for the contamination rather than abrasive scrubbing. Rehydrate and recalibrate after cleaning. Keep plugs dry, clean and protected when disconnected. The IP57 rating is an enclosure protection specification, not a promise that an exposed connector or glass sensing bulb can tolerate immersion, drops, solvents or unrestricted chemical exposure.

The ORP probe needs its own cleaning routine. A dirty platinum surface can respond slowly or give misleading results even when the display stabilizes. The SX721 manual describes conditioning in ORP standard and different cleaning treatments for inorganic and organic deposits. Follow those instructions and applicable chemical-safety procedures; do not transfer an ORP polishing treatment to the pH glass membrane.

Read the display. Check the measurement mode.

Use the physical controls for measurement, calibration and the documented record functions. Check units, temperature, calibration indicators and the selected parameter before assigning a result to a sample. Screen values in photographs are illustrative, not sample results. The model-specific record and output workflow is explained below.

Follow the exact parameter-specific calibration procedure, using the required standard, solution or calibration atmosphere. Temperature compensation does not make different sample temperatures, preparation methods or chemistry equivalent. Follow the model-specific meter and electrode instructions before extending the method to a new sample.

Pair each stored result with a sample ID.
Resolve the capacity wording before planning a long round.

The current SX721 specification table and exact v3.0 manual both specify 200 stored sets. The same current page’s feature paragraph says 400. We use the 200-set specification and disclose the conflict instead of promising the larger figure. Stored fields are serial number, value, unit and temperature; no clock or date field is documented.

Saving is manual: wait for stability, short-press the save key, then use a long press to enter recall. Preserve the sample identifier and which probe was connected in your worksheet. The meter’s general temperature field does not establish that the separate ORP electrode measures temperature or that ORP readings receive temperature compensation.

No timed interval logger, USB export, computer software or app connection is documented for SX721. Copy records before using the delete-all command in recall mode. Saving pH and ORP as separate records is not a simultaneous paired measurement or an automatically timestamped record of changing process conditions.
