APERA INSTRUMENTS / PH850-WW / AI5531

Dirty-water pH.
A simpler field workflow.

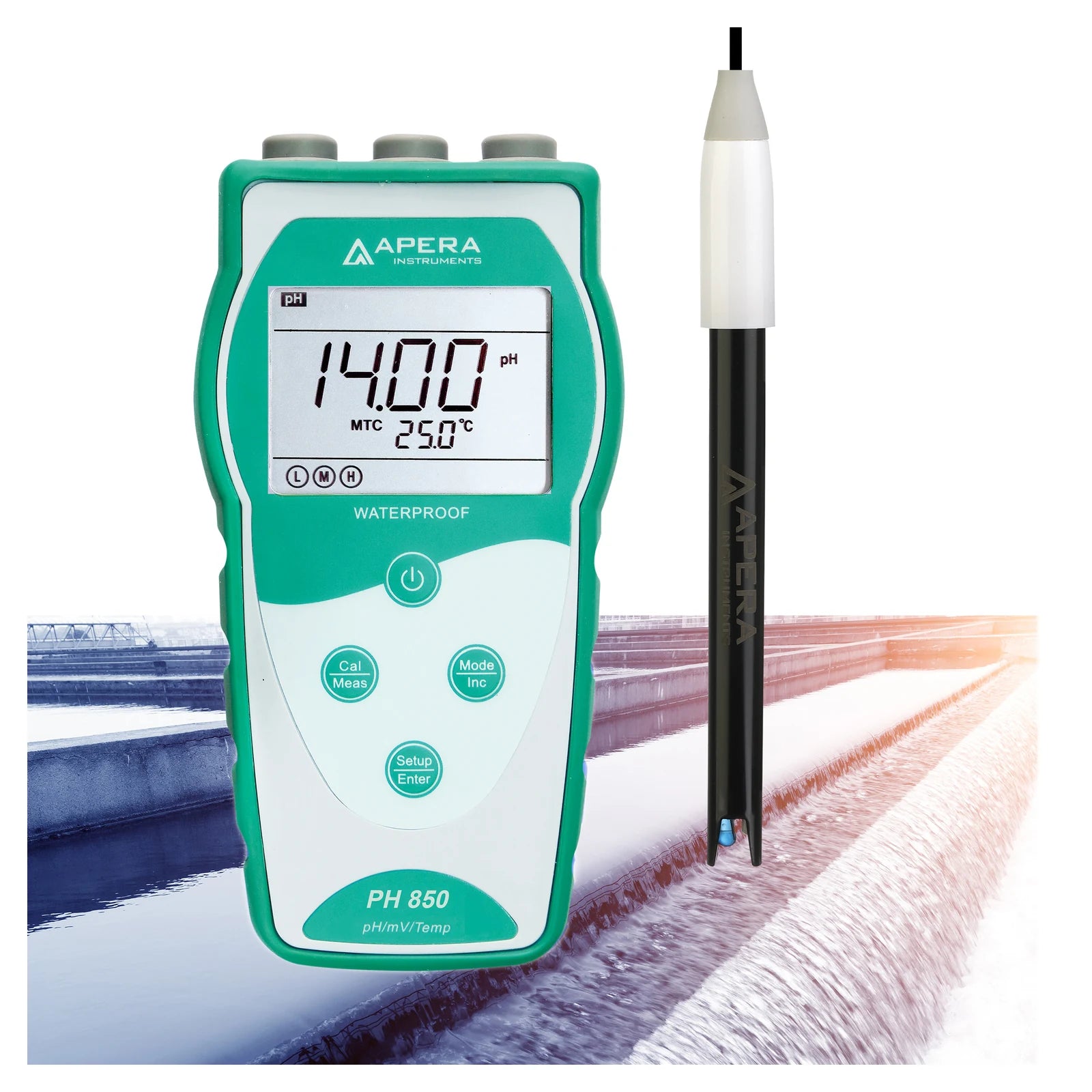

PH850-WW combines the PH850 Value-series meter with the LabSen 333 pH/temperature electrode for wastewater, emulsions and suspensions. Its POM body, open junction and polymer reference suit samples that can foul ordinary electrodes. Read pH and temperature together, then enter the result in your own field or laboratory record.

Choose this kit for compatible collected dirty-water samples when you want direct measurement without onboard logging. The instrument’s ±0.01 pH ±1 digit accuracy describes the meter, not a guarantee against sample interference, probe contamination or inconsistent preparation.

A reference built for difficult liquids

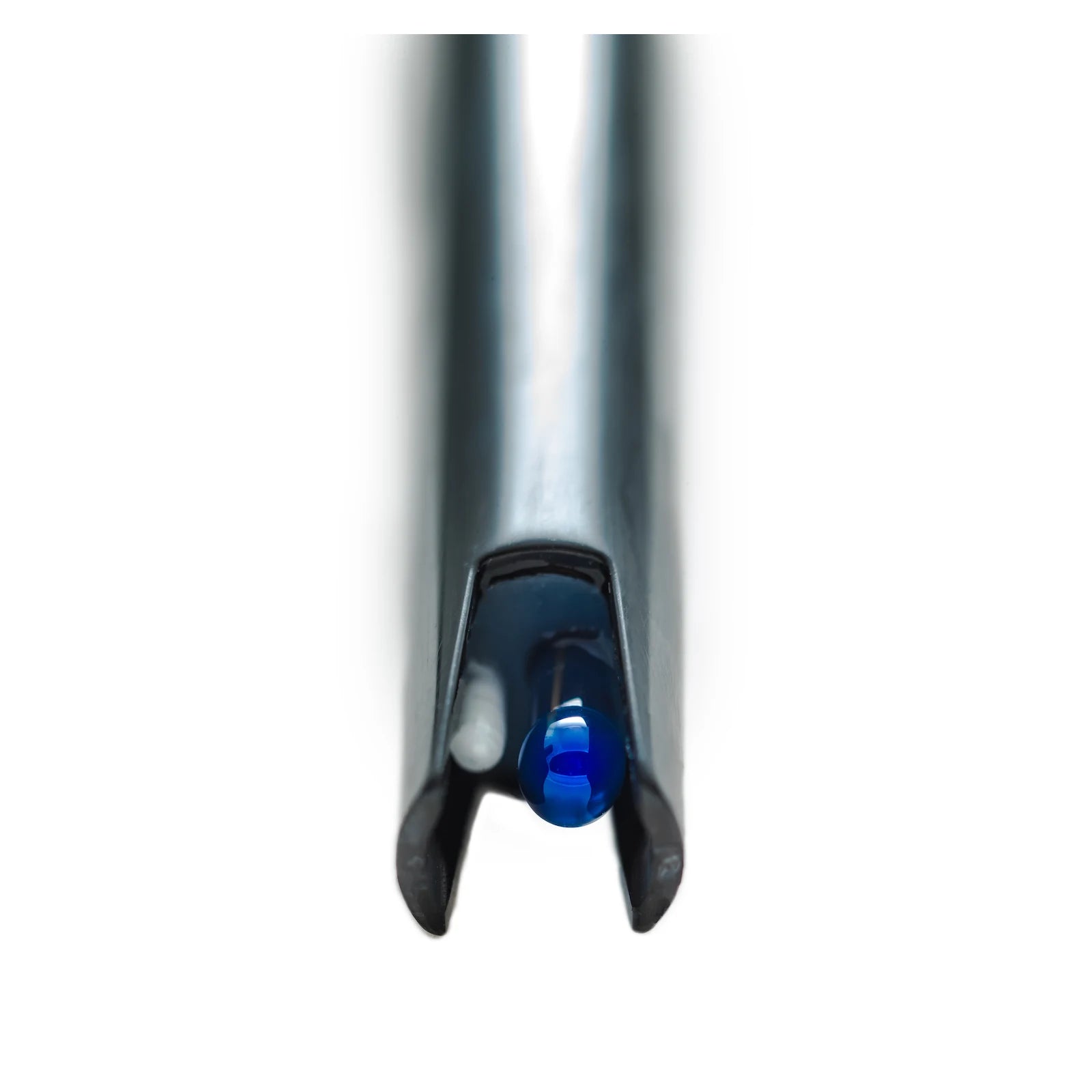

An open junction gives the polymer electrolyte contact with the sample, reducing the reliance on a small porous junction. LabSen 333 needs no electrolyte refill. This design supports wastewater work, but deposits can still affect the sensing surface and measurement quality. Routine cleaning remains part of the job.

A readable field instrument

The backlit LCD shows pH and temperature together, with completed-calibration indicators and a stability symbol. The silicone sleeve and IP57-rated instrument enclosure support field handling, while the fold-out stand supports tabletop readings. Keep the electrical connectors clean and dry.

Two signals through one electrode

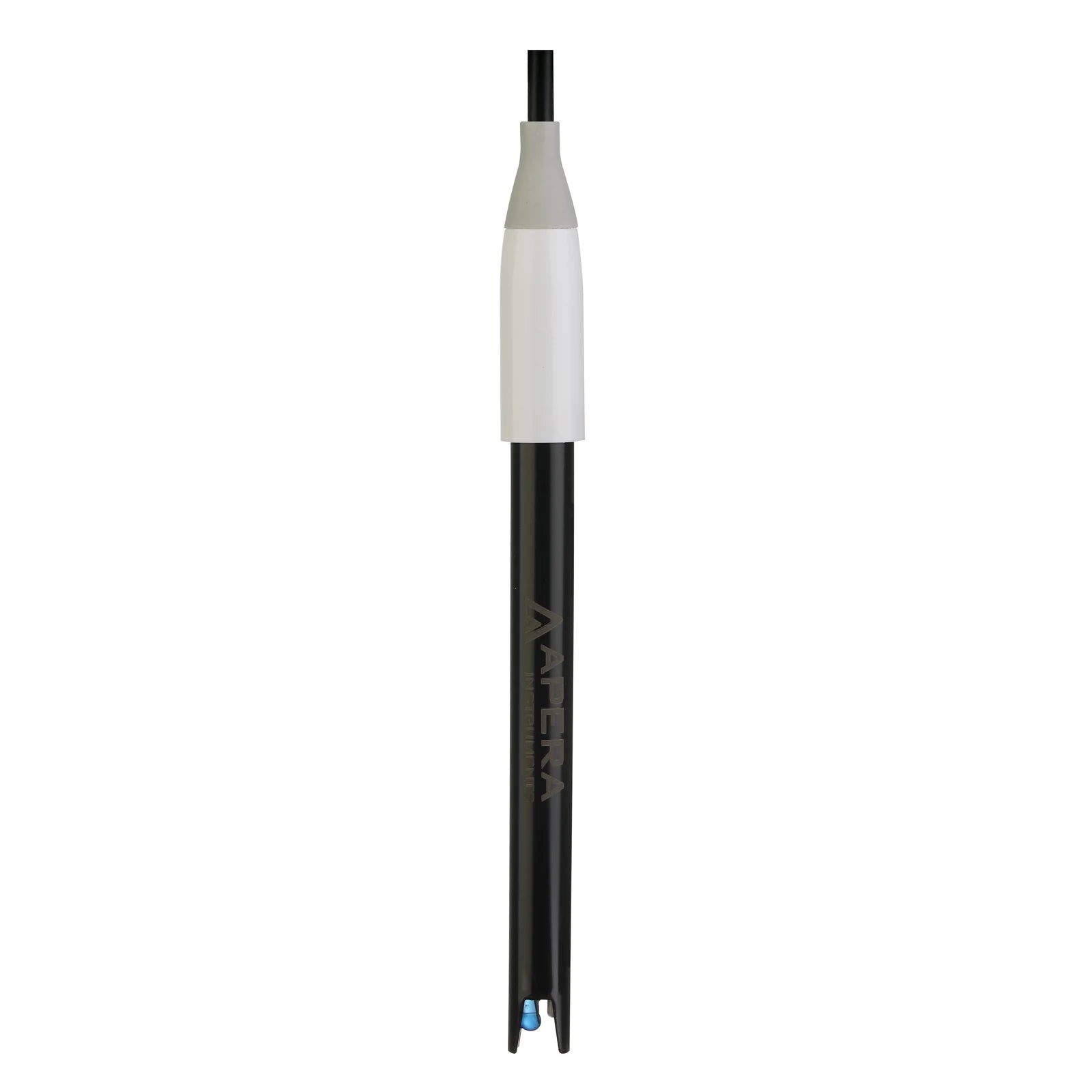

The supplied probe combines pH sensing with an NTC 30 kΩ temperature sensor. Its BNC and RCA plugs connect separately to the meter. Check temperature-input compatibility before using another meter.

Know what this configuration supplies.

Wastewater and effluent checks

Measure compatible collected wastewater or treated effluent under a consistent sampling procedure. Record location, sample identity and temperature. A spot pH measurement does not by itself establish treatment performance or compliance.

Emulsions and suspensions

The open junction and polymer reference suit many dispersed aqueous samples. Establish a repeatable mixing and immersion method, and clean between samples so carryover does not become a hidden source of error.

Turbid process liquids

Use for compatible dirty-water samples that challenge conventional junctions. Neither the POM body nor the reference design guarantees resistance to every chemical, solids loading or abrasive slurry. Confirm suitability before testing an unfamiliar formulation.

Collect consistently.
Read after stabilization.

Connect the blue BNC plug for pH and the black RCA plug for temperature. Both functions are in the supplied electrode, with an integrated NTC 30 kΩ sensor. Start calibration at pH 7.00 in the USA buffer series, then add appropriate acidic or alkaline points. Use fresh buffer portions and rinse between solutions.

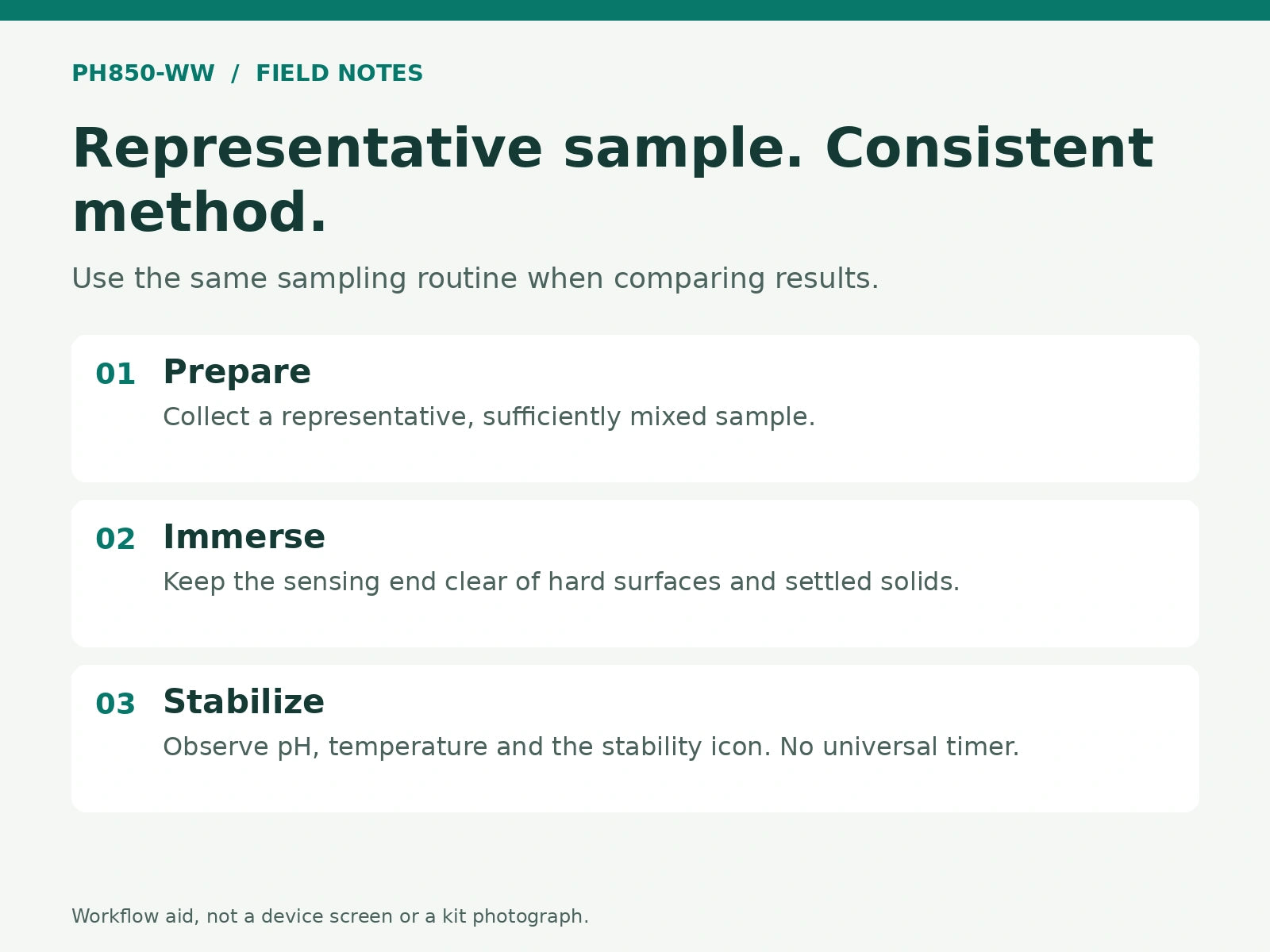

Remove the storage bottle and rinse the probe before measuring. Calibrate at least two points when fitting a new electrode. Choose a representative, sufficiently mixed sample and immerse the sensing end without striking the vessel or burying the tip in settled solids. Keep the immersion procedure consistent.

Allow the measured temperature and pH to settle, then use the stability indication before recording. Match calibration and measurement temperatures as closely as practical. The temperature sensor enables compensation of electrode response, not correction of all sample chemistry. Start with a conservative 0 to 13 pH working window for the supplied electrode.

No reference refill.
Still a daily care routine.

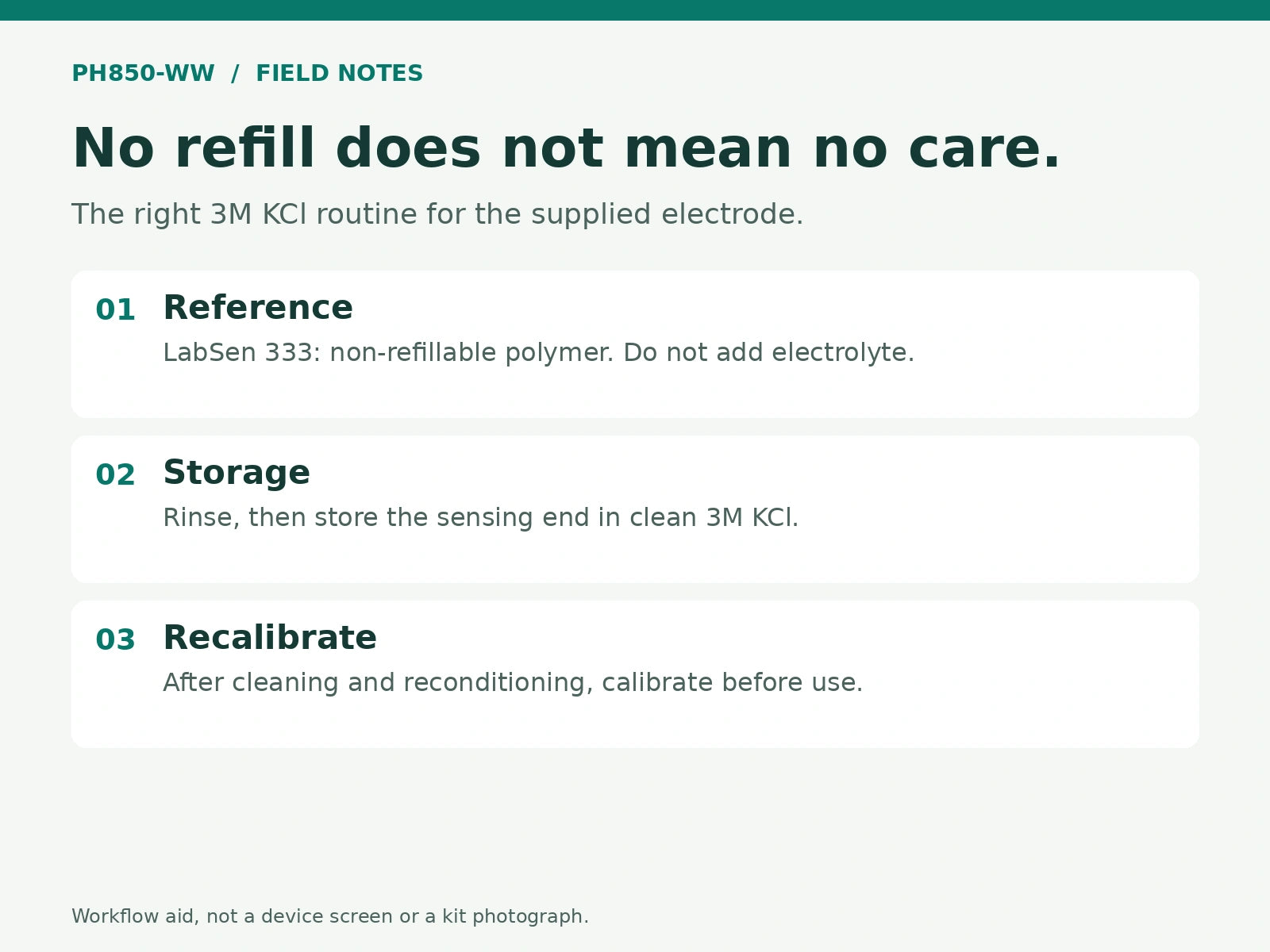

LabSen 333 contains a non-refillable polymer reference. Do not open it to add liquid electrolyte. The 3M KCl used outside the electrode is soaking solution for the storage bottle, not an internal refill. Keep the sensing glass and junction hydrated between sessions.

Rinse thoroughly before and after each measurement, then put the electrode back into its storage bottle with fresh, clean 3M KCl as needed. Do not store it in distilled or deionized water. The protective POM body does not make the exposed sensing tip unbreakable.

For stubborn contamination, follow the LabSen 333 cleaning procedure, recondition in 3M KCl and recalibrate. Avoid scraping the sensing surface. Strong acids, strong alkalis and dehydrating media require particular caution. Keep the probe within 0 to 80°C, regardless of the wider meter temperature display.

A stable reading is the start of the record.

Use the physical controls for on-meter measurement and calibration. HOLD temporarily locks a reading on screen; write the result and its sample context in your external worksheet or record system. Screen values in photographs are illustrative, not sample results.

Use calibration solutions and settings appropriate to the parameter and fitted electrode. Temperature compensation does not make different sample temperatures, preparation methods or chemistry equivalent. Follow the model-specific meter and electrode instructions before extending the method to a new sample.

Read it. Record it. Keep your own sample log.

PH850 is a direct-reading Value-series instrument, not a data logger. There is no supported stored-reading recall, timed logging or computer export workflow for this model.

The stability icon helps you decide when to read. Optional automatic HOLD freezes a stable displayed result for transcription; it does not create a saved sample record. Record sample identity, pH, measured temperature, operator and your own date and time while the sample is still identifiable.

Keep calibration buffer details, electrode condition and any unusual drift alongside the result. A notebook or spreadsheet supplies the history; this kit does not promise software or automated reporting.
