Name: MTC Bio Automation Reservoirs – Single Well, 96 & 384-Indent, 4, 8 & 12-Channel, OptiWell™ & ILP
Brand: MTC Bio
SKU: BTS-RES10SW-FLAT
Price: 267.29 USD
Availability: InStock

Global shipping available. Please request a quote to receive customized pricing for your region.

MTC Bio Automation Reservoirs – Single Well, 96 & 384-Indent, 4, 8 & 12-Channel, OptiWell™ & ILP Single Well · Open Trough ILP Low Height · 100 mL · Flat Bottom Reagent Reservoirs MTC Bio

MTC Bio Automation Reservoirs – Single Well, 96 & 384-Indent, 4, 8 & 12-Channel, OptiWell™ & ILP Single Well · Open Trough ILP Mid Height · 190 mL · Flat Bottom Reagent Reservoirs MTC Bio

MTC Bio Automation Reservoirs – Single Well, 96 & 384-Indent, 4, 8 & 12-Channel, OptiWell™ & ILP Single Well · Open Trough Reagent Reservoirs MTC Bio

MTC Bio Automation Reservoirs – Single Well, 96 & 384-Indent, 4, 8 & 12-Channel, OptiWell™ & ILP Single Well · 96 Indents ILP Low Height · 100 mL · Non-Sterile Reagent Reservoirs MTC Bio

MTC Bio Automation Reservoirs – Single Well, 96 & 384-Indent, 4, 8 & 12-Channel, OptiWell™ & ILP Single Well · 96 Indents ILP Mid Height · 150 mL · Non-Sterile Reagent Reservoirs MTC Bio

MTC Bio Automation Reservoirs – Single Well, 96 & 384-Indent, 4, 8 & 12-Channel, OptiWell™ & ILP Single Well · 96 Indents ILP Full Height · 290 mL · Non-Sterile Reagent Reservoirs MTC Bio

MTC Bio Automation Reservoirs – Single Well, 96 & 384-Indent, 4, 8 & 12-Channel, OptiWell™ & ILP Single Well · 96 Indents Reagent Reservoirs MTC Bio

MTC Bio Automation Reservoirs – Single Well, 96 & 384-Indent, 4, 8 & 12-Channel, OptiWell™ & ILP Single Well · 96 Indents ILP Mid Height · 150 mL · Sterile · Individually Wrapped (10 cs) Reagent Reservoirs MTC Bio

MTC Bio Automation Reservoirs – Single Well, 96 & 384-Indent, 4, 8 & 12-Channel, OptiWell™ & ILP Single Well · 384 Indents ILP Low Height · 100 mL · Non-Sterile Reagent Reservoirs MTC Bio

MTC Bio Automation Reservoirs – Single Well, 96 & 384-Indent, 4, 8 & 12-Channel, OptiWell™ & ILP Single Well · 384 Indents ILP Mid Height · 150 mL · Non-Sterile Reagent Reservoirs MTC Bio

MTC Bio Automation Reservoirs – Single Well, 96 & 384-Indent, 4, 8 & 12-Channel, OptiWell™ & ILP Single Well · 384 Indents ILP Full Height · 290 mL · Non-Sterile Reagent Reservoirs MTC Bio

MTC Bio Automation Reservoirs – Single Well, 96 & 384-Indent, 4, 8 & 12-Channel, OptiWell™ & ILP Single Well · 384 Indents Reagent Reservoirs MTC Bio

MTC Bio Automation Reservoirs – Single Well, 96 & 384-Indent, 4, 8 & 12-Channel, OptiWell™ & ILP Single Well · 384 Indents ILP Mid Height · 150 mL · Sterile · Individually Wrapped (10 cs) Reagent Reservoirs MTC Bio

MTC Bio Automation Reservoirs – Single Well, 96 & 384-Indent, 4, 8 & 12-Channel, OptiWell™ & ILP Single Well · 8 Troughs ILP Full Height · 290 mL · Non-Sterile Reagent Reservoirs MTC Bio

MTC Bio Automation Reservoirs – Single Well, 96 & 384-Indent, 4, 8 & 12-Channel, OptiWell™ & ILP Single Well · 12 Troughs ILP Full Height · 290 mL · Non-Sterile Reagent Reservoirs MTC Bio

MTC Bio Automation Reservoirs – Single Well, 96 & 384-Indent, 4, 8 & 12-Channel, OptiWell™ & ILP 4 Channels Reagent Reservoirs MTC Bio

MTC Bio Automation Reservoirs – Single Well, 96 & 384-Indent, 4, 8 & 12-Channel, OptiWell™ & ILP 8 Channels Reagent Reservoirs MTC Bio

MTC Bio Automation Reservoirs – Single Well, 96 & 384-Indent, 4, 8 & 12-Channel, OptiWell™ & ILP 8 Channels ILP Low Height · 96 mL (12 mL Channel) · Non-Sterile Reagent Reservoirs MTC Bio

MTC Bio Automation Reservoirs – Single Well, 96 & 384-Indent, 4, 8 & 12-Channel, OptiWell™ & ILP 8 Channels ILP Mid Height · 144 mL (18 mL Channel) · Non-Sterile Reagent Reservoirs MTC Bio

MTC Bio Automation Reservoirs – Single Well, 96 & 384-Indent, 4, 8 & 12-Channel, OptiWell™ & ILP 8 Channels ILP Full Height · 256 mL (32 mL Channel) · Non-Sterile Reagent Reservoirs MTC Bio

MTC Bio Automation Reservoirs – Single Well, 96 & 384-Indent, 4, 8 & 12-Channel, OptiWell™ & ILP 8 Channels ILP Mid Height · 144 mL · Sterile · Individually Wrapped (10 cs) Reagent Reservoirs MTC Bio

MTC Bio Automation Reservoirs – Single Well, 96 & 384-Indent, 4, 8 & 12-Channel, OptiWell™ & ILP 12 Channels Reagent Reservoirs MTC Bio

MTC Bio Automation Reservoirs – Single Well, 96 & 384-Indent, 4, 8 & 12-Channel, OptiWell™ & ILP 12 Channels ILP Low Height · 96 mL (8 mL Channel) · Non-Sterile Reagent Reservoirs MTC Bio

MTC Bio Automation Reservoirs – Single Well, 96 & 384-Indent, 4, 8 & 12-Channel, OptiWell™ & ILP 12 Channels ILP Mid Height · 144 mL (12 mL Channel) · Non-Sterile Reagent Reservoirs MTC Bio

MTC Bio Automation Reservoirs – Single Well, 96 & 384-Indent, 4, 8 & 12-Channel, OptiWell™ & ILP 12 Channels ILP Full Height · 264 mL (22 mL Channel) · Non-Sterile Reagent Reservoirs MTC Bio

MTC Bio Automation Reservoirs – Single Well, 96 & 384-Indent, 4, 8 & 12-Channel, OptiWell™ & ILP Reservoir Cover (Lid) cs Reagent Reservoirs MTC Bio

MTC Bio Automation Reservoirs – Single Well, 96 & 384-Indent, 4, 8 & 12-Channel, OptiWell™ & ILP

$267.29

Automation reservoirs that drop into any SBS deck position. Pick your layout, then your version: OptiWell™ or ILP, low to full height, sterile or not.

Every layout: Open, 96/384-indent, trough, 4/8/12-channel
Low dead volume: Pyramid and V-shaped indents
Robot-ready: ANSI/SLAS footprint, rigid and flat
Certified clean: RNase/DNase- and pyrogen-free

Reservoir

Version

See All Specs

aeroplane.png__PID:119d4b1a-2623-400c-8fa4-aec5b49a3bf0

Fast Delivery

Most items ship same day

protection.png__PID:4b1a2623-e00c-4fa4-aec5-b49a3bf05f92

Manufacturer Warranty

All products are covered by manufacturer warranty

technical-support.png__PID:e00c8fa4-aec5-449a-bbf0-5f923431936b

After-Sale Support

24/7 support

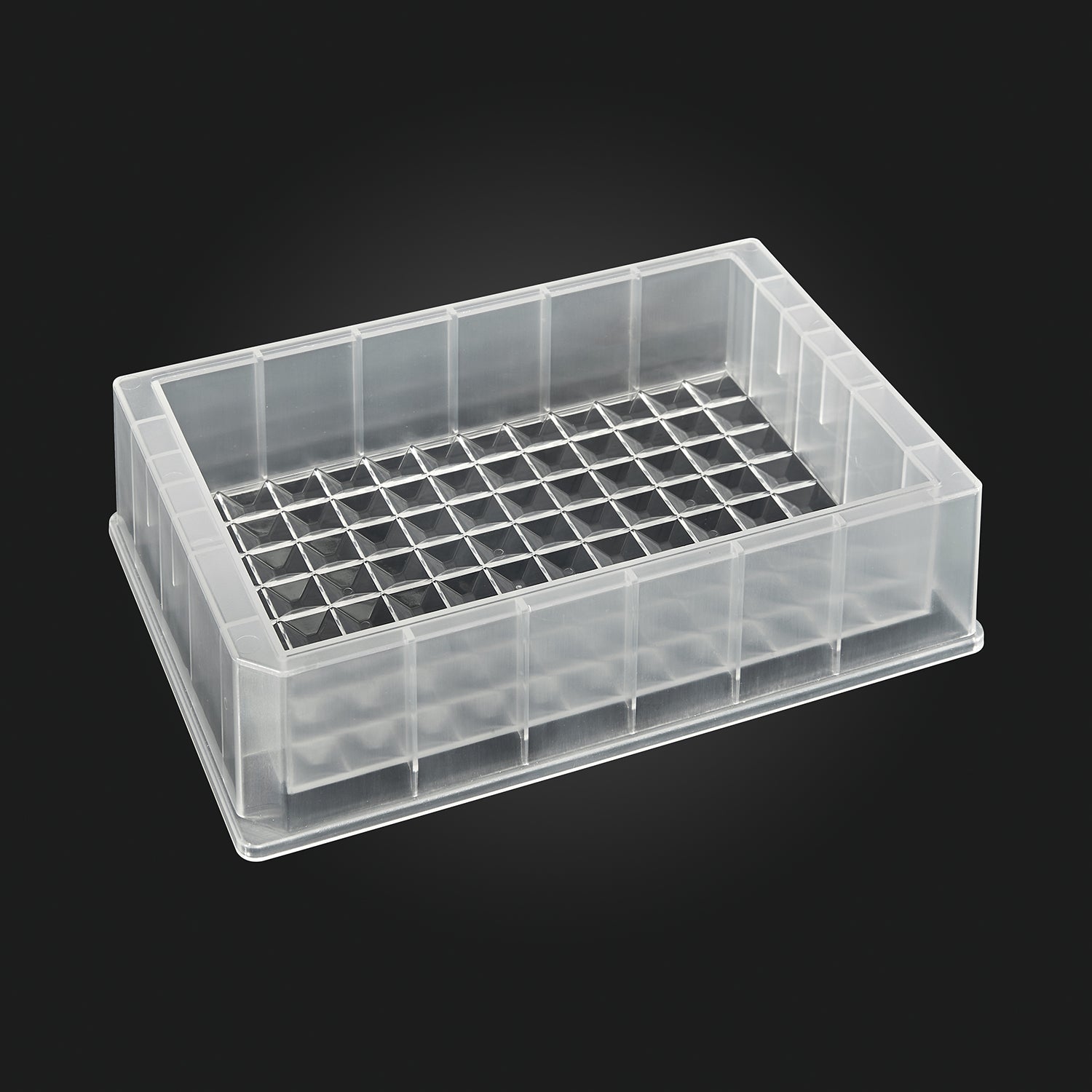

MTC Bio OptiWell D3390-96 automation reservoir, single well with 96 pyramid indents

Reagent Reservoirs Built for Robots and Multichannel Pipettes

An automation reservoir is the plate-shaped trough your liquid handler draws reagent from. These sit on a standard ANSI/SLAS footprint, so they drop into the same deck positions, stackers, and cooling blocks as a microplate, and they work just as well under an 8-, 12-, or 96-channel pipette on the bench.

Pick your layout in the first menu, from an open single well to 96- or 384-indent wells, troughs, and 4-, 8-, or 12-channel reservoirs, then choose your version in the second: MTC Bio OptiWell™ or ILP in low, mid, or full height, sterile or non-sterile. The price updates with every choice.

96–290 mL

Working volume

1 to 384

Wells or indents

3 Heights

Low, mid, and full

SBS

ANSI/SLAS footprint

Why Labs Choose These Reservoirs

Robot-Ready Footprint
ANSI/SLAS dimensions for liquid handlers, plate stackers, grippers, and cooling blocks.

Low Dead Volume
Pyramid and V-shaped indents funnel reagent to each tip so less is left behind.

Rigid and Flat
Warp-resistant, ultra-flat construction keeps every tip at the same depth.

Inert Polypropylene
Chemically inert, low-binding virgin polypropylene.

Certified Clean
RNase-, DNase-, and pyrogen-free, with sterile options.

Autoclavable
Autoclavable, and freezable to −80 °C for storing prepared reagents.

Which Reservoir Do I Need?

Match the layout to your pipetting head, then pick the height your deck and hood allow. For benchtop pipetting with a manual multichannel, see our ASPIR-8™ and standard solution reservoirs.

Single Well, 96 or 384 Indents

Best for: 96- or 384-channel heads drawing one reagent

Why: Each tip sits in its own indent for low dead volume

Volumes: 100–290 mL

Open Trough or 8/12 Troughs

Best for: Bulk reagent, washes, and 8- or 12-tip heads

Why: Largest open volume for one reagent

Volumes: 100–290 mL

4, 8, or 12 Channels

Best for: Several reagents in one plate position

Why: Separate channels keep reagents apart

Volumes: 96–264 mL total

Low, Mid, or Full Height

Low: Smallest volume, most space saved

Mid: ILP mid-height uses 30–40% less vertical space than full

Full: Largest capacity per reservoir

MTC Bio ILP RES19SW-96-N mid-height reservoir, single well with 96 indents

ILP Reservoirs in Three Heights

ILP, now part of MTC Bio, makes its reservoirs in low, mid, and full height. Low-height reservoirs hold about 100 mL, mid-height 144 to 190 mL, and full-height up to 290 mL, all on the same footprint.

Shorter reservoirs save space in freezers, automated loaders, and under the hood, and can be filled and stacked. Sterile, individually wrapped mid-height reservoirs are available 10 per case for single-use setups.

MTC Bio OptiWell D3390-4 automation reservoir with 4 channels

OptiWell™ Reservoirs and Covers

MTC Bio's OptiWell™ reservoirs are about 31.5 mm tall and hold 180 to 195 mL. They come as an open single well, 96- or 384-indent wells with pyramid bottoms, and 4-, 8-, or 12-channel layouts, each in sterile and non-sterile versions.

Add a 9.3 mm OptiWell™ reservoir cover to keep dust and splashes out between runs. Covers ship 200 per case.

Typical Applications

Automated liquid handling and plate replication
Reagent dispensing for PCR and qPCR setup
ELISA and assay plate washing
Nucleic acid extraction workflows
Compound and library screening
Scale-up and scale-down methods

Tip for Less Waste

Choose the smallest reservoir your run allows: a low-height reservoir needs less priming volume, so less reagent is left in the trough at the end. For plates to dispense into, see our 96-well 2 mL deep-well plates and 384-well deep-well plates.

Frequently Asked Questions

Are these a good alternative to Corning® Axygen® or Thermo Scientific™ automation reservoirs?

Yes, for most applications. They are polypropylene reagent reservoirs on a standard ANSI/SLAS footprint, in single-well, indented, trough, and multi-channel layouts, sterile or non-sterile. Confirm height and deck clearance for your liquid handler before switching. Corning®, Axygen®, and Thermo Scientific™ are trademarks of their respective owners; Blue Tiger Scientific is not affiliated.

What is the difference between OptiWell™ and ILP?

Both are MTC Bio lines. OptiWell™ reservoirs are about 31.5 mm tall and come sterile or non-sterile in every layout. ILP, from Innovative Laboratory Products (now part of MTC Bio), offers low, mid, and full heights, plus 8- and 12-trough single wells.

What do the indents do?

In a 96- or 384-indent reservoir, each pipette tip lands in its own pyramid- or V-shaped indent. Reagent collects at the tip, which lowers dead volume compared with a flat trough.

Why is the individually wrapped version priced lower?

Pack size. Individually wrapped sterile ILP reservoirs ship 10 per case; the other reservoirs ship 50 per case.

Do the covers fit ILP reservoirs?

The OptiWell™ D3390-CV and D3390-CVS covers are made for OptiWell™ reservoirs. Check the fit before using them on other reservoirs.

Can I use these with a manual multichannel pipette?

Yes. They work with 8-, 12-, and 96-channel pipettes. For small benchtop volumes, our ASPIR-8™ and standard solution reservoirs are a lower-cost option.

Specification	Detail
Brand	MTC Bio OptiWell™ and ILP
Product	Automation Reagent Reservoirs
Layouts	Single well (open, 96 or 384 indents, 8 or 12 troughs); 4, 8, or 12 channels
Volume	96–290 mL per reservoir
Height	OptiWell™ about 31.5 mm; ILP low, mid, or full height
Footprint	ANSI/SLAS (SBS)
Material	Virgin polypropylene (reservoirs)
Sterility	Non-sterile or sterile
Certified	RNase/DNase-free, non-pyrogenic
Temperature	Autoclavable; freezable to −80 °C
Pack	50 per case; covers 200 per case; wrapped sterile ILP 10 per case

Ordering Information

Cat. No.	Line	Layout	Height · Volume	Sterility	Pack

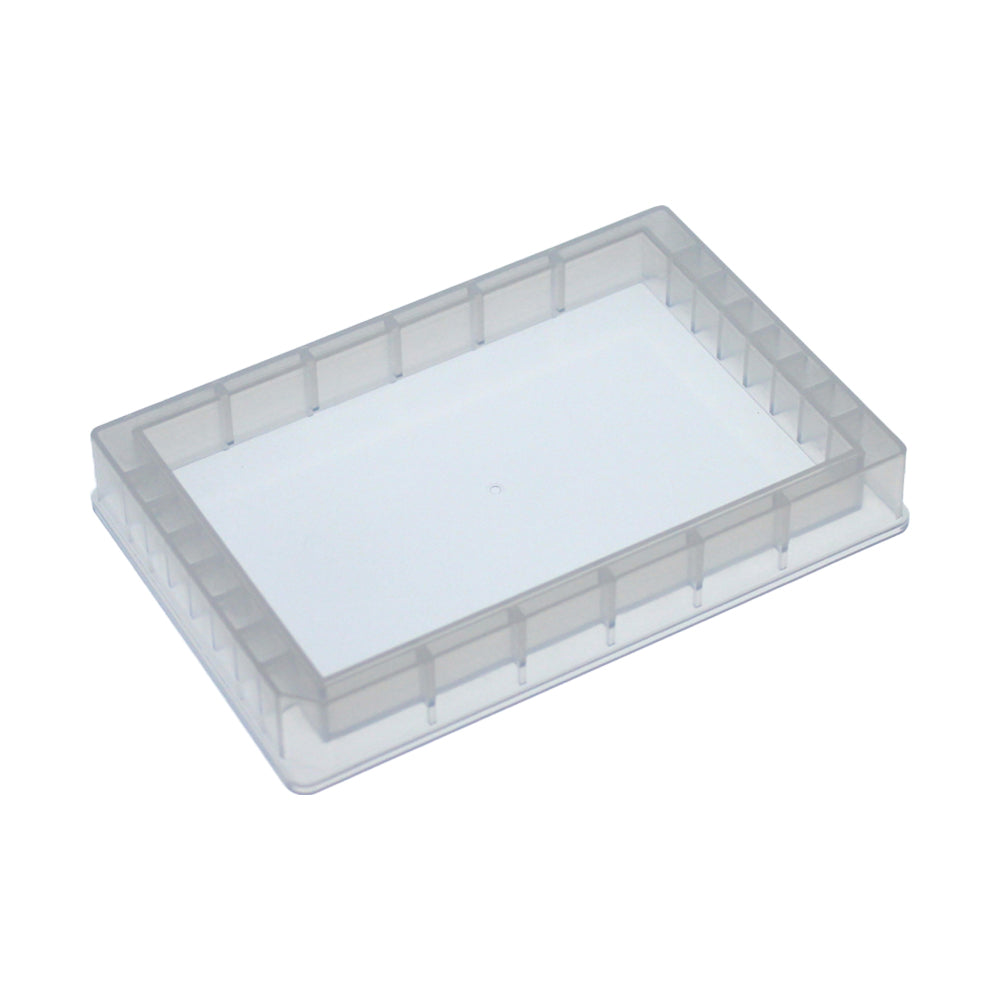

RES10SW-FLAT	ILP	Single Well · Open Trough	Low Height · 100 mL	Non-Sterile	50/cs

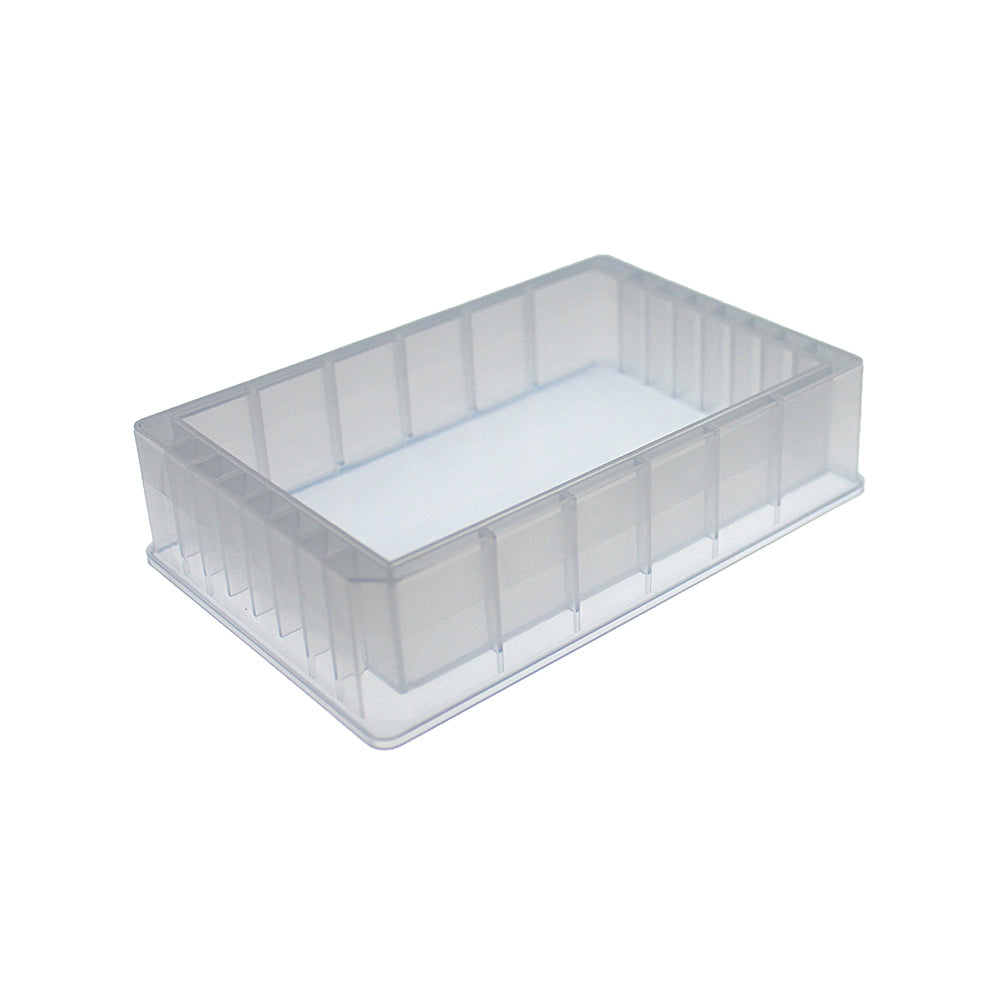

RES19SW-FLAT	ILP	Single Well · Open Trough	Mid Height · 190 mL	Non-Sterile	50/cs

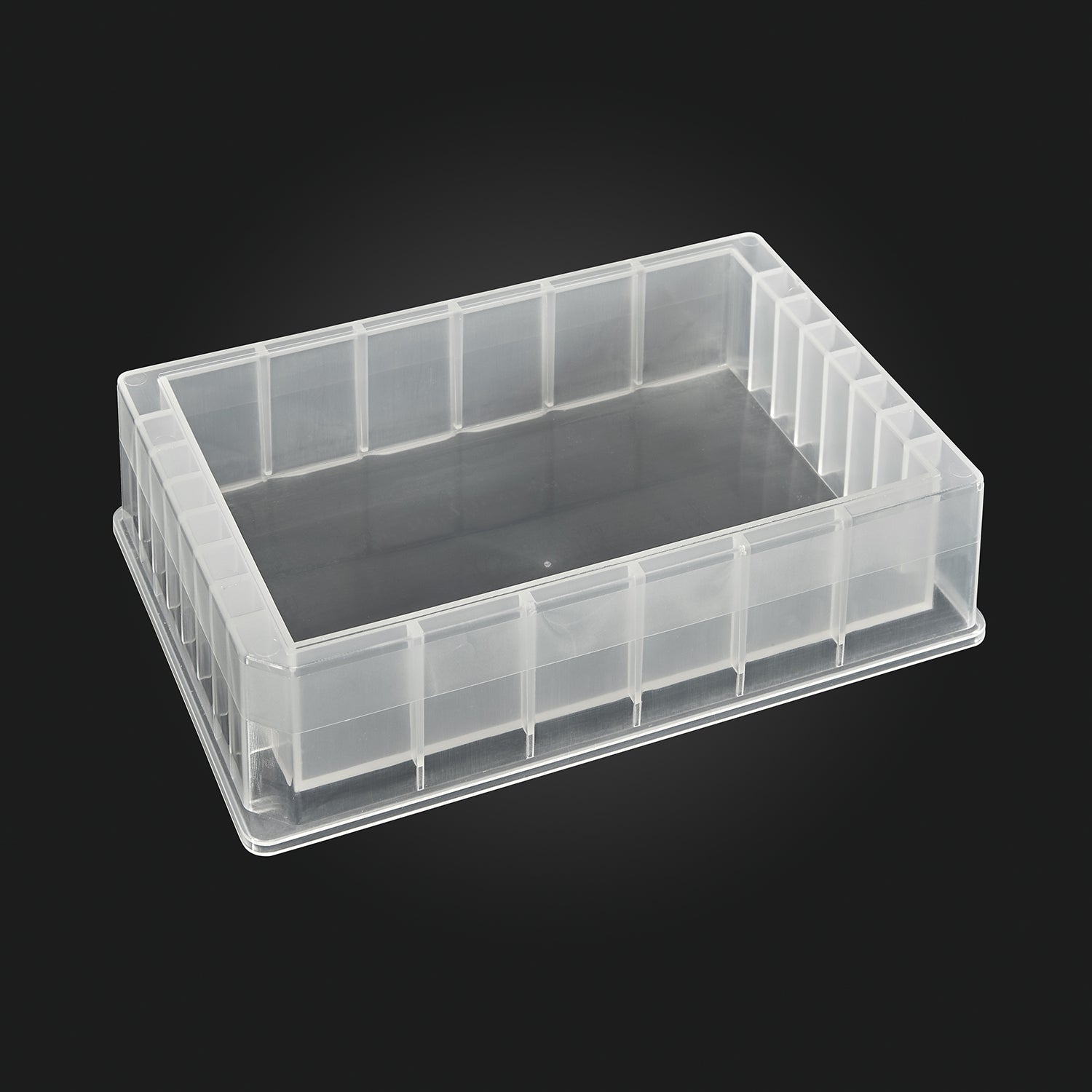

D3390-1	OptiWell™	Single Well · Open Trough	~31.5 mm · 190 mL	Non-Sterile	50/cs (10 × 5)
D3390-1S	OptiWell™	Single Well · Open Trough	~31.5 mm · 190 mL	Sterile	50/cs (10 × 5)

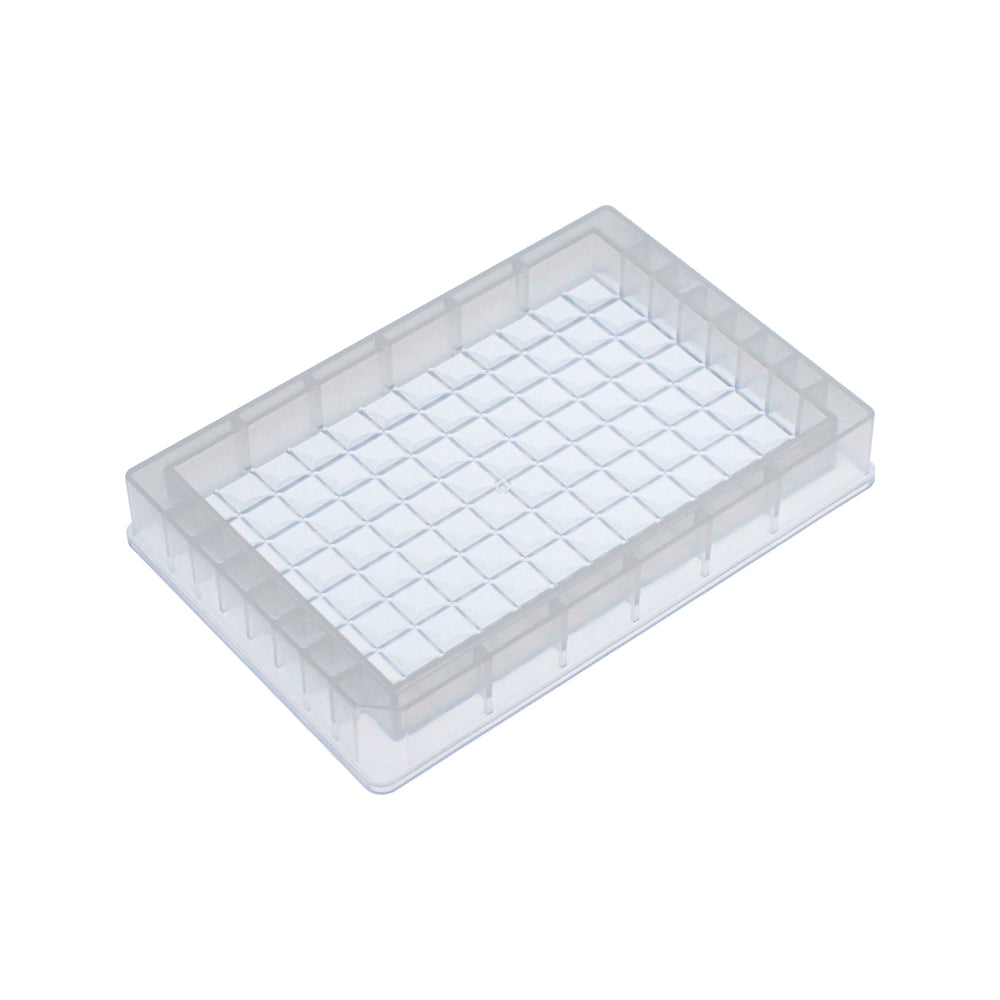

RES10SW-96-N	ILP	Single Well · 96 Indents	Low Height · 100 mL	Non-Sterile	50/cs

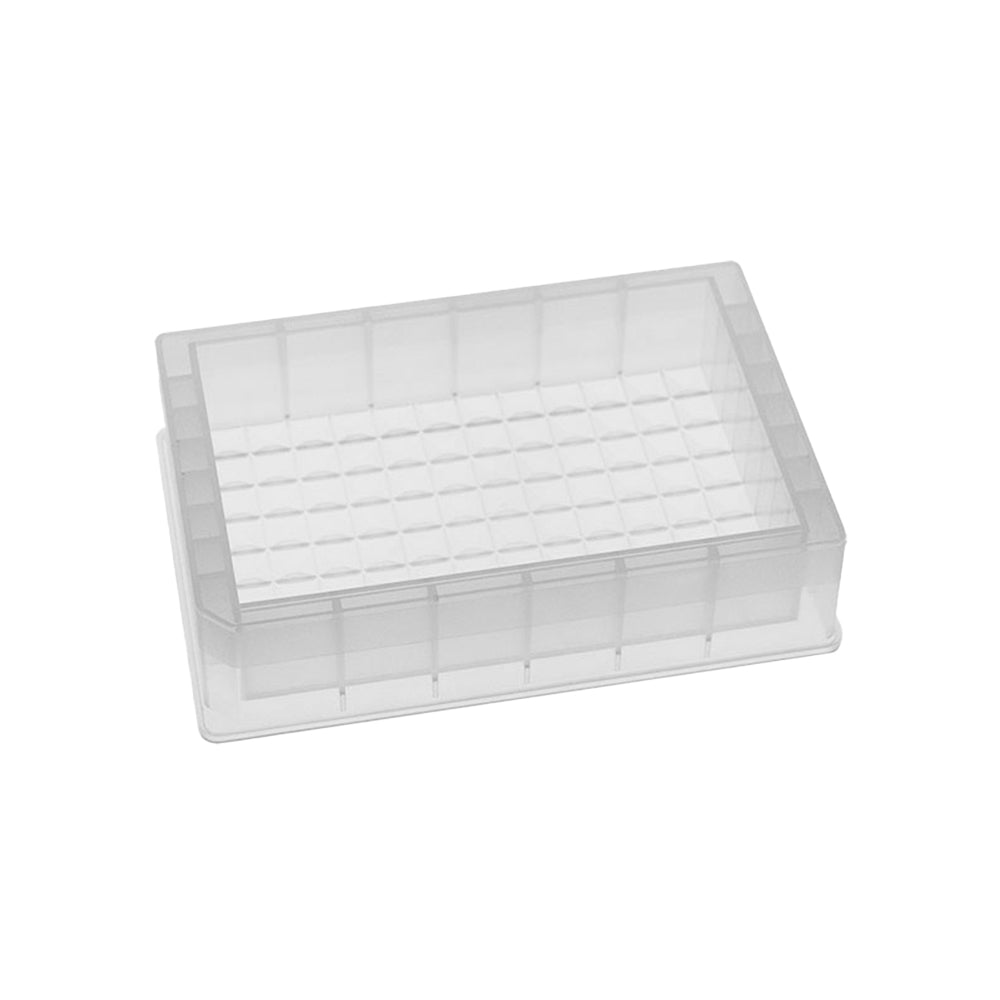

RES19SW-96-N	ILP	Single Well · 96 Indents	Mid Height · 150 mL	Non-Sterile	50/cs

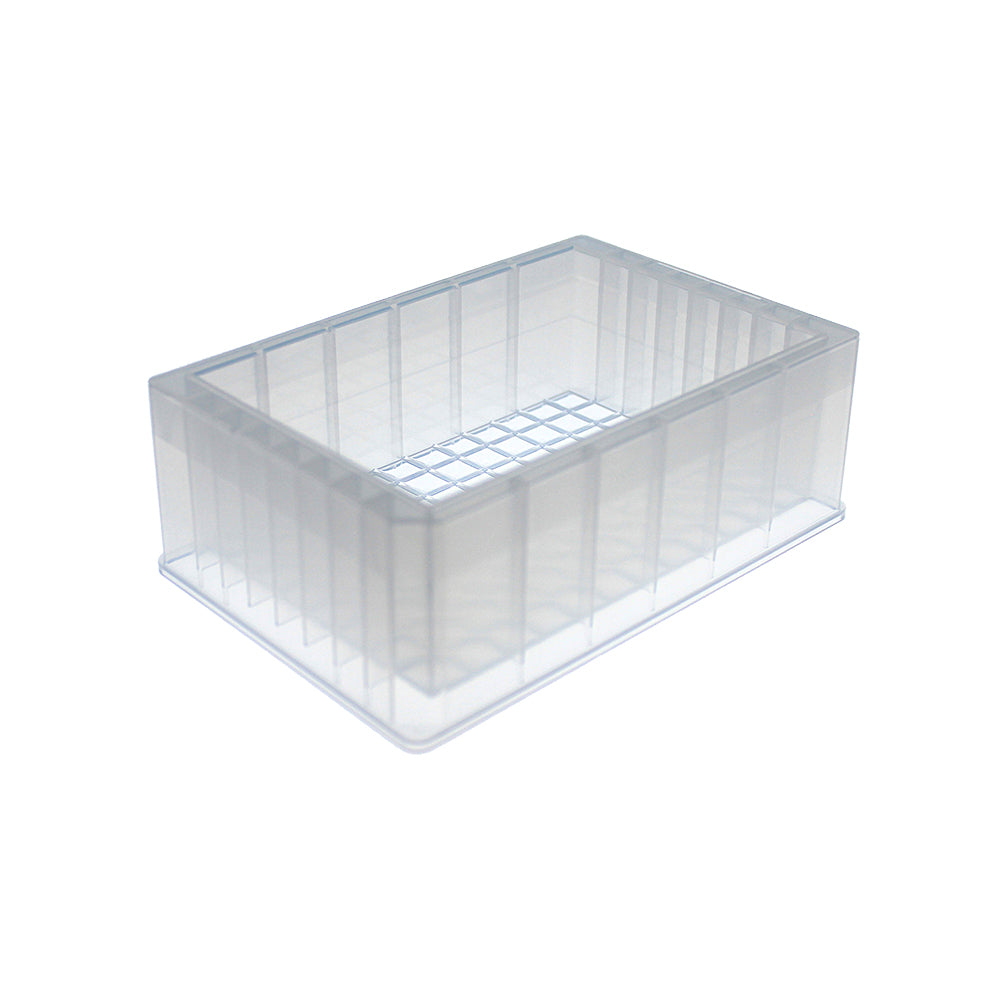

RES30SW-96-N	ILP	Single Well · 96 Indents	Full Height · 290 mL	Non-Sterile	50/cs
D3390-96	OptiWell™	Single Well · 96 Indents	~31.5 mm · 195 mL	Non-Sterile	50/cs (10 × 5)
D3390-96S	OptiWell™	Single Well · 96 Indents	~31.5 mm · 195 mL	Sterile	50/cs (10 × 5)
RES16SW-9-NS-IW	ILP	Single Well · 96 Indents	Mid Height · 150 mL	Sterile, individually wrapped	10/cs

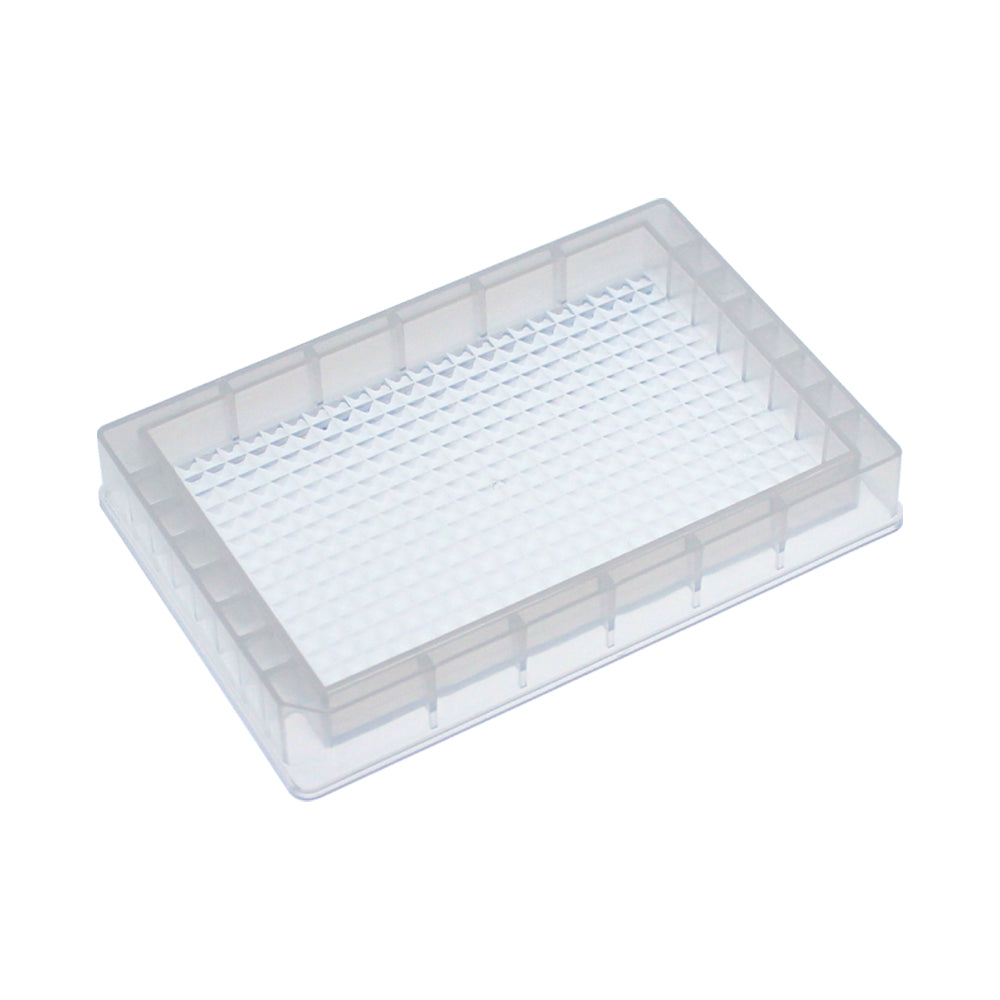

RES10SW-384-N	ILP	Single Well · 384 Indents	Low Height · 100 mL	Non-Sterile	50/cs

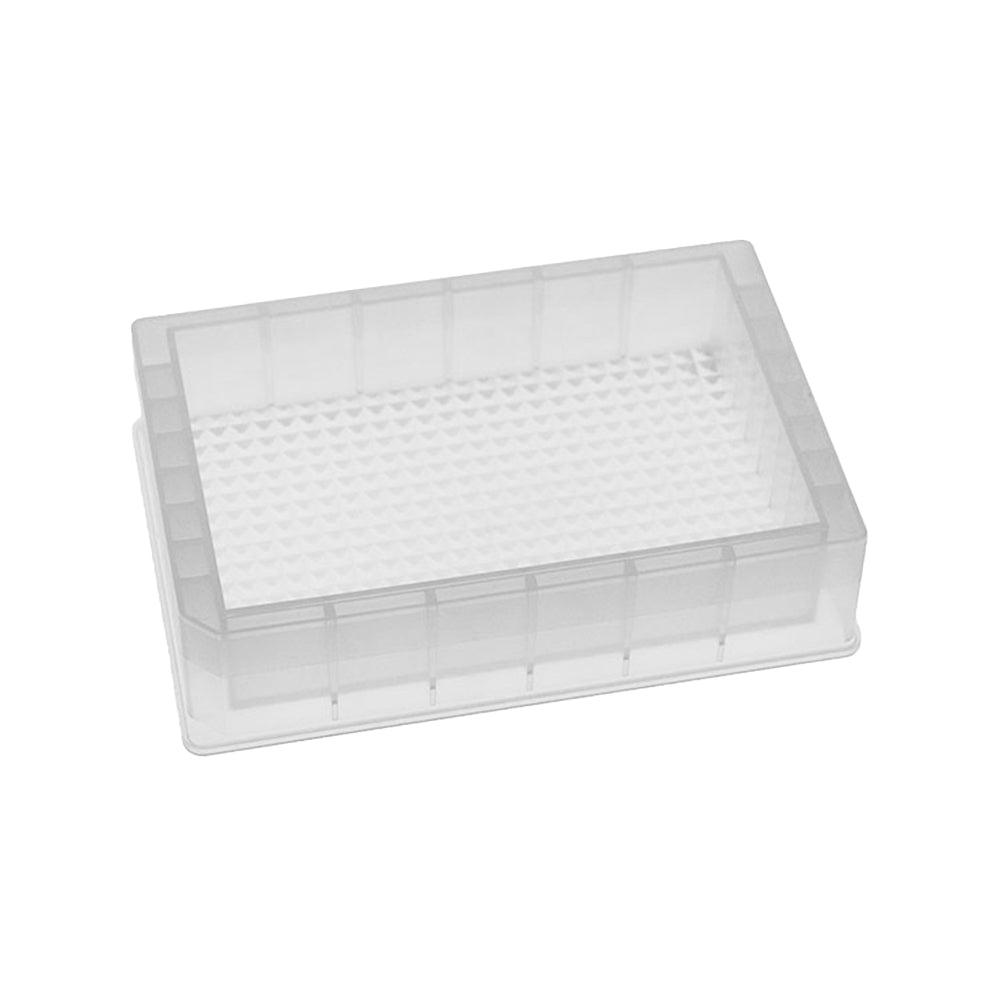

RES19SW-384-N	ILP	Single Well · 384 Indents	Mid Height · 150 mL	Non-Sterile	50/cs

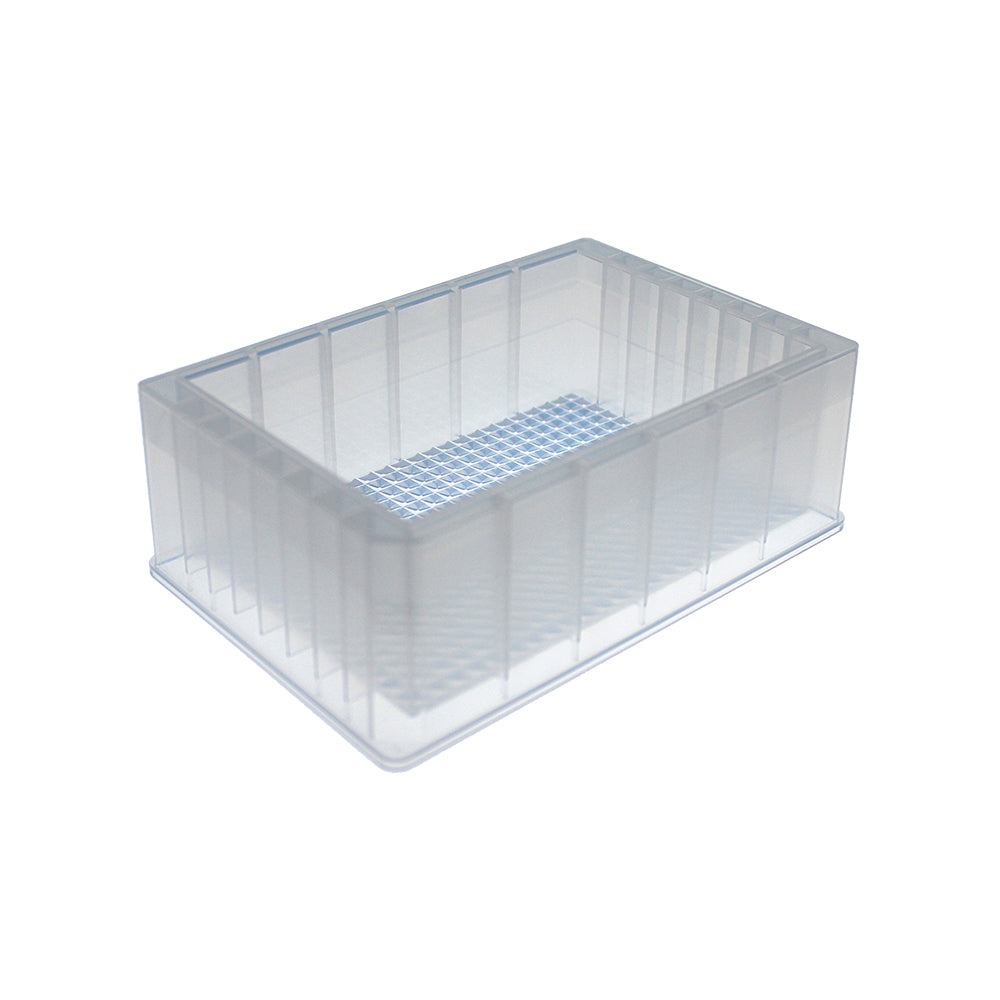

RES30SW-384-N	ILP	Single Well · 384 Indents	Full Height · 290 mL	Non-Sterile	50/cs

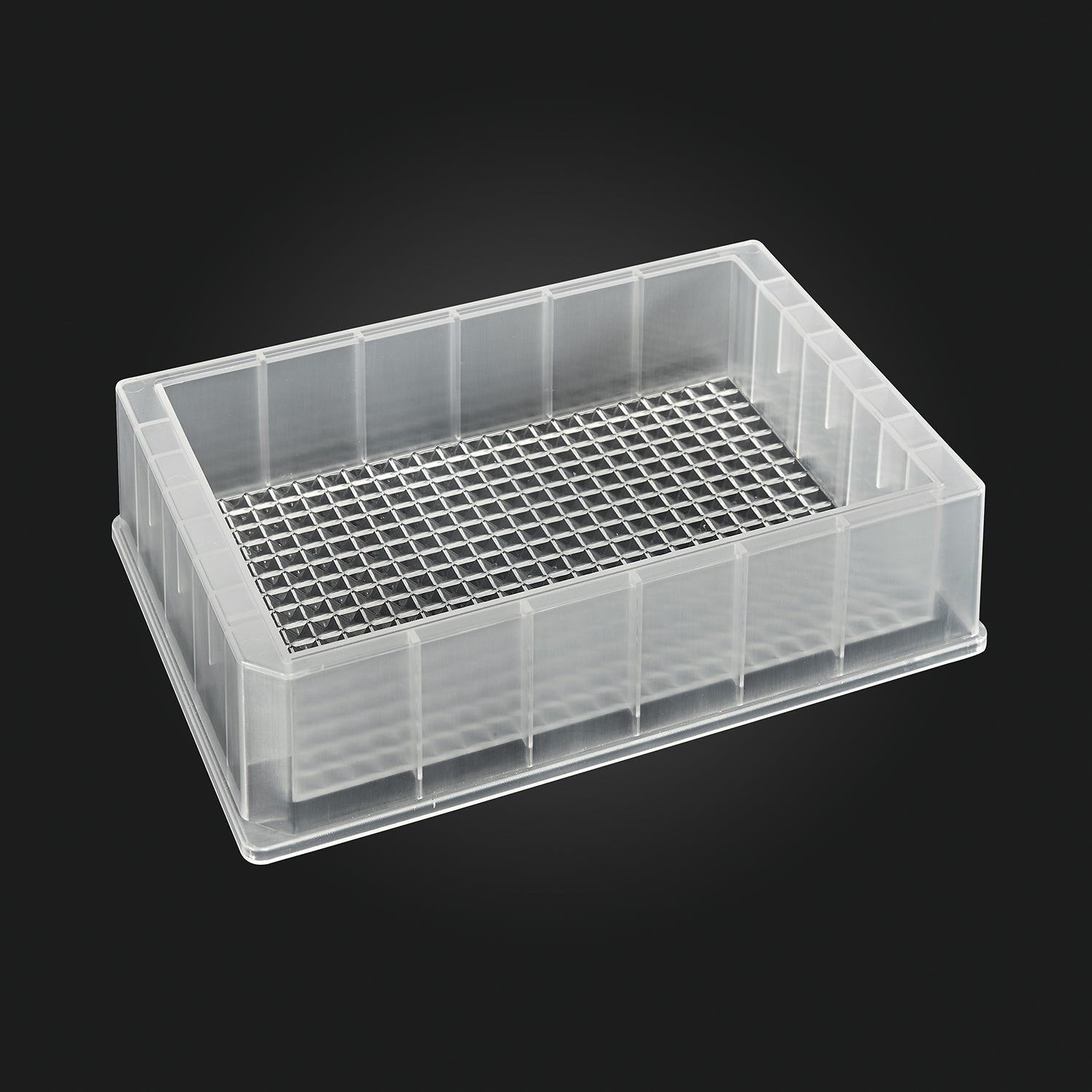

D3390-38	OptiWell™	Single Well · 384 Indents	~31.5 mm · 185 mL	Non-Sterile	50/cs (10 × 5)
D3390-38S	OptiWell™	Single Well · 384 Indents	~31.5 mm · 185 mL	Sterile	50/cs (10 × 5)
RES16SW-3-NS-IW	ILP	Single Well · 384 Indents	Mid Height · 150 mL	Sterile, individually wrapped	10/cs

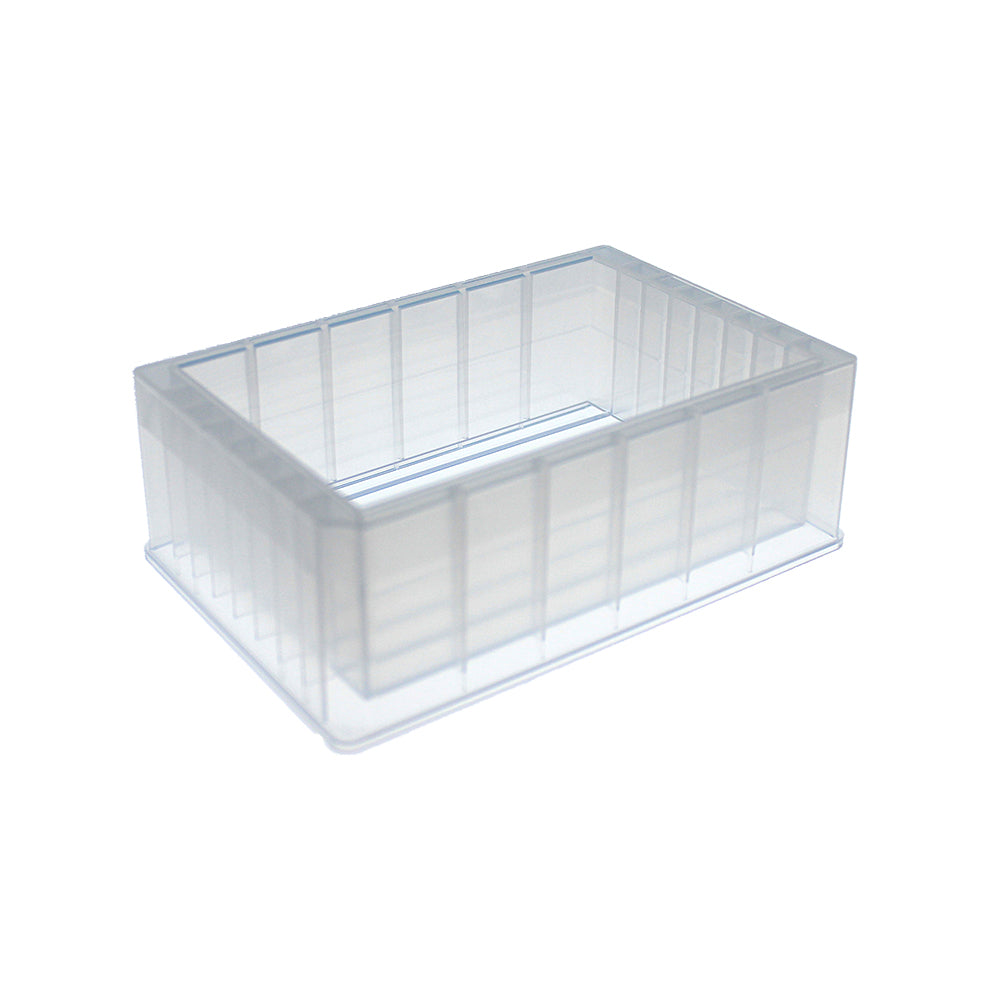

RES30SW-8-N	ILP	Single Well · 8 Troughs	Full Height · 290 mL	Non-Sterile	50/cs

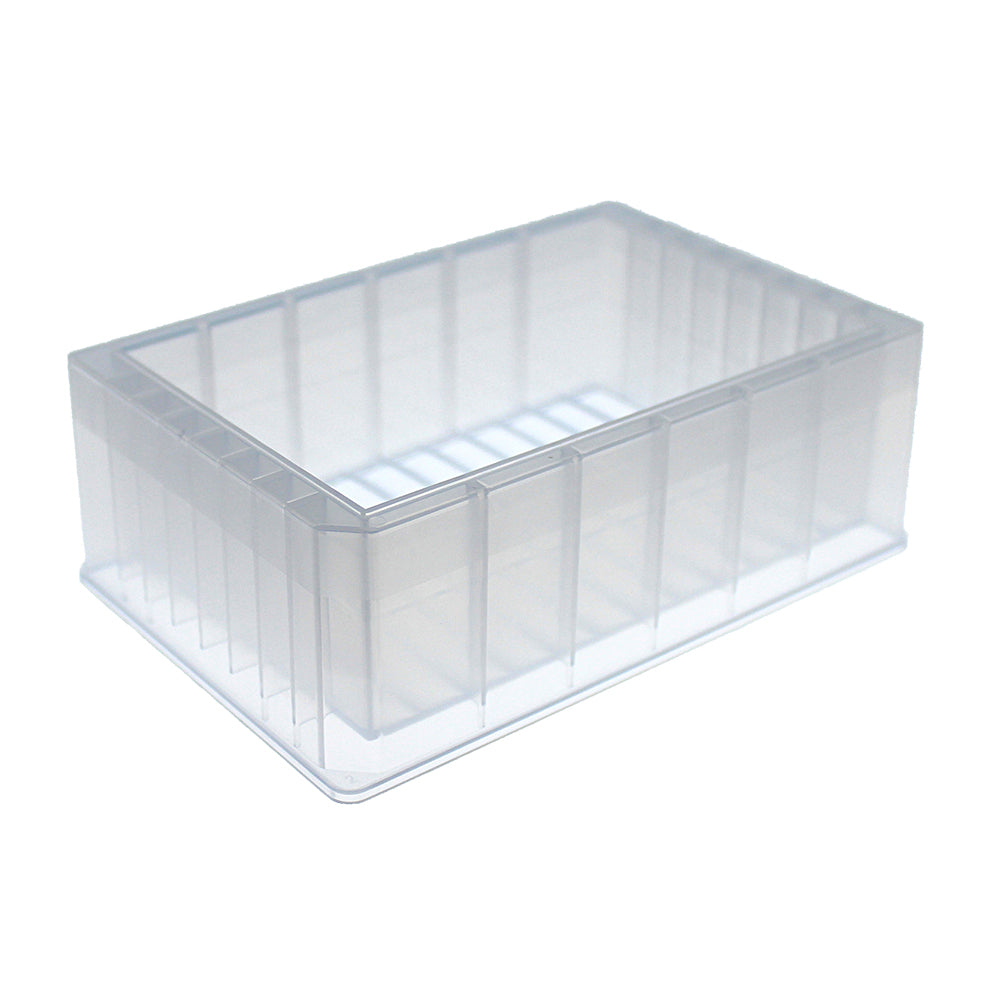

RES30SW-12-N	ILP	Single Well · 12 Troughs	Full Height · 290 mL	Non-Sterile	50/cs

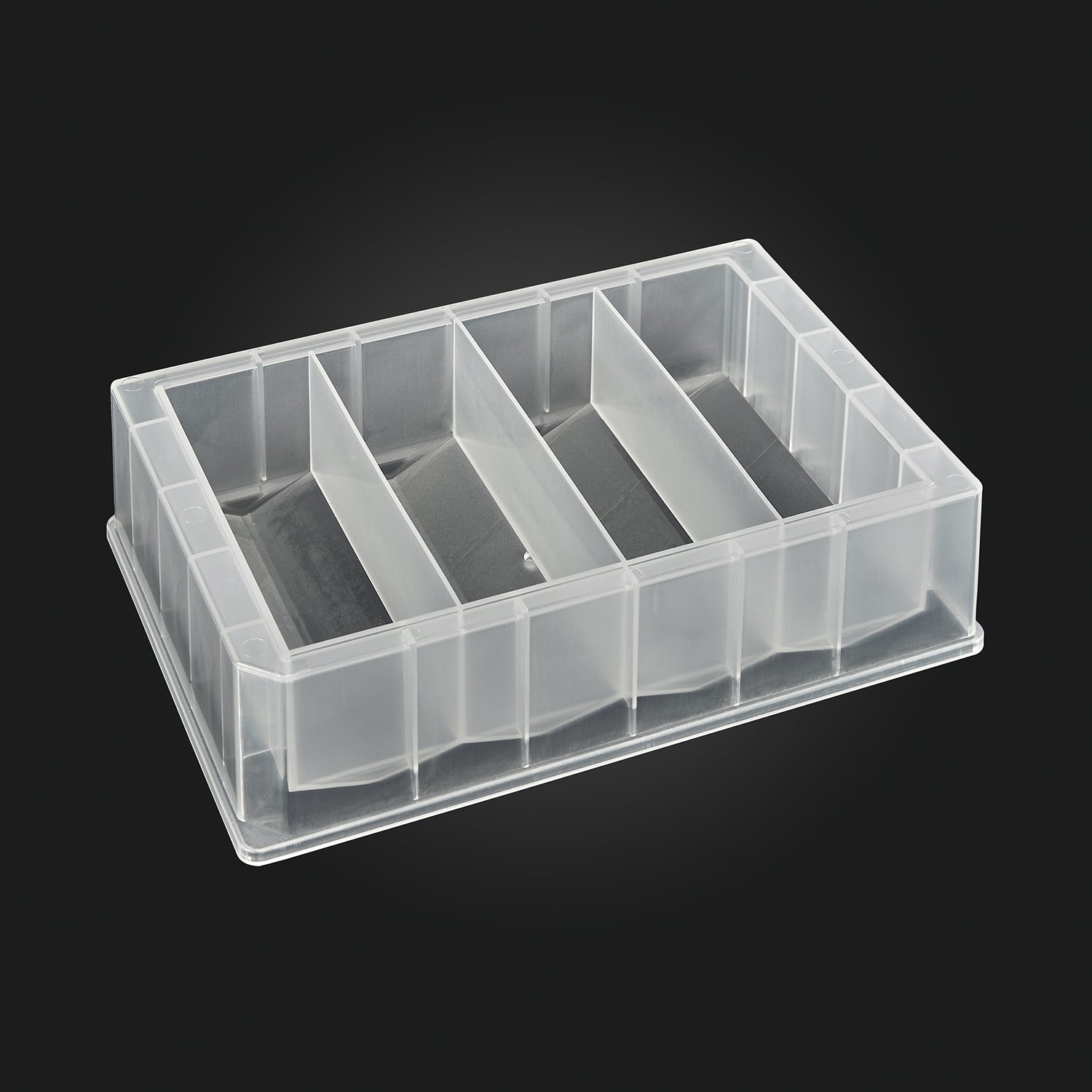

D3390-4	OptiWell™	4 Channels	~31.5 mm · 195 mL	Non-Sterile	50/cs (10 × 5)
D3390-4S	OptiWell™	4 Channels	~31.5 mm · 195 mL	Sterile	50/cs (10 × 5)

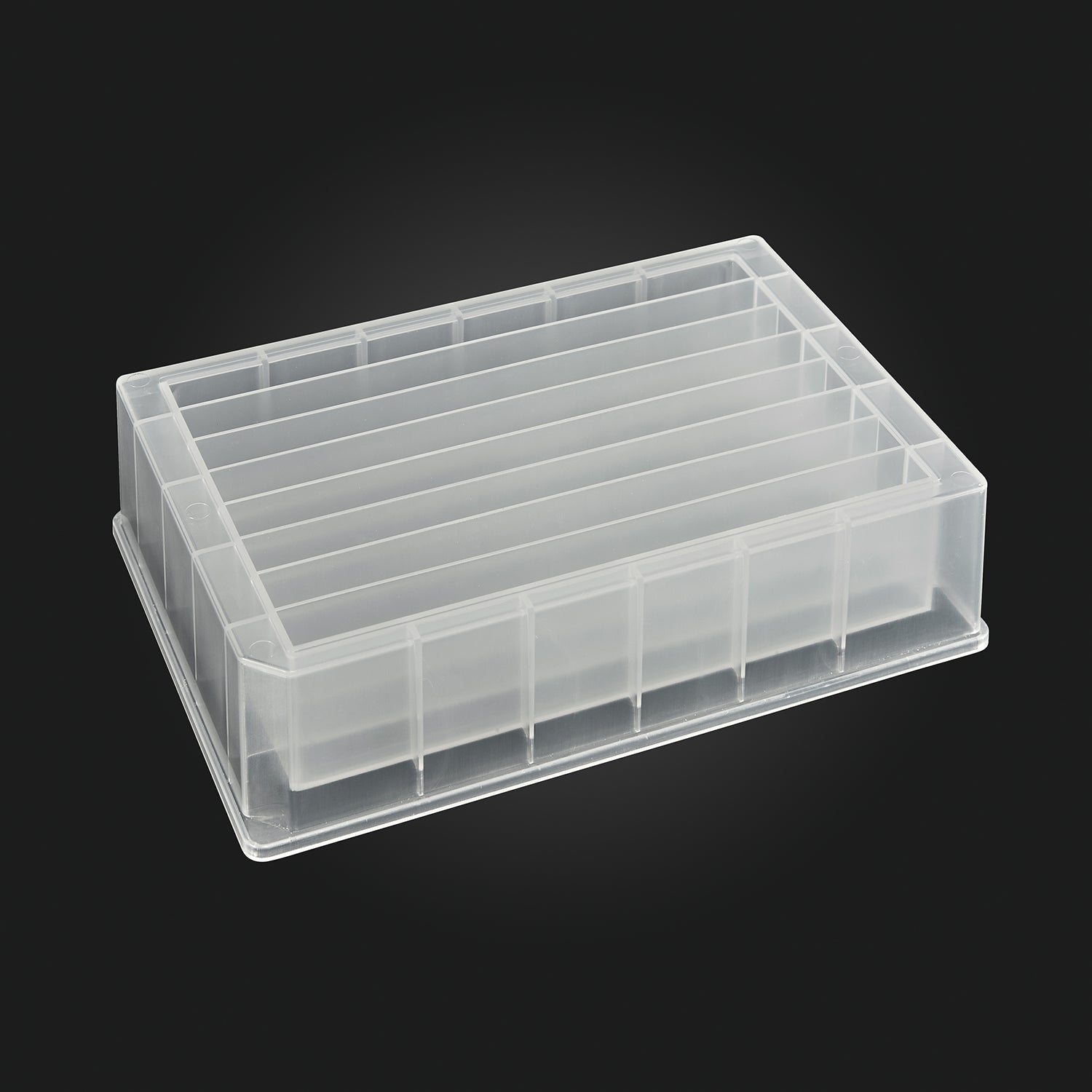

D3390-8	OptiWell™	8 Channels	~31.5 mm · 180 mL	Non-Sterile	50/cs (10 × 5)

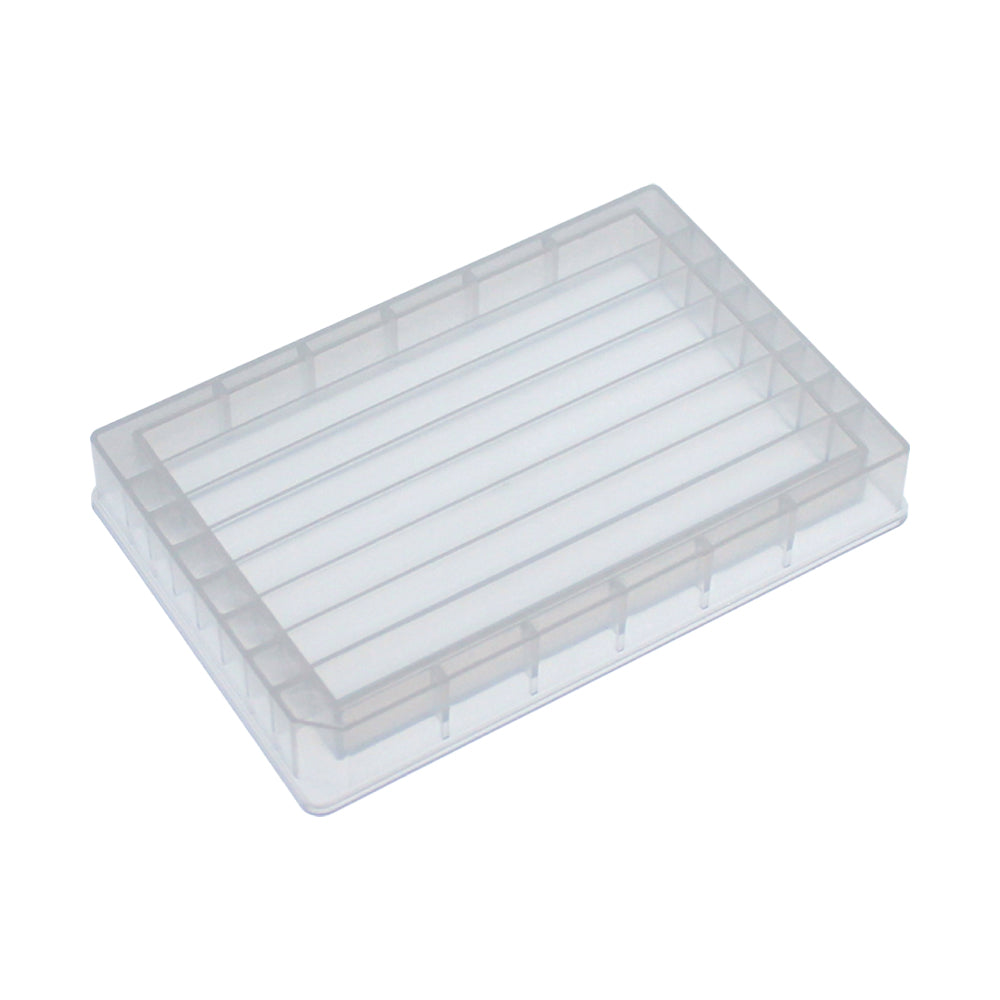

RES09MC-8-N	ILP	8 Channels	Low Height · 96 mL (12 mL/Channel)	Non-Sterile	50/cs

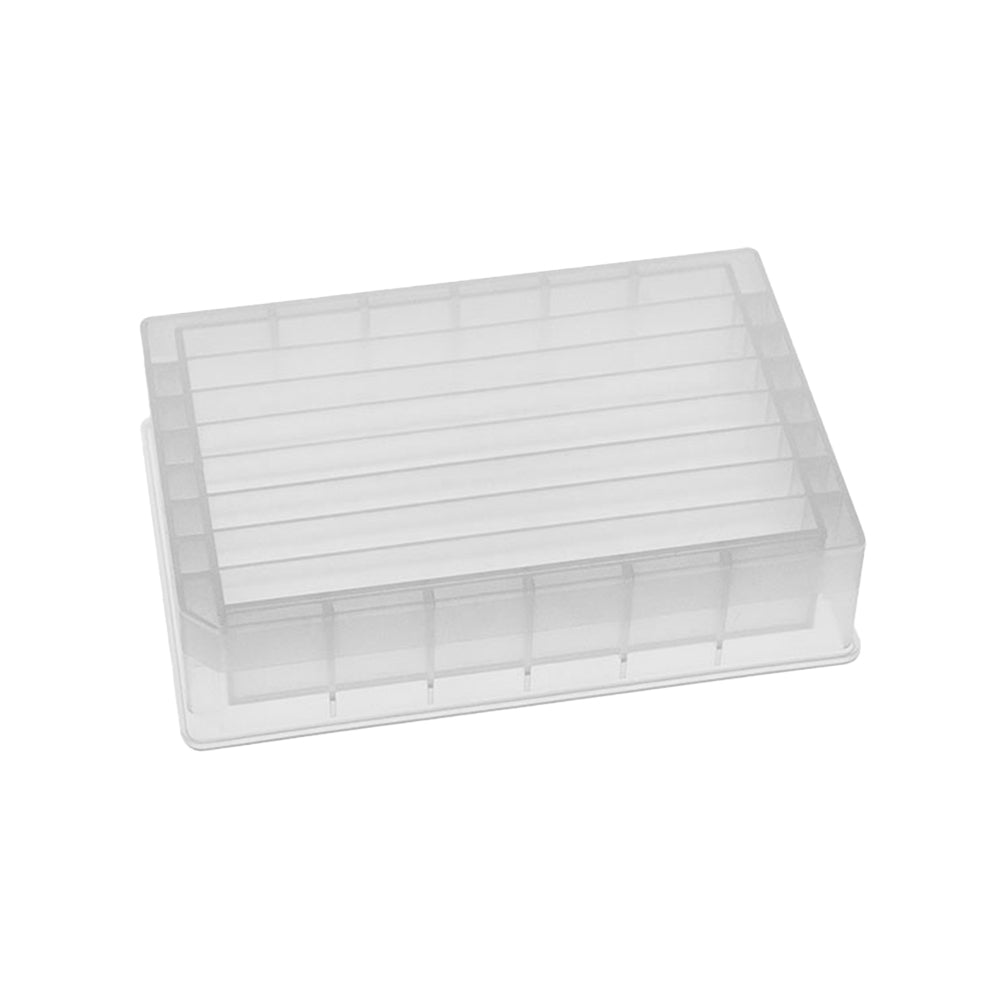

RES19MC-8-N	ILP	8 Channels	Mid Height · 144 mL (18 mL/Channel)	Non-Sterile	50/cs

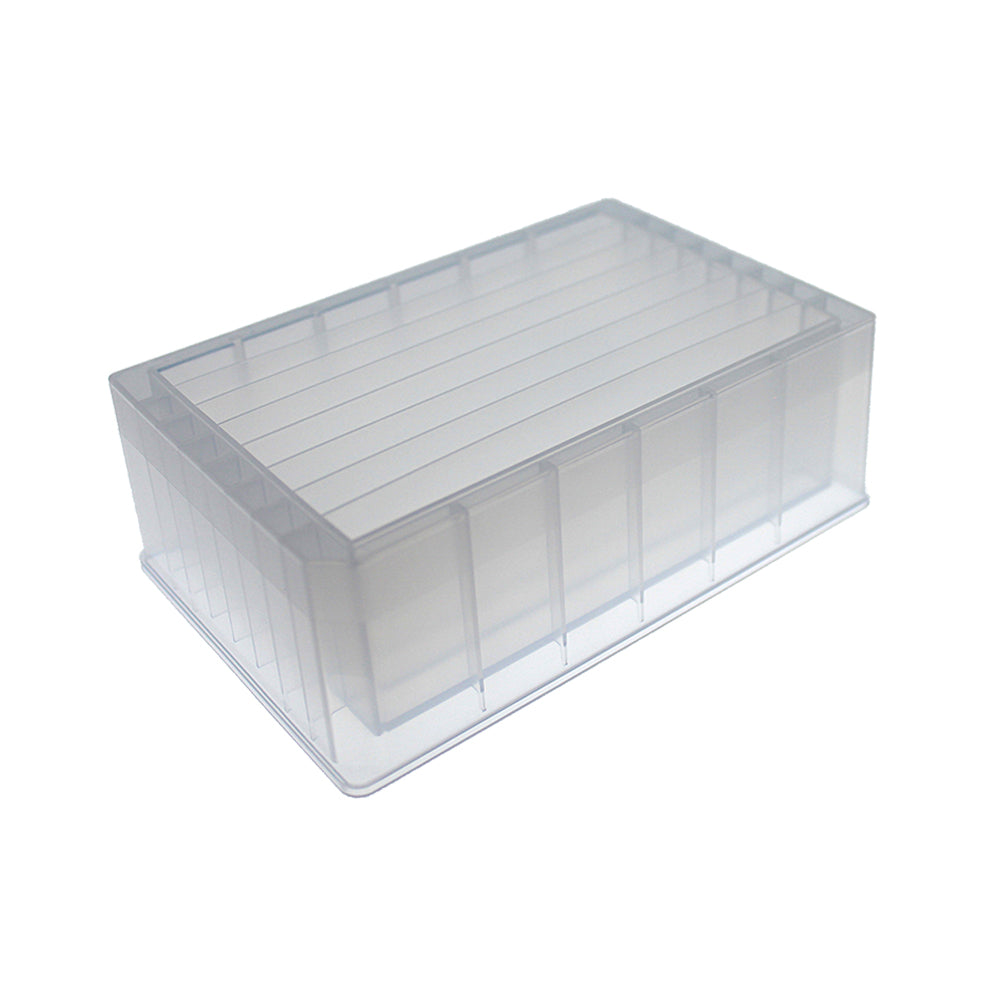

RES26MC-8-N	ILP	8 Channels	Full Height · 256 mL (32 mL/Channel)	Non-Sterile	50/cs
D3390-8S	OptiWell™	8 Channels	~31.5 mm · 180 mL	Sterile	50/cs (10 × 5)
RES16MC-8-NS-IW	ILP	8 Channels	Mid Height · 144 mL	Sterile, individually wrapped	10/cs

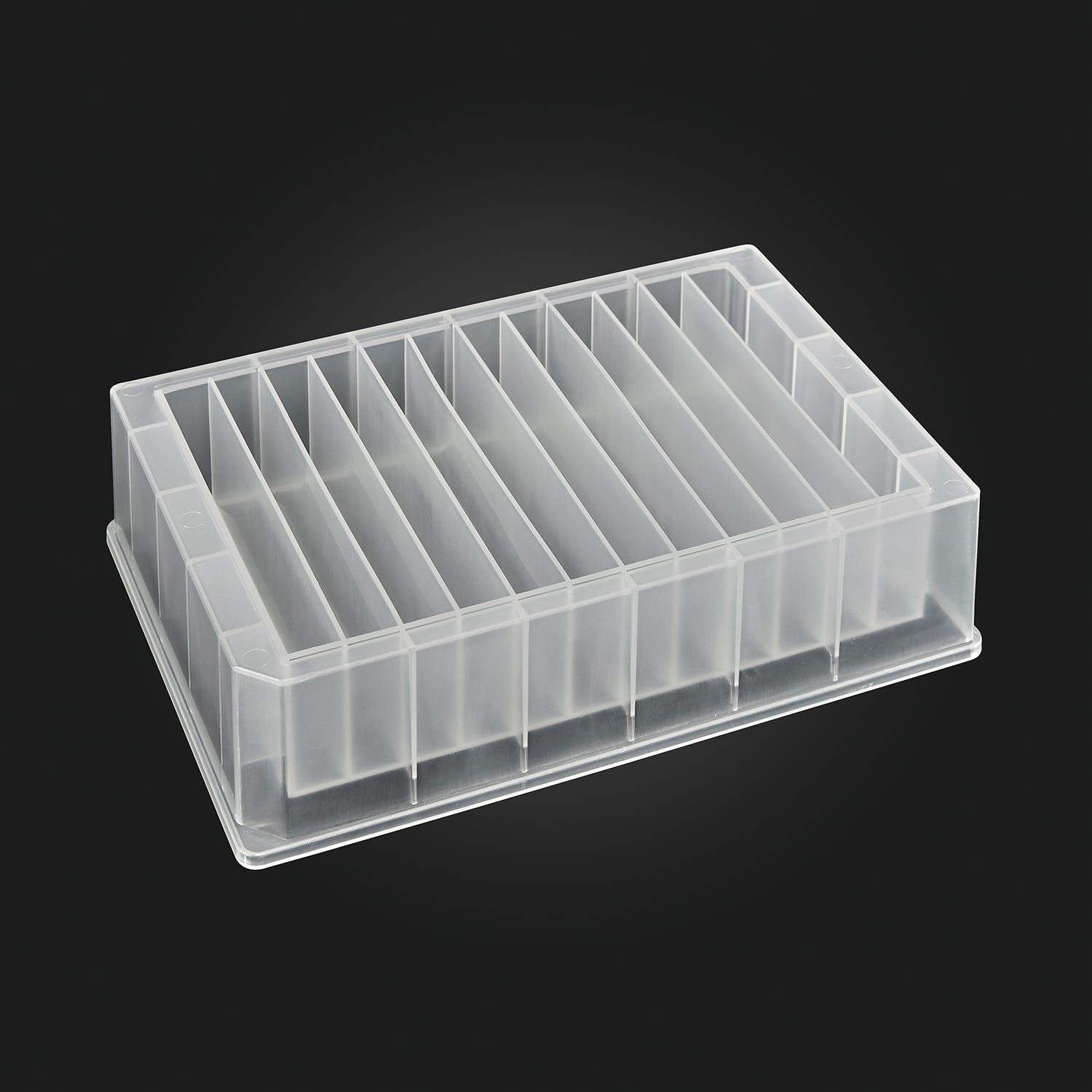

D3390-12	OptiWell™	12 Channels	~31.5 mm · 180 mL	Non-Sterile	50/cs (10 × 5)

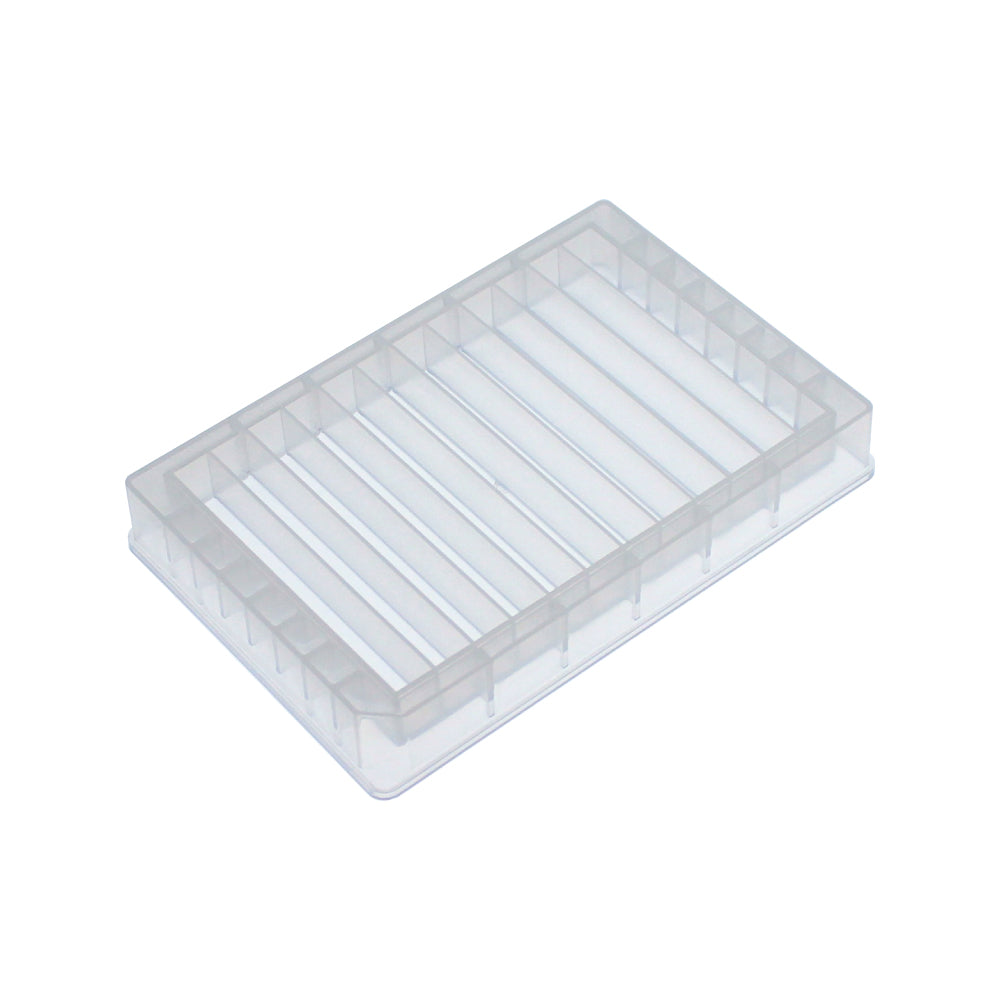

RES09MC-12-N	ILP	12 Channels	Low Height · 96 mL (8 mL/Channel)	Non-Sterile	50/cs

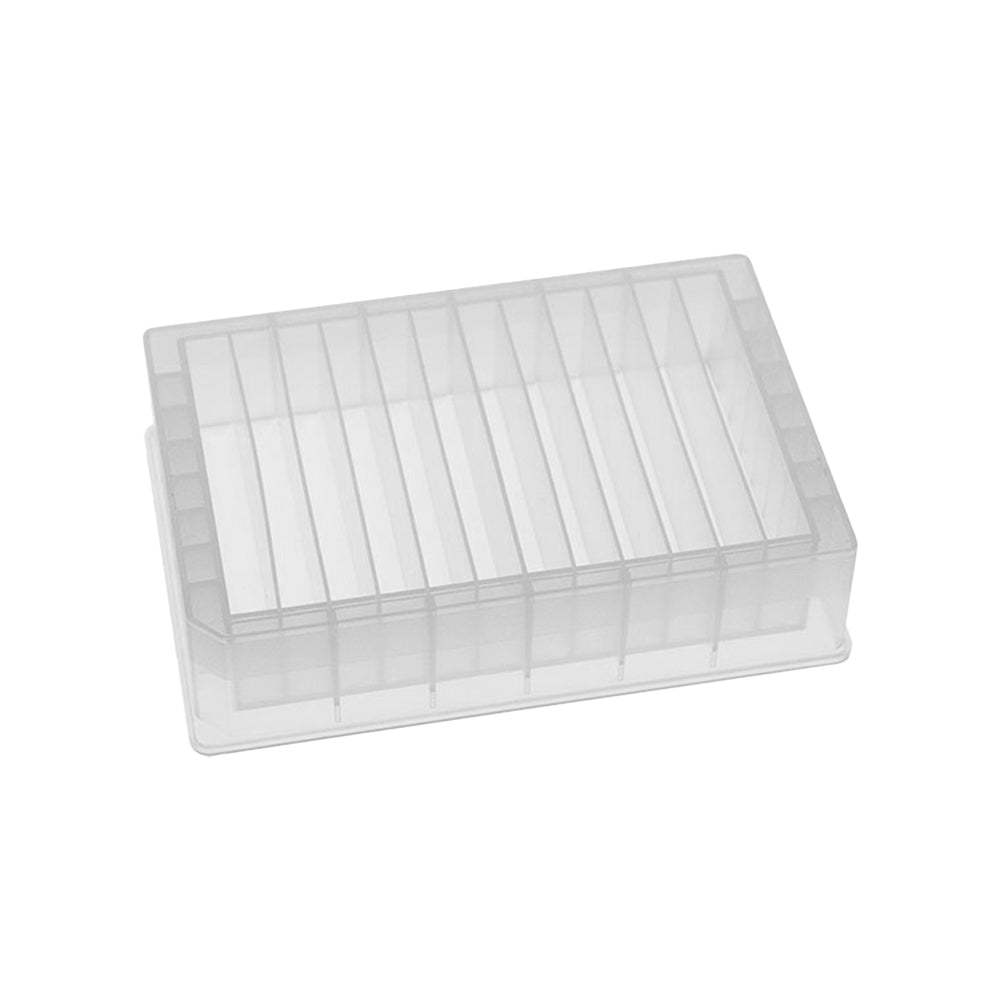

RES19MC-12-N	ILP	12 Channels	Mid Height · 144 mL (12 mL/Channel)	Non-Sterile	50/cs

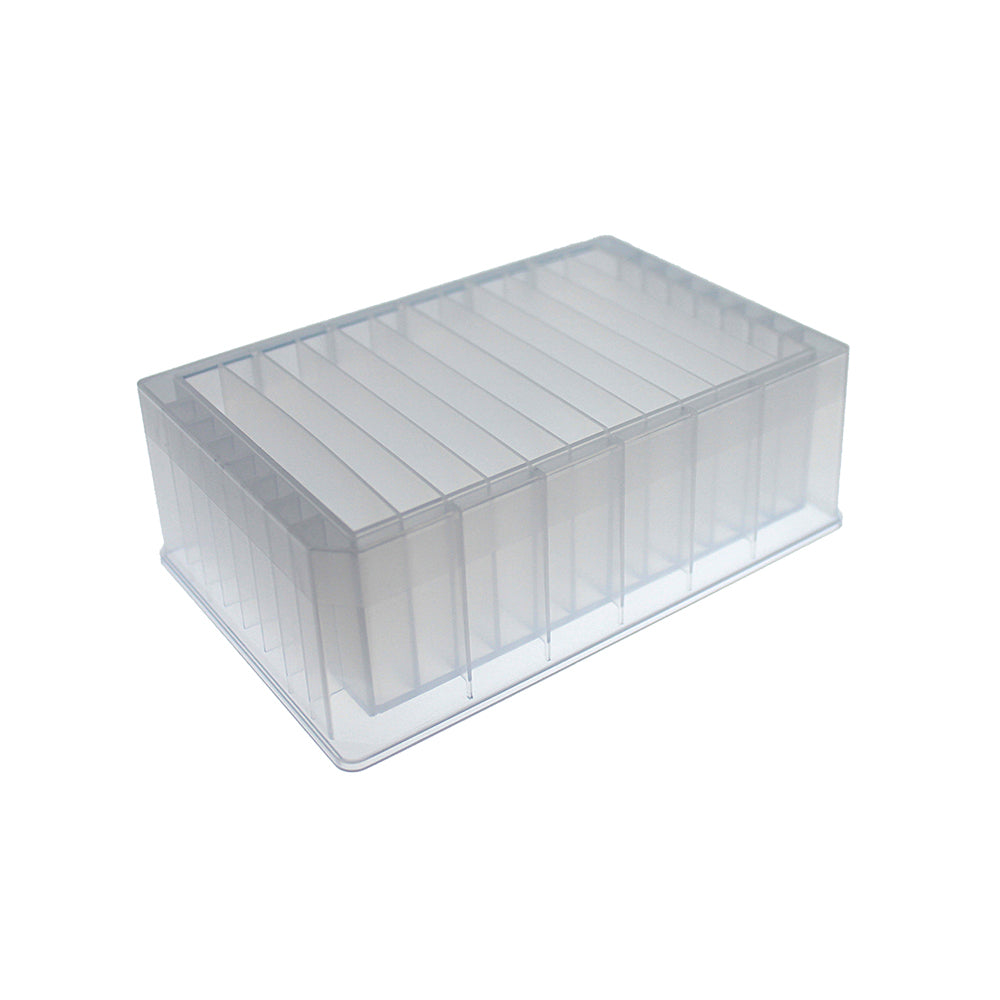

RES26MC-12-N	ILP	12 Channels	Full Height · 264 mL (22 mL/Channel)	Non-Sterile	50/cs
D3390-12S	OptiWell™	12 Channels	~31.5 mm · 180 mL	Sterile	50/cs (10 × 5)

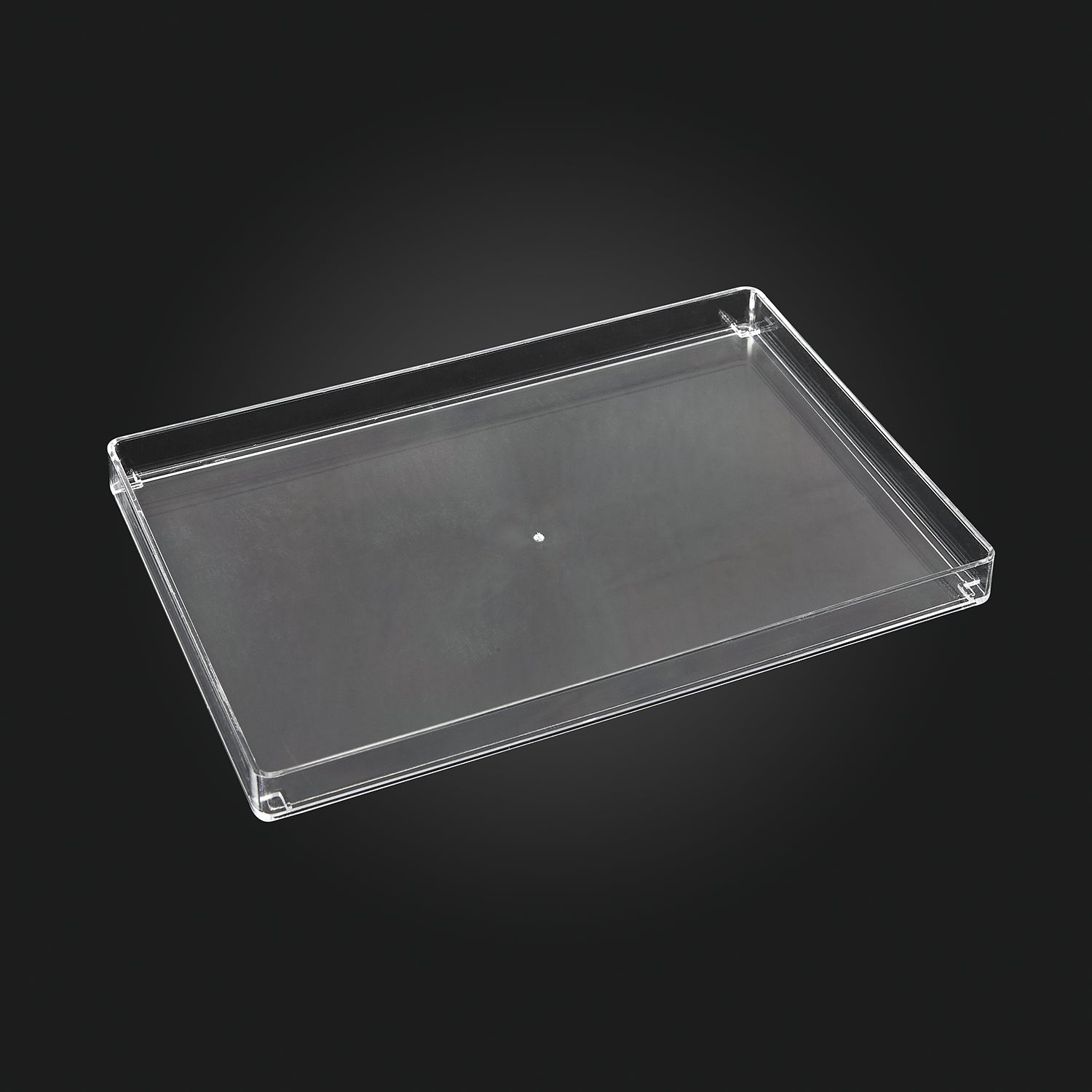

D3390-CV	OptiWell™	Reservoir Cover (Lid)	9.3 mm cover	Non-Sterile	200/cs (10 × 20)
D3390-CVS	OptiWell™	Reservoir Cover (Lid)	9.3 mm cover	Sterile	200/cs (10 × 20)
