APERA INSTRUMENTS / PH8500-SL / AI5553

Direct soil contact.
A method you can repeat.

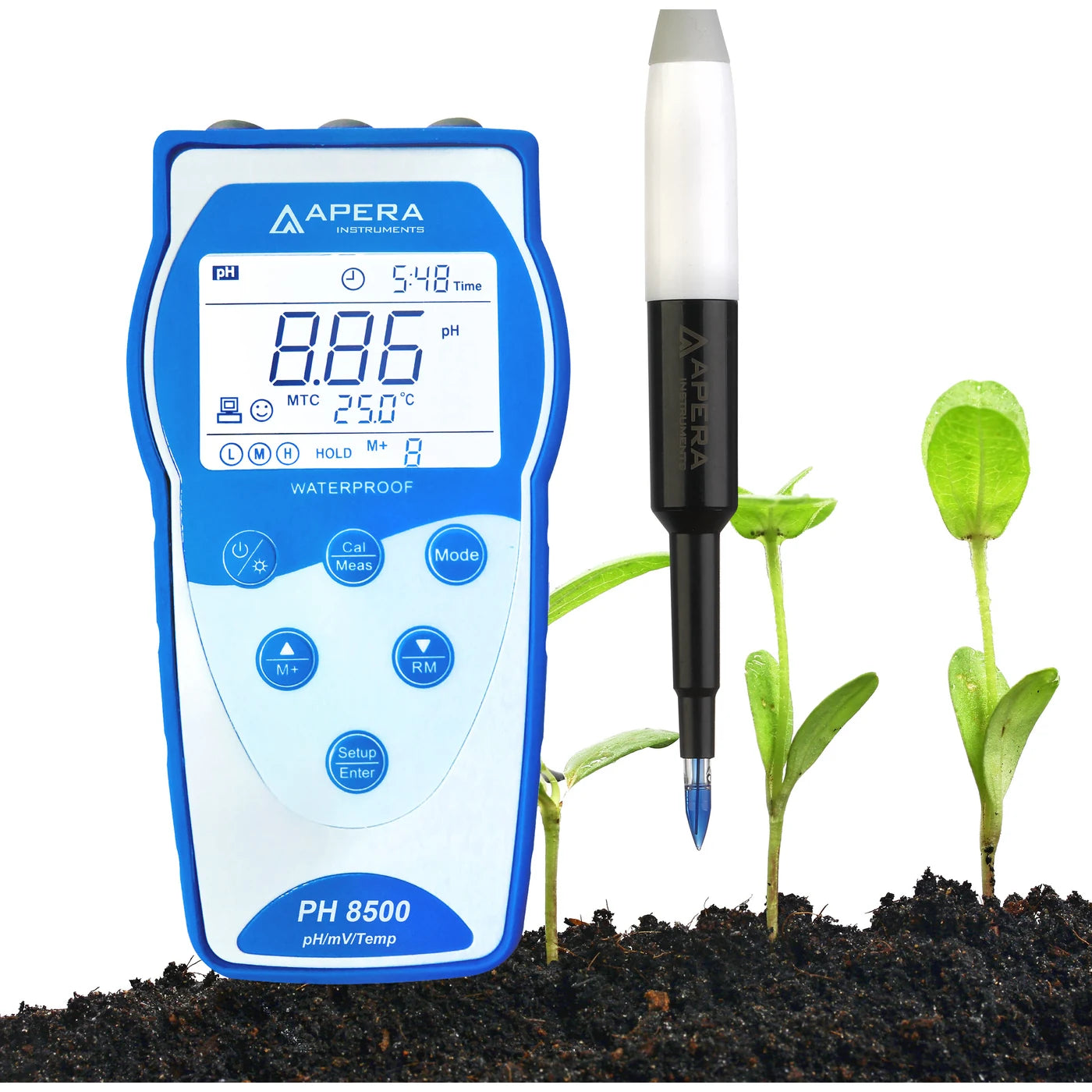

PH8500-SL pairs the portable PH8500 meter with the LabSen 553 spear pH/temperature electrode for moist soil and prepared slurries. Choose its pointed glass sensor when a conventional liquid-testing bulb is unsuitable. It is not a metal digging probe.

Moisture, preparation and sampling location determine what a soil reading represents. Direct-contact results are not automatically interchangeable with laboratory extraction results.

Built for soil contact

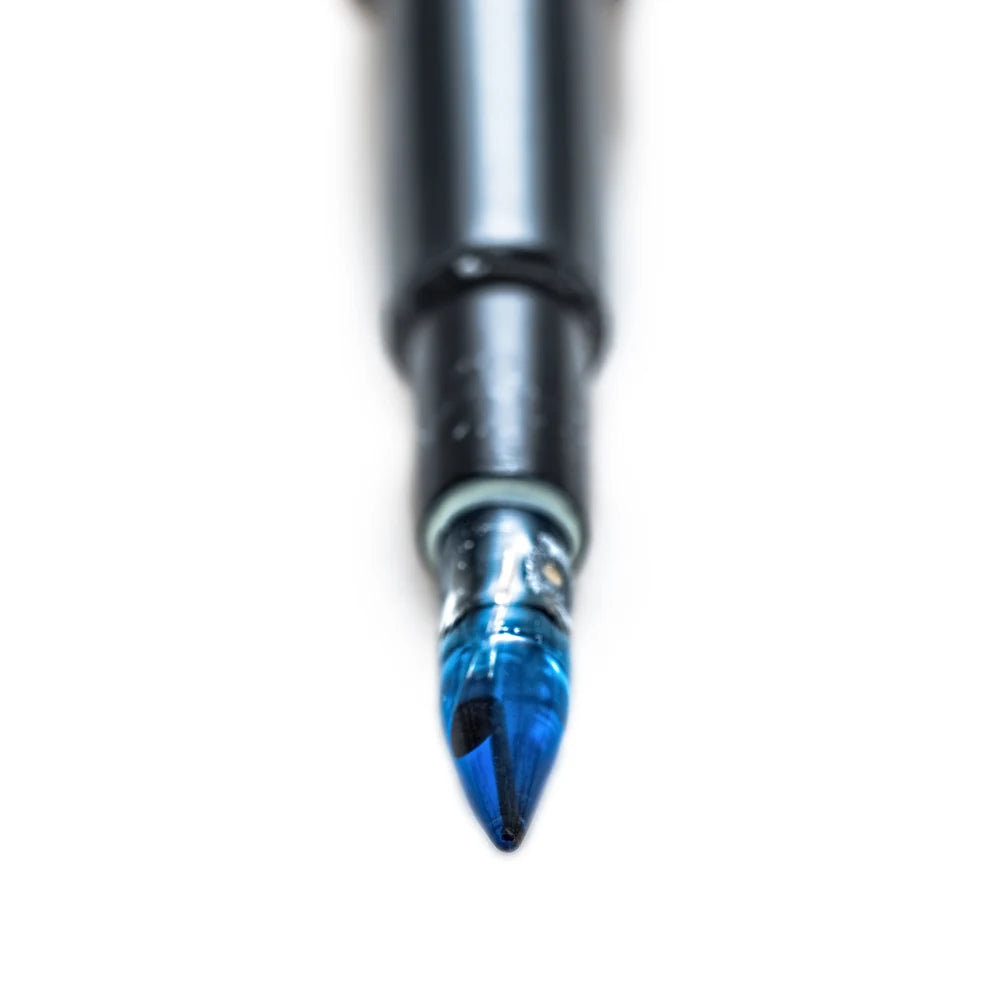

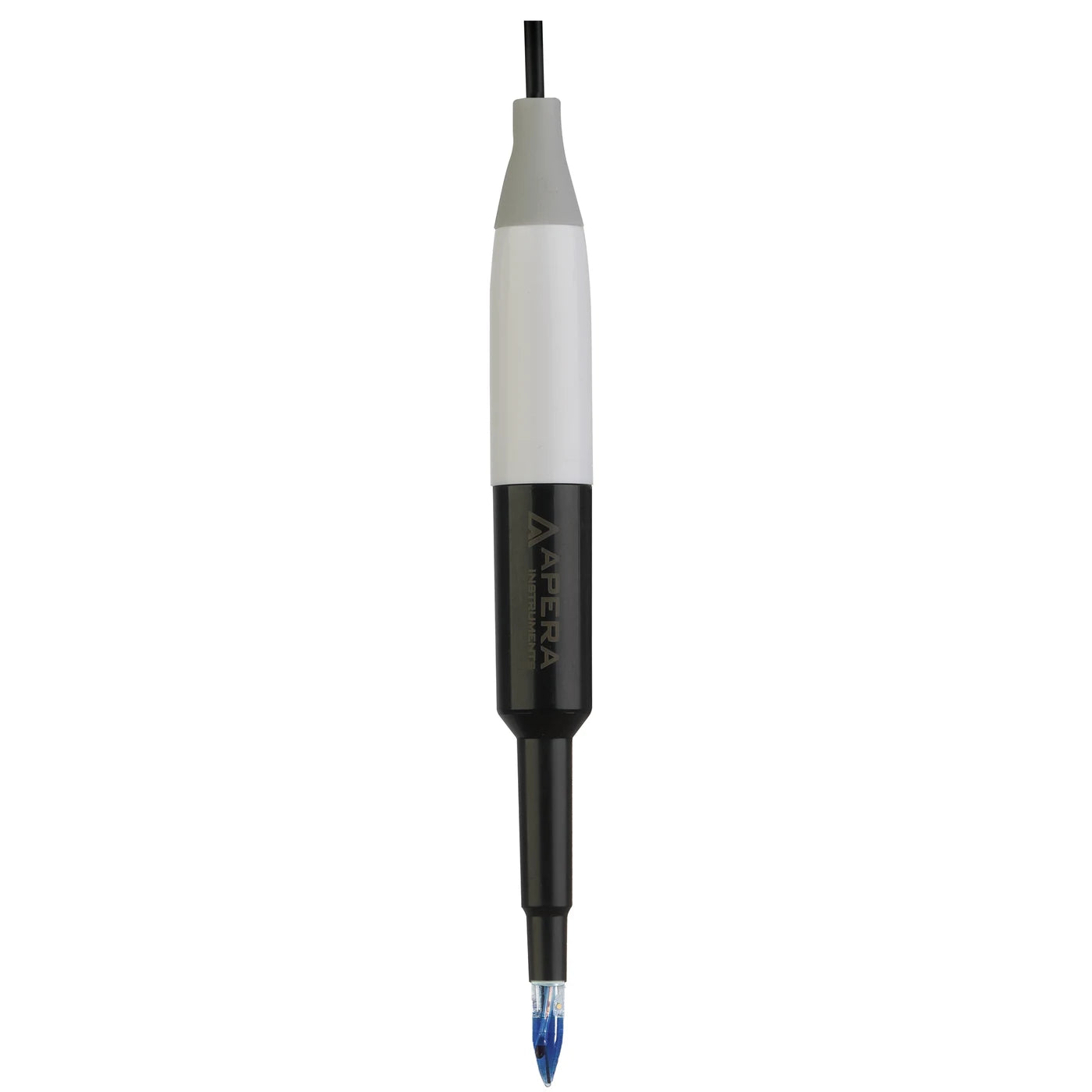

LabSen 553 combines a PVC body, spear-shaped glass membrane and open plus ceramic junctions. Its Long-Life AgCl/silver reference uses polymer electrolyte. The reinforced construction does not make the exposed glass a blade, drill or unbreakable soil tool.

Temperature without a second probe

The integrated sensor connects through RCA, while BNC carries pH/mV. Use both connections for temperature measurement and automatic compensation. Compensation corrects electrode response; it does not make wet and dry soils equivalent or remove sample-temperature effects.

Records that travel with the work

Save up to 500 sets manually or at timed intervals. The meter clock adds date and time to readings, with temperature and calibration information available for review. Check the clock before starting a new sampling run.

Know what this configuration supplies.

Moist growing media

Check suitable moist soil around crops or nursery plants using a consistent contact procedure. Prepare a pathway first and stop if the electrode meets resistance. Keep roots, stones and the sampling tool away from the glass tip.

Repeatable field comparisons

Compare locations only after defining moisture condition, sampling position and preparation. Take several measurements rather than treating one contact point as the entire area. Record any added water because that preparation changes the test conditions.

Prepared soil slurries

Use a documented soil-to-water ratio, mixing sequence and settling time when a slurry is the better method. The electrode manual includes a 20 g soil to 100 g water procedure; other protocols can produce different results.

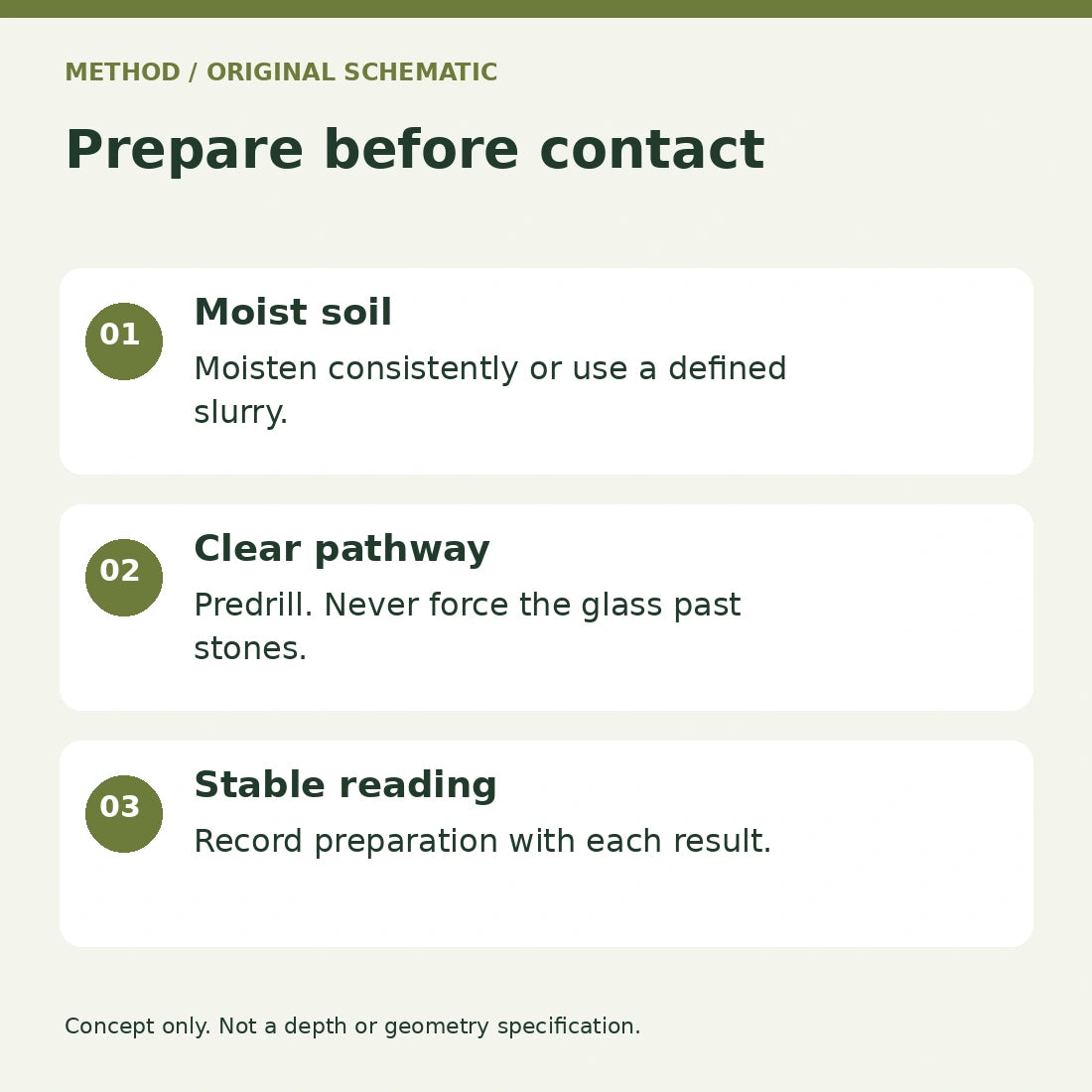

Prepare the pathway.
Do not force the glass.

Remove the storage cap, rinse the probe and perform at least a two-point calibration before first use. Begin with the neutral buffer for the selected series, then bracket the expected sample. Keep calibration portions clean and separate from the original bottles.

The soil must be moist enough for electrical contact. Dry soil needs controlled moistening or a defined slurry method. For hard or stony material, prepare the sample or choose a different sampling approach rather than pushing harder. A dibber is a separate preparation tool.

Predrill a clear pathway, then seat the probe gently so the sensing end contacts the prepared soil. Wait for a stable reading before saving. No universal insertion depth is promised: the electrode has a short exposed tip, and hole depth is not allowable glass insertion depth.

Sealed inside.
Wet storage outside.

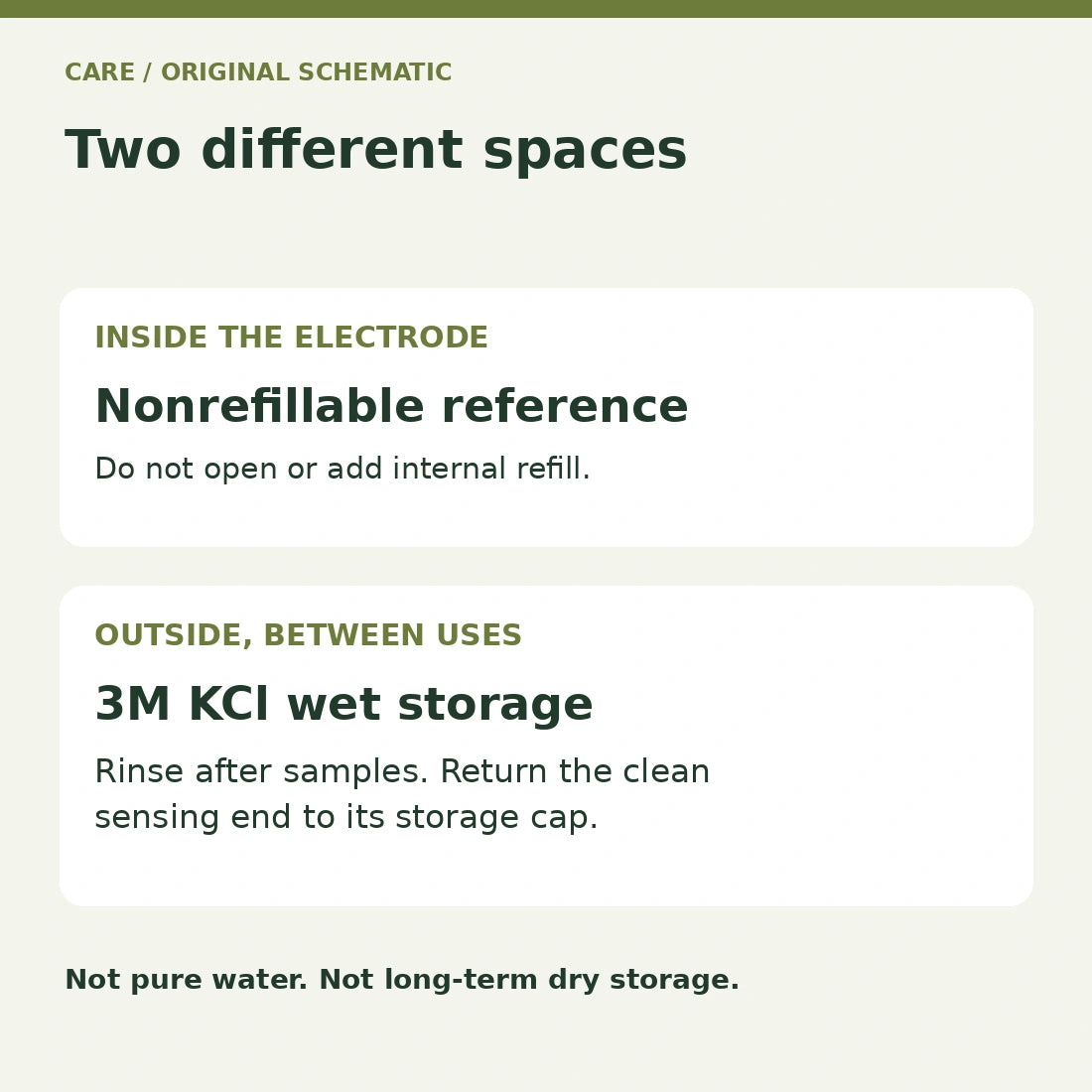

LabSen 553 is nonrefillable. Do not add KCl to its internal polymer reference. External 3M KCl storage solution serves a different purpose: keeping the sensing membrane hydrated and the junction ready between uses.

Rinse away soil after each reading, using a soft brush if necessary without loading the glass tip. Return the clean probe to its 3M KCl storage cap. Replace dirty storage solution; distilled or deionized water is for rinsing, not long-term storage.

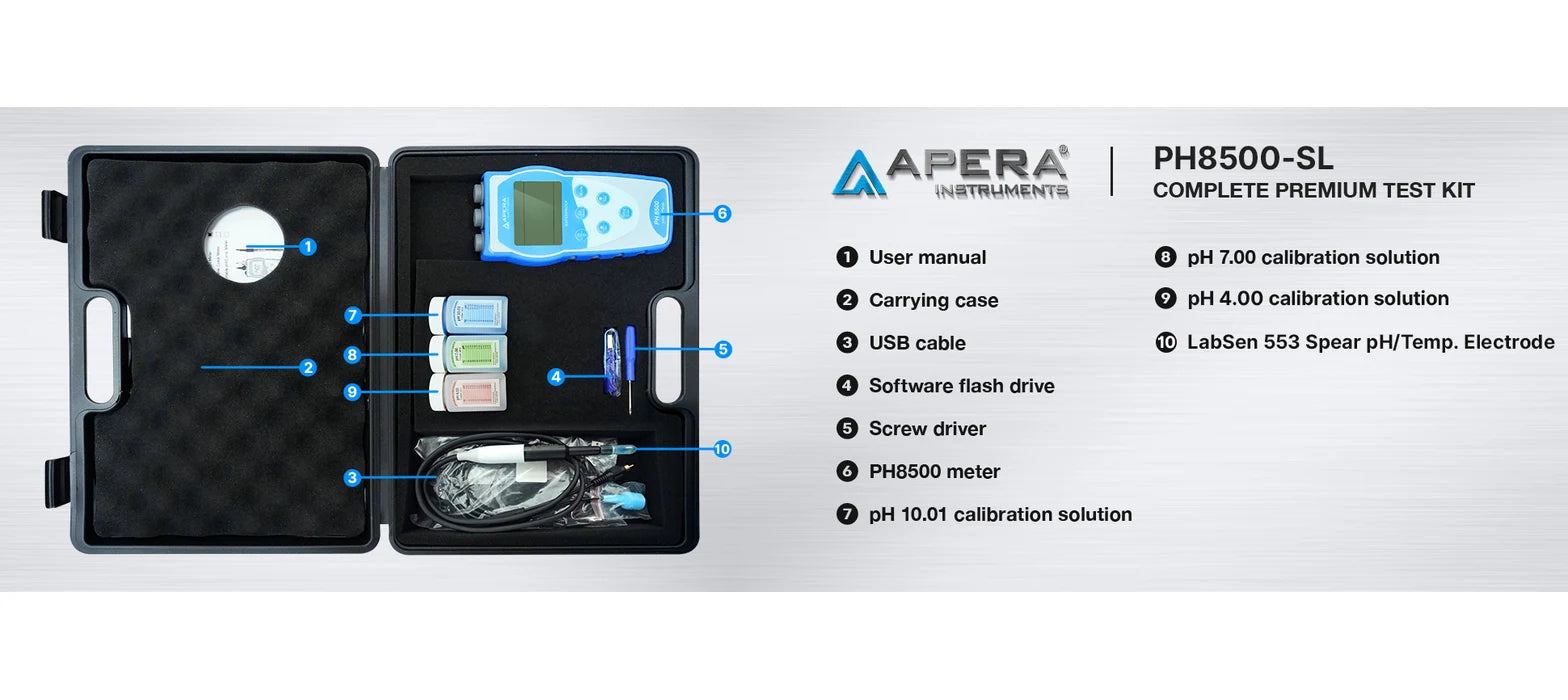

Keep connectors clean and dry. Inspect the tip around difficult samples, and recalibrate when needed. A separate storage-solution bottle, dibber, containers and preparation equipment are method or maintenance supplies, not promised kit contents.

A stable reading is the start of the record.

Use the physical meter controls for measurement and calibration, then record or save a stable result. A held display and a stored record are different functions. Screen values in photographs are illustrative, not measurements of your sample.

Choose the correct buffer family and calibration points for the intended work. Temperature compensation addresses electrode response; it does not make different sample temperatures, preparation methods or chemistry equivalent. Follow the exact probe instructions before extending the method to a new sample.

Record locally.
Transfer deliberately.

The PH8500 can retain up to 500 sets with date, time, measurement value, unit, temperature and the last calibration record. Manual saving follows a stable indication. Timed logging can be configured from one minute to 99 hours 59 minutes. Keep the clock and sample identification procedure consistent; deleting stored values cannot be undone.

The current Web PC-Link workflow uses USB with a compatible desktop Chrome or Edge browser on Windows or Mac. It supports CSV output and browser-print reporting. Check the exact instructions and connection before relying on a field data workflow; do not assume Firefox, Bluetooth or ZenTest support.

When connected to PC-Link, new records go to software rather than meter memory. Export and back up important records before closing the tool. This does not establish automatic permanent backup, an immutable audit trail, electronic signatures, regulatory compliance or guaranteed background operation.
