2301T-F-10M extends the 2301T-F conductivity/temperature electrode format with a 10-meter cable. Use it for compatible conductivity meters or the DO8500 salinity-compensation input when the sampling location needs more cable reach.
Preparing Quote Cart. Your shopping cart stays unchanged.
2301 K=1 conductivity electrodes are paired here with the 1413 µS/cm calibration standard.
Swipe or use the arrows to browse.
APERA INSTRUMENTS / 2301T-F-10M / AI4105
Compare the selected product with the related listings below. Check the application, connection and order contents before choosing.
Linked cards open current store listings. Other cards compare configurations; they do not imply current storefront availability.

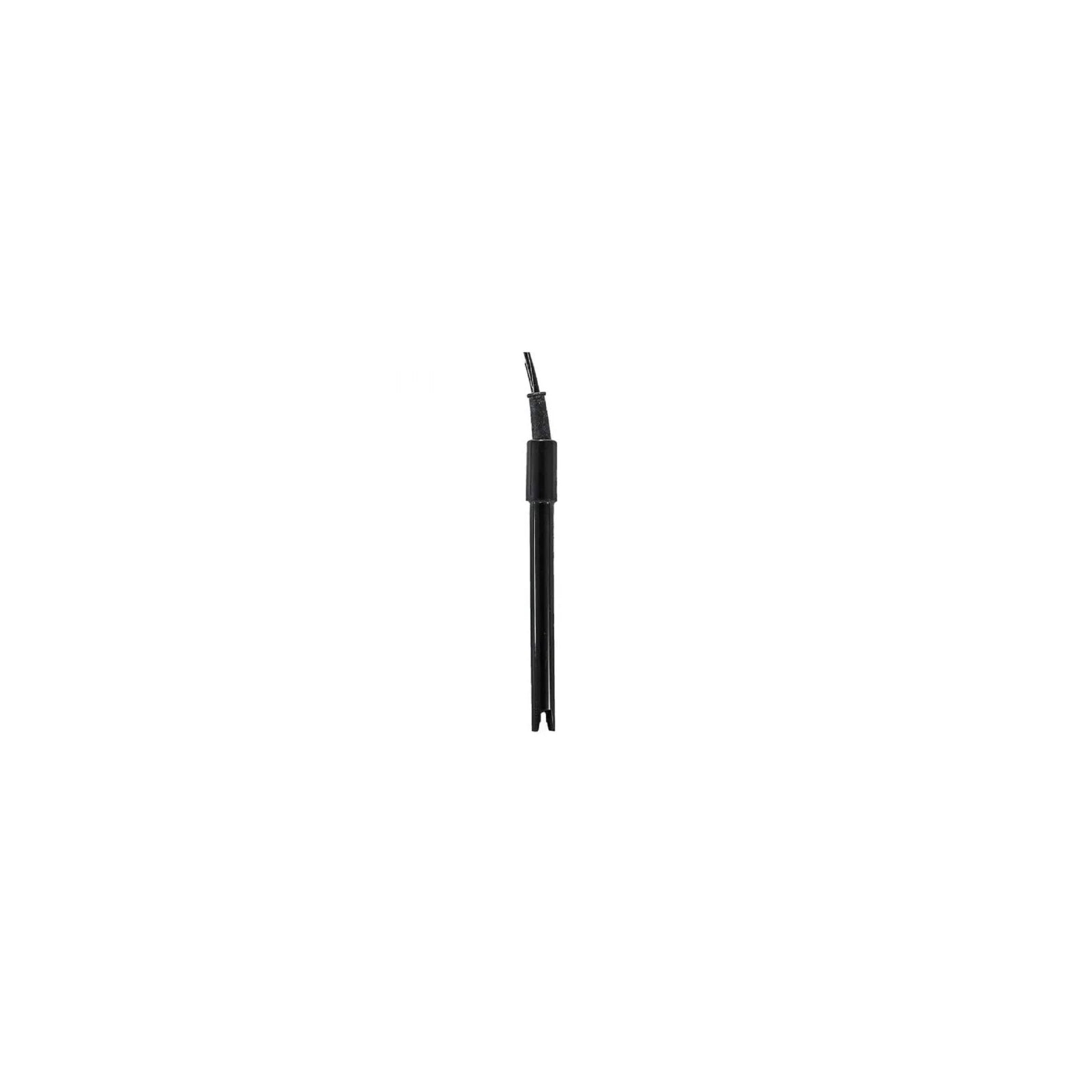

This order is the 10-meter cable configuration identified as AI4105 for this configuration. The family photograph illustrates the probe design; it does not show the full ordered cable length.
Check route length, connector location and strain relief before ordering. Cable length alone does not establish a rated immersion depth or pressure capability.

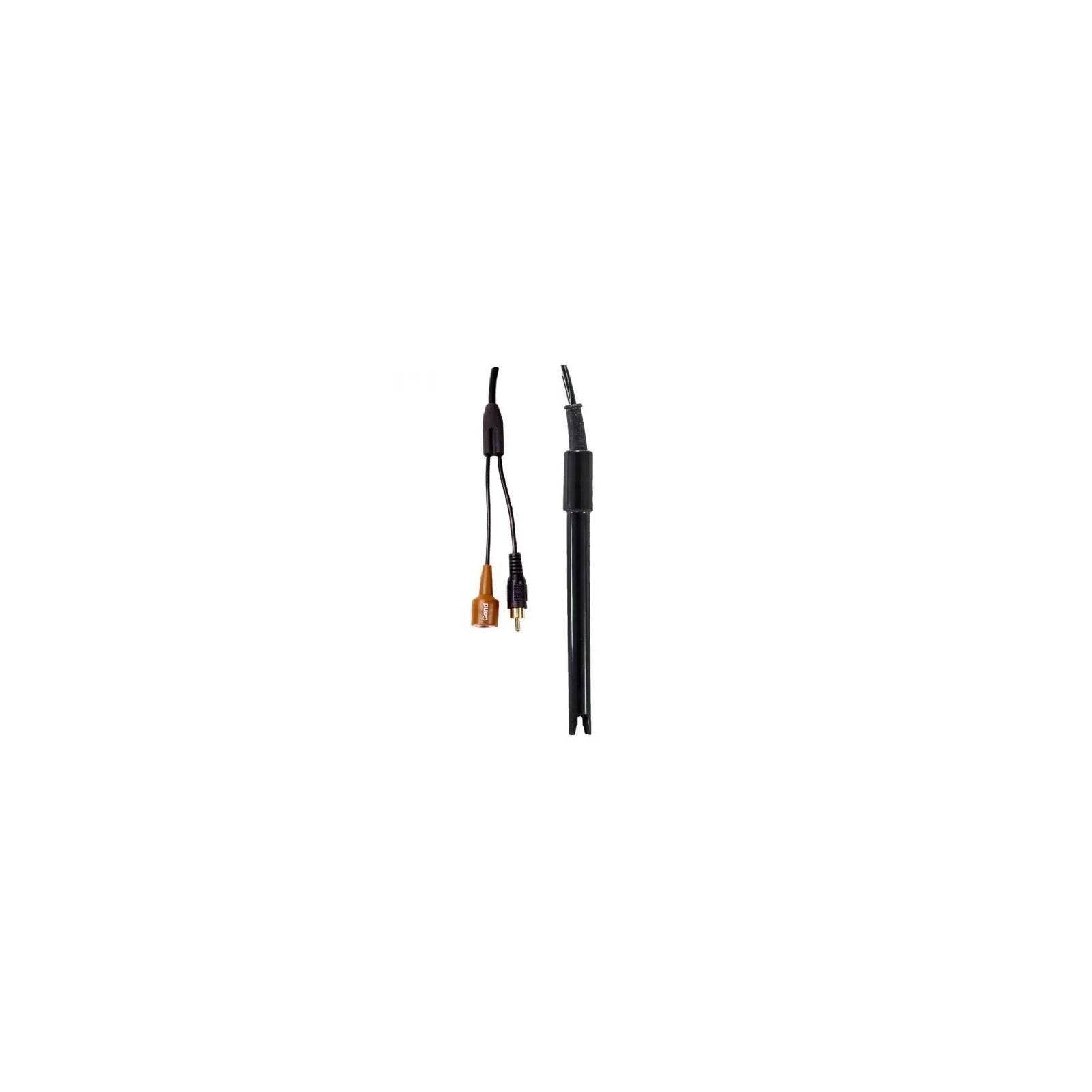

The 2301T-F family uses a K=1.0 platinum-black conductivity cell and a built-in 30 kΩ thermistor. BNC and RCA plugs carry the conductivity and temperature signals.
Apera identifies long-cable versions for the DO8500 automatic salinity-compensation input. This is the separate conductivity/salinity probe, not the optical dissolved-oxygen sensing probe.
After connecting a replacement electrode, select the appropriate cell constant and calibrate according to the host meter instructions. Rinse between standards and samples and ensure the sensing area is fully wetted.
The electrode manual specifies storage in its cap with distilled or deionized water. Do not substitute the KCl storage routine used for pH electrodes. Keep both connectors clean and dry.
Match the stated limits and configuration to your procedure. The Product Specifications tab repeats the order details for quick reference.
Apera DO8500 Portable Optical Dissolved Oxygen Meter Kit, 10-ft Cable | AI485
Apera 2301 Series Conductivity Electrode, K=1: 2301-C, 2301T-F or 2301T-S
Apera 602 Flexible Electrode Holder (AI2810)
10 meters. The manufacturer family photo may show a shorter cable; the order is specifically 2301T-F-10M.
No. This is a conductivity/temperature probe that can provide salinity compensation to a supported DO8500 system.
The 2301T-F format uses BNC for conductivity and RCA for temperature. Confirm both host inputs.
K=1.0. Set and calibrate the cell constant according to the host meter instructions after replacement.
No. Match the exact connector, conductivity channel and temperature sensor requirements; the 8-pin format is different.
No. Do not infer a depth or pressure rating from cable length alone.
Follow the 2301T-F manual, which specifies its storage cap with distilled or deionized water. Keep the connectors dry.
No. The order is one long-cable probe. Choose compatible calibration solutions and the meter separately.
Review the order contents and the required host meter and application before ordering. Contact Blue Tiger Scientific if you need help matching the part.
Manufacturer warranty support is subject to Apera’s terms for the specific product and the cause of the issue. Keep your purchase record and product identification for a support request.
For setup, compatibility or troubleshooting support, contact Blue Tiger Scientific with the model, order number and a description of the issue.
Contact Blue Tiger Scientific before returning a product. Return eligibility and instructions depend on the store’s applicable return policy and the condition of the item.
Document scope is shown on each card. A parent-meter manual or family handbook may describe other configurations and does not change the order contents on this page.
