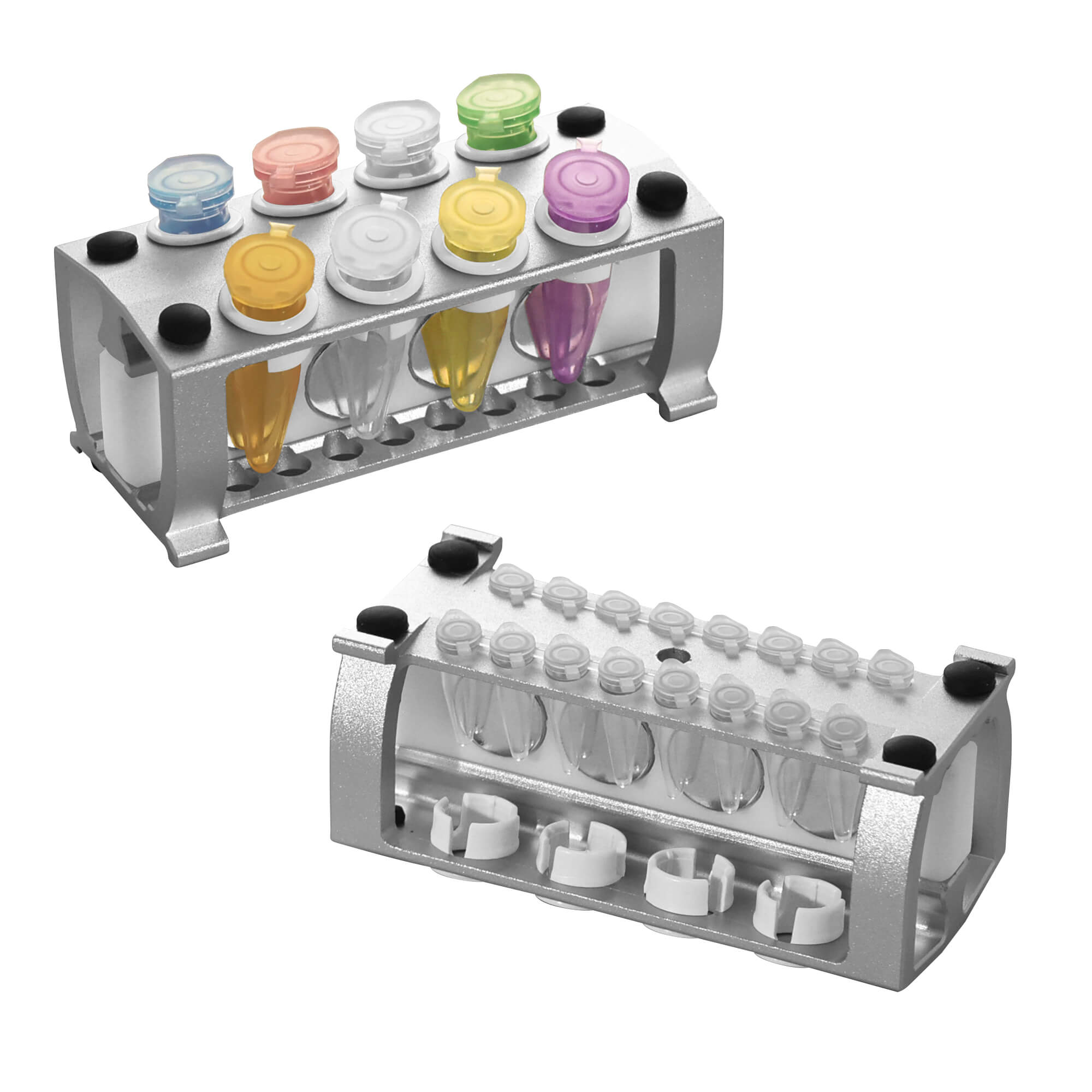

MTC Bio R0215 manufacturer product image
MTC Bio R0215 manufacturer product image

MTC Bio Reversible Magnetic Bead Separation Rack

$216.48

    Switch between microtubes and PCR tubes for bead separation.

    • Two-sided format: Flip the rack to change between microtube and PCR-tube formats.
    • Removable magnet housing: Move the magnetic field away to support resuspension without removing the tubes.
    • Adjustable exposure: Microtube rings allow adjustment of tube height in the magnetic field.
    • Angled tube wells: A 10° pitch promotes tube contact with the magnets.

See All Specs

aeroplane.png__PID:119d4b1a-2623-400c-8fa4-aec5b49a3bf0

Fast Delivery

Most items ship same day

protection.png__PID:4b1a2623-e00c-4fa4-aec5-b49a3bf05f92

Manufacturer Warranty

All products are covered by manufacturer warranty

technical-support.png__PID:e00c8fa4-aec5-449a-bbf0-5f923431936b

After-Sale Support

24/7 support

What's Included

download (70).webp__PID:7ab0a366-c50a-41ee-ae3a-ab9ed2dfc0ad

VR Headset

download (71).webp__PID:547ab0a3-66c5-4a41-aeae-3aab9ed2dfc0

2 Touch Controllers

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Charging Cable

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Power Adapter

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Glasses Spacer

download (69).webp__PID:26576cae-f878-4c99-ab7c-894d76af129b
MTC Bio R0215 manufacturer product image

Switch between microtubes and PCR tubes for bead separation.

R0215 uses a reversible design with a removable magnet sleeve, supporting eight 1.5/2.0 mL microtubes or sixteen 0.1/0.2 mL PCR tubes. Height-adjustment rings help position microtubes relative to the magnetic field.

8 microtubes

1.5 or 2.0 mL

16 PCR tubes

0.1 or 0.2 mL

Removable

Magnet sleeve

3.75 in.

Compact length

Designed for Your Workflow

Two-sided format
Flip the rack to change between microtube and PCR-tube formats.

Removable magnet housing
Move the magnetic field away to support resuspension without removing the tubes.

Adjustable exposure
Microtube rings allow adjustment of tube height in the magnetic field.

Angled tube wells
A 10° pitch promotes tube contact with the magnets.

MTC Bio R0215 manufacturer product image

Select the Right Format

Separation and resuspension conditions depend on the bead chemistry, liquid volume and tube geometry. Use the bead reagent’s validated method; magnetic strength alone does not define a universal separation time.

Configurations and Ordering Units

R0215

Configuration: Magnetic bead separation rack, reversible, for 8 x 1.5/2mL Microtubes or 16 x 0.1/0.2mL PCR tubes, with removable magnet sleeve and microtube height adjustment rings, 1/ea

Order unit: 1 per each

Typical Applications

  • Low-throughput nucleic-acid purification
  • Magnetic-bead separation
  • Microtube and PCR-tube workflows
  • Bead resuspension steps

Selection and Use Tip

Separation and resuspension conditions depend on the bead chemistry, liquid volume and tube geometry. Use the bead reagent’s validated method; magnetic strength alone does not define a universal separation time.

Frequently Asked Questions

Which tubes fit the rack?

The ordering table specifies eight 1.5/2.0 mL microtubes or sixteen 0.1/0.2 mL PCR tubes. The rack flips between these formats.

Can both sides be used at once?

The stated design is reversible: choose the orientation for your tube format. The two capacities are alternatives, not a combined 24-tube operating capacity.

What is the removable sleeve for?

It lets you move the magnets away for resuspension without removing the tubes from the rack.

What do the adjustment rings do?

They help control microtube height relative to the magnetic field. Set the position for the tube and working volume used in your validated method.

How does this differ from a fixed-format magnetic rack?

R0215 provides two tube formats through a reversible body and removable magnet sleeve. A fixed-format rack need not offer either feature; no identical performance or protocol interchangeability is implied.

How long does separation take?

No universal separation time is established here. Follow the bead supplier’s method and verify clearing for your sample volume and chemistry.

Are beads and tubes included?

This listing is one separation rack with magnet sleeve and height-adjustment rings. Beads and tubes are not included.

What is the footprint?

The manufacturer lists 3.75 × 1.75 × 1.5 inches, length × width × height.

    SpecificationDetail
    BrandMTC Bio
    Catalog numberR0215
    Capacity8 × 1.5/2.0 mL microtubes OR 16 × 0.1/0.2 mL PCR tubes
    Dimensions3.75 × 1.75 × 1.5 in. (L × W × H)
    Tube-well pitch10°
    Included featuresRemovable magnet sleeve; microtube height-adjustment rings
    Manufacturer magnet ratings5000 g pull strength; field strength greater than 5000 gauss

    Ordering Information — Complete Sellable Units

    Catalog No.Technical DescriptionPieces per UnitUnitShipping Weight per Unit
    R0215Magnetic bead separation rack, reversible, for 8 x 1.5/2mL Microtubes or 16 x 0.1/0.2mL PCR tubes, with removable magnet sleeve and microtube height adjustment rings, 1/ea1each2 lb
