Heathrow Scientific Digital DEF/Battery Acid Refractometer | 48602

$380.00

    Check DEF/urea concentration and battery-acid specific gravity with a three-scale digital refractometer.

    • MDX-602; automatic temperature compensation
    • 3 application-specific scales
    • 1 instrument with case, pipet, battery and manual

See All Specs

aeroplane.png__PID:119d4b1a-2623-400c-8fa4-aec5b49a3bf0

Fast Delivery

Most items ship same day

protection.png__PID:4b1a2623-e00c-4fa4-aec5-b49a3bf05f92

Manufacturer Warranty

All products are covered by manufacturer warranty

technical-support.png__PID:e00c8fa4-aec5-449a-bbf0-5f923431936b

After-Sale Support

24/7 support

Choose the scale for the sample

Check DEF/urea concentration and battery-acid specific gravity with a three-scale digital refractometer.

Heathrow Scientific Digital DEF/Battery Acid Refractometer | 48602 — Choose the scale for the sample

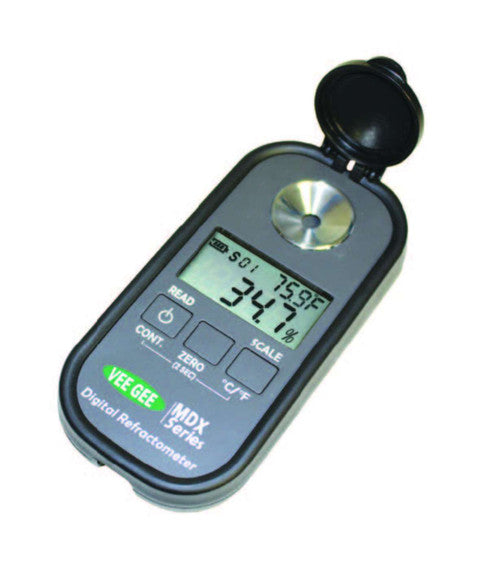

Manufacturer digital-family photograph from this product page. Screen values and displayed model are illustrative; see the specifications for the supplied model.

Choose the scale for the sample

The MDX-602 serves two distinct maintenance measurements: DEF/urea concentration and battery-acid specific gravity, with refractive index as a third output. Its published applications include diesel-vehicle, agricultural and construction-equipment work. Select the sample-specific scale before measuring. A concentration reading is useful process information, not by itself certification that a vehicle meets an emissions requirement.

A repeatable small-sample reading sequence

The matching manual calls for a daily zero check with clean distilled water, a clean dry sample well and a closed prism cover. For a reading, place 4–5 drops in the well, close the cover and press READ. The instrument supports individual readings and a 15-reading continuous loop. Allow a sample at a different temperature to acclimate as described in the manual; automatic temperature compensation is not a reason to skip that step.

Heathrow Scientific Digital DEF/Battery Acid Refractometer | 48602 — A repeatable small-sample reading sequence

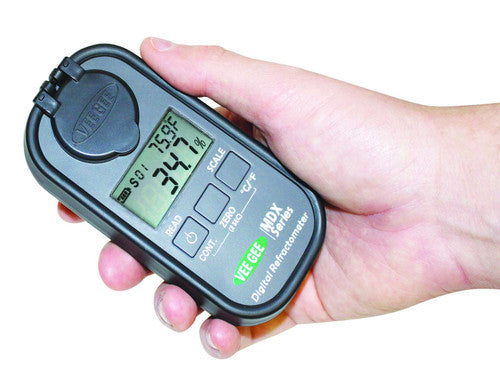

Manufacturer digital-family photograph from this product page. Screen values and displayed model are illustrative; see the specifications for the supplied model.

Prepare the instrument for the next sample

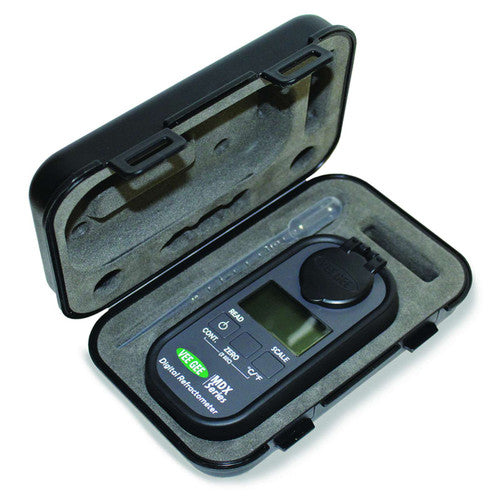

The stainless-steel prism well and removable grip/cover support access between readings. Follow the model manual’s care instructions, especially after corrosive or acidic samples, and avoid getting sample on the plastic housing. The detecting unit is rated IP67 and the remainder IP65; keep those two ratings distinct rather than describing the whole device as suitable for immersion. A hard-shell protective case, disposable pipet, AAA battery and manual accompany the instrument.

Confirm the order unit

48602 — 1 Each.

Related choices for your workflow

Heathrow Scientific Handheld Urea Refractometer for DEF & AdBlue

Compare a dedicated handheld urea instrument when DEF is the sole application.

Heathrow Scientific Digital Coolant Refractometer | 48603

Use the coolant model when the primary task is glycol coolant rather than DEF; choose by the published fluid-specific scales.

Frequently Asked Questions

Which model is supplied?

MDX-602; the application scales are listed in the specification table. Manufacturer family photographs may show illustrative screen values.

What is the main application scale?

DEF/urea: 0.0–51%; resolution 0.1%; accuracy ±0.2%.

Does it have refractive index?

Yes, 1.3330–1.4200 nD. Confirm the required resolution before ordering because published sources differ.

How is it zeroed?

Use clean distilled water and the ZERO sequence in the matching manual, with the prism cover closed. The manual recommends a daily zero check.

Can it take repeated readings?

Yes. It supports single readings and a 15-reading continuous loop.

Is the entire instrument IP67?

No. The detecting unit is IP67; the remainder is IP65. Follow the manual for care and exposure limits.

What comes with the instrument?

A rubber grip and prism cover, hard-shell protective case, disposable pipet, AAA battery and instruction manual.

    SpecificationDetail
    BrandHeathrow Scientific
    Product lineVEE GEE
    ModelMDX-602
    DEF/urea0.0–51%; resolution 0.1%; accuracy ±0.2%
    Refractive index1.3330–1.4200 nD; accuracy ±0.0003; confirm resolution
    Battery acid1.000–1.500 s.g.; resolution 0.001; accuracy ±0.005
    Temperature compensationAutomatic
    Reading modesSingle or 15-reading continuous loop
    Protection ratingsIP67 detecting unit; IP65 remainder
    PowerAAA battery included
    Manufacturer warranty1 year

    Ordering Information

    Cat. No.DescriptionPack
    48602Digital DEF/Battery Acid Refractometer | 486021 Each
