Heathrow Scientific 20-Well Hinged Multi-Tube Rack | 120498 Default Title Heathrow Scientific
Heathrow Scientific 20-Well Hinged Multi-Tube Rack | 120498 Default Title Heathrow Scientific

Heathrow Scientific 20-Well Hinged Multi-Tube Rack | 120498

$39.00

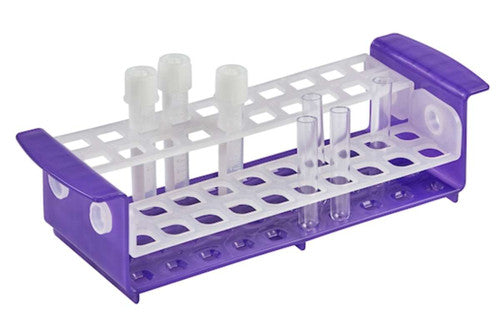

    Adapt one 20-well rack to tubes from 10–17 mm diameter with rotating hinged shelves. The purple/natural polypropylene rack includes four interchangeable tube segments and transport handles.

    • Two hinged shelves rotate up, down or to an angle
    • Teardrop wells and molded sample grid
    • Autoclavable; 1 Each

See All Specs

aeroplane.png__PID:119d4b1a-2623-400c-8fa4-aec5b49a3bf0

Fast Delivery

Most items ship same day

protection.png__PID:4b1a2623-e00c-4fa4-aec5-b49a3bf05f92

Manufacturer Warranty

All products are covered by manufacturer warranty

technical-support.png__PID:e00c8fa4-aec5-449a-bbf0-5f923431936b

After-Sale Support

24/7 support

Change the support arrangement as tubes change

Adapt one 20-well rack to tubes from 10–17 mm diameter with rotating hinged shelves. The purple/natural polypropylene rack includes four interchangeable tube segments and transport handles.

Heathrow Scientific 20-Well Hinged Multi-Tube Rack | 120498 — Change the support arrangement as tubes change
Actual manufacturer product view. Illustrated supplies or instruments show an application; refer to the stated order unit for the item supplied.

Change the support arrangement as tubes change

A laboratory that alternates between tube sizes can benefit from a rack whose support shelves move rather than a fixed layout for every task. The two hinged shelves rotate up or down to accommodate the tube being used. Four interchangeable tube segments are included, giving the working arrangement more flexibility than a single rigid top plate.

Use an angle for visibility and pipetting

The shelves can also be positioned at an angle for more comfortable pipetting and improved visibility. Set the arrangement before loading the sample set, then check that the actual tubes are supported as intended. The specified 10–17 mm range is a diameter range; nominal tube volume alone is not enough to confirm fit.

Keep a readable sample map

Teardrop-shaped wells are designed to ease insertion and improve tube retention, and molded grids appear on both sides of the shelves. Use those references consistently with the sample list as shelf orientation changes. If the rack is reconfigured between tasks, reset the working map deliberately rather than carrying over an old position assumption.

Plan the footprint and handling route

The rack measures 30.9 × 10.7 × 7.7 cm and has ergonomic handles for transport. Allow extra room for the rotating shelves and loaded tubes, not just the empty outline. Polypropylene construction is specified as autoclavable; use your laboratory cleaning and autoclave procedure. This is one configurable rack, not four separate racks despite the four included segments.

Confirm the order unit

120498 — 1 Each.

Related choices for your workflow

Heathrow Scientific Adjustable Universal Tube Rack | HS24330A

Compare a universal rack when the requirement is broad tube accommodation without hinged-shelf positioning.

Heathrow Scientific Rota-Rack Duo Tube Rack | HS29041A

For defined microtube sizes, compare reversible-face storage rather than a diameter-based hinged rack.

Frequently Asked Questions

Which tube diameters does it fit?

The specified range is 10–17 mm. Check the actual tube rather than relying only on nominal volume.

How many wells are there?

Twenty wells.

How do the shelves move?

Two hinged shelves can rotate up or down, and can be angled for pipetting and visibility.

What segments are supplied?

Four interchangeable tube segments are included with the rack.

What is the well shape?

A teardrop design intended to ease insertion and improve retention.

Is it autoclavable?

Yes. The polypropylene rack is specified as autoclavable.

Does one order contain four racks?

No. One order is one multi-tube rack with four interchangeable segments.

    SpecificationDetail
    BrandHeathrow Scientific
    Catalog number120498
    Capacity20 wells
    Tube diameter range10–17 mm
    ShelvesTwo moving hinged shelves
    IncludedFour interchangeable tube segments
    Well designTeardrop
    MaterialPolypropylene; autoclavable
    ColorPurple/natural
    Overall L × W × H30.9 × 10.7 × 7.7 cm
    Order unit1 Each

    Ordering Information

    Cat. No.DescriptionPack
    12049820-Well Hinged Multi-Tube Rack | 1204981 Each
