Heathrow Scientific Mini LED Light Box | 120661 Default Title Heathrow Scientific
Heathrow Scientific Mini LED Light Box | 120661 Default Title Heathrow Scientific

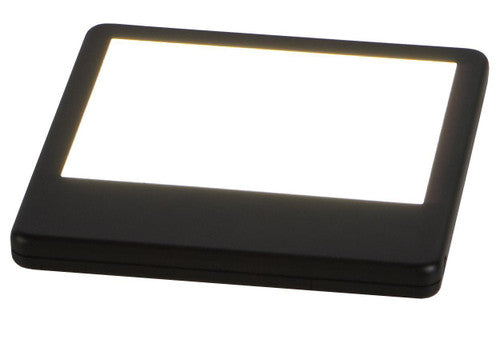

Heathrow Scientific Mini LED Light Box | 120661

$130.00

    Bring a compact illuminated viewing area to the bench for quick visual screening. The slim 120661 light box provides a 125 × 100 mm panel and includes its six AAA batteries.

    • 125 × 100 mm illuminated viewing area
    • Slim 14 mm overall height
    • Six 1.5 V AAA batteries included

See All Specs

aeroplane.png__PID:119d4b1a-2623-400c-8fa4-aec5b49a3bf0

Fast Delivery

Most items ship same day

protection.png__PID:4b1a2623-e00c-4fa4-aec5-b49a3bf05f92

Manufacturer Warranty

All products are covered by manufacturer warranty

technical-support.png__PID:e00c8fa4-aec5-449a-bbf0-5f923431936b

After-Sale Support

24/7 support

A viewing area, not the whole housing

Bring a compact illuminated viewing area to the bench for quick visual screening. The slim 120661 light box provides a 125 × 100 mm panel and includes its six AAA batteries.

Heathrow Scientific Mini LED Light Box | 120661 — A viewing area, not the whole housing
Manufacturer product view. Shown in a representative setup; see the stated supplied contents.

A viewing area, not the whole housing

The useful comparison for a slide, dish or plate is the illuminated 125 × 100 mm area. The larger 158 × 150 mm housing includes the surrounding frame. Check the part of your sample you need to inspect against the viewing area rather than assuming the entire footprint is illuminated.

For quick inspection at the point of work

Heathrow lists 96-well plates, Petri dishes, electrophoresis gels, slides and transparencies as screening applications. The LED source is specified at 5, 300 K ±270 K. This is a viewing light: no UV illumination, image capture, analytical sensitivity or quantitative measurement capability is specified. Choose it for visibility, not as a substitute for a method-specific detection instrument.

Keep the bench available between checks

At 14 mm high, the panel can be stored in a suitable drawer when not needed. Allow space for the sample and comfortable viewing in addition to the housing footprint. Battery power makes the unit useful where a small viewing station is more practical than a permanent installation.

Compare the viewing area with the housing

Viewing area
125 × 100 mm
Original area comparison using published dimensions. Outer rectangle: 158 × 150 mm housing. Inner rectangle: viewing area. Not a physical contour or exact panel position.

Choose your order unit

120661: Mini LED light box with batteries — 1 Each.

Related choices for your workflow

Heathrow Scientific 8-Place Slide Staining Tray Set

For a slide workflow, the separate eight-place staining tray addresses slide handling before viewing; it is not a light-box attachment.

Frequently Asked Questions

What size is the illuminated area?

125 × 100 mm, distinct from the larger housing.

Are batteries included?

Yes. Six 1.5 V AAA batteries are included.

Is this a UV transilluminator?

No UV output is specified. This is an LED viewing light box.

Can it be used for slides?

Heathrow lists slides and transparencies among its visual-screening applications.

Does it take photographs?

No camera or image-capture function is specified.

How thick is the unit?

The overall height is 14 mm.

Is the whole top illuminated?

The specified viewing area is 125 × 100 mm; do not use the housing dimensions as the lit-area measurement.

    SpecificationDetail
    BrandHeathrow Scientific
    Viewing area125 × 100 mm
    Light sourceLED
    Color temperature5, 300 K ±270 K
    Overall dimensions158 × 150 × 14 mm
    PowerSix 1.5 V AAA batteries; included
    Manufacturer warranty1 year; manufacturer terms apply

    Ordering Information

    Cat. No.DescriptionPack
    120661Mini LED light box with batteries1 Each
