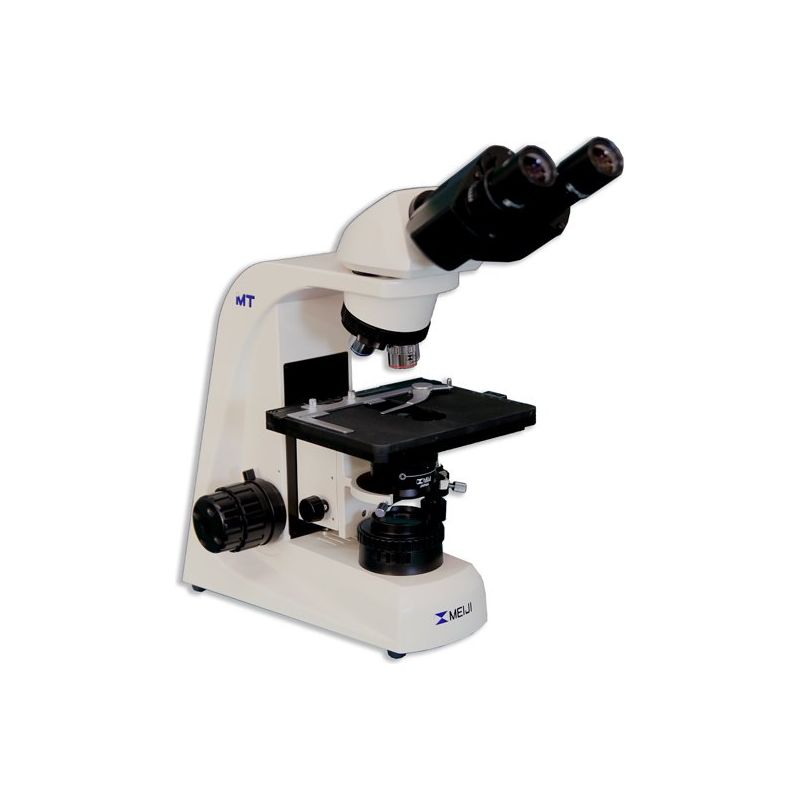

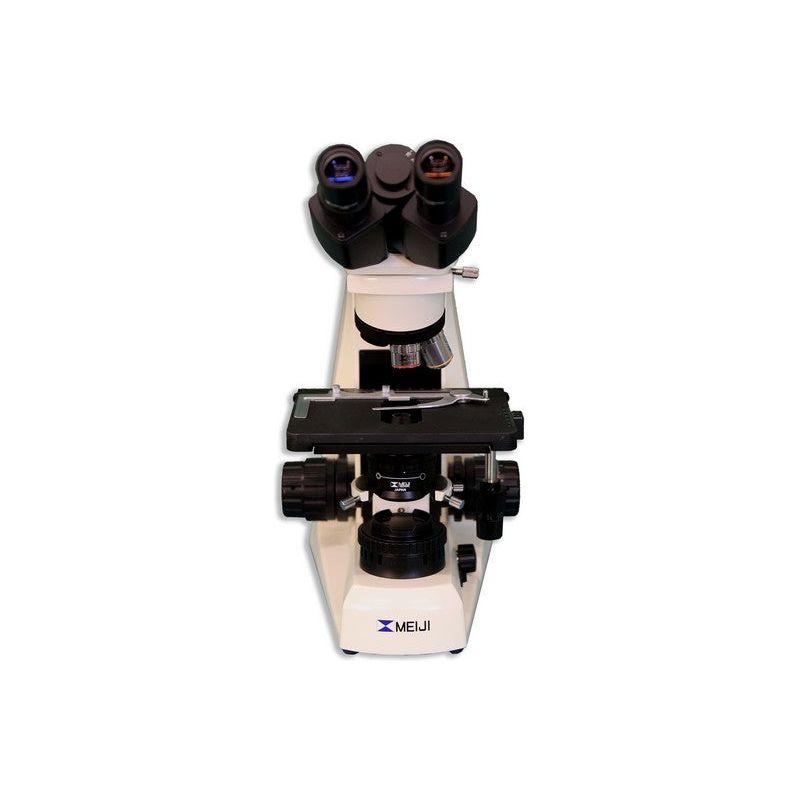

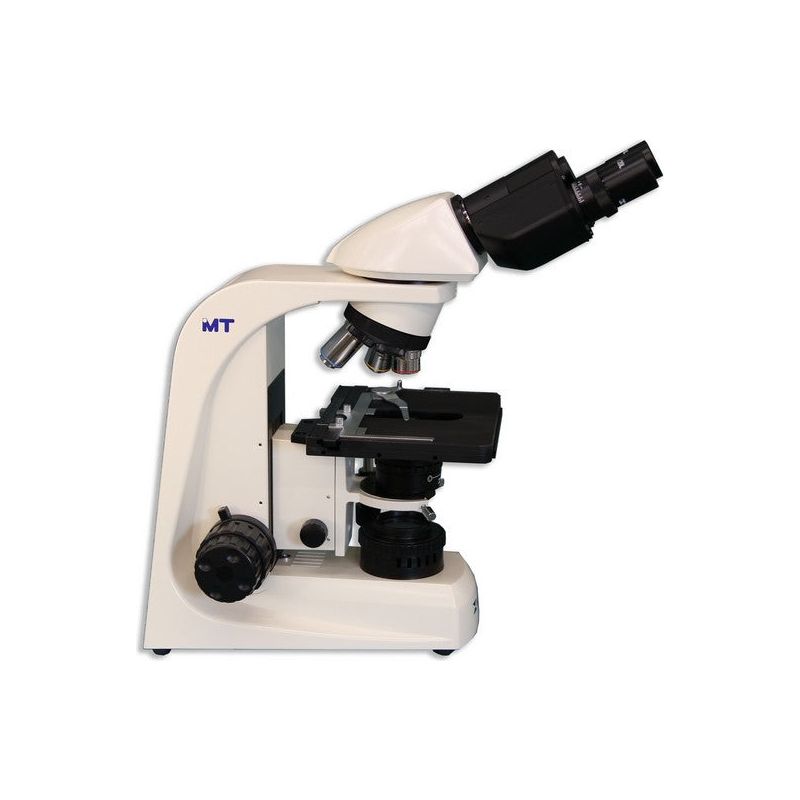

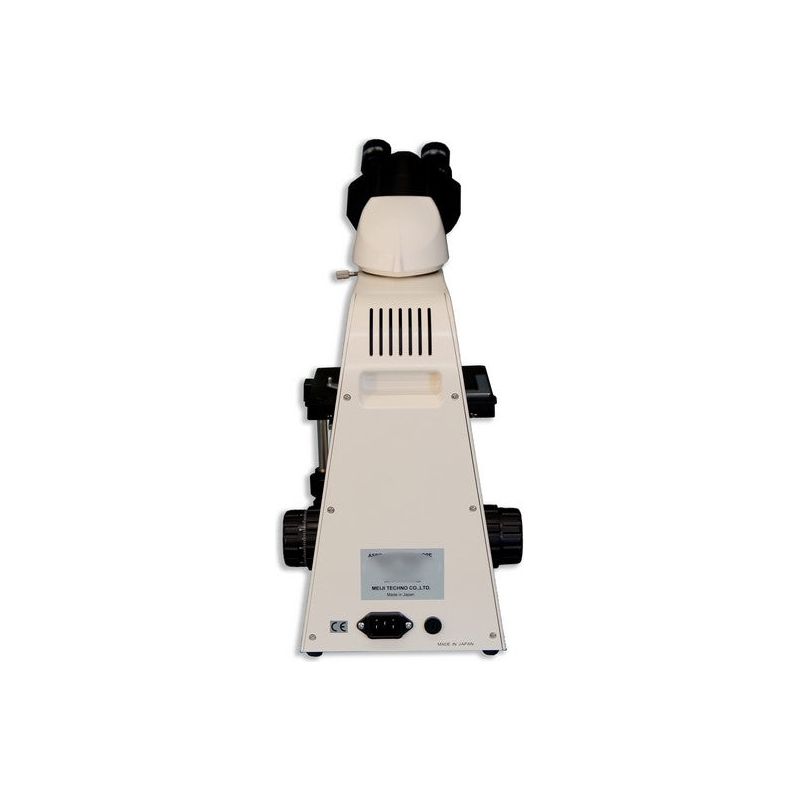

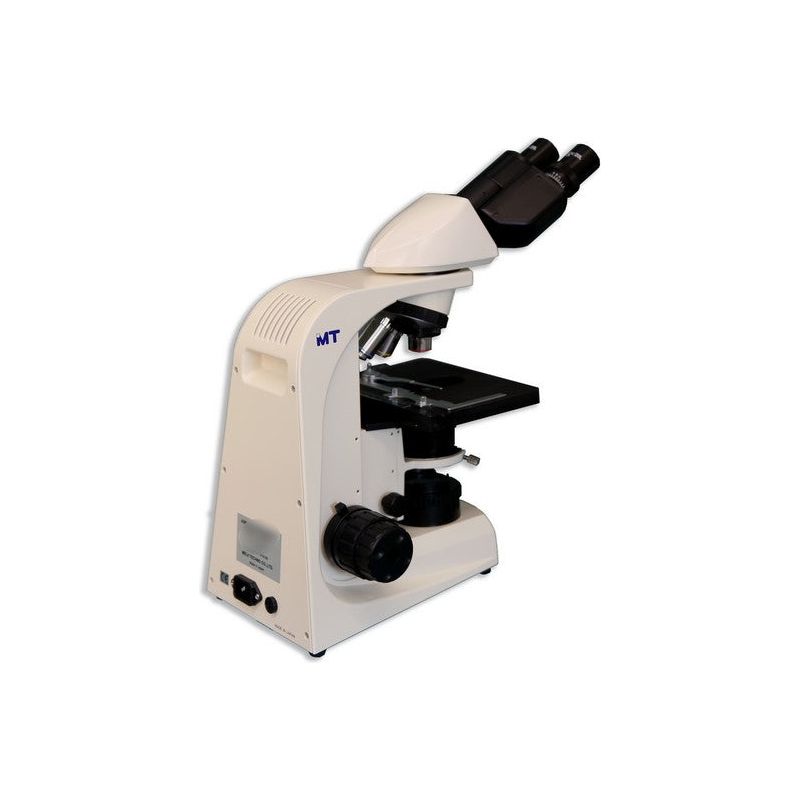

Meiji Techno MT4200L - Biological Compound Binocular Brightfield (40x-1000x) with Infinity Corrected U. Plan (4x, 10x, 40x, 100x Oil)

$3,850.00

    The Meiji Techno MT4200L is a high-performance biological microscope designed for precision and ease of use. Its Infinity Corrected Optical System (ICOS) delivers sharp, clear images, while the ergonomic design ensures comfortable viewing and operation. With its versatile features, including brightfield and phase contrast observation, the MT4200L is ideal for a wide range of applications in research, education, and clinical settings.

See All Specs

aeroplane.png__PID:119d4b1a-2623-400c-8fa4-aec5b49a3bf0

Fast Delivery

Most items ship same day

protection.png__PID:4b1a2623-e00c-4fa4-aec5-b49a3bf05f92

Manufacturer Warranty

All products are covered by manufacturer warranty

technical-support.png__PID:e00c8fa4-aec5-449a-bbf0-5f923431936b

After-Sale Support

24/7 support

Order within the next 02 Hours and 21 Minutes and recieve your package between Jan 15 and Jan 25 (Estimated)

OrderedJan 05

After you place the order, we will need 1-3 days to prepare the shipment

Order ReadyJan 06 - Jan 08

Orders will start to be shipped

DeliveredJan 15 - Jan 25

Estimated arrival date range:Jan 15 - Jan 25

Checkout securely with

Powered by SEOAnt

What's Included

download (70).webp__PID:7ab0a366-c50a-41ee-ae3a-ab9ed2dfc0ad

VR Headset

download (71).webp__PID:547ab0a3-66c5-4a41-aeae-3aab9ed2dfc0

2 Touch Controllers

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Charging Cable

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Power Adapter

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Glasses Spacer

download (69).webp__PID:26576cae-f878-4c99-ab7c-894d76af129b

Features:

  • Compact Space Saving Footprint design with ergonomics in mind
  • Infinity Corrected Optical System (ICOS™) with all newly designed Planachromatic optics
  • Comfortable Siedentopf-type Binocular and Trinocular Viewing heads
  • Optional Ergonomic tilting binocular head- Adjustable vertically from 10°to 50° degrees
  • Ceramic Coated Stage with Ergonomically Placed Low Position Drop down Control
  • Parfocalled Microscope Objectives
  • Tension adjustment control with Coaxial knobs
  • Low Positioned Ergonomic Coaxial Focus Control
  • Low Positioned Ergonomic Coaxial Focus Control
  • Smooth Operating Ergonomic Quintuple Nosepiece
  • Brightfield and Phase Contrast Observation modes available
  • Super Bright LED Koehler illumination, Lambertian design
  • Integrated 30-Watt Halogen Transmitted illumination System on selected Brightfield and Phase Contrast Models
  • Abbe and Zernike Phase Contrast Condensers available
  • Integrated Automatic Voltage Sensing Power Supply with localized power cord
  • Rear Cord Wrap for easy storage
  • Wide Range of Filters and Accessories

The MT4200L Series is Meiji Techno’s newly designed upright Binocular Biological Compound LED Microscope system. Equipped with newly upgraded Infinity Corrected U. Plan 4X,10X 40X and 100X oil objectives. Ergonomically designed, precisely manufactured in Japan and simple to use stage and coarse and fine controls. To meet the demands of researchers and clinical laboratory specialists.

Meiji Techno has reviewed all aspects of microscope usability to develop the MT4200L microscope, which provides functionality with operational ease. Viewing high quality images, sample changing and photomicroscopy are all conducted with ergonomics in mind. High luminescent LED illumination reduces need for frequent bulb replacement, especially in the middle of midterms or a special research project.

The MT4200L is designed for Brightfield observation and rugged quality as you would expect from a microscope that is 100% MADE IN JAPAN. Various imaging techniques are available with different models in this series.

Brightfield:

The simplest of all the optical microscopy illumination techniques. Sample illumination is transmitted (i.e., illuminated from below and observed from above) white light and contrast in the sample is caused by absorbance of some of the transmitted light in dense areas of the sample. Brightfield microscopy is the simplest of a range of techniques used for illumination of samples in light microscopes and its simplicity makes it a popular technique. The typical appearance of a brightfield microscopy image is a dark sample on a bright background.

The MT4000 Series is a newly designed upright biological compound microscope system. Ergonomically designed, precisely manufactured and simple to use stage and coarse and fine controls. To meet the demands of researchers and clinical laboratory specialists. The MT4000 Series was to develop to provide functionality and operational ease. Viewing high quality images, sample changing and photomicroscopy are all conducted with ergonomics in mind. High luminescent LED illumination reduces need for frequent bulb replacement but still provide rugged durability and long life span.

VIEWING HEADS

Model MA815/05 is the Siedentopf-type binocular head and Model MA816/05 is the trinocular head for camera integration. Each head has the eyetubes inclined at 30 ° with the left eyetube having graduated diopter settings. The interpupillary distance is adjustable between 53mm - 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo work.The optional MA957/05, Ergonomic Binocular Viewing Head, has the inclination adjustable from 10 to 50 degrees to fit users of different heights. The Ergonomic Trinocular model comes with the MA958, photo/video attachment with sliding 80/20 beam-splitter (Included in MT4300ED).

EYEPIECES

10X Widefield High Eyepoint eyepieces F.N.20 are standard, and 15X and 20X eyepieces are available as an option. A Widefield High Eyepoint 10X focusable eyepiece that accepts 21mm reticules is also available.

OBJECTIVE CHANGER

Quintuple nosepiece provides effortless objective changes with smooth-operating, ball bearing mounted.

OBJECTIVES

Meiji Techno America offers an assortment of Planachromat Infinity Corrected (ICOS) objectives for Brightfield, Darkfield and Phase Contrast observation modes.

STAGE

Ceramic coated standard right-handed or optional left-handed controls, flat top stage 171mm x 115mm and travels 78mm(X) x 52mm(Y). Ergonomically positioned coaxial drop down controls. Available with motorized focus and stage controls.

CONDENSER

New design centerable Abbe 1.25 N.A. Condenser with built-in iris diaphragm in dovetail mount.

ILLUMINATION

Powerful white LED illumination provides enhanced image quality and brightness for the observation of specimens and photomicroscopy.

PHOTOMICROGRAPHY

Meiji Techno offers a broad range of digital video cameras which offers excellent sensitivity, high resolution and a wide dynamic range for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life sciences and geology. Some models has included software, that can preview and capture still shots and live videos to a PC or Mac with USB port or HDMI connectivity.

    Feature Details
    Viewing Body Binocular head, Siedentopf type, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (23.2mm I.D. eyetube)
    Eyepiece KHW10X Widefield high eyepoint compensating eyepiece, Field No. 20, tube O.D. 23.2mm
    Nosepiece Ergonomic Quintuple Nosepiece, ball bearing mounted
    Objectives Infinity Corrected Planachromat Semi Apo 4x, 10x, 40x, 100x oil
    Mechanical Stage Ceramic coated flat-top stage, 170mm x 140mm, with 80mm x 52mm X-Y movement and right hand drop-down coaxial controls

    Shipping

    Calculate shipping costs at cart or checkout. Our representatives are also happy to assist you by requesting a quote.

    Returns

    Please note that return requests for Meiji Techno items must be submitted within 14 days after the delivery date. If you are dissatisfied with your purchase, let us help you with a refund or exchange. Exclusions may apply. For full details, view our Returns Policy.

Product Resources:

Copy of Technical Specifications

FeatureDetails
Viewing Head Siedentopf type trinocular head, inclined at 30°, Interpupillary adjustment 53mm to 75mm, graduated diopter on left eyetube (30mm I.D. eyetubes)
Eyepieces SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
Nosepiece Quintuple
Quintuple LWD Planachromat Phase 10x, 20x
Condenser TC Condenser N.A. 0.30, W.D. 73.0mm
Stage180mm(X) x 245mm(Y) plain stage with replaceable glass insert with 45mm opening, Glass Stage plate insert
IlluminationKoehler without iris, with phase slider, 3W LED
WarrantyLIMITED LIFETIME WARRANTY
