Hanna HI1006 / HI1016 Industrial pH & Temperature Smart Probe for HI520 & HI510 pH Electrodes Hanna Instruments
by Hanna Instruments

Hanna HI1006 / HI1016 Industrial pH & Temperature Smart Probe for HI520 & HI510

Glass Sensor Type: Low Temperature (LT) glass
Junction: PTFE junction
Cable Length: Supplied with DIN Connector (without cable)
Authorized Dealer

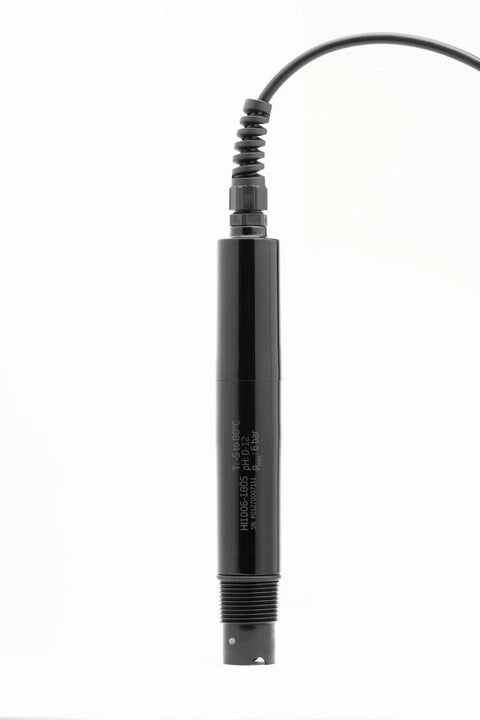

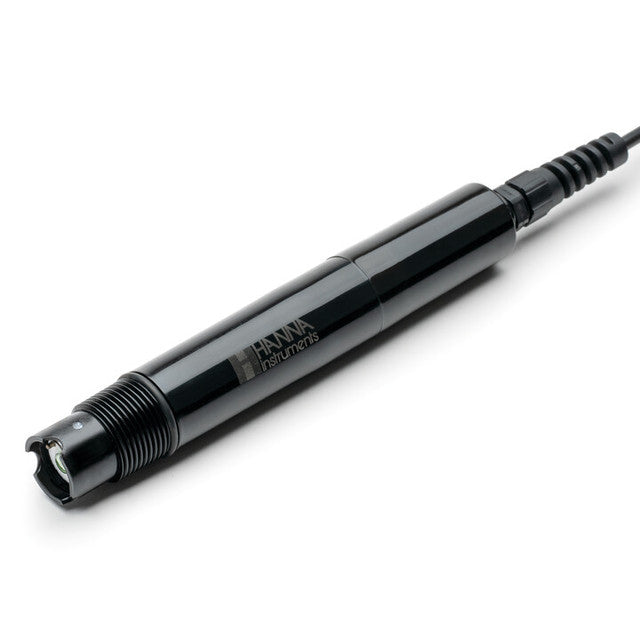

Hanna HI10x6 industrial pH and temperature smart probe

Digital pH Smart Probe for Continuous Process Control

Built for around-the-clock monitoring, this industrial probe reads pH and temperature together and sends both to your controller as a clean digital signal. It plugs directly into the Hanna HI510 and HI520 Universal Process Controllers, which identify the probe automatically the moment it's connected.

Calibration travels with the probe. Model, serial number, firmware, and calibration data are stored in the probe itself, so you can calibrate at the bench and install in the field without recalibrating at the controller.

Where It's Used

Municipal Wastewater Treatment
Industrial Effluent and Discharge Compliance
pH Neutralization and Holding Tanks
Metal Finishing and Plating Rinse Water
Process Water and Chemical Dosing Systems
Surface Water Monitoring

Engineered for Harsh Process Conditions

  • PVDF body stands up to solvents, bleach, UV exposure, and biological growth, and wipes clean easily.

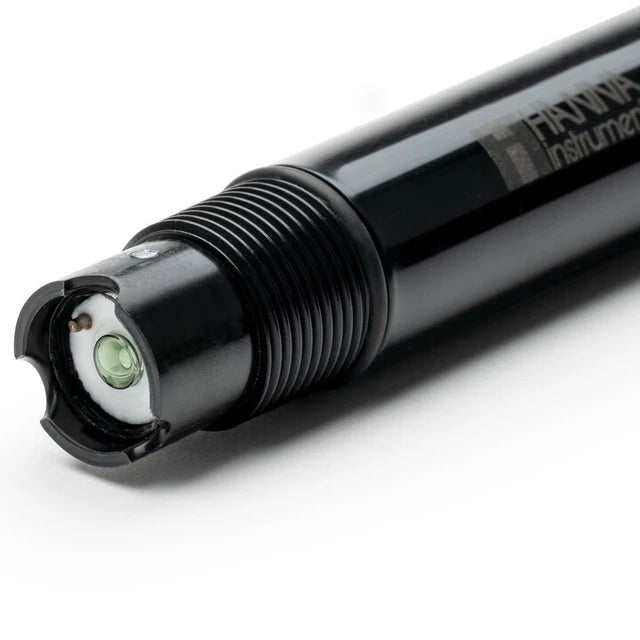

  • Flat sensing tip sheds deposits instead of collecting them, cutting down on cleaning between calibrations.
  • Built-in temperature sensor compensates pH readings automatically as process temperature shifts.
  • Matching pin guards against ground-loop interference from pumps and other equipment in the tank.
  • 3/4" NPT thread for in-line mounting, tank immersion, or a flow cell.

Choosing Your Configuration

Glass sensor type should match your process chemistry and temperature:

Glass pH Range Temperature Best For
Low Temperature (LT) 0 to 12 pH -5 to 80 °C Ambient-temperature water and wastewater
High Temperature (HT) 0 to 14 pH 0 to 100 °C Hot processes and strongly alkaline solutions
Fluoride-resistant (HF) 0 to 10 pH -5 to 60 °C Solutions containing fluoride or hydrofluoric acid

Junction: PTFE resists clogging and chemical attack, and is the better pick for dirty or aggressive process streams. Ceramic is the standard choice for cleaner water.

Cable length: the 5, 10, 15, 25, and 50 m options include a patch cable that connects to the probe's DIN connector. Measure the routed path from the probe to the controller, not the straight-line distance. The DIN connector option ships without a cable, for installations that need a patch cable purchased separately.

Compatibility

This is a digital probe that communicates over RS-485. It works with the Hanna HI510 and HI520 process controllers and will not connect to BNC-input meters or controllers. For a BNC system, ask us about the analog versions of this probe.

Use this text to share information about your product.

Use this text to share information about your product.

Use this text to share information about your product.

Global shipping available. Please request a quote to receive customized pricing for your region.

Hanna HI1006 / HI1016 Industrial pH & Temperature Smart Probe for HI520 & HI510 pH Electrodes Hanna Instruments
Hanna HI1006 / HI1016 Industrial pH & Temperature Smart Probe for HI520 & HI510 pH Electrodes Hanna Instruments
Hanna HI1006 / HI1016 Industrial pH & Temperature Smart Probe for HI520 & HI510 pH Electrodes Hanna Instruments
Hanna HI1006 / HI1016 Industrial pH & Temperature Smart Probe for HI520 & HI510 pH Electrodes Hanna Instruments
Hanna HI1006 / HI1016 Industrial pH & Temperature Smart Probe for HI520 & HI510 pH Electrodes Hanna Instruments
Hanna HI1006 / HI1016 Industrial pH & Temperature Smart Probe for HI520 & HI510 pH Electrodes Hanna Instruments

Hanna HI1006 / HI1016 Industrial pH & Temperature Smart Probe for HI520 & HI510

$509.99
SKU: HI1006-1800

    For Hanna HI510 and HI520 Universal Process Controllers

    Digital pH and temperature probe for continuous process monitoring and chemical dosing control. Calibration data is stored in the probe, and the controller recognizes it automatically on connection.

    • LT glass (-18 series): ambient-temperature water, wastewater, and low-conductivity samples
    • HT glass (-38 series): full 0 to 14 pH range and processes up to 100 °C
    • HF glass (-48 series): solutions containing fluoride or hydrofluoric acid

    Choose PTFE or ceramic junction and cable length from 5 to 50 m. Not compatible with BNC meters.

See All Specs

aeroplane.png__PID:119d4b1a-2623-400c-8fa4-aec5b49a3bf0

Fast Delivery

Most items ship same day

protection.png__PID:4b1a2623-e00c-4fa4-aec5-b49a3bf05f92

Manufacturer Warranty

All products are covered by manufacturer warranty

technical-support.png__PID:e00c8fa4-aec5-449a-bbf0-5f923431936b

After-Sale Support

24/7 support

What's Included

download (70).webp__PID:7ab0a366-c50a-41ee-ae3a-ab9ed2dfc0ad

VR Headset

download (71).webp__PID:547ab0a3-66c5-4a41-aeae-3aab9ed2dfc0

2 Touch Controllers

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Charging Cable

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Power Adapter

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Glasses Spacer

download (69).webp__PID:26576cae-f878-4c99-ab7c-894d76af129b
Hanna HI10x6 industrial pH and temperature smart probe

Digital pH Smart Probe for Continuous Process Control

Built for around-the-clock monitoring, this industrial probe reads pH and temperature together and sends both to your controller as a clean digital signal. It plugs directly into the Hanna HI510 and HI520 Universal Process Controllers, which identify the probe automatically the moment it's connected.

Calibration travels with the probe. Model, serial number, firmware, and calibration data are stored in the probe itself, so you can calibrate at the bench and install in the field without recalibrating at the controller.

Where It's Used

Municipal Wastewater Treatment
Industrial Effluent and Discharge Compliance
pH Neutralization and Holding Tanks
Metal Finishing and Plating Rinse Water
Process Water and Chemical Dosing Systems
Surface Water Monitoring

Engineered for Harsh Process Conditions

  • PVDF body stands up to solvents, bleach, UV exposure, and biological growth, and wipes clean easily.
  • Flat sensing tip sheds deposits instead of collecting them, cutting down on cleaning between calibrations.
  • Built-in temperature sensor compensates pH readings automatically as process temperature shifts.
  • Matching pin guards against ground-loop interference from pumps and other equipment in the tank.
  • 3/4" NPT thread for in-line mounting, tank immersion, or a flow cell.

Choosing Your Configuration

Glass sensor type should match your process chemistry and temperature:

Glass pH Range Temperature Best For
Low Temperature (LT) 0 to 12 pH -5 to 80 °C Ambient-temperature water and wastewater
High Temperature (HT) 0 to 14 pH 0 to 100 °C Hot processes and strongly alkaline solutions
Fluoride-resistant (HF) 0 to 10 pH -5 to 60 °C Solutions containing fluoride or hydrofluoric acid

Junction: PTFE resists clogging and chemical attack, and is the better pick for dirty or aggressive process streams. Ceramic is the standard choice for cleaner water.

Cable length: the 5, 10, 15, 25, and 50 m options include a patch cable that connects to the probe's DIN connector. Measure the routed path from the probe to the controller, not the straight-line distance. The DIN connector option ships without a cable, for installations that need a patch cable purchased separately.

Compatibility

This is a digital probe that communicates over RS-485. It works with the Hanna HI510 and HI520 process controllers and will not connect to BNC-input meters or controllers. For a BNC system, ask us about the analog versions of this probe.

    SKU HI10x6-x8xx
    Description pH and Temperature Industrial Smart Probe
    pH Range LT glass: 0.00 to 12.00 pH
    HT glass: 0.00 to 14.00 pH
    HF glass: 0.00 to 10.00 pH
    Recommended Operating Temperature LT glass: -5.0 to 80.0 °C (23.0 to 176.0 °F)
    HT glass: 0.0 to 100.0 °C (32.0 to 212.0 °F)
    HF glass: -5.0 to 60.0 °C (23.0 to 140.0 °F)
    Temperature Accuracy (@25 °C/77 °F) ±0.5 °C (±1.0 °F)
    Glass Type Low Temperature (LT), High Temperature (HT), or Fluoride-resistant (HF)
    Junction PTFE (HI1006 series) or Ceramic (HI1016 series)
    Tip / Shape Flat, self-cleaning
    Diameter 22 mm (0.9")
    Body Material PVDF
    Mounting Thread 3/4" NPT
    Connection DIN connector, digital RS-485 (not BNC compatible)
    Cable Length 5, 10, 15, 25, or 50 m patch cable included, or DIN connector only (without cable)
    Compatibility HI510 and HI520 Universal Process Controllers
    Ordering Information Each probe is supplied with a quick reference guide and probe quality certificate.
