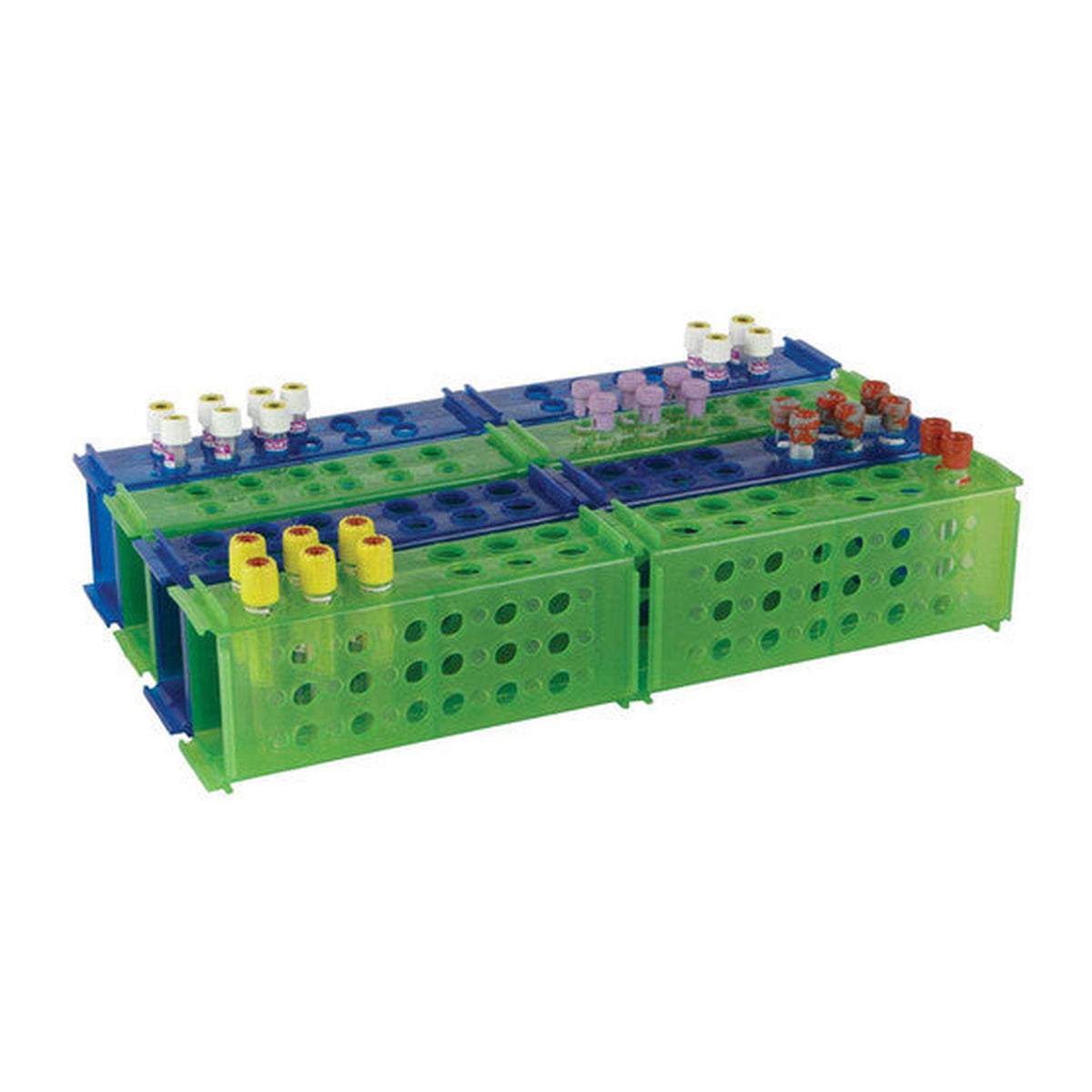

Autoclavable 60-well racks for 13 and 17 mm blood collection and culture tubes
Clinical labs handle many tube sizes at once, and one rack that takes both 13 mm and 17 mm tubes saves space. Heathrow Scientific’s Clinical 4-Way Tube Racks are polypropylene with 60 wells across four sides, hold tubes from 3.5 to 15 mL, and link to other racks end to end or side by side. Each order is a pack of 5.
Choose your color

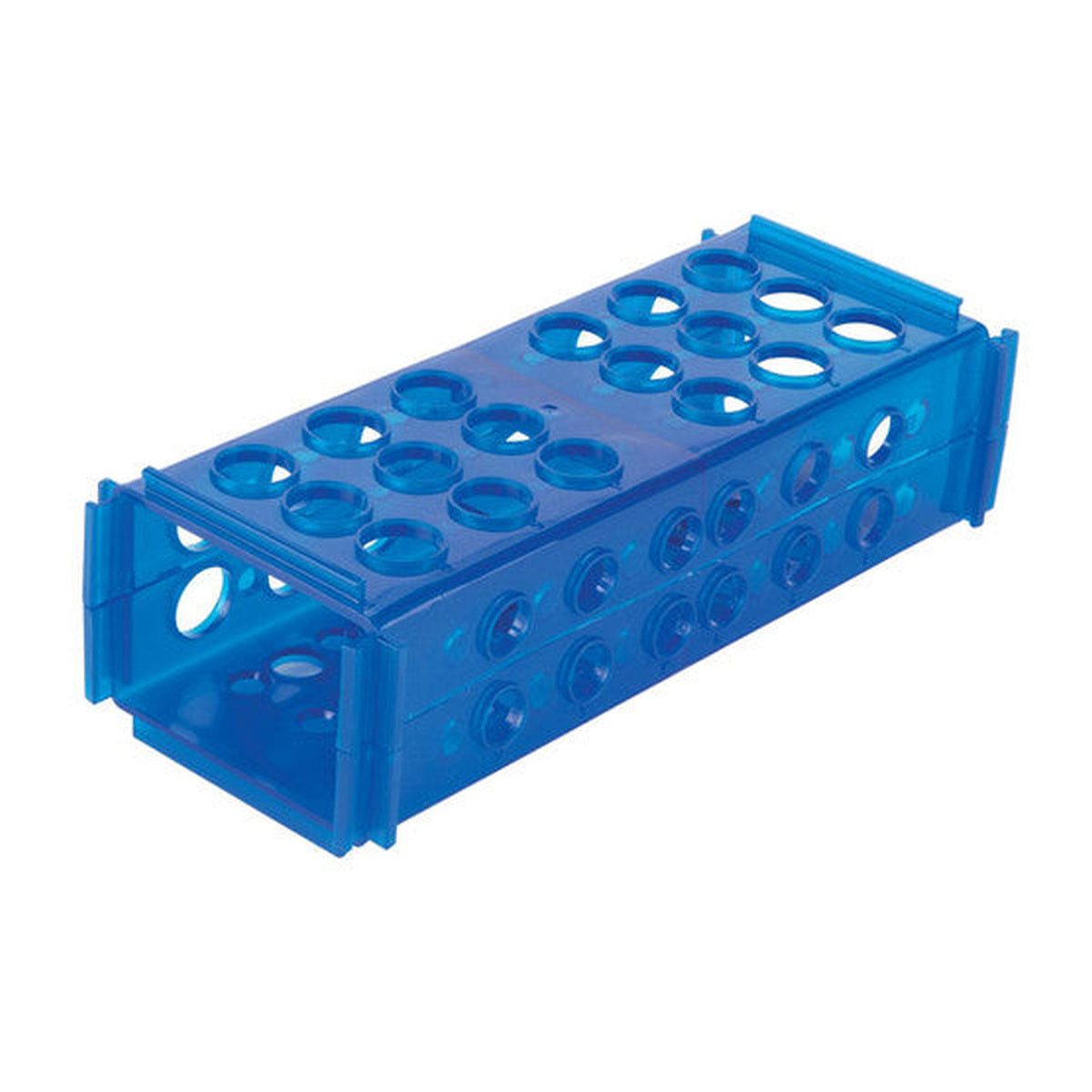

- 120684: Blue

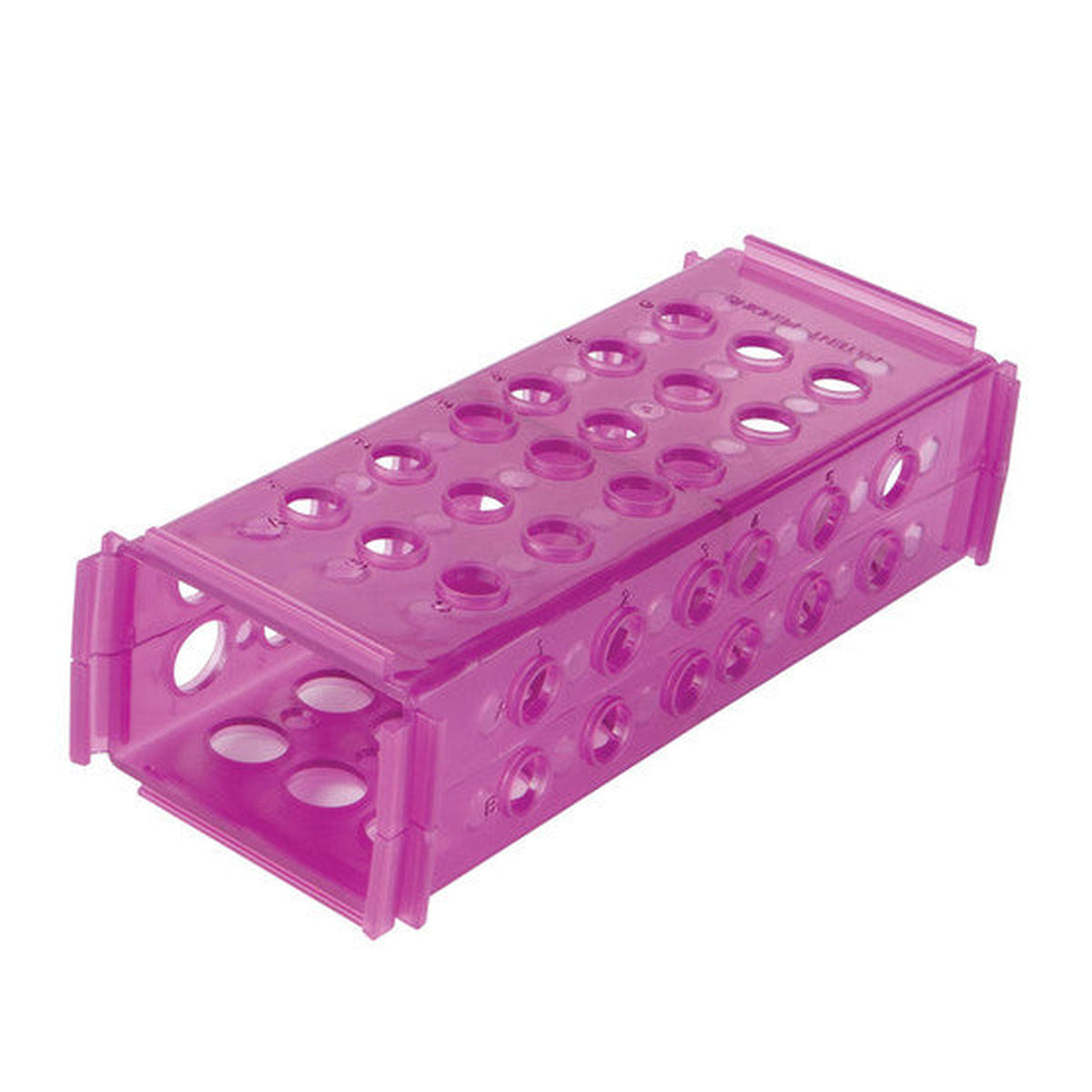

- 120685: Purple

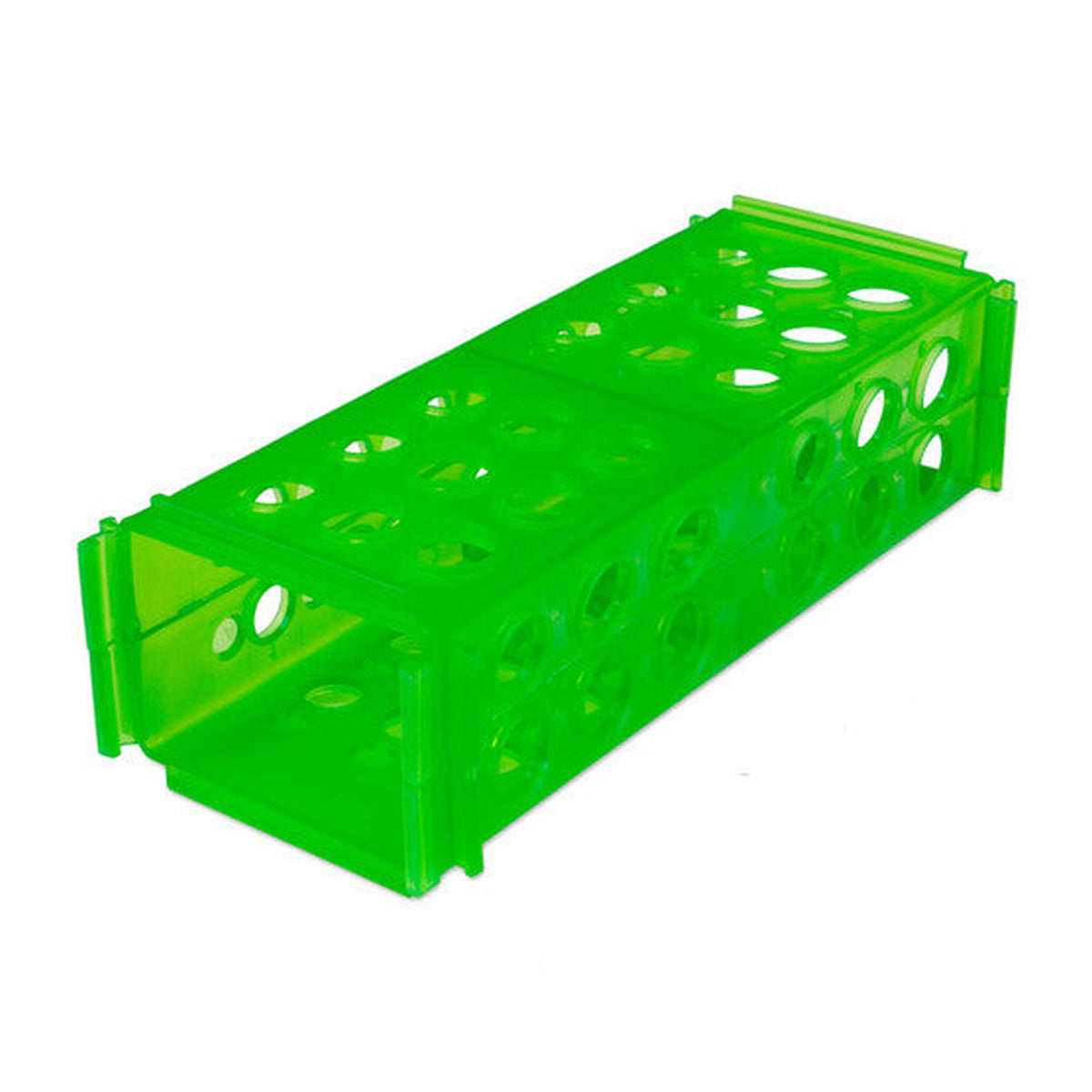

- 120686: Green

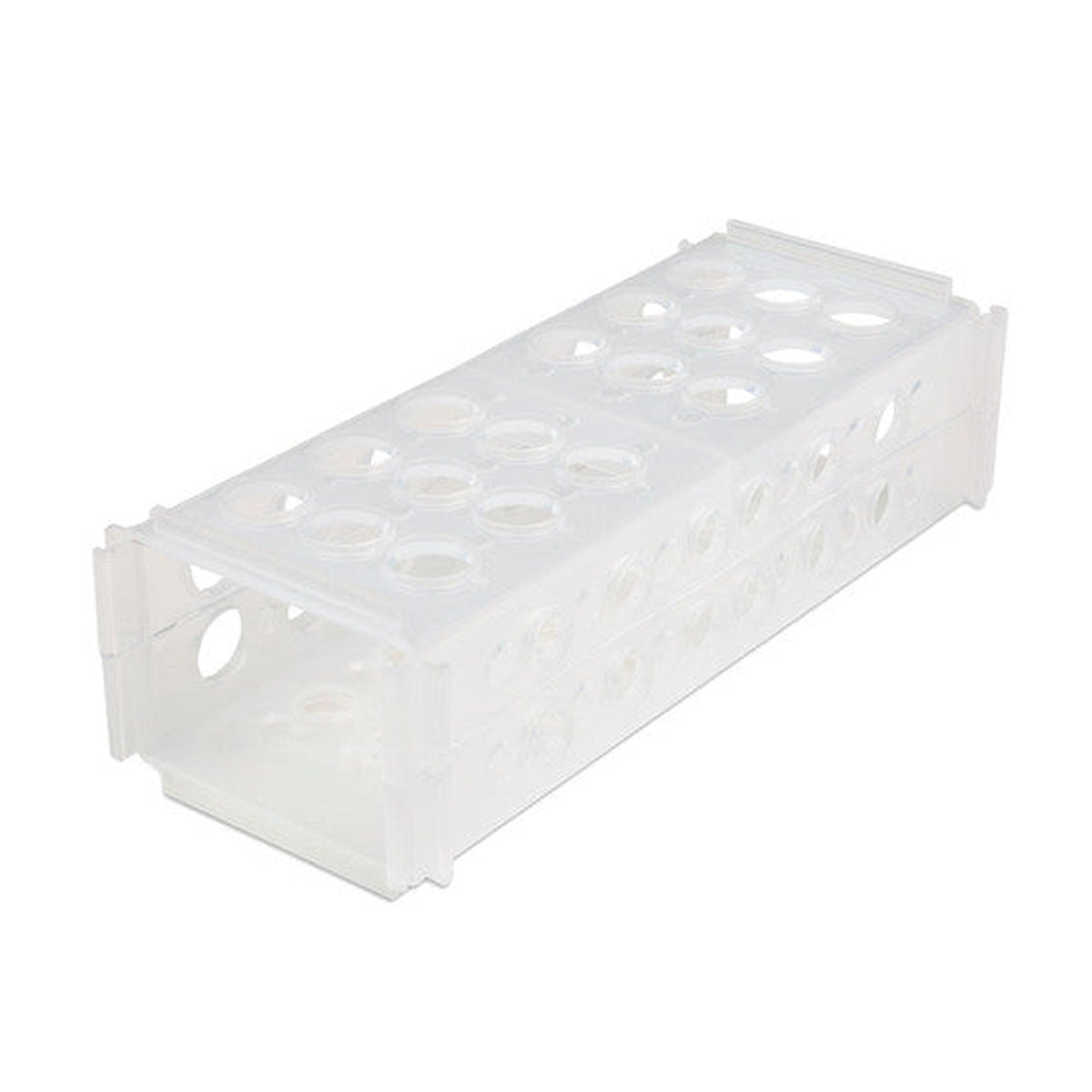

- 120687: Natural

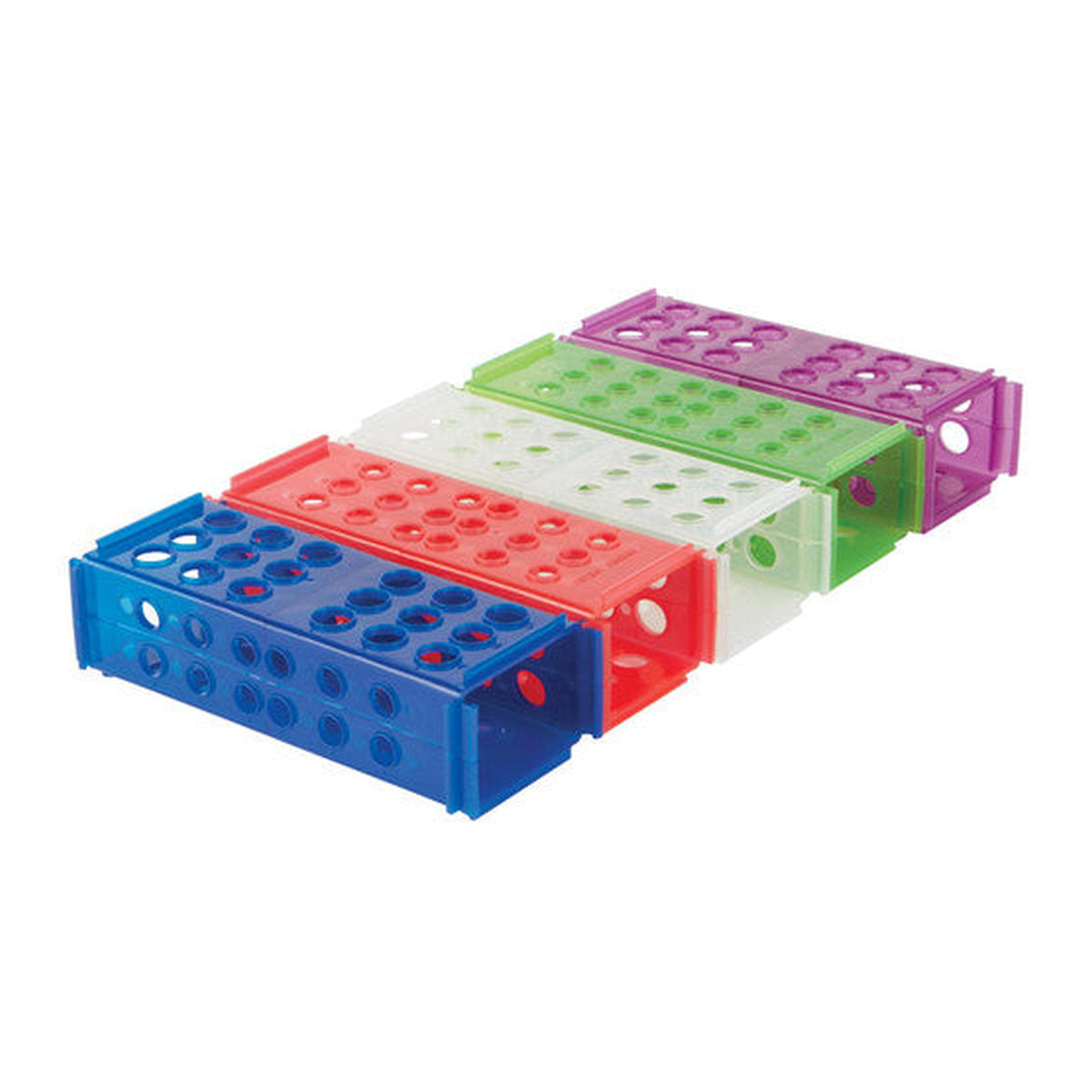

- 120683: Assorted (Blue, Red, White, Green, Purple)
- All: pack of 5, 60 wells
Color is the only difference between the options. The assorted pack is for color coding; Heathrow does not state how many racks of each color it contains.
Four sides, two well sizes
Each rack has four sides with different well counts and sizes, so a single rack serves round, flat and conical bottom tubes:
- Side A: 12 wells, 13 mm
- Side B: 18 wells, 13 mm
- Side C: 12 wells, 17 mm
- Side D: 18 wells, 17 mm
Heathrow lists tube sizes of 3.5, 7, 10 and 15 mL and says the racks accommodate all brands of 13 and 17 mm round, flat and conical bottom blood collection and culture tubes. Tube bottoms nest in the well pockets, so tubes do not pass through the rack.
Designed for the clinical bench
Other features Heathrow lists:
Autoclavable at 121°C
Heathrow states the racks are autoclavable at 121°C. They are polypropylene and described as chemical resistant and easy to clean; no specific chemicals are named.
Water baths and freezers
Heathrow says the racks can be used in water baths and placed in freezers. No temperature range is given for either.
Six-way connection

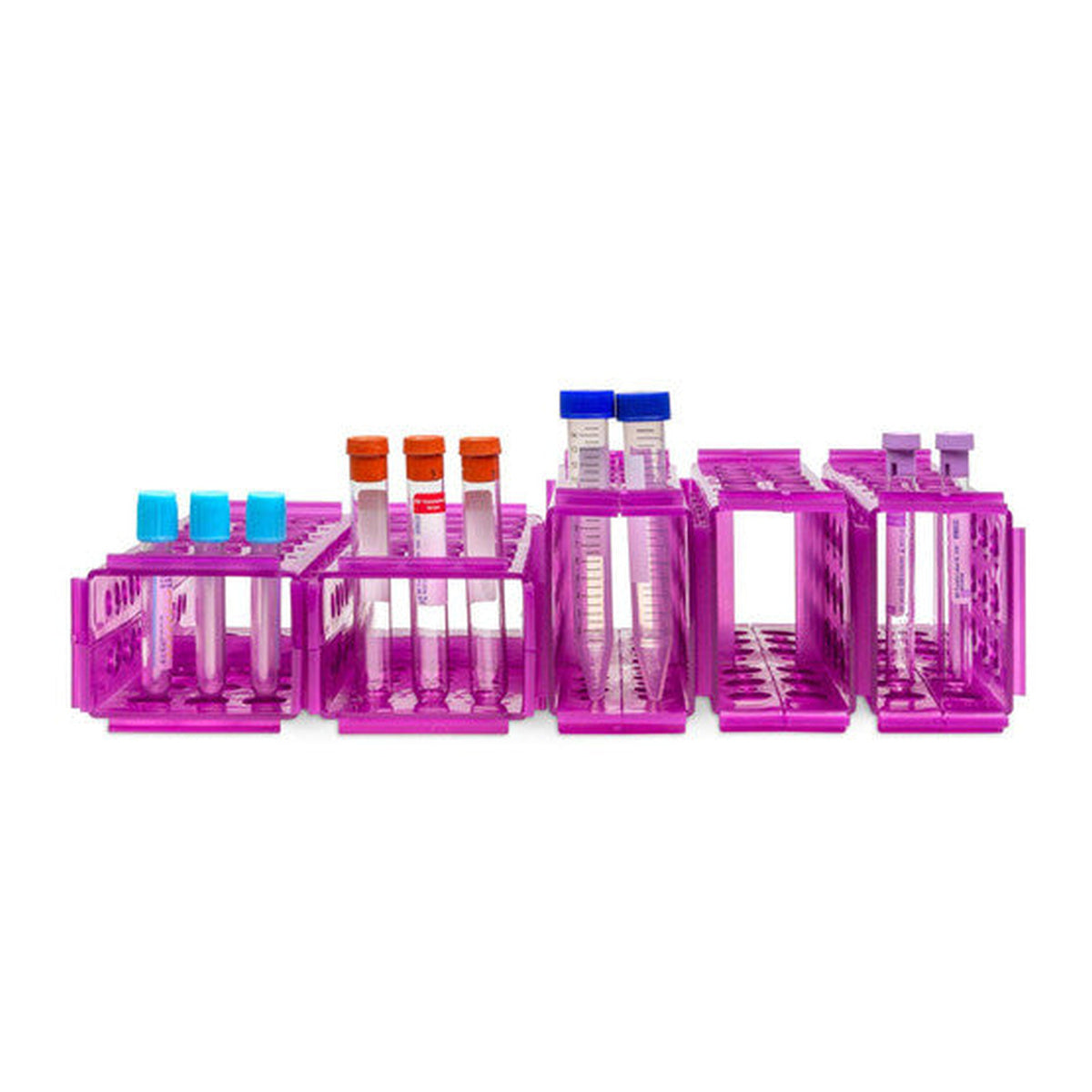

Link racks end to end or side by side, in any orientation, for more capacity. They also work standalone.
Easy to read
Uniformly spaced wells, which Heathrow says help eliminate pipetting errors, and molded alphanumeric identification for locating and retrieving tubes.
What the listing does not state
Heathrow does not list a weight or give a temperature range for water bath or freezer use. Blue Tiger Scientific can pass your questions to the manufacturer.
Ordering clinical 4-way tube racks
Each order is a pack of 5 racks. Choose your color on this page. Blue Tiger Scientific confirms availability and delivery details with your order.
Frequently Asked Questions
How many racks come in one order?
A pack of 5, in every color option.
What colors are available?
Blue (120684), Purple (120685), Green (120686), Natural (120687) and an assorted pack of Blue, Red, White, Green and Purple (120683).
How many tubes does one rack hold?
60 wells: 12 and 18 wells at 13 mm, and 12 and 18 wells at 17 mm, across four sides.
Which tubes fit?
Heathrow lists round, flat and conical bottom blood collection and culture tubes of 13 and 17 mm, from 3.5 to 15 mL.
Can I autoclave the racks?
Yes, Heathrow states they are autoclavable at 121°C.
Can I use them in a water bath or freezer?
Heathrow says they can be used in water baths and placed in freezers. It gives no temperature range for either.
Can I connect racks together?
Yes. Six-way connection links racks end to end or side by side, in any orientation.
What are the rack dimensions?
9.1 × 2.8 × 3.8 in per rack.
