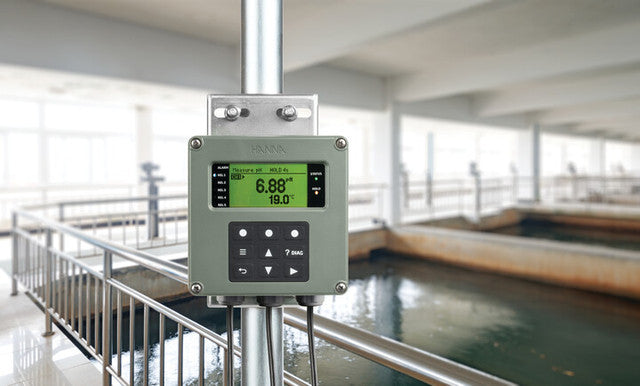

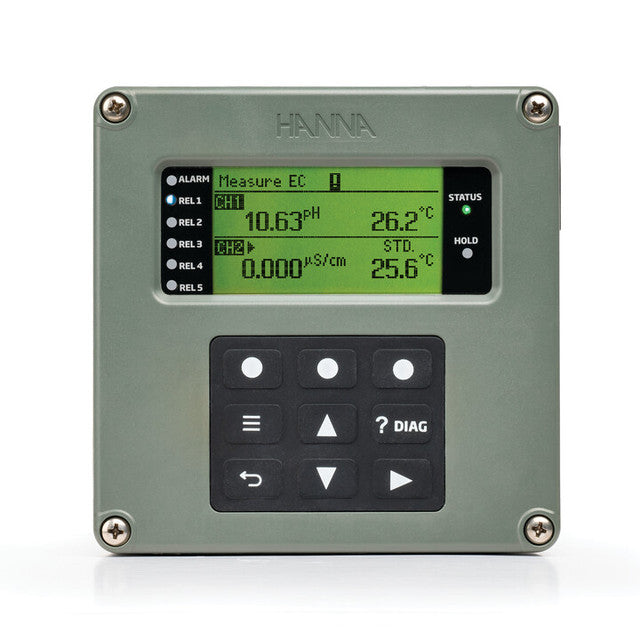

Hanna Instruments HI520 Dual‑Channel Universal Process Controller Universal Process Contoller Hanna Instruments
Hanna Instruments HI520 Dual‑Channel Universal Process Controller Universal Process Contoller Hanna Instruments

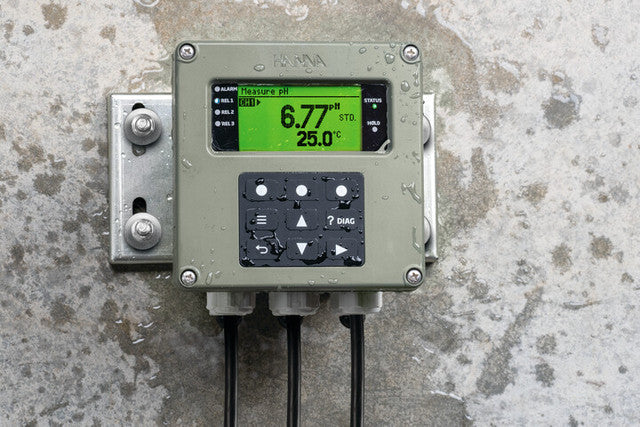

Hanna Instruments HI520 Dual‑Channel Universal Process Controller Universal Process Contoller Hanna Instruments

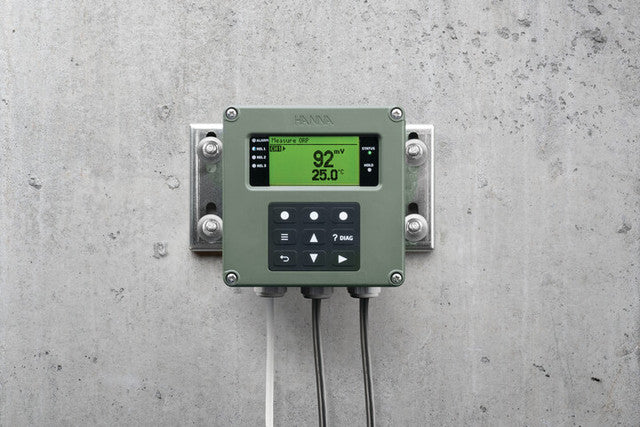

Hanna Instruments HI520 Dual‑Channel Universal Process Controller Universal Process Contoller Hanna Instruments
Hanna Instruments HI520 Dual‑Channel Universal Process Controller Universal Process Contoller Hanna Instruments
Hanna Instruments HI520 Dual‑Channel Universal Process Controller Universal Process Contoller Hanna Instruments
Hanna Instruments HI520 Dual‑Channel Universal Process Controller Universal Process Contoller Hanna Instruments
Hanna Instruments HI520 Dual‑Channel Universal Process Controller Universal Process Contoller Hanna Instruments

Hanna Instruments HI520 Dual‑Channel Universal Process Controller

$1,394.99

    The HI520 Dual‑Channel Universal Process Controller delivers precise, real‑time monitoring of pH, ORP, conductivity, and dissolved oxygen, making it ideal for demanding water‑quality and industrial process applications. Its rugged IP65 enclosure, intuitive LED status indicators, and seamless Modbus integration provide reliable performance and flexible control in any installation.

    • Durable IP65 (NEMA 4X) waterproof enclosure for harsh environments

    • Multi‑color LED indicators and audible alarms for instant system feedback

    • Modbus‑ready design for easy remote monitoring, setup, and configuration

See All Specs

aeroplane.png__PID:119d4b1a-2623-400c-8fa4-aec5b49a3bf0

Fast Delivery

Most items ship same day

protection.png__PID:4b1a2623-e00c-4fa4-aec5-b49a3bf05f92

Manufacturer Warranty

All products are covered by manufacturer warranty

technical-support.png__PID:e00c8fa4-aec5-449a-bbf0-5f923431936b

After-Sale Support

24/7 support

What's Included

download (70).webp__PID:7ab0a366-c50a-41ee-ae3a-ab9ed2dfc0ad

VR Headset

download (71).webp__PID:547ab0a3-66c5-4a41-aeae-3aab9ed2dfc0

2 Touch Controllers

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Charging Cable

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Power Adapter

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Glasses Spacer

download (69).webp__PID:26576cae-f878-4c99-ab7c-894d76af129b
HI520 dual-channel universal process controller angled right view

Control Modes

Advanced control flexibility supports on/off, proportional, and PID configurations. This sophisticated programming ensures precise set point regulation for dual-channel operation, eliminating overshoot and reducing chemical usage.

Hold Function

Reliable hold activation can be initiated manually or via external digital input, safely pausing control functions during sensor maintenance or calibration.

Configurable Alarm System

Customizable alarm settings monitor set points, temperature deviations, and operational anomalies. A highly visible blinking red alarm LED alerts users from afar, while all control relays automatically deactivate until the issue is cleared.

Auto-Cleaning Cycle

Programmable sensor cleaning enables scheduled wash cycles that trigger relays to operate valves, pumps, or compressed air systems, maintaining probe cleanliness for accurate and consistent readings.

Relays

Comprehensive relay options include up to five electromechanical control relays plus one dedicated alarm relay for robust process management.

Analog Outputs

Precise analog control is delivered through up to four galvanically isolated 4-20 mA outputs, perfect for accurate dosing pump and valve regulation.

Digital RS485 Output

Efficient network integration allows daisy-chaining of up to 32 devices via RS485 for centralized remote monitoring and control.

Digital Inputs

Versatile external triggers provide two digital inputs to enable functions such as hold mode, cleaning cycles, or temporary control disable.

HI520 process controller open fuse panel view
HI520 dual-channel controller large LCD display with hold indicator

Large LCD

Intuitive high-visibility display presents dual-channel measurements and status alerts clearly. The DIAG key instantly reveals detailed diagnostic information for quick troubleshooting.

HI520 controller advanced data logging capabilities

Data Logging

Extensive logging functionality records measurements, relay states, and calibration data at customizable intervals. Store up to 100 lots of 8600 records each and export as CSV files via USB Type-C.

HI520 controller diagnostic and help button interface

Help Button

Contextual diagnostic support is accessed through the (? DIAG) button, providing clear error explanations or detailed setup guidance as needed.

    Specification Detail
    SKU HI520
    On State 5 to 24 Vdc,
    low or high level active
    Analog Outputs 2 or 4 independent,
    galvanically isolated outputs
    0–22 mA configurable as:
    • 0–20 mA
    Fuse Protected 5A,
    250V slow blow fuse
    Alarm Relay for All Measurement Alarms Electromechanical relay SPDT contact output
    5A – 250 VAC,
    5A – 30 Vdc (resistive load)
    Fuse protected: 5A,
    250V slow blow fuse
    Dimensions – Width 144.0 mm (5.7 in.)
    Height 144.0 mm (5.7 in.)
    Depth 151.3 mm (6.0 in.)
