Heat and stir from a clear touchscreen workspace. The SWB-10LT combines a compact 10L stainless steel bath with a 4.3-inch touchscreen and one- or two-mechanism configurations.
MAJOR SCIENCE · SWB-10LT
Bring bath-water agitation and solution mixing together in the Major Science SWB-10LT series. A built-in magnetic stirring system works alongside digital temperature control in a 10L, 304 stainless steel tank.
The 4.3-inch color touchscreen displays temperature and timer simultaneously. Choose the stirring-mechanism count that suits your vessels, then select timed operation up to 9999 minutes or continuous operation.
4.3-inch touchscreen
Temperature and timer shown together.
1 or 2 stirrers
Choose the mechanism count for the vessel layout.
110 V or 220 V
Separate rated versions, both 50/60Hz; not universal-input power.
Use the product options above to select Voltage and Stirring positions. Each combination has its own catalog number. Match the voltage to the installation before ordering.

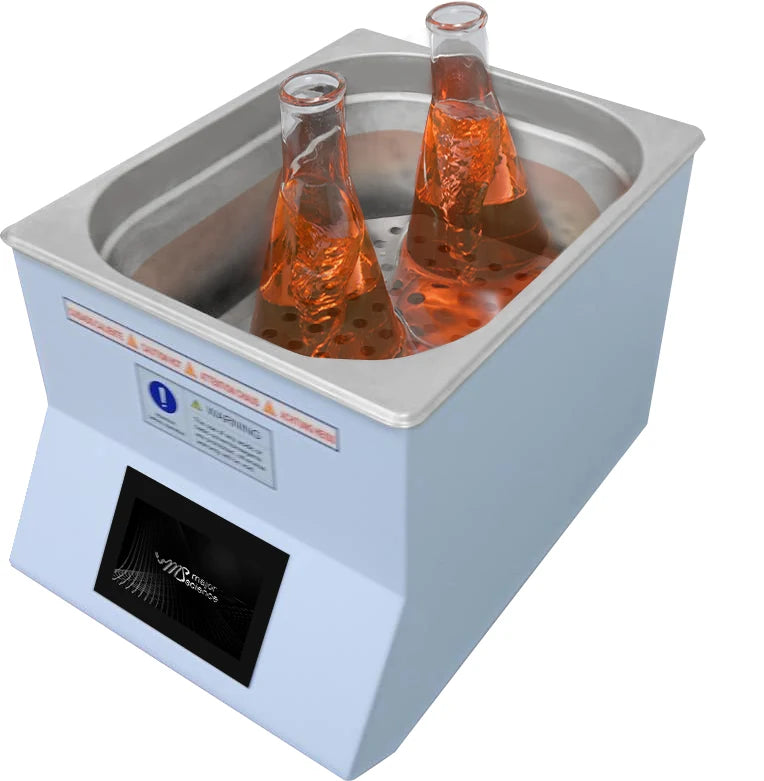

SWB-10LT-1 has one stirring mechanism. SWB-10LT-2 provides 2 for compatible vessels positioned over the magnetic drives.
Both models share 600W power and the same 10L tank dimensions. Vessel footprint and alignment matter as well as the number of stirring positions.

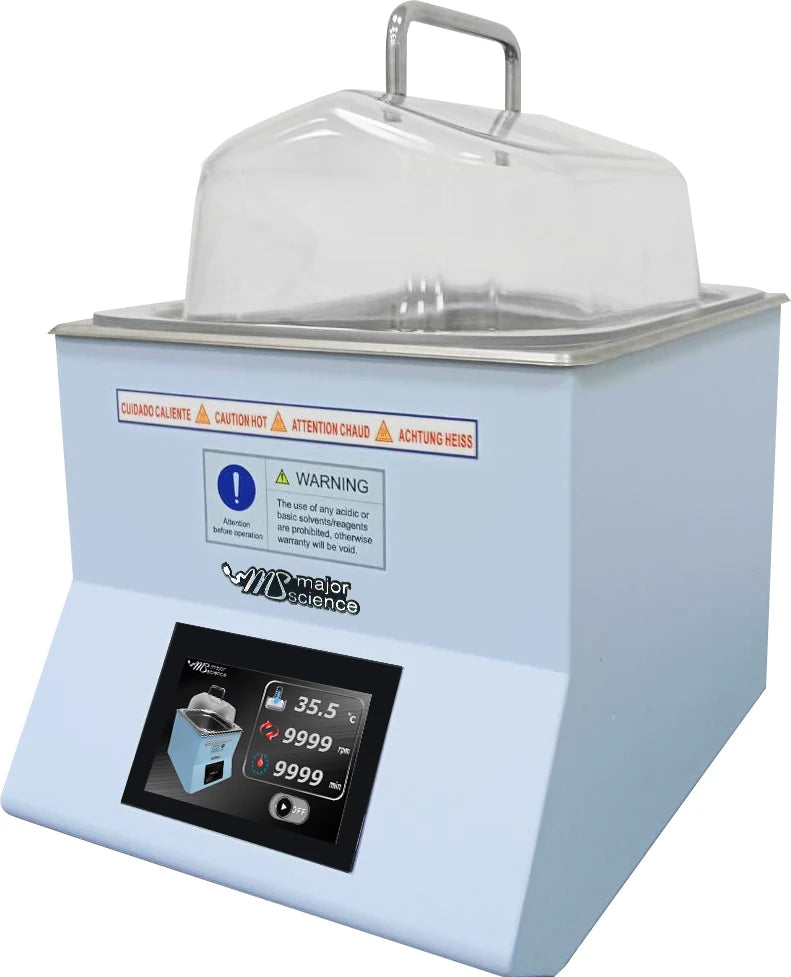

The 4.3-inch color touchscreen keeps temperature and timing information together. Digital microprocessor control manages the bath while you monitor the run.
Set timed operation up to 9999 minutes or select continuous operation. User temperature calibration is supported.
The specified temperature-control range runs from 5°C above ambient to 99°C, with 0.1°C increments. Temperature uniformity is specified as ±0.2°C at 37°C.
Built-in magnetic stirring agitates the bath water and supports solution mixing. The stated stirring-speed range is 400 to 1500 rpm; select conditions appropriate for your vessels and liquids.

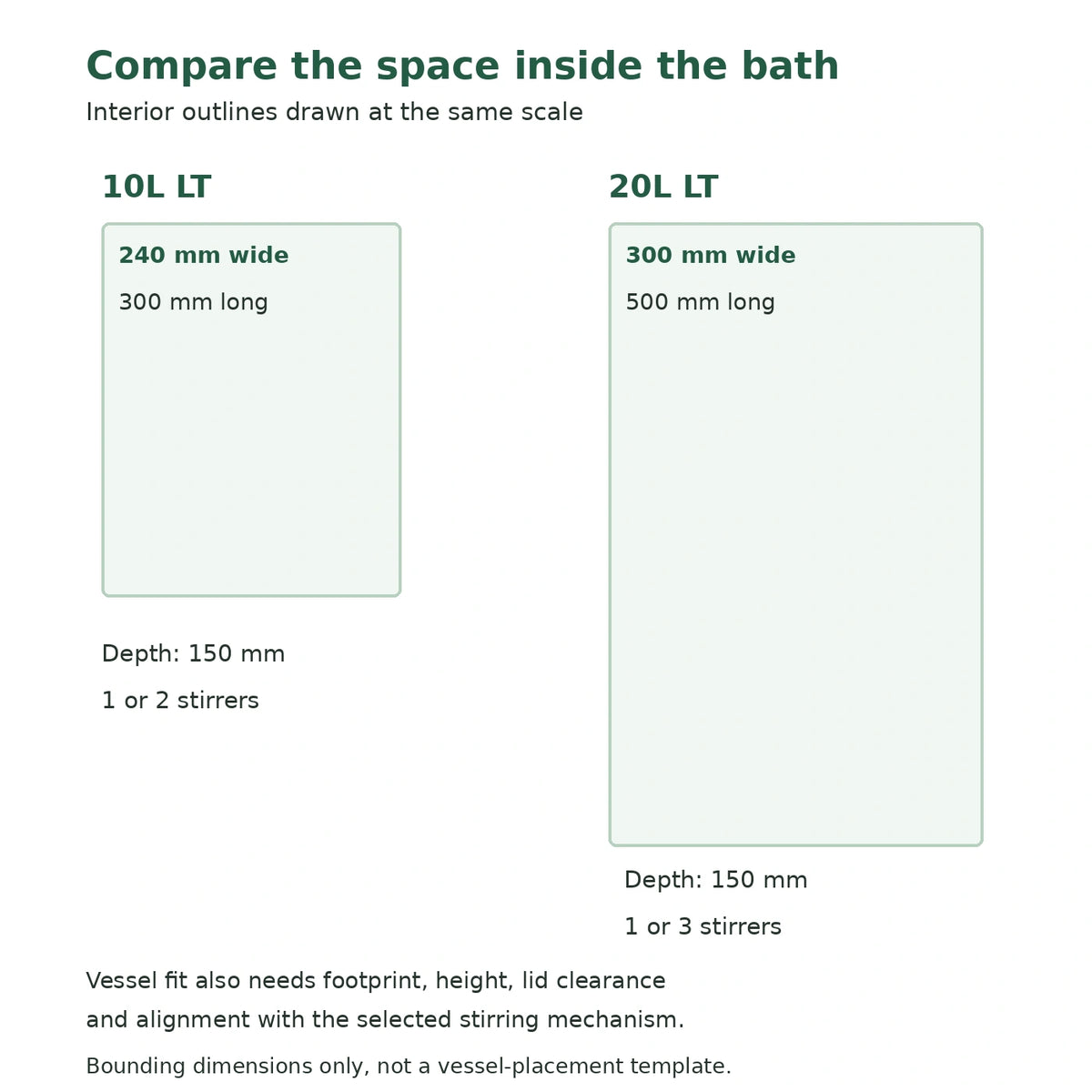

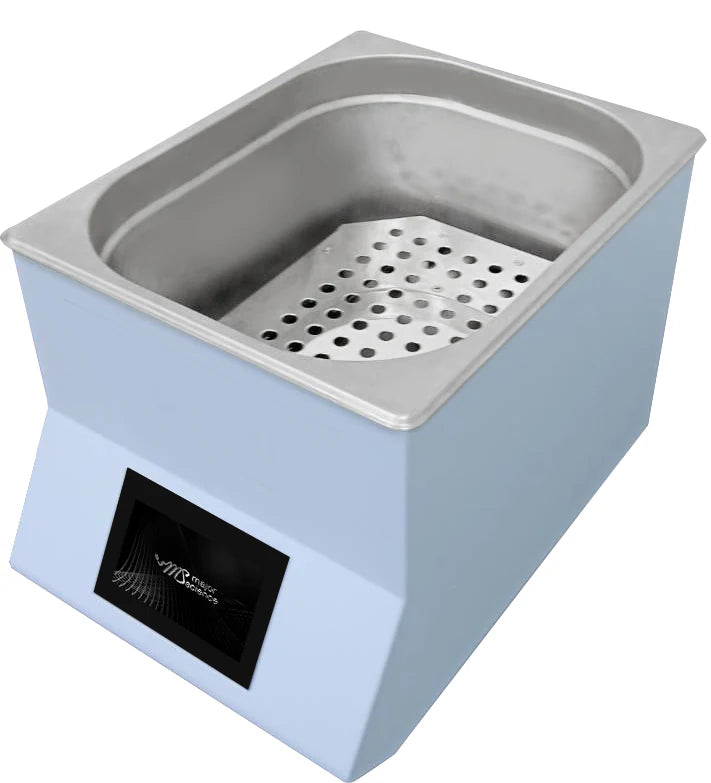

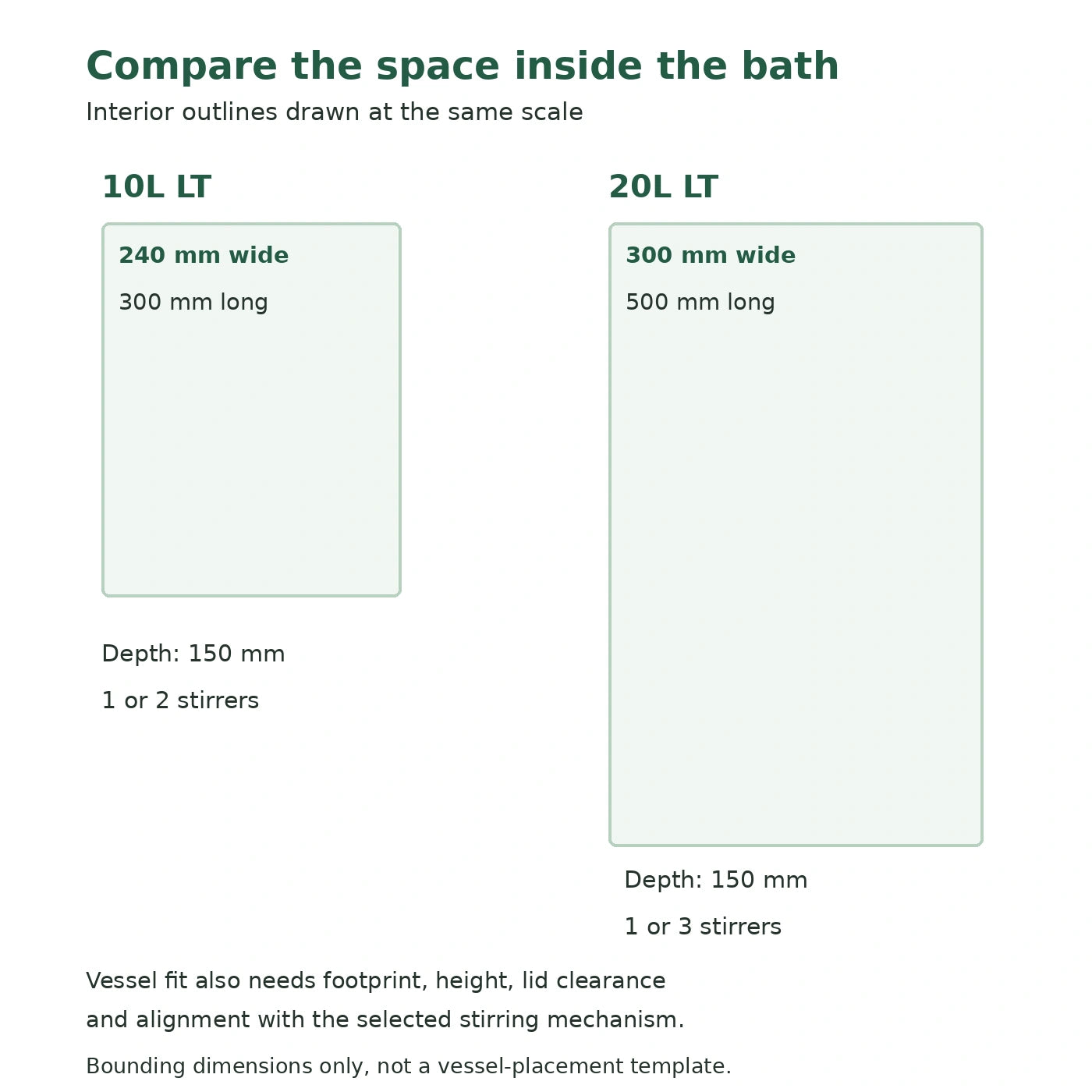

The bath interior measures 240 × 300 × 150 mm. For water-bath loading without simultaneous stirring at every vessel, the manufacturer gives reference chamber capacities of 6 × 250 mL flasks or 4 × 500 mL flasks.
These loading examples are not stirring-position counts or a guarantee of fit. Check vessel base diameter, height, drive alignment and lid clearance before arranging your samples.
The unit measures 255 × 355 × 240 mm without its lid and weighs approximately 9 kg. Allow additional clearance above the bath for your vessels and lid access.
The manufacturer describes a concave lid design that returns condensation to the tank and a side opening intended to limit evaporation. On-screen warning indication and automatic shutdown are specified safety features.
The SWB-10LT family has separate 110V and 220V order codes, each rated 50/60Hz. Select one or 2 stirring mechanisms independently of voltage; a -110 unit is not a universal 110–220V model.
Data logging is available through separately listed accessories: the SWB-RS232 cable, SWB-DLSW software package, or SWB-DLSW-R software package with an RS232 cable. Confirm software requirements and regional power-cord details before ordering.
The manufacturer's current brochure gives reference water-bath loading examples of 6 × 250 mL or 4 × 500 mL flasks. These illustrate chamber capacity only, not simultaneous magnetic stirring at every flask.
For active stirring, start with the selected one- or 2-mechanism model, then check vessel footprint, height, drive alignment and lid clearance. Nominal flask volume alone does not establish fit. No fixed center-to-center spacing or universal vessel-brand fit is claimed.
This listing identifies the selected SWB-10LT water bath. Current LT ordering information does not give a complete packing list, so do not assume lid, loose stir bars, racks, glassware, a regional power cord or logging accessories from photographs alone.
SWB-RS232 is a separately listed logging cable. SWB-DLSW is the software package; SWB-DLSW-R combines software with an RS232 cable. Confirm current package contents and software requirements before ordering.
SWB-10LT · 10L
240 × 300 × 150 mm interior; 600W; one or two stirring mechanisms; body 255 × 355 × 240 mm without lid.
SWB-20LT · 20L
300 × 500 × 150 mm interior; 800W; one or three stirring mechanisms; body 330 × 540 × 240 mm without lid.
SWB-10LT-1 has one stirring mechanism; SWB-10LT-2 has 2. They share the 10L tank, 600W power rating and 4.3-inch color touchscreen.
No. The reference loading of 6 × 250 mL flasks describes chamber capacity for water-bath use, not simultaneous magnetic stirring. This family has one or 2 stirring mechanisms, depending on the model.
Compare vessel dimensions with the 240 × 300 × 150 mm bath interior and allow clearance for the lid. Nominal vessel volume alone does not establish fit or alignment with a magnetic drive.
Its specified operating range begins 5°C above ambient. It is not specified for below-ambient temperature control.
The current manufacturer table specifies temperature uniformity of ±0.2°C at 37°C. Uniformity describes temperature consistency across the bath; it is not the same as accuracy relative to a temperature reference.
The current LT models specify a 9999-minute timer or continuous operation, with temperature and timer displayed together on the touchscreen.
The manufacturer lists the RS232 cable and logging software as accessories. The SWB-DLSW-R package combines software with an RS232 cable; do not assume those options are supplied with the bath.
The current LT information illustrates a lid and vessels but does not provide a complete packing list. Confirm the lid and any required stir bars, racks, glassware and regional power cord with the supplier before ordering.
Ordering, shipping and product support
Before ordering: Confirm the SWB-10LT voltage, stirring-mechanism count and required accessories for the intended vessels. Ask Blue Tiger Scientific to confirm current lid, stir-bar, rack and power-cord contents when those items are essential to the order.
Shipping: Blue Tiger Scientific arranges fulfillment through its suppliers. Availability and dispatch timing depend on the supplier. Shipping estimates are not guaranteed delivery dates; contact us before ordering for a time-critical experiment.
Returns: Start all return requests with Blue Tiger Scientific. Our published policy allows requests within 14 days of delivery unless product-specific terms state otherwise, subject to eligibility and approval. Do not ship anything before receiving an RMA and return instructions. Restocking and shipping charges may apply to approved returns. International returns are not permitted under our published policy.
Manufacturer support: Contact Blue Tiger Scientific with your order number, model, serial number and a description of the issue for help coordinating support. Applicable manufacturer warranty terms and exclusions govern any warranty claim. We will confirm the process before equipment is sent for evaluation.
Shipping Policy · Returns & Refunds Policy
These downloads are product literature, not an operating manual. The flyer also covers dry-bath products; use its SWB section for these stirring water baths.
