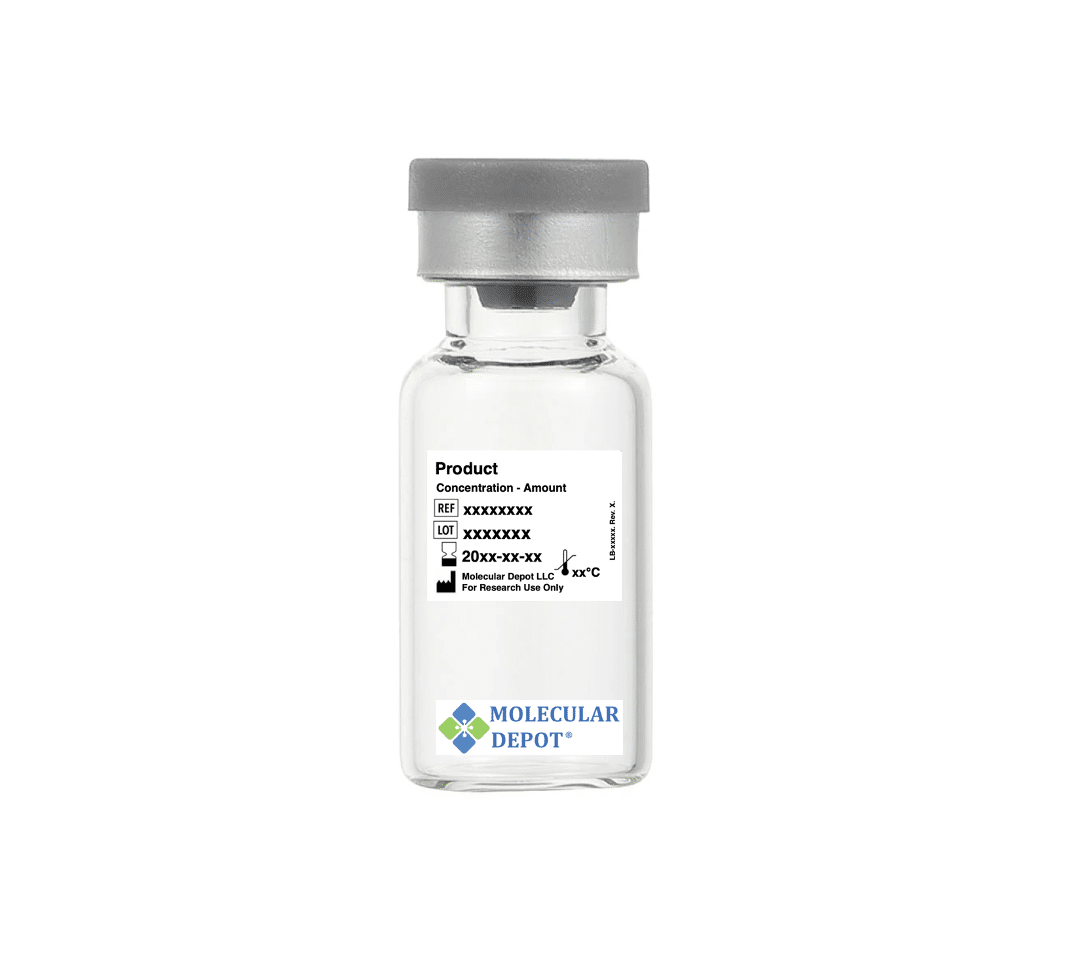

Low Density Glyoxal 6BCL, 6% Highly-Crosslinked Agarose – Catalog #B2025396

Low Density Glyoxal 6BCL (Catalog #B2025396) is a pre-activated affinity chromatography resin consisting of 6% highly-crosslinked (BCL) agarose beads bearing low-density glyoxal (aldehyde) functional groups. The "6BCL" designation indicates a 6% agarose matrix with enhanced cross-linking for improved mechanical rigidity and chemical stability. The glyoxal groups couple directly to lysine and N-terminal amino groups on proteins, peptides, and enzymes, forming stable Schiff base covalent bonds without requiring additional activation reagents. Supplied as 25 mL of resin, it provides a ready-to-use platform for enzyme immobilization, affinity purification, and immunoaffinity applications.

Scientific Overview

Glyoxal-activated agarose resins are widely used in affinity chromatography and enzyme immobilization because they provide simple, efficient coupling chemistry under mild conditions. The glyoxal aldehyde group reacts with primary amino groups (lysine and N-terminal amine) to form Schiff bases, which are initially reversible but can be stabilized by reduction with borohydride reagents to form secondary amine (imine-reduced) linkages. The 6BCL matrix offers higher mechanical rigidity and chemical stability than lower-crosslink resins, making it suitable for high-flow applications and extended chromatographic runs. Low-density functional groups reduce steric hindrance and can improve binding kinetics and selectivity for some applications.

Key applications include:

• Enzyme immobilization for biocatalysis and continuous-flow bioreactors
• Preparation of affinity columns for purification of target proteins or antigens
• Creation of immunoaffinity columns with antibodies or antibody fragments
• Enzyme stabilization and storage in immobilized form
• Capture and concentration of low-abundance proteins from complex samples

Usage & Handling Guidance

Store the resin suspension at 2–8°C. Before use, gently mix to resuspend and equilibrate a chromatography column with coupling buffer (typically pH 7–8, such as 10 mM sodium phosphate buffer). Dissolve or dilute your target ligand (protein, enzyme, antibody) in the same buffer and apply it to the column; the glyoxal groups will react with the ligand's amino groups. Incubate the column for the recommended time (typically 15 minutes to several hours, depending on the ligand and desired coupling efficiency), then wash thoroughly with coupling buffer followed by stringent wash buffer if needed.

• Ligand loading: Typical range is 1–10 mg protein per mL of resin; optimize for your specific application and ligand.
• pH optimum: Coupling is most efficient at pH 7–8; the reaction rate increases with pH up to about 8, then plateaus.
• Reducing conditions (optional): To convert Schiff bases to stable secondary amines, treat the coupled resin with NaBH₄ or NaBH(OAc)₃ and incubate for 30 minutes to 2 hours at 4°C or room temperature.
• Storage of coupled resin: Keep at 2–8°C; add 0.01–0.1% sodium azide as a preservative for long-term storage.
• Regeneration: The column can often be regenerated and re-used by washing with appropriate stringent buffers, depending on your application.

What You Get

• 25 mL of pre-activated Low Density Glyoxal 6BCL agarose resin
• 6% highly-crosslinked agarose (6BCL) for improved mechanical stability
• Pre-activated with glyoxal aldehyde groups; ready to use
• Sufficient material for multiple immobilization experiments or columns
• For research use only (RUO)

Why Researchers Choose It

• Simple coupling chemistry with no additional activation reagents required
• Mild conditions preserve protein structure and activity
• Highly-crosslinked agarose (6BCL) offers superior mechanical strength and chemical stability
• Low-density aldehyde groups minimize steric hindrance
• Schiff bases can be reduced for permanent, stable linkages
• Suitable for high-flow and long-term chromatographic applications

Frequently Asked Questions (FAQ)

• What is the 6BCL designation?
  6BCL means 6% agarose with "best cross-linking" (BCL), indicating enhanced cross-linking that provides higher mechanical rigidity, better flow characteristics, and greater chemical stability compared to less-crosslinked matrices.
• How much ligand should I immobilize?
  A starting point is 1–10 mg protein per mL of resin. Higher loading increases the column's capacity but may reduce selectivity or cause crowding of ligands; optimize empirically for your target.
• Do I need to reduce the Schiff base?
  Schiff bases are stable for most applications; reduction with borohydride is optional. Reduce if you want a more stable linkage for long-term storage or extended chromatographic use.
• Can I regenerate and reuse this column?
  Yes, many columns can be regenerated and reused if the ligand is robust; use appropriate stringent wash buffers (e.g., high salt, detergent, or pH extremes, depending on your application).
• What is the difference between 6 and 6BCL?
  6BCL has additional cross-linking, providing better mechanical properties and flow characteristics. Use 6BCL for applications requiring high flow rates or extended runs.

References

• Luong JH, Scouten WH. Affinity purification of natural ligands. Curr Protoc Protein Sci. 2008;Chapter 9:Unit 9.3.
• Wang Y, Zhang X, Han N, Wu Y, Wei D. Oriented covalent immobilization of recombinant protein A on the glutaraldehyde activated agarose support. Int J Biol Macromol. 2018;120(Pt A):100-108.
• Pepys MB, Dash AC, Ashley MJ. Isolation of C-reactive protein by affinity chromatography. Clin Exp Immunol. 1977;30(1):32-7.
