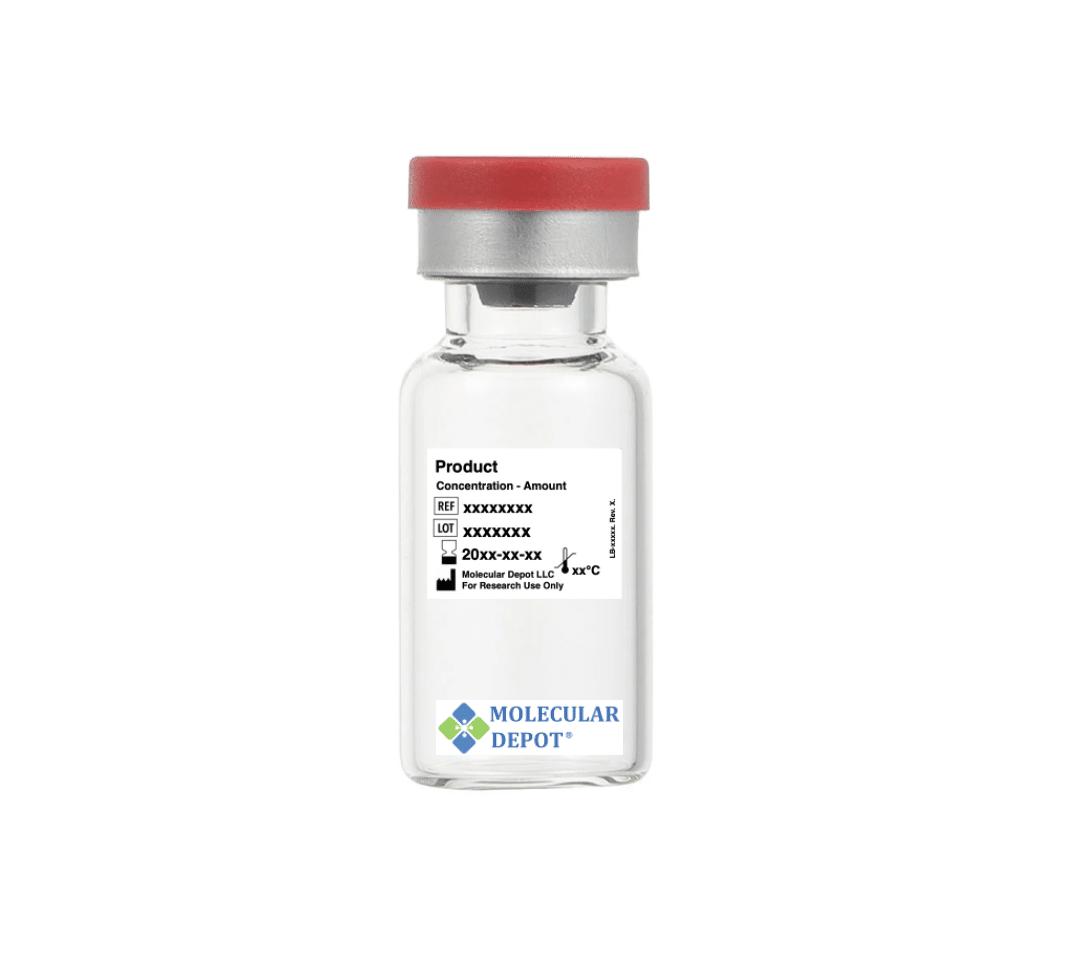

Low Density Glyoxal 4BCL Agarose (4% Cross-linked) – Catalog #B2025406

Low Density Glyoxal 4BCL Agarose (Catalog #B2025406) is a pre-activated affinity chromatography resin on 4% cross-linked agarose beads bearing aldehyde (glyoxal) functional groups at a deliberately low density. The 4BCL designation refers to the cross-linking chemistry of the agarose backbone. Like other glyoxal-activated resins, it enables stable covalent immobilization of proteins and enzymes via direct reaction with lysine amino groups, forming reversible Schiff bases that can be reduced to permanent secondary amine bonds. The low density of reactive groups minimizes steric effects and protein aggregation.

Scientific Overview

Glyoxal-activated agarose resins are among the most widely used supports for covalent protein immobilization in research and biotechnology. The glyoxal (aldehyde) groups react specifically with primary amino groups, particularly lysine residues at physiological and slightly alkaline pH values. The resulting Schiff base is initially reversible but becomes a stable secondary amine bond when reduced with sodium borohydride (NaBH₄) or sodium cyanoborohydride (NaCNBH₃). The low density of glyoxal groups on this resin minimizes steric hindrance and the risk of excessive cross-linking, allowing more controlled, uniform coupling of proteins and maintenance of biological activity.

Key applications include:

• Covalent immobilization of enzymes for affinity chromatography and biocatalysis
• Antibody or ligand coupling for immunoaffinity purification and diagnostic assays
• Enzyme reactor columns for continuous bioprocessing
• Protein stabilization through multipoint attachment
• Development and validation of affinity separation methods

Usage & Handling Guidance

Store the resin suspension at 2–8°C. Before use, inspect for excessive yellowing, which indicates hydrolysis of glyoxal groups. Gently resuspend the resin and pour into a column or incubate as a slurry for batch coupling. For column mode, pack according to standard procedures. To couple protein or enzyme, incubate the resin with your target molecule in an appropriate buffer (pH 7–9; e.g., 0.1 M phosphate pH 7.0–8.0 or 0.1 M carbonate pH 9.0) for 2–4 hours at room temperature or overnight at 4°C. Optimize protein concentration empirically (typically 1–10 mg/mL). After coupling, reduce the Schiff base with sodium borohydride or sodium cyanoborohydride following standard safety protocols, then wash thoroughly to remove unreacted protein and reagents.

• Coupling buffer pH: Optimal range is pH 7–9; higher pH accelerates Schiff base formation but may denature some proteins.
• Protein concentration: Start with 1–10 mg/mL and optimize for your target.
• Coupling time: 2–4 hours at 25°C or overnight at 4°C.
• Reduction: Use NaBH₄ (in ethanol or dilute buffer) or NaCNBH₃ (in pH 7 buffer), following reagent-specific protocols.
• Washing: Extensive washing with buffer and water removes unreacted protein and coupling byproducts.

What You Get

• 25 mL of low-density glyoxal agarose (4BCL, 4% cross-linked)
• Pre-activated resin ready for direct enzyme, antibody, or protein coupling
• Enough material for multiple immobilization experiments
• For research use only (RUO)

Why Researchers Choose It

• Gentle, covalent coupling chemistry that preserves protein activity
• Low glyoxal density minimizes aggregation and excessive cross-linking
• Stable secondary amine bonds after reduction
• Versatile for enzymes, antibodies, and other biomolecules
• Well-established protocols and decades of literature support

Frequently Asked Questions (FAQ)

• What does the "4BCL" designation mean?
  The "4" refers to the agarose concentration (4%), and "BCL" indicates the cross-linking chemistry of the agarose backbone.
• How is Glyoxal 4BCL different from other glyoxal resins?
  The main differences are in the agarose cross-linking pattern (4BCL vs. others) and the density of glyoxal groups. All glyoxal resins use the same aldehyde-lysine chemistry; differences reflect particle size and activation level.
• Must I reduce the Schiff base?
  For maximum stability, reduce with NaBH₄ or NaCNBH₃. The Schiff base is reversible; reduction converts it to a permanent secondary amine bond.
• What protein concentration should I use?
  Typical range is 1–10 mg/mL. Optimize empirically based on your protein and desired coupling density.
• Can I reuse this resin after stripping immobilized protein?
  Not typically. Once immobilized and reduced, the protein is covalently bound. Regeneration methods (e.g., high-pH or strong chaotropes) may partially work but often damage the resin.
• Can I get a COA or technical information?
  Request a quote or contact us and we will provide available lot documentation.

References

• López-Gallego F, Montes T, Fuentes M, Alonso N, Grazu V, Betancor L, Guisán JM, Fernández-Lafuente R. Improved stabilization of chemically aminated enzymes via multipoint covalent attachment on glyoxyl supports. J Biotechnol. 2005;116(1):1-10.
• Knödler M, Rühl C, Opdensteinen P, Buyel JF. Activated Cross-linked Agarose for the Rapid Development of Affinity Chromatography Resins - Antibody Capture as a Case Study. J Vis Exp. 2019;(150).
