Low Density Glyoxal 4 Fine Agarose (4% Cross-linked) – Catalog #B2025400

Low Density Glyoxal 4 Fine Agarose (Catalog #B2025400) is a pre-activated affinity chromatography resin consisting of smaller, finer 4% cross-linked agarose particles bearing a low density of glyoxal (aldehyde) groups. The smaller particle size improves chromatographic resolution and mass transfer rates, making it especially valuable for applications demanding high purity or fine separation. Like its standard-size counterpart, it enables stable covalent immobilization of enzymes, antibodies, and ligands via Schiff base formation with lysine residues, which can be reduced for maximum stability.

Scientific Overview

In chromatography, particle size directly affects resolution and mass transfer kinetics. Smaller particles have a greater surface area relative to volume and diffuse distances shorter, improving both the speed of equilibration and the separation of similar molecules. The fine-bead version of glyoxal agarose retains the chemistry of standard-size beads—direct coupling to lysine residues via Schiff base formation—while offering the performance advantages of smaller particles. The low density of glyoxal groups minimizes steric hindrance and protein aggregation, allowing cleaner coupling and better recovery of biologically active immobilized proteins.

Key applications include:

• High-resolution enzyme immobilization for affinity columns
• Antibody coupling with improved selectivity and minimal aggregation
• Fine fractionation of similar proteins or isoforms
• Immunoaffinity purification with improved purity
• Diagnostic and research assay development where resolution is critical

Usage & Handling Guidance

Store the resin at 2–8°C. Before use, inspect for excessive yellowing, which may indicate glyoxal hydrolysis. Due to the smaller particle size, expect higher backpressure when packing columns; adjust flow rates accordingly. Pack the column gently to avoid compression. Couple proteins and ligands as with standard-size glyoxal agarose: incubate with target protein in coupling buffer (pH 7–9) for 2–4 hours or overnight at 4–25°C, then reduce the Schiff base with sodium borohydride or sodium cyanoborohydride for stability.

• Packing: Pack gently to avoid particle compression; smaller beads pack more densely and may generate higher backpressure.
• Flow rate: Start with lower flow rates than would be used for standard-size beads to maintain efficiency.
• Coupling: Use the same pH (7–9) and protein concentrations as with standard beads; fine beads improve resolution but do not alter coupling chemistry.
• Reduction: Reduce Schiff bases with NaBH₄ or NaCNBH₃ following standard protocols.

What You Get

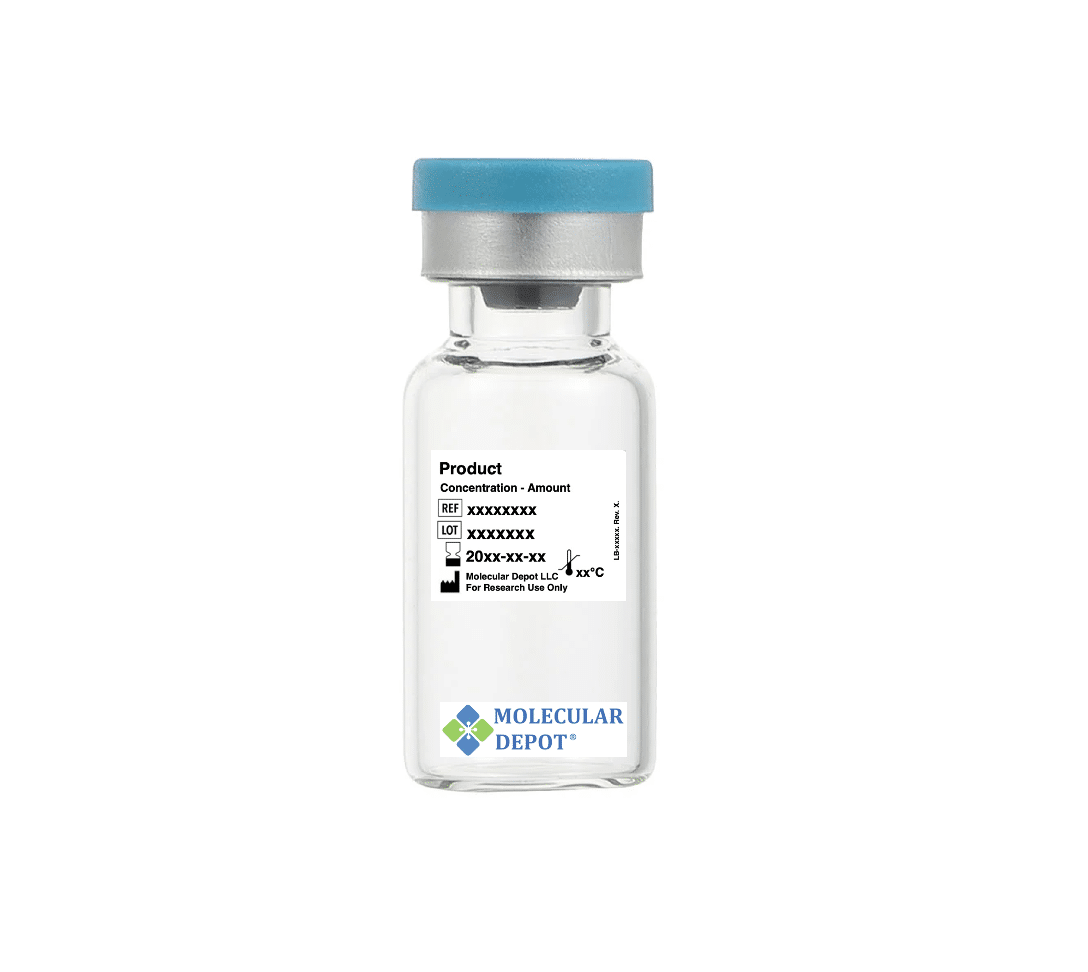

• 25 mL of low-density glyoxal agarose with fine particle size (4% cross-linked)
• Pre-activated resin ready for protein or ligand coupling
• Improved chromatographic resolution compared to standard-size beads
• Enough material for multiple high-resolution purification experiments
• For research use only (RUO)

Why Researchers Choose It

• Smaller particle size improves chromatographic resolution and mass transfer
• Low glyoxal density reduces protein aggregation during coupling
• Mild, covalent chemistry preserves protein activity
• Applicable to fine fractionation and high-purity applications
• Same gentle coupling chemistry as standard glyoxal agarose

Frequently Asked Questions (FAQ)

• How are fine beads different from standard Glyoxal 4?
  Fine beads are smaller particles that offer higher resolution and faster mass transfer. They pack more densely and may require lower flow rates, but the coupling chemistry is identical.
• Will fine beads give higher resolution than standard beads?
  Yes, smaller particles improve resolution. For high-precision separations (e.g., antibody isoforms or enzyme variants), fine beads are advantageous.
• What flow rate should I use with fine beads?
  Start with a lower flow rate than you would use with standard beads; optimize empirically based on your column and application.
• Do I still reduce the Schiff base with fine beads?
  Yes. For maximum stability, reduce with NaBH₄ or NaCNBH₃ using the same protocols as for standard beads.
• Can I get a COA or technical information?
  Request a quote or contact us and we will provide available lot documentation.

References

• López-Gallego F, Montes T, Fuentes M, Alonso N, Grazu V, Betancor L, Guisán JM, Fernández-Lafuente R. Improved stabilization of chemically aminated enzymes via multipoint covalent attachment on glyoxyl supports. J Biotechnol. 2005;116(1):1-10.
• Knödler M, Rühl C, Opdensteinen P, Buyel JF. Activated Cross-linked Agarose for the Rapid Development of Affinity Chromatography Resins - Antibody Capture as a Case Study. J Vis Exp. 2019;(150).
