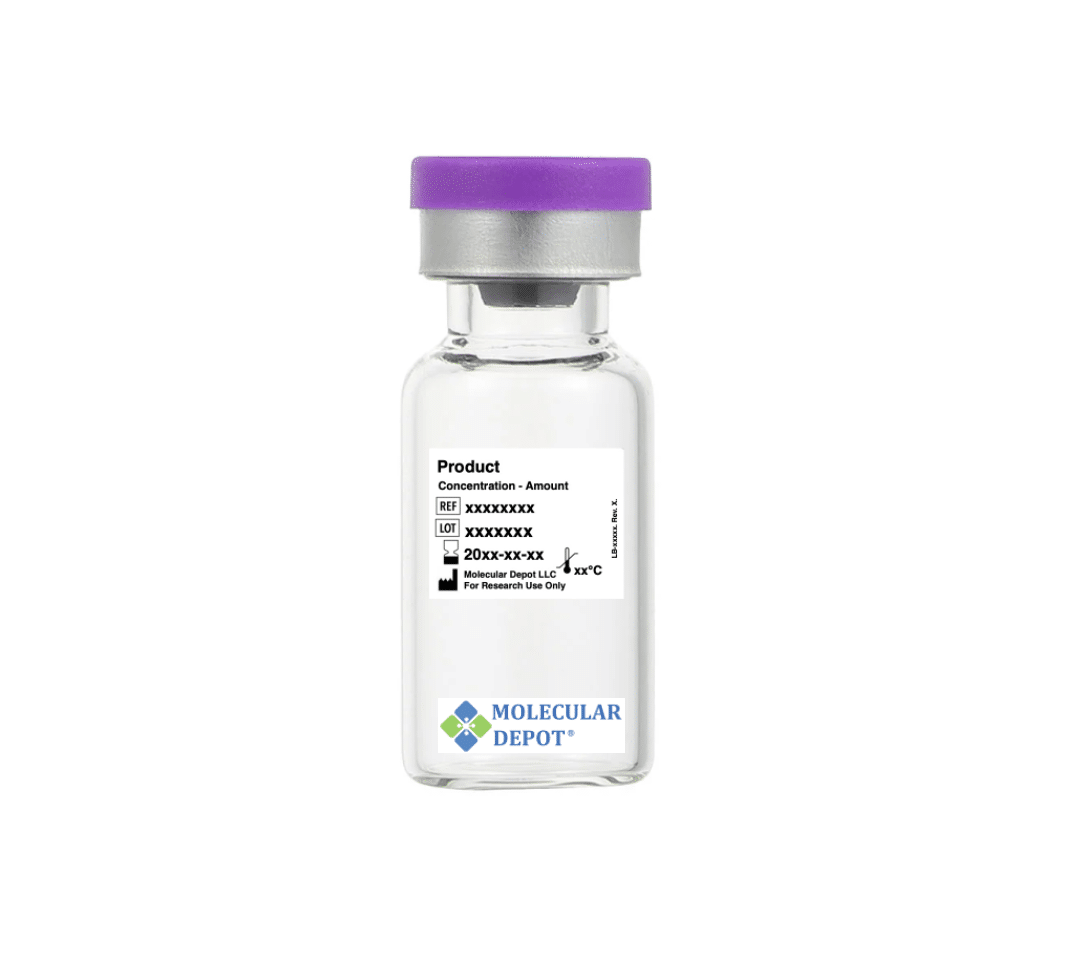

High Density Glyoxal 4BCL Magnetic – Catalog #B2025445

High Density Glyoxal 4BCL Magnetic (Catalog #B2025445) is a pre-activated magnetic affinity resin that combines glyoxal-reactive agarose with magnetic iron oxide particles for rapid, hands-free sample processing. The glyoxal groups form direct Schiff base conjugates with primary amines on proteins and ligands without additional activation, while the magnetic core enables quick separation by external magnet. Supplied as 2 mL of ready-to-use magnetic resin, it streamlines enzyme immobilization, immunoprecipitation, and bioaffinity purification workflows that previously required centrifugation or column packing.

Scientific Overview

Magnetic glyoxal agarose combines the chemical efficiency of glyoxal coupling with the operational simplicity of magnetic separation. Glyoxal groups on agarose provide direct access to lysine primary amines, forming stable Schiff base conjugates that resist dissociation under typical chromatographic and washing conditions. The 6% crosslinked agarose provides good mechanical rigidity while maintaining sufficient porosity for protein diffusion. Iron oxide cores allow rapid, hands-free separation with a permanent magnet, eliminating the need for centrifugation, filtration, or column packing—ideal for batch immunoprecipitation, rapid antibody capture, and high-throughput screening.

The magnetic bead format is particularly advantageous in automated and high-throughput workflows where sample volume is small (microliters to milliliters) and rapid turnaround is essential. Multipoint attachment via the high-density glyoxal groups enhances the stability of immobilized proteins compared to single-point attachment, often preserving or improving catalytic activity.

Key applications include:

• Rapid immunoprecipitation and immunoaffinity purification
• Immobilization of capture antibodies for immunoassays
• Enzymatic coupling for cofactor-dependent biocatalysis
• Biomarker isolation and enrichment from complex samples
• Multiplexed bead-based assays and droplet microfluidics

Usage & Handling Guidance

Resuspend the magnetic resin thoroughly before use (a fine suspension may settle upon storage). Couple ligands in 0.1–0.5 mL of appropriate buffer (pH 7–10, typically 0.1 M bicarbonate or phosphate) at room temperature or 4°C for 4–24 hours. After coupling, capture with a magnet, remove the supernatant, and block unreacted aldehyde groups with ethanolamine or glycine. Wash thoroughly with storage buffer before use.

• Magnet choice: Use a magnetic separator appropriate for the sample volume (96-well plate magnet, tube rack magnet, or handheld magnet).
• Coupling efficiency: Multipoint attachment is efficient; coupling times of 4–24 hours at room temperature or 4°C are typical.
• Blocking: Treat with 1 M ethanolamine (pH 9) or 1 M glycine (pH 8) for 1–2 hours to reduce non-specific binding.
• Bead recovery: Apply magnet for 1–3 minutes to fully sediment beads; carefully remove supernatant with pipette without disrupting the pellet.
• Batch variability: Magnetic bead suspensions may vary in apparent sedimentation rate; resuspend and vortex gently before each use.

What You Get

• 2 mL of pre-activated High Density Glyoxal 4BCL magnetic agarose resin
• Ready-to-use magnetic support requiring no additional activation
• Hands-free magnetic separation without centrifugation or filtration
• High-density glyoxal groups for efficient, multipoint protein coupling
• For research use only (RUO)

Why Researchers Choose It

• Direct, one-step glyoxal coupling of primary amines without intermediates
• Rapid magnetic separation eliminates centrifugation and column packing
• Multipoint attachment stabilizes immobilized enzymes and antibodies
• Ideal for high-throughput and automated sample processing
• Compatible with standard magnetic separators and microfluidic devices

Frequently Asked Questions (FAQ)

• Do I need a special magnet?
  Any permanent magnet strong enough to sediment iron oxide particles will work. Microplate magnetizers, tube rack magnets, and handheld magnets are all compatible; choose based on your sample format and workflow.
• What is the difference between 4% and 6% crosslinked magnetic agarose?
  6% crosslinking (used in this product) provides higher bead rigidity and faster magnetic sedimentation; 4% offers higher porosity suitable for very large proteins. Choose based on your ligand size and desired sedimentation speed.
• Can I re-use magnetic beads after stripping the coupled ligand?
  Magnetic beads can be partially regenerated, but residual ligand and repeated cycles reduce reusability. Contact us for protocols.
• How do I measure coupling efficiency?
  Request the COA/TDS for reference coupling data with standard proteins, or test your ligand at small scale. Efficiency depends on protein lysine content and buffer pH.
• Why are some beads still suspended after applying the magnet?
  This is normal with magnetic bead suspensions. Apply the magnet longer (2–3 minutes) or use a stronger magnet. Gently vortex the tube first to ensure a uniform suspension.
• Can I use this in plate readers or fluorescence assays?
  Yes. After magnetic capture, you can wash and then assay the immobilized protein directly. Magnetic beads may affect fluorescence readings; run controls to assess signal loss.

References

• López-Gallego F, Montes T, Fuentes M, Alonso N, Grazu V, Betancor L, Guisán JM, Fernández-Lafuente R. Improved stabilization of chemically aminated enzymes via multipoint covalent attachment on glyoxyl supports. J Biotechnol. 2005;116(1):1-10.
• López-Gallego F, Fernandez-Lorente G, Rocha-Martín J, Bolivar JM, Mateo C, Guisan JM. Multi-Point Covalent Immobilization of Enzymes on Glyoxyl Agarose with Minimal Physico-Chemical Modification: Stabilization of Industrial Enzymes. Methods Mol Biol. 2020;2100:93-107.
• Subramanian A. Immunoaffinity chromatography. Mol Biotechnol. 2002;20(1):41-7.
• Bilkova Z, Shabani E, Moravek O, Korecka L, Slovakova M, Jankovicova B. Fundamentals of protein affinity chromatography: How to prepare and properly use an affinity matrix. J Chromatogr A. 2025;1756:466061.
