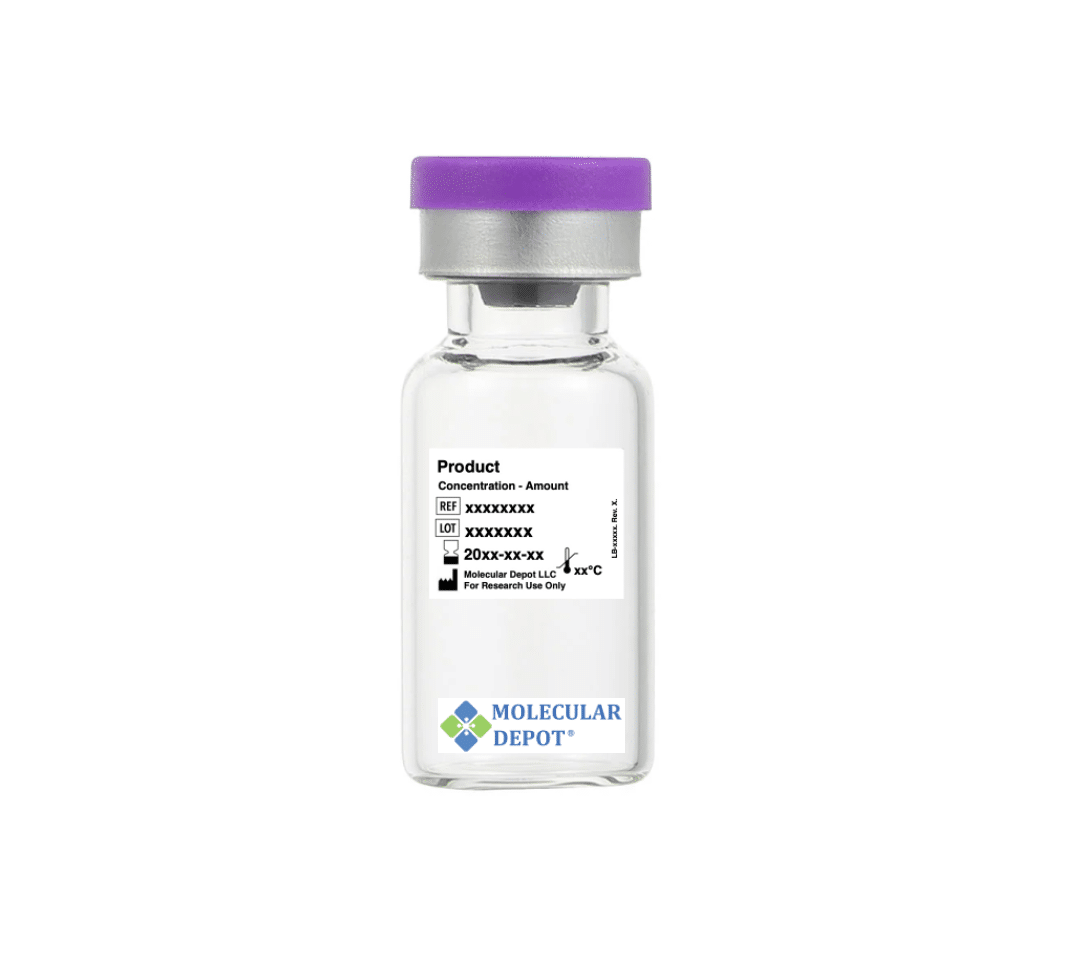

High Density Glyoxal 4BCL – Catalog #B2025390

High Density Glyoxal 4BCL (Catalog #B2025390) is a pre-activated affinity chromatography resin based on 4% crosslinked agarose with a high density of glyoxal groups. The glyoxal (ethanedial) aldehyde groups react directly with primary amino groups (lysines, N-terminal amines) on proteins or ligands to form stable Schiff base conjugates without additional activation steps. Supplied as 25 mL of resin ready to use, it simplifies the immobilization of enzymes, antibodies, and binding proteins for affinity purification and enzyme-catalyzed applications.

Scientific Overview

Glyoxal groups on agarose matrices provide a direct, efficient route to covalent immobilization of proteins via primary amines without the intermediate steps required by some other coupling chemistries. The reaction forms Schiff base linkages that are highly stable and resist elution under typical chromatographic conditions. The high density of glyoxal groups on this resin ensures multipoint attachment, which enhances stability and can improve the catalytic performance of immobilized enzymes by reducing conformational flexibility.

Agarose is a natural polysaccharide from red algae with a porous, hydrophilic matrix that is inert to most biomolecules, permitting high flow rates and minimal nonspecific binding. The 4% crosslinking provides a balance between porosity, mechanical stability, and diffusion rate suitable for many protein applications.

Key applications include:

• Immobilization of enzymes for biocatalysis and cofactor-dependent reactions
• Affinity chromatography for antibody or ligand purification
• Construction of immunosorbent columns for bioaffinity separation
• High-throughput protein purification and biomarker detection

Usage & Handling Guidance

Couple ligands immediately after equilibration in coupling buffer (typically 0.1 M sodium bicarbonate, pH 9–10, or 0.1 M sodium phosphate, pH 7–8, depending on the ligand). Allow adequate contact time (typically 4–24 hours at 4°C or room temperature) to ensure multipoint attachment. After coupling, block remaining aldehyde groups with ethanolamine, glycine, or other amine to reduce non-specific binding and improve selectivity.

• Coupling buffer: Use pH 7–10 buffers depending on ligand isoelectric point and desired coupling kinetics.
• Blocking: After coupling, treat with 1 M ethanolamine (pH 9) or 1 M glycine (pH 8) for 1–2 hours to neutralize unreacted aldehyde groups.
• Column packing: Pack under gravity or low pressure to avoid bead compaction and maintain flow characteristics.
• Storage of conjugate: Store at 2–8°C in storage buffer (typically PBS or 0.1 M phosphate, pH 7.4) with 20% ethanol to inhibit microbial growth.

What You Get

• 25 mL of pre-activated High Density Glyoxal 4BCL agarose resin
• Ready-to-use, no additional activation required
• High glyoxal density for efficient, multipoint protein coupling
• For research use only (RUO)

Why Researchers Choose It

• Direct, one-step coupling via primary amines without additional reagents
• Stable Schiff base linkages resistant to elution under normal use
• Multipoint attachment enhances enzyme stability and activity retention
• High-density glyoxal groups support large biomolecule loads
• Inert agarose matrix minimizes non-specific binding

Frequently Asked Questions (FAQ)

• What is the expected coupling efficiency?
  Coupling efficiency depends on the ligand's lysine content, pH, and contact time. Request the COA/TDS for empirical coupling data with reference proteins on this lot, or test with your protein of interest.
• Can I re-use this resin after stripping the coupled ligand?
  Glyoxal resins can be partially regenerated, but residual ligand and repeated cycles may reduce reusability. Contact us for specific protocols.
• What is the difference between 4% and 6% crosslinked agarose?
  4% crosslinking provides lower density and higher porosity, suitable for larger proteins; 6% provides higher stiffness and better flow under load. Choose based on your ligand and application.
• Do I need to block unreacted groups?
  Blocking with ethanolamine or glycine is recommended to reduce non-specific binding and improve selectivity in affinity chromatography.
• What buffers work best for coupling?
  Coupling is typically most efficient at pH 9–10 (bicarbonate buffer); however, pH 7–8 buffers (phosphate) can also be used if the ligand has limited solubility at higher pH.
• Can I couple antibodies and enzymes to the same batch of resin?
  Yes, if both have accessible primary amines. Optimal coupling conditions may differ; run small-scale tests to optimize for your ligands.

References

• López-Gallego F, Montes T, Fuentes M, Alonso N, Grazu V, Betancor L, Guisán JM, Fernández-Lafuente R. Improved stabilization of chemically aminated enzymes via multipoint covalent attachment on glyoxyl supports. J Biotechnol. 2005;116(1):1-10.
• López-Gallego F, Fernandez-Lorente G, Rocha-Martín J, Bolivar JM, Mateo C, Guisan JM. Multi-Point Covalent Immobilization of Enzymes on Glyoxyl Agarose with Minimal Physico-Chemical Modification: Stabilization of Industrial Enzymes. Methods Mol Biol. 2020;2100:93-107.
• Zang B, Ren J, Xu L, Jia L. Direct site-specific immobilization of protein A via aldehyde-hydrazide conjugation. J Chromatogr B Analyt Technol Biomed Life Sci. 2016;1008:132-138.
• Subramanian A. Immunoaffinity chromatography. Mol Biotechnol. 2002;20(1):41-7.
