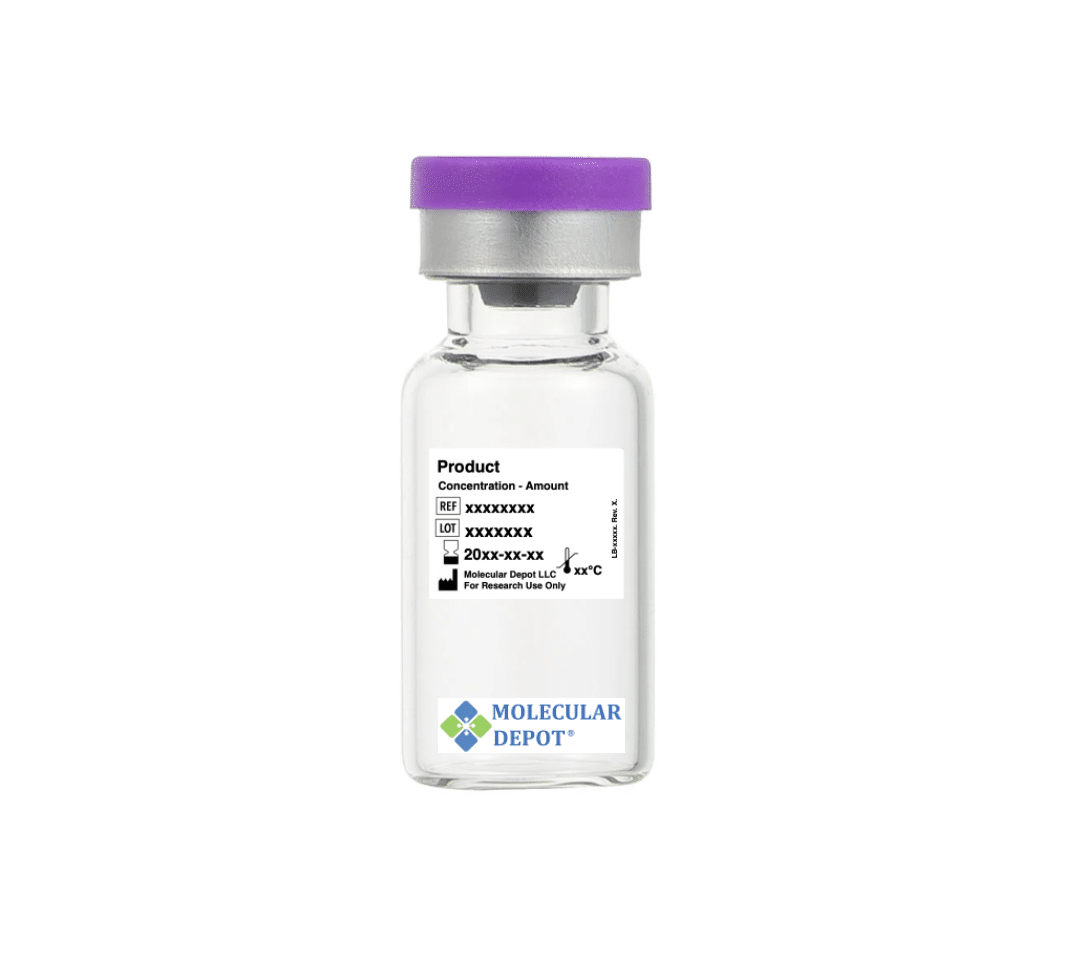

Heparin Magnetic Agarose Beads – Catalog #B2025508

Heparin Magnetic Agarose Beads (Catalog #B2025508) are magnetic agarose particles functionalized with heparin, a highly sulfated glycosaminoglycan that binds a broad spectrum of proteins. Supplied as a 1 mL solution, these beads facilitate rapid, high-capacity purification of heparin-binding proteins including growth factors, cytokines, chemokines, extracellular matrix proteins, and other heparin-interactive biomolecules. The magnetic core enables fast separation using standard magnetic particle handlers or external magnets, making this resin particularly suitable for high-throughput applications and automated workflows.

Scientific Overview

Heparin is a linear, highly sulfated glycosaminoglycan composed of repeating disaccharide units (glucuronic acid and glucosamine) with extensive negative charges. This structure allows heparin to interact with a diverse array of proteins through electrostatic and specific binding interactions. Well-known heparin-binding proteins include acidic fibroblast growth factor (aFGF), basic fibroblast growth factor (bFGF), vascular endothelial growth factor (VEGF), and numerous chemokines and extracellular matrix proteins.

Heparin-coated affinity resins have been used for decades to purify these proteins; the addition of magnetic properties dramatically improves handling and throughput. Heparin magnetic agarose beads combine the proven specificity of heparin-based chromatography with the convenience of magnetic separation, making them ideal for both analytical and preparative protein purification.

Key applications include:

• Rapid purification of growth factors and cytokines
• Isolation of heparin-binding extracellular proteins
• Sample enrichment and fractionation from complex mixtures
• Magnetic bead-based separation for high-throughput and automated workflows
• Pull-down assays for heparin-binding protein interactions

Usage & Handling Guidance

Store at 2–8°C. Before each experiment, mix gently to resuspend beads uniformly. Avoid excessive agitation, which may cause aggregation.

• Sample preparation: Clarify samples (e.g., cell lysates, culture supernatants) by centrifugation or filtration before loading to minimize bead clogging.
• Binding: Incubate your heparin-binding protein sample with beads in bind/wash buffer at 4°C or room temperature (typically 1–4 hours) with gentle mixing.
• Separation: Place the tube in a magnetic stand; beads will collect at the tube wall in 1–2 minutes.
• Washing: Separate magnetically and wash 3–5 times with bind/wash buffer to remove unbound protein and salts.
• Elution: Elute bound protein with increased salt (e.g., 0.5–1.0 M NaCl) or other appropriate elution buffer, or resuspend beads directly in SDS-PAGE sample buffer for analysis.

What You Get

• 1 mL of heparin-coated magnetic agarose particles in solution
• Ready-to-use for rapid protein purification without centrifugation
• High binding capacity for heparin-binding proteins
• Magnetic properties for easy separation and high-throughput applications
• For research use only (RUO)

Why Researchers Choose It

• Broad specificity for a diverse range of heparin-binding proteins
• Rapid purification without centrifugation or gravity flow
• Proven decades of use in heparin-based affinity chromatography
• Compatible with batch, column, and automated separation methods
• Ideal for isolating growth factors, cytokines, and extracellular proteins

Frequently Asked Questions (FAQ)

• What proteins bind heparin?
  Heparin binds growth factors (FGF, VEGF, HGF), cytokines, chemokines, extracellular matrix proteins, and many other heparin-interactive proteins through electrostatic and specific interactions. The specificity is broader than His-tag or GST-tag systems.
• What salt concentration should I use for elution?
  Typical elution uses 0.5–1.0 M NaCl in your binding buffer. Start with 0.5 M and increase if needed. Specific conditions depend on your protein and should be optimized.
• Can I use these beads in a column?
  Yes. Although the magnetic property is designed for magnetic separation, you can also pack this resin in a gravity flow or low-pressure column.
• How do I prevent non-specific binding?
  Optimize pH and buffer conditions; include carrier proteins (e.g., BSA) if needed; and wash thoroughly with bind/wash buffer before elution.
• Are the beads suitable for automation?
  Yes. Magnetic bead-based purification is well-suited to robotic liquid handlers and high-throughput platforms.
• Can I get a COA or TDS?
  Yes. Request a quote or contact us and we will provide available lot documentation.

References

• Barnes B, Caws T, Thomas S, Shephard AP, Corteling R, Hole P, Bracewell DG. Investigating heparin affinity chromatography for extracellular vesicle purification and fractionation. J Chromatogr A. 2022;1670:462987.
• Bolten SN, Rinas U, Scheper T. Heparin: role in protein purification and substitution with animal-component free material. Appl Microbiol Biotechnol. 2018;102(20):8647-8660.
• Morris J, Jayanthi S, Langston R, Daily A, Kight A, McNabb DS, Henry R, Kumar TKS. Heparin-binding peptide as a novel affinity tag for purification of recombinant proteins. Protein Expr Purif. 2016;126:93-103.
