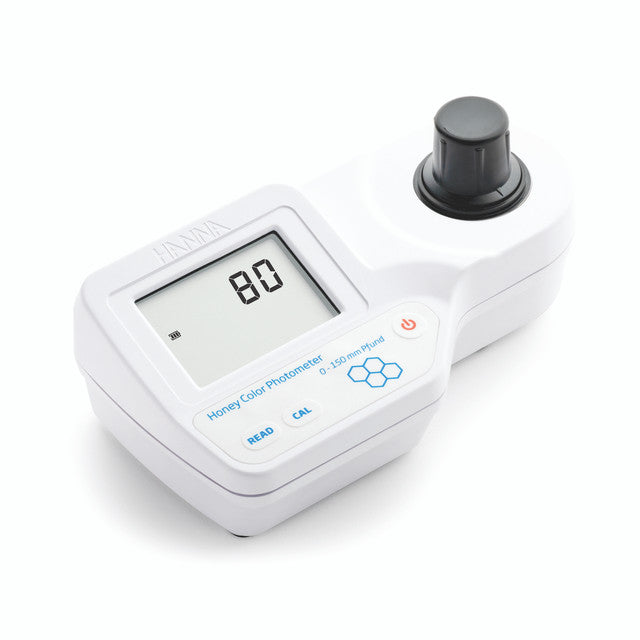

Hanna Instruments HI96785 Honey Color Portable Photometer

$464.99

    The Hanna Instruments HI96785 portable photometer accurately measures honey color, replacing subjective visual grading with precise digital analysis. This advanced device ensures consistent, reliable transmittance readings from 0-150 mm Pfund, perfect for quality control and grading.

    Precise Digital Honey Color Analysis: Eliminate guesswork with objective measurements from 0-150 mm Pfund.

    Advanced Optical System: Features a specialized tungsten lamp and narrow band interference filter for superior accuracy.

    Portable & User-Friendly: Designed for ease of use in the field, ensuring consistent results every time.

See All Specs

aeroplane.png__PID:119d4b1a-2623-400c-8fa4-aec5b49a3bf0

Fast Delivery

Most items ship same day

protection.png__PID:4b1a2623-e00c-4fa4-aec5-b49a3bf05f92

Manufacturer Warranty

All products are covered by manufacturer warranty

technical-support.png__PID:e00c8fa4-aec5-449a-bbf0-5f923431936b

After-Sale Support

24/7 support

What's Included

download (70).webp__PID:7ab0a366-c50a-41ee-ae3a-ab9ed2dfc0ad

VR Headset

download (71).webp__PID:547ab0a3-66c5-4a41-aeae-3aab9ed2dfc0

2 Touch Controllers

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Charging Cable

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Power Adapter

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Glasses Spacer

download (69).webp__PID:26576cae-f878-4c99-ab7c-894d76af129b

The Hanna Instruments HI96785 is a state-of-the-art portable photometer specifically designed for accurately determining honey color through light transmittance measurements. This advanced instrument combines exceptional accuracy with user-friendly operation in a durable, portable design, finally eliminating the subjective and often inconsistent method of judging honey color by eye. Hanna's portable photometers incorporate a sophisticated optical system featuring a specialized tungsten lamp, a narrow band interference filter, and a precise silicon photodetector to guarantee consistent and accurate photometric readings every time. Furthermore, the exclusive cuvette locking system ensures that your sample cuvette is always inserted into the measurement cell in the exact same position, maintaining a consistent 10 mm path length for reliable results.


Intuitive Features for Reliable Operation:

The HI96785 is engineered with smart features to enhance usability and ensure consistent performance.

Automatic Shut-Off for Battery Preservation

To conserve battery life and prevent accidental power drain, the HI96785 features an automatic shut-off function. The meter will power down automatically after 10 minutes of inactivity while in measurement mode. This smart feature helps to extend the lifespan of your batteries, even if the device is inadvertently left on after use.

Clear Battery Status Indicator

Keep track of your power levels with the convenient battery status indicator. This clear display provides real-time information on the remaining battery life, ensuring you're never caught off guard in the middle of a critical measurement.

Advanced Diagnostics and Performance:

Benefit from built-in alerts and optimized optical components for superior accuracy.

Comprehensive Error Messages

The HI96785 provides clear and concise error messages directly on the display to alert users to potential issues. These alerts include warnings for conditions such as a missing cuvette cap, a high zero reading, or a calibration standard that is too low, ensuring accurate and reliable measurements.

Cooling Lamp Indicator for Optical Stability

Maintaining precise wavelength stability is crucial for accurate absorbance readings. The tungsten lamp within the photometer generates heat, which can affect optical components. The HI96785 features a cooling lamp indicator that prompts a brief cool-down period before a reading is taken. This ensures the optical components remain at an optimal temperature, guaranteeing the desirable wavelength and the highest level of accuracy for your honey color measurements.


Understanding Honey Color and its Commercial Importance

The color of honey is a critical characteristic for its commercial classification and grading within the industry. This color is typically expressed in millimeters (mm) Pfund, a standardized unit that compares the honey sample to an analytical grade glycerol standard reference.

Naturally, honey exhibits a wide spectrum of colors, ranging from very pale straw yellow to deep amber, and even almost black with reddish undertones. The natural coloration of untreated honey is primarily derived from the specific botanical varieties from which the bees collect nectar. Therefore, its color serves as an important indicator for commercially identifying the honey's original floral source.

It's important to note that honey's color can also darken over time due to aging or change based on various conservation and production methods employed by beekeepers. Factors such as the use of older beehives, contact with metals, the storage temperature, and exposure to light can all influence the final color of the honey.

The HI96785 photometer provides a direct and objective method to determine honey coloration within a range of 0 to 150 mm Pfund. This instrument utilizes a precisely calibrated tungsten lamp coupled with a narrow band interference filter to isolate specific wavelengths at 420 nm and 525 nm, which are crucial for accurate color measurement. All samples are measured within a standard square cuvette with a 10 mm light path and are compared against a glycerol standard. The resulting percent light transmittance readings are directly converted and displayed as mm Pfund values. Thanks to its advanced optical system, the HI96785 eliminates human subjectivity, delivering highly precise and repeatable honey color readings essential for quality control and adherence to market standards.

For further reference on classification, the table below outlines the USDA classification standards for honey samples and their corresponding mm Pfund values. For detailed information, you can refer to the official USDA classification document.

USDA Color Standards Designations Color Range Pfund Scales (mm)
Water White 8 or less
Extra White Over 8 to 17 (including)
White Over 17 to 34 (including)
Extra Light Amber Over 34 to 50 (including)
Light Amber Over 50 to 85 (including)
Amber Over 85 to 114 (including)
Dark Amber Over 114
    Specification Detail
    sku HI96785
    Honey Range 0 to 150 mm Pfund
    Honey Resolution 1 mm Pfund
    Honey Accuracy ±2 mm Pfund @ 80 mm Pfund
    Honey Method direct measure
    Light Source tungsten lamp
    Light Detector silicon photocell
    Auto-off after ten minutes of non-use in measurement mode; after one hour of non-use in calibration mode with last reading reminder
    Environment 0 to 50°C (32 to 122°F); RH max 95% non-condensing
    Dimensions 192 x 104 x 69 mm (7.6 x 4.1 x 2.7in.)
    Weight 320g (11.3 oz.)
    Warranty 2 years
