Hanna Instruments HI83325-01 Nutrient Analysis Photometer – For Soil & Agricultural Water Testing Benchtop Photometer Hanna Instruments

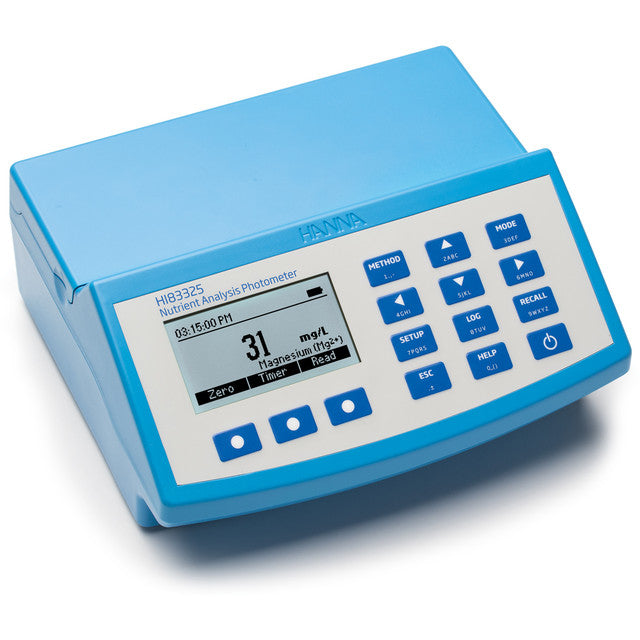

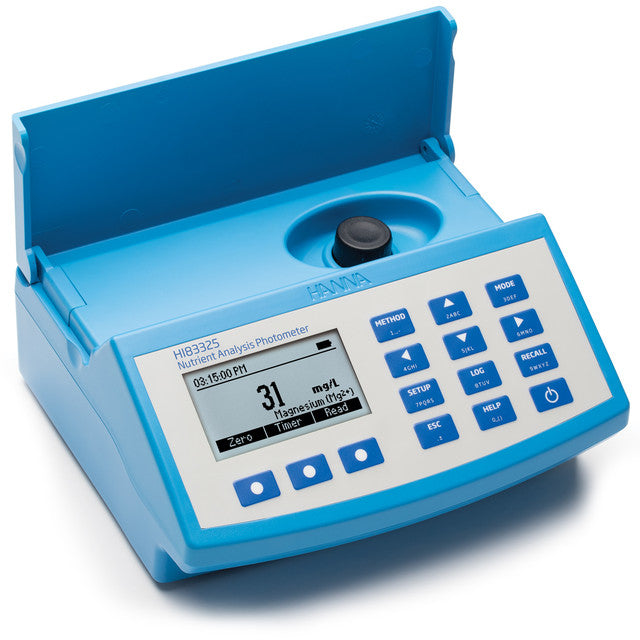

Hanna Instruments HI83325-01 Nutrient Analysis Photometer – For Soil & Agricultural Water Testing

$964.99

The Hanna Instruments HI83325-01 Nutrient Analysis Photometer is a compact, multiparameter meter engineered for fast, reliable water quality testing in environmental labs and fieldwork. Designed to analyze critical plant nutrients including potassium, calcium, and magnesium, this advanced photometer features a unique optical system with a reference detector and focusing lens for high-accuracy readings. With 9 built-in testing methods and a digital pH electrode input, it seamlessly combines photometric and pH measurement capabilities in one space-saving device.

• Measures 8 key nutrient-related parameters including potassium, calcium, and magnesium

• Integrated pH/temperature probe input for dual functionality

• Absorbance mode allows custom calibration and verification of test performance

See All Specs

aeroplane.png__PID:119d4b1a-2623-400c-8fa4-aec5b49a3bf0

Fast Delivery

Most items ship same day

protection.png__PID:4b1a2623-e00c-4fa4-aec5-b49a3bf05f92

Manufacturer Warranty

All products are covered by manufacturer warranty

technical-support.png__PID:e00c8fa4-aec5-449a-bbf0-5f923431936b

After-Sale Support

24/7 support

What's Included

download (70).webp__PID:7ab0a366-c50a-41ee-ae3a-ab9ed2dfc0ad

VR Headset

download (71).webp__PID:547ab0a3-66c5-4a41-aeae-3aab9ed2dfc0

2 Touch Controllers

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Charging Cable

Power Adapter

Glasses Spacer

download (69).webp__PID:26576cae-f878-4c99-ab7c-894d76af129b

Overview: The HI83325 benchtop photometer measures 8 different key water quality parameters using 9 methods. It features an innovative optical system with LEDs, narrow band interference filters, a focusing lens, and both silicon and reference photodetectors. This design ensures accurate, repeatable readings in every application.

Ideal for plant nutrient monitoring, this meter accurately tracks potassium, calcium, and magnesium—each vital to plant water uptake, cellular health, and immunity. The HI83325 also includes a digital pH electrode input that stores calibration data directly in the probe, making hot-swapping easy and reliable. Temperature is compensated automatically via an integrated thermistor.

The absorbance mode allows for validation using CAL Check™ standards and supports customized concentration vs. absorbance plotting for educational or method-development use. Data transfer is easy via two USB ports, and the internal rechargeable battery adds convenience for field use.

IDEAL APPLICATIONS: Environmental Monitoring, Water and Wastewater Treatment, Industrial Quality Control, Education, Agriculture and Aquaculture, Beverage Analysis.

On-Screen Features

Effortless Method Selection

Users can easily select any of the 20 measurement methods via the dedicated METHOD button, simplifying operation.

Advanced Data Logging

Store up to 1000 measurement readings with user and sample IDs for comprehensive data management and future recall.

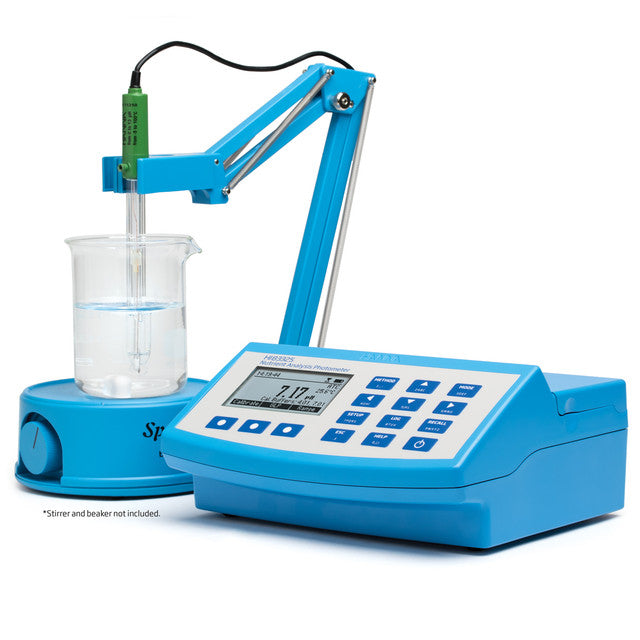

Professional pH Measurement

Transform the photometer into a professional pH meter with temperature compensation, automatic two-point calibration, and GLP features.

Key Features:

Multi-Parameter Measurement: Accurately measures 8 vital water quality parameters across 9 distinct methods.
Advanced Optical System: Features high-efficiency LEDs, narrow band filters, and a reference detector for superior photometric precision.
Digital pH Electrode Input: Allows for precise pH and temperature measurements with intelligent, auto-calibrating electrodes.
CAL Check™ Functionality: Enables quick and easy validation of the photometric system's performance using Hanna's certified standards.
Custom Absorbance Mode: Offers flexibility to create custom concentration versus absorbance curves at selectable wavelengths for unique chemical methods or educational purposes.
Comprehensive Data Logging: Stores up to 1000 readings with user and sample identification for thorough record-keeping and traceability.
Convenient USB Connectivity: Facilitates effortless data transfer to a PC or flash drive in .CSV format for seamless integration with spreadsheet programs.

Key Benefits:

Enhanced Measurement Reliability: Advanced optical components ensure consistently precise and accurate readings.
Streamlined pH Analysis: Digital pH input simplifies testing with rapid, accurate results.
Assured Performance: CAL Check™ verifies system accuracy and instrument integrity.
Flexible Application: Absorbance mode is ideal for user-defined methods or educational demonstrations.
Optimized Data Management: Easily log and export data for in-depth analysis and reporting.
Clear Battery Indicator: Prevents unexpected power loss during crucial testing.
Helpful Error Messages: On-screen alerts support intuitive troubleshooting.
Compact, Multi-Function Unit: Combines pH and photometric testing in one bench-friendly device.

Advanced Optical System

Innovative Design

The HI83325 features an innovative optical system with a beam splitter for simultaneous absorbance and reference detection. The reference detector compensates for light drift, ensuring unparalleled photometric performance.

High Efficiency LED Light Source

LED light sources offer superior luminous efficiency with less power and heat, providing better output in the blue/violet spectrum than tungsten lamps.

High-Quality Narrow Band Filters

Filters provide +/- 1 nm accuracy with 95% transmission efficiency, ensuring strong, stable signals and minimal wavelength error.

Reference Detector Stability

The internal reference detector actively stabilizes light source drift, eliminating inconsistencies due to ambient conditions or voltage variations.

25 mm Cuvette Compatibility

The large path length enhances measurement accuracy and reduces rotation-based errors during sample analysis.

Focusing Lens Precision

Lens directs light to the photodetector, avoiding errors caused by cuvette imperfections and eliminating the need for indexing.

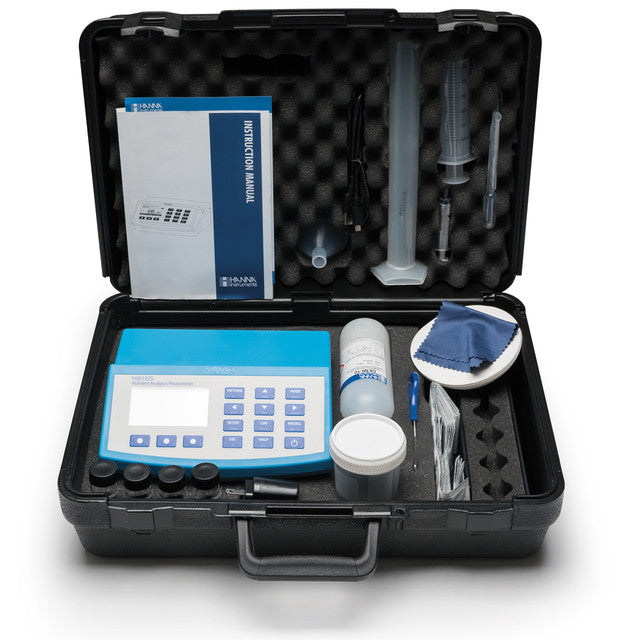

Included Accessories

We believe that analytical testing should be simple. Each HI83325 Nutrient Analysis Photometer is supplied with necessary accessories in a durable carrying case, including:

Sample Cuvette and Cap (4 pcs.)
Cloth for Wiping Cuvettes
Scissors
USB Cable
5 Vdc Power Adapter
Instruction Manual
Quality Certificate
100 mL plastic graduated beaker with cap
170 mL plastic graduated beaker
3 mL plastic pipette
5 mL graduated syringe
60 mL graduated syringe
Graduated cylinder
Spoon
Funnel
Filter paper
Demineralizer bottle for 10 L of water
Activated carbon for 50 tests

Specification	Detail
sku	HI83325-01
Wavelength Accuracy	±1 nm
Light Source	5 LEDs with 420 nm, 466 nm, 525 nm, 575 nm, and 610 nm narrow band interference filters
Spectral Bandwidth	8 nm
Input Channels	1 pH electrode input and 5 photometer wavelengths
pH Electrode	Digital pH electrode (not included)
Logging Type	Log on demand with user name and sample ID optional input
Logging Memory	1000 readings
Connectivity	USB-A host for flash drive, micro-USB-B for power and computer connectivity
GLP	Calibration data for connected pH electrode
Display	128 x 64 pixel LCD with backlight
Battery Type / Life	3.7 VDC Li-polymer rechargeable battery / >500 photometric measurements or 50 hours of continuous pH measurement
Power Supply	5 VDC USB 2.0 power adapter with USB-A to micro-USB-B cable (included)
Environment	0 to 50.0°C (32 to 122.0°F), 0 to 95% RH, non-condensing
Dimensions	206 x 177 x 97 mm (8.1 x 7.0 x 3.8 in.)
Weight	1.0 kg (2.2 lbs.)
Photometer/Colorimeter Light Detector	Silicon photodetector
Cuvette Type	Round, 24.6 mm
Number of Methods	128 max.
Ordering Information	Supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro-USB cable connector, power adapter, and instruction manual
Warranty	2 years
Note	*Reagents are not included.

Measurement Parameters

Parameter	Range	Resolution	Accuracy (at 25 °C)	Method	Wavelength	Reagent Code
Absorbance	0.000 to 4.000 Abs	0.001 Abs	±0.003 Abs @ 1.000 Abs
Ammonia, Low Range	0.00 to 3.00 mg/L (as NH₃-N)	0.01 mg/L	±0.04 mg/L ±4% of reading	Adaptation of the ASTM Manual of Water and Environmental Technology, D1426 Nessler method.	420 nm	HI93700-01
Ammonia, Medium Range	0.00 to 10.00 mg/L (as NH₃-N)	0.01 mg/L	±0.05 mg/L ±5% of reading	Adaptation of the ASTM Manual of Water and Environmental Technology, D1426, Nessler method	420 nm	HI93715-01
Ammonia, High Range	0.0 to 100.0 mg/L (as NH₃-N)	0.1 mg/L	±0.5 mg/L ±5% of reading	Adaptation of the ASTM Manual of Water and Environmental Technology, D1426, Nessler method	420 nm	HI93733-01
Calcium	0 to 400 mg/L (as Ca²⁺)	1 mg/L	±10 mg/L ±5% of reading	Adaptation of the Oxalate method	466 nm	HI937521-01
Magnesium	0 to 150 mg/L (as Mg²⁺)	1 mg/L	±5 mg/L ±3% of reading	Adaptation of the Calmagite method	466 nm	HI937520-01
Nitrate	0.0 to 30.0 mg/L (as NO₃-N)	0.1 mg/L	±0.5 mg/L ±10% of reading	Adaptation of the cadmium reduction method	525 nm	HI93728-01
pH	6.5 to 8.5 pH	0.1 pH	±0.1 pH	Adaptation of the Phenol Red method	525 nm	HI93710-01
Phosphate, High Range	0.0 to 30.0 mg/L (as PO₄^3-)	0.1 mg/L	±1.0 mg/L ±4% of reading	Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Amino Acid method	525 nm	HI93717-01
Potassium	0.0 to 20.0 mg/L (as K)	0.1 mg/L	±3.0 mg/L ±7% of reading	Adaptation of the Turbidimetric Tetraphenylborate method	466 nm	HI93750-01
Sulfate	0 to 150 mg/L (as SO₄^2-)	1 mg/L	±5 mg/L ±3% of reading	Sulfate is precipitated with barium chloride crystals	466 nm	HI93751-01
