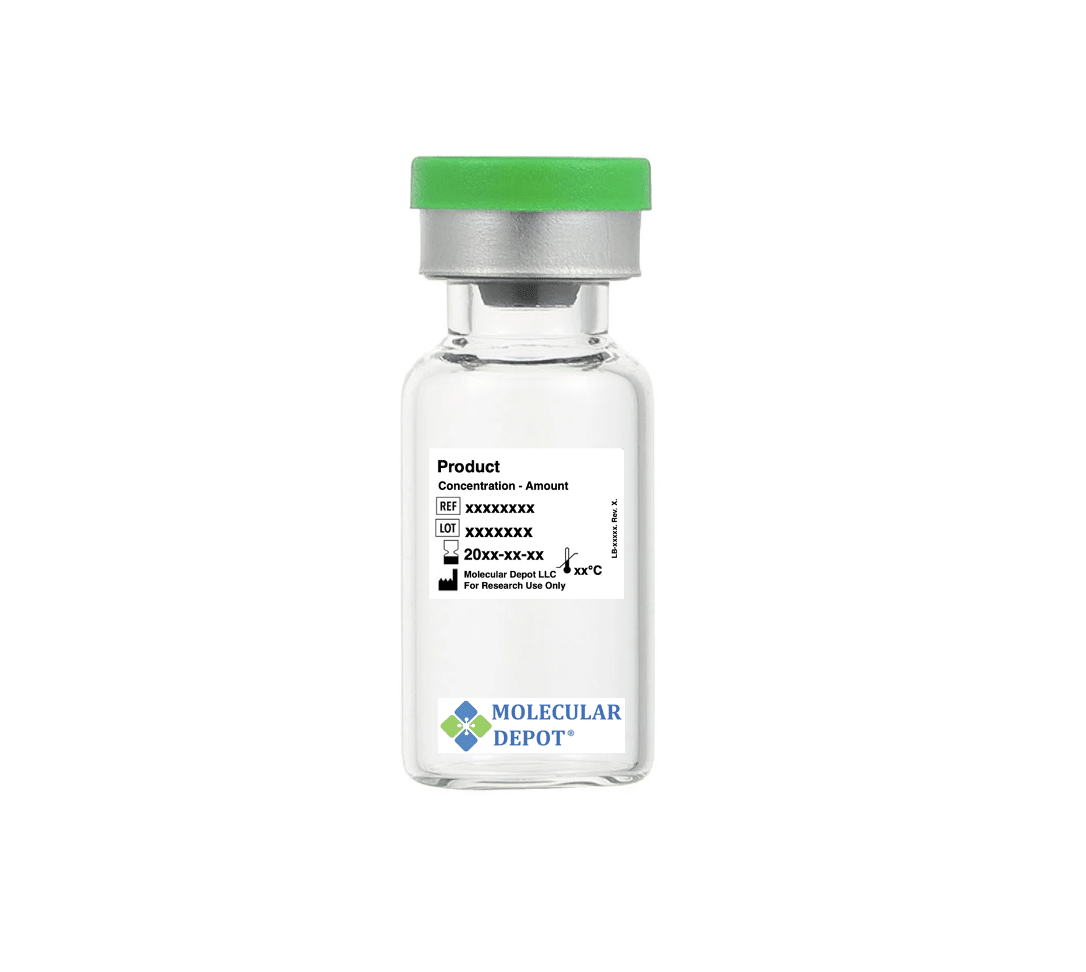

Epoxy Magnetic Agarose Beads – Catalog #B2025489

Epoxy Magnetic Agarose Beads are a versatile affinity chromatography medium combining several advantages: a porous agarose matrix for high binding capacity, epoxy (oxirane) surface groups for efficient covalent coupling of ligands, and a magnetic iron oxide core that enables rapid, easy separation from solution. The epoxy groups are highly reactive with amino, hydroxyl, and thiol groups on proteins, enzymes, antibodies, carbohydrates, and other biomolecules, forming stable ether linkages and secondary amine bonds under mildly alkaline conditions. This allows researchers to quickly immobilize their own ligands (capture antibodies, enzymes, receptors, or other targets) and create customized affinity purification columns or immunoassay platforms.

Scientific Overview

Epoxy groups (also called oxirane or glycidyl groups) are highly reactive functional moieties commonly used in organic and biochemistry for covalent coupling reactions. Under mildly alkaline conditions (typically pH 8–11), epoxy groups react spontaneously with primary amines (–NH₂) on proteins and peptides, forming stable secondary amine linkages. They also react more slowly with hydroxyl (–OH) and thiol (–SH) groups, although amino coupling is preferred. The key advantage of epoxy-functionalized beads is that coupling occurs under gentle conditions without requiring additional chemical cross-linkers, making the process straightforward: mix the ligand (protein, antibody, enzyme) with the epoxy beads at pH 8–11, incubate, and the ligand is covalently immobilized.

The combination of epoxy coupling chemistry, a high-capacity agarose matrix, and magnetic functionality makes these beads ideal for:

• Building custom affinity columns with your own specific ligands (antibodies, enzymes, receptors)
• Creating immobilized enzyme reactors (IMERs) for biocatalysis and analytical applications
• Rapid immunoassay platforms (e.g., magnetic bead-based sandwich assays)
• Biomarker capture and sample enrichment in complex biological samples
• Protein interaction and pull-down studies

Usage & Handling Guidance

Epoxy coupling is simple and robust. Pre-treat the beads by rinsing in a slightly alkaline coupling buffer (pH 8–11; sodium carbonate or sodium phosphate buffers are common). Mix the target ligand (protein or antibody) at 1–10 mg/mL with the epoxy beads in coupling buffer and incubate at room temperature or 4°C for 2–24 hours. The longer incubation and mildly elevated pH improve coupling efficiency. After coupling, wash the beads with coupling buffer, then neutralize and store in a neutral pH buffer (PBS or Tris-HCl, pH 7.2–7.4).

• Coupling buffer: Sodium carbonate (pH 9–10) or sodium phosphate (pH 8–9) buffers work well. Avoid buffers containing primary amines (e.g., Tris), which compete with your ligand for coupling.
• Ligand concentration: Typically 1–10 mg/mL protein in coupling buffer. Higher protein concentrations often give more efficient coupling, but use the minimum needed for your application to reduce cost.
• Coupling time: 2–4 hours at room temperature or overnight at 4°C. Longer incubations improve coupling efficiency.
• Blocking unreacted epoxy groups: After coupling, unreacted epoxy groups can be blocked by incubation in ethanolamine or glycine solution (pH 8–9) to prevent non-specific binding; skip this step if you want to couple additional ligands.
• Storage of functionalized beads: Store in neutral pH buffer (PBS or 10 mM Tris-HCl, pH 7.2–7.4) containing 0.02% sodium azide as a bacteriostat, at 2–8°C. Do not freeze.

What You Get

• 5 mL of epoxy-functionalized magnetic agarose bead suspension
• Coupled with the magnetic iron oxide core for rapid magnetic separation
• Ready for covalent immobilization of your ligand (antibody, enzyme, receptor, etc.)
• High capacity and biological compatibility
• For research use only (RUO)

Why Researchers Choose It

• Straightforward epoxy-amine coupling chemistry with no additional cross-linkers
• High-capacity agarose matrix provides good loading and binding
• Magnetic properties allow rapid, easy separation and automation
• Gentle conditions preserve ligand activity and structure
• Customizable: you control which ligand is immobilized
• Versatile platform for affinity purification, enzyme immobilization, immunoassays, and interaction studies

Frequently Asked Questions (FAQ)

• How do epoxy groups couple to my protein?
  Epoxy groups react with primary amino groups (lysine residues and the protein's N-terminus) under mildly alkaline pH (8–11), forming stable secondary amine linkages. The reaction is spontaneous; no additional reagents are needed.
• What coupling buffer should I use?
  Sodium carbonate (pH 9–10) or sodium phosphate (pH 8–9) buffers work well. Avoid Tris and other primary amine buffers, which compete with your protein for coupling.
• How long should I incubate?
  2–4 hours at room temperature or overnight at 4°C. Overnight incubation typically gives the best coupling efficiency.
• How do I separate the beads after coupling?
  Use a handheld magnet or a magnetic separator rack. Beads will accumulate at the side or bottom within 1–2 minutes.
• Should I block unreacted epoxy groups?
  Yes, if you are performing affinity capture assays; incubate with ethanolamine or glycine (pH 8–9) to prevent non-specific binding. Skip blocking if you plan to couple additional ligands.
• How do I store the functionalized beads?
  In neutral pH buffer (PBS, pH 7.2–7.4) with 0.02% sodium azide at 2–8°C. Do not freeze.

References

• Yuan D, Li S, Zhang L, Ma F, Wang H, Zhang Q, Li P. Rapid and sensitive quantification of capsaicinoids for edible oil adulteration by immunomagnetic solid-phase extraction coupled with time-resolved fluorescent immunochromatographic assay. Food Chem. 2023;404(Pt A):134552.
• Kinumi T, Mizuno R, Takatsu A. Quantification of serum C-peptide by isotope-dilution liquid chromatography-tandem mass spectrometry: enhanced detection using chemical modification and immunoaffinity purification. J Chromatogr B Analyt Technol Biomed Life Sci. 2014;953-954:138-42.
