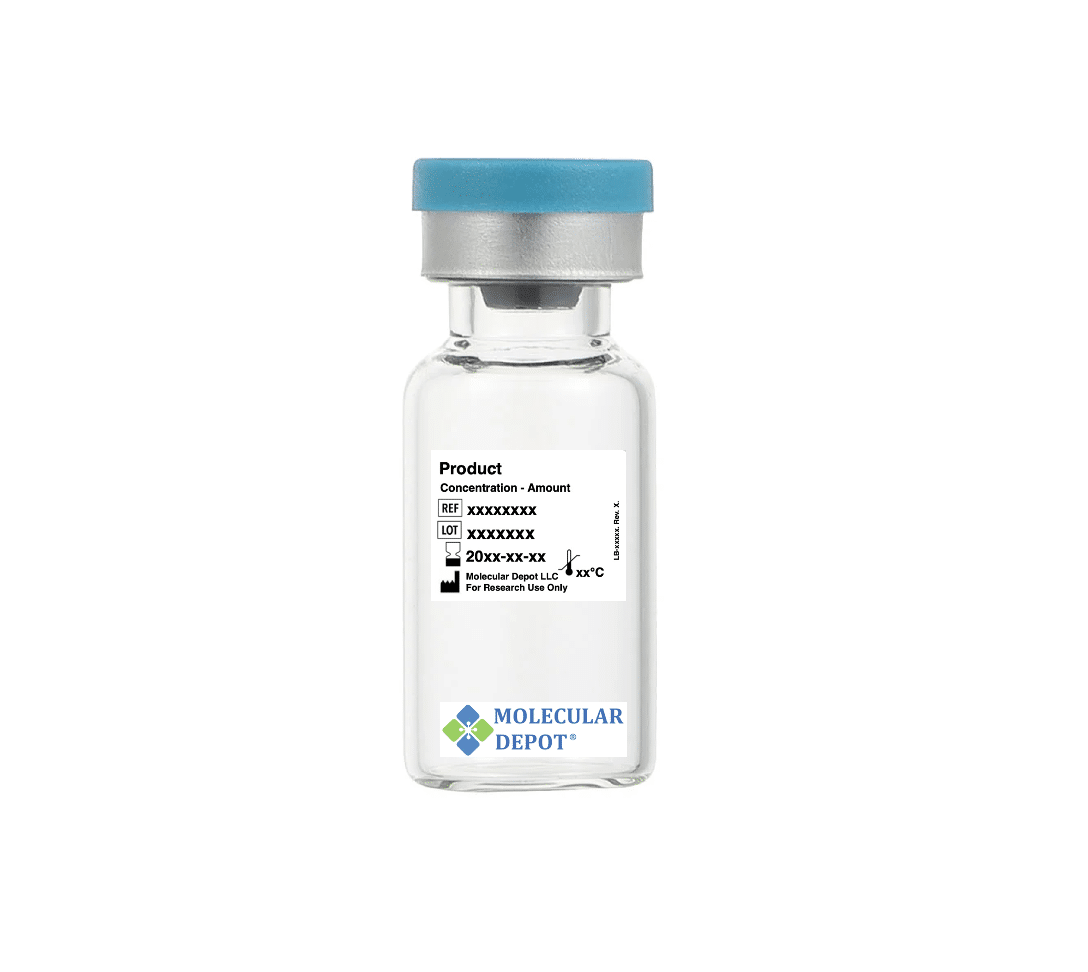

Carboxyl Magnetic Beads (1 µm) – Catalog #B2025725

These 1 µm carboxyl-coated magnetic beads represent a significant advance in miniaturized affinity capture technology. The submicron size increases surface area-to-volume ratio by roughly 10-fold compared to 10 µm beads, accelerating both binding kinetics and magnetic separation. A ferromagnetic core ensures rapid sedimentation in magnetic fields, while the carboxyl surface enables covalent coupling of antibodies, biotin, streptavidin, and other targeting molecules via EDC or carbodiimide chemistry. The small size permits high particle counts per unit volume, enhancing capture capacity and enabling sensitive detection in diagnostic and research applications. Supplied as a stable liquid suspension at high particle concentration, they are ready to use or couple without additional processing.

Scientific Overview

Submicron magnetic beads represent a powerful tool for affinity-based separation and capture. At 1 µm diameter, these particles offer a surface area that is approximately 100-fold larger (per unit mass) than 10 µm beads. This increase translates to proportionally faster binding kinetics, as target molecules encounter more available binding sites per unit time. The magnetic core—a composite of iron oxide nanoparticles embedded in a polymeric matrix—provides superparamagnetic behavior: the beads develop a strong magnetic moment in external fields but show no residual magnetization when the field is removed, preventing irreversible clumping and enabling complete release of targets.

Carboxyl groups on the bead surface are excellent platforms for EDC-mediated protein coupling. The chemistry is straightforward: EDC activates carboxyl groups to form reactive O-acylisourea intermediates, which react with primary amines (on lysines and N-terminal amines of proteins) to form stable amide bonds. Unlike biotin–streptavidin or other reversible capture systems, covalent coupling via carbodiimides creates permanent attachments suitable for reusable capture reagents and high-affinity immunoassays. The small bead size permits high particle concentration per unit volume, maximizing capture capacity and permitting sensitive detection in diagnostic platforms.

Key applications include:

• Immunomagnetic separation of cells, pathogens, or target proteins from biological samples
• Rapid affinity capture for sample preparation in mass spectrometry and proteomics workflows
• Diagnostic assays: antibody-coated beads capture biomarkers for quantitation and detection
• Protein purification: His-tagged or epitope-tagged protein capture from cell lysates or fermentation broths
• Circulating biomarker isolation: capture rare cells, exosomes, or DNA fragments from blood or tissue fluids

Usage & Handling Guidance

To couple proteins, gently resuspend the bead suspension by pipetting (avoid vortexing, which may cause aggregation). Transfer the desired volume to a microcentrifuge tube and apply a strong magnetic field to sediment beads. Remove the storage buffer and resuspend beads in coupling buffer (10–25 mM MES, pH 5.5–6.5). Add EDC to 20–50 mM, incubate for 5 minutes, then add your target protein and incubate 30 minutes to 2 hours at room temperature. Wash by magnetic separation 3 times in PBS. Coupled beads may be stored at 2–8 °C in PBS with 0.1% BSA or used immediately in capture protocols.

• Use a strong neodymium magnet (neodymium-iron-boron, N52 or stronger) to ensure rapid sedimentation
• Always include a protein carrier (0.1–1% BSA, casein, or non-fat milk) in storage and blocking buffers
• Avoid vortexing and excessive mixing; use gentle pipetting to resuspend to prevent bead aggregation
• For blocking, pre-incubate coupled beads in PBS + 5–10% BSA or serum for 30 minutes to an hour
• Include detergent (0.05–0.1% Triton X-100 or Tween-20) in capture and wash buffers to reduce non-specific binding

What You Get

• 1 mL of 1 µm carboxyl magnetic bead suspension at high particle concentration
• Beads supplied in a storage buffer optimized for long-term stability
• Beads ready to couple with proteins via EDC chemistry or ready for direct use in capture applications

Why Researchers Choose It

• Submicron size provides 10–100-fold higher surface area per unit mass than larger beads, accelerating binding
• Superparamagnetic behavior enables complete reversibility and prevents irreversible aggregation
• High particle count per mL maximizes capture capacity and enables sensitive detection
• Carboxyl surface enables quick, stoichiometric coupling via standard EDC chemistry
• Small size permits integration into microfluidic devices, automated high-throughput platforms, and diagnostic instruments

Frequently Asked Questions (FAQ)

• What is the maximum protein coupling density?
  At 1 µm diameter, a single bead offers roughly 3 µm² of surface area. Carboxyl density is typically 100–1000 groups per µm². Coupling efficiency to amines ranges from 60–95%, yielding roughly 10⁶–10⁷ protein molecules per bead (depending on protein size and coupling conditions).
• How quickly do these beads sediment in a magnetic field?
  At 1 µm size with embedded magnetic cores, sedimentation is very rapid—typically 30 seconds to 1 minute with a strong (neodymium) magnet. Larger beads (10 µm) sediment in seconds; smaller beads (~100 nm) may take 2–5 minutes.
• Are these beads suitable for microfluidic or lab-on-a-chip applications?
  Yes. The 1 µm size is ideal for integration into microfluidic devices. However, ensure that device channel widths and flow rates are optimized to prevent bead clogging; typical minimum channel widths are 5–10 µm.
• Can I use these beads in an automated liquid handler or pipetting robot?
  Yes, but use wide-bore pipette tips (200 µL or larger) and avoid excessive shearing or vortexing. Configure the liquid handler to use gentle pipetting parameters to prevent aggregation.
• What is the difference between 1 µm and 10 µm magnetic beads?
  1 µm beads offer 10-fold higher surface area per unit mass, faster kinetics, and higher particle concentration per mL. 10 µm beads sediment faster and are easier to handle manually. Choose 1 µm for kinetic speed and sensitivity; choose 10 µm for ease of manual manipulation.
• Can I freeze and thaw these beads?
  Freezing is not recommended for liquid suspensions, as ice crystal formation can damage the beads and cause aggregation. Store at 2–8 °C. If freezing is necessary, resuspend beads in a cryoprotective buffer containing 10–20% glycerol or ethylene glycol before freezing, and thaw slowly at 4 °C.
