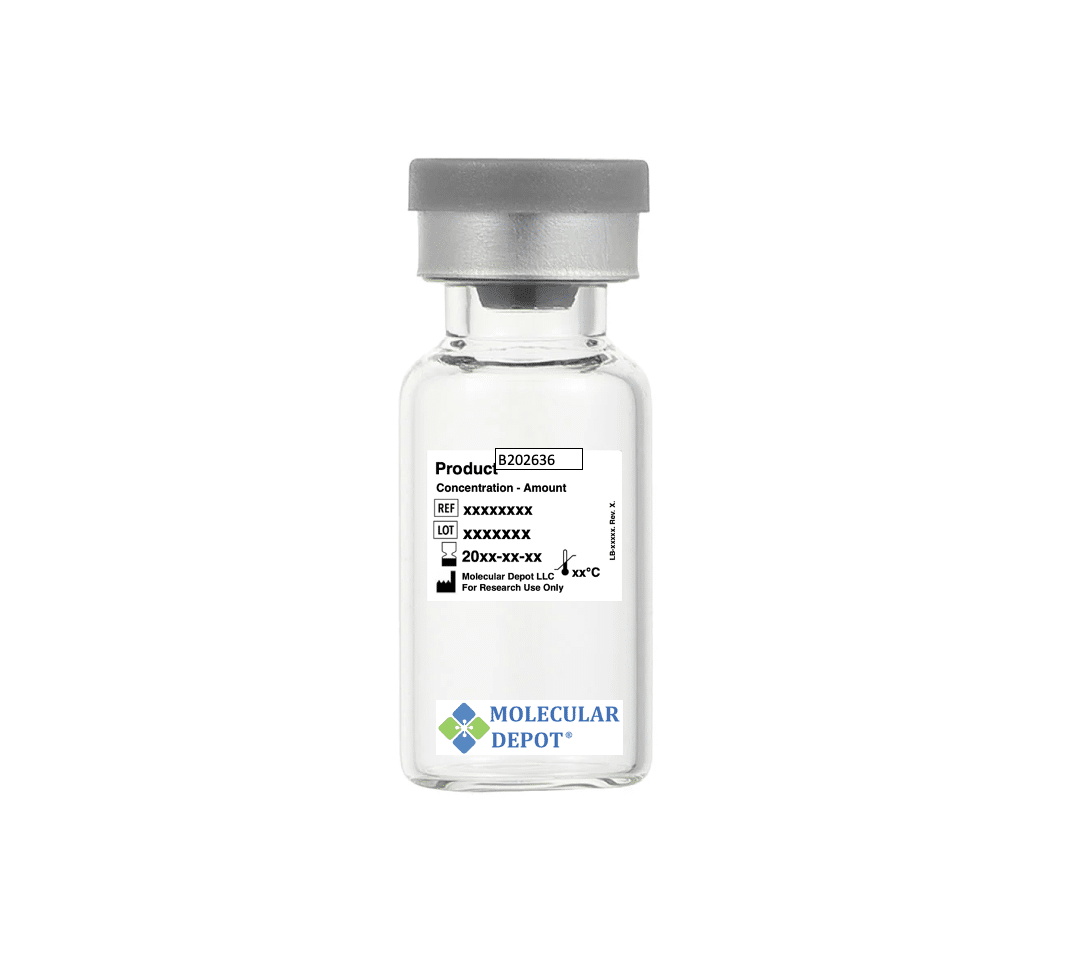

Amine-Modified Polystyrene Latex Beads (8.0–8.9 μm) – Catalog #B202636

Amine-Modified Polystyrene Latex Beads (Catalog #B202636) are precision-manufactured extra-large latex microspheres with covalently attached amino groups on the surface. The 8.0–8.9 μm diameter range represents the upper end of practical bead sizes for most biomedical applications, offering maximum surface area for protein loading, highest optical scatter intensity, and exceptional mechanical and physical stability. These beads are ideal for applications requiring high-capacity binding, easy visualization, and rugged handling.

Scientific Overview

Beads in the 8 μm size range represent a unique sweet spot for researchers who prioritize protein loading capacity and ease of visualization over absolute requirement for small particle size. At this diameter, each bead offers approximately 4-fold greater surface area than a 4 μm bead, enabling dramatically higher antibody or enzyme loading per unit mass of beads. The strong scatter signal means these beads are easily visualized by light microscopy (no fluorescent labeling required) and generate strong signals in flow cytometers without complex compensation.

The larger size also provides mechanical advantages: these beads are more robust during centrifugation, enzymatic digestion, or incubation in harsh buffers. They sediment rapidly and predictably, simplifying separation from solution. When conjugated with capture antibodies, they make excellent tools for immunomagnetic cell separation, where antibody-coated beads bind target cells, and magnetic nanoparticles or external magnets facilitate recovery.

For enzyme immobilization, the high surface area of large beads can support enzyme loadings in the range of 100–300 μg per mL of settled beads, creating highly active biocatalysts or biosensor surfaces. For affinity chromatography, these beads pack efficiently into large-volume columns while maintaining acceptable backpressure.

Key applications include:

• High-capacity affinity purification and antibody/protein capture
• Large-scale enzyme immobilization for biocatalysis or biosensing
• Immunomagnetic cell enrichment or depletion workflows
• Cell labeling, tracking, and microscopic analysis
• Manufacturing of diagnostic or research reagent libraries

Usage & Handling Guidance

Store at 2–8°C in the dark. Before use, gently invert the bottle 15–20 times to resuspend the beads evenly. The larger size and greater density mean these beads settle faster than smaller particles; resuspend immediately before use and work with fresh suspension. Do not vortex, as aggregation is more likely with larger particles.

• Protein coupling—high efficiency: The large surface area of 8 μm beads makes them ideal for high-efficiency protein coupling. EDC/NHS chemistry typically yields >80% coupling efficiency even at high protein input. Glutaraldehyde coupling is also effective and can produce even higher cross-link densities.
• High-capacity binding studies: Use these beads for characterizing ligand–receptor interactions when high ligand density is important, or for kinetic studies where the large surface can accommodate multiple, simultaneous binding events.
• Immunomagnetic separation: Conjugate with antibodies against cell-surface antigens; bind target cells in suspension; use magnetic nanoparticles (streptavidin-coated beads + biotin-labeled magnetic particles) or an external magnet to pull down bead-bound cells.
• Enzyme immobilization: For biosensor or biocatalytic applications, use high enzyme loading (100–300 μg/mL settled beads) to maximize activity per unit volume of material.
• Microscopy and imaging: These beads require no fluorescent dyes for visualization under brightfield microscopy. They are readily visible at 10× and higher magnification, simplifying tracking in cell-imaging experiments.

What You Get

• 5 mL of amine-modified polystyrene latex beads, 8.0–8.9 μm diameter
• Monodisperse, extremely uniform particles with maximum surface area
• Reactive amine surface for robust protein immobilization
• Extra-large size for excellent visibility and mechanical stability
• Ready-to-use suspension in phosphate-buffered saline
• For research use only (RUO)

Why Researchers Choose It

• Exceptional surface area enables maximum protein loading per bead
• Exceptional optical scatter for easy flow cytometry and microscopy detection
• Mechanical robustness ideal for aggressive assays and washing
• Amine surface allows efficient, high-yield protein coupling
• Perfect for immunomagnetic cell separation and enzyme immobilization
• Rapid, predictable settling for straightforward handling

Frequently Asked Questions (FAQ)

• What is the maximum protein loading capacity of these beads?
  For 8 μm beads, typical EDC/NHS coupling yields 50–150 μg of protein per mL of settled beads. With glutaraldehyde, loading can reach 150–300 μg/mL. Request the certificate of analysis for lot-specific binding capacity data.
• Can I see these beads under a light microscope without fluorescence?
  Yes. The 8 μm size and strong scatter properties make these beads easily visible under brightfield light microscopy at 10× magnification and higher, without the need for fluorescent dyes or labels.
• How do these beads work with immunomagnetic cell separation?
  Conjugate with antibodies targeting your cell of interest. Incubate with cell sample to allow binding. Then use biotin-labeled magnetic nanoparticles (streptavidin-coupled) or an external magnet to pull down bead-bound cells.
• Are these beads suitable for packing into affinity columns?
  Absolutely. The 8 μm size packs efficiently without excessive back-pressure. These columns achieve high binding capacity due to the large surface area of each bead and can handle substantial sample volumes.
• How long do coupled beads remain stable?
  Protein-coupled beads stored at 4°C in blocking buffer (PBS + 1% BSA + 0.05% sodium azide) remain stable for 3–6 months. Avoid repeated freeze–thaw cycles and protect from light.
• Can I dilute these beads, or should I use them at full concentration?
  You can dilute as needed for your application, but the concentrated suspension allows you to work with less volume for high-capacity applications. For most assays, working at or near full concentration is economical.

References

• Vignali DA. Multiplexed particle-based flow cytometric assays. J Immunol Methods. 2000;243(1-2):243-55.
• Kellar KL, Iannone MA. Multiplexed microsphere-based flow cytometric assays. Exp Hematol. 2002;30(11):1227-37.
• Kumada Y, Miyamura Y, Tanibata R, Takahashi K, Ogasawara S, Gondaira F, Horiuchi JI. Design and site-directed immobilization of single-chain Fv antibody to polystyrene latex beads via material-binding peptides and application to latex turbidimetric assay. J Biosci Bioeng. 2021;131(1):84-89.
• Krishnan VV, Selvan SR, Parameswaran N, Venkateswaran N, Luciw PA, Venkateswaran KS. Proteomic profiles by multiplex microsphere suspension array. J Immunol Methods. 2018;461:1-14.
