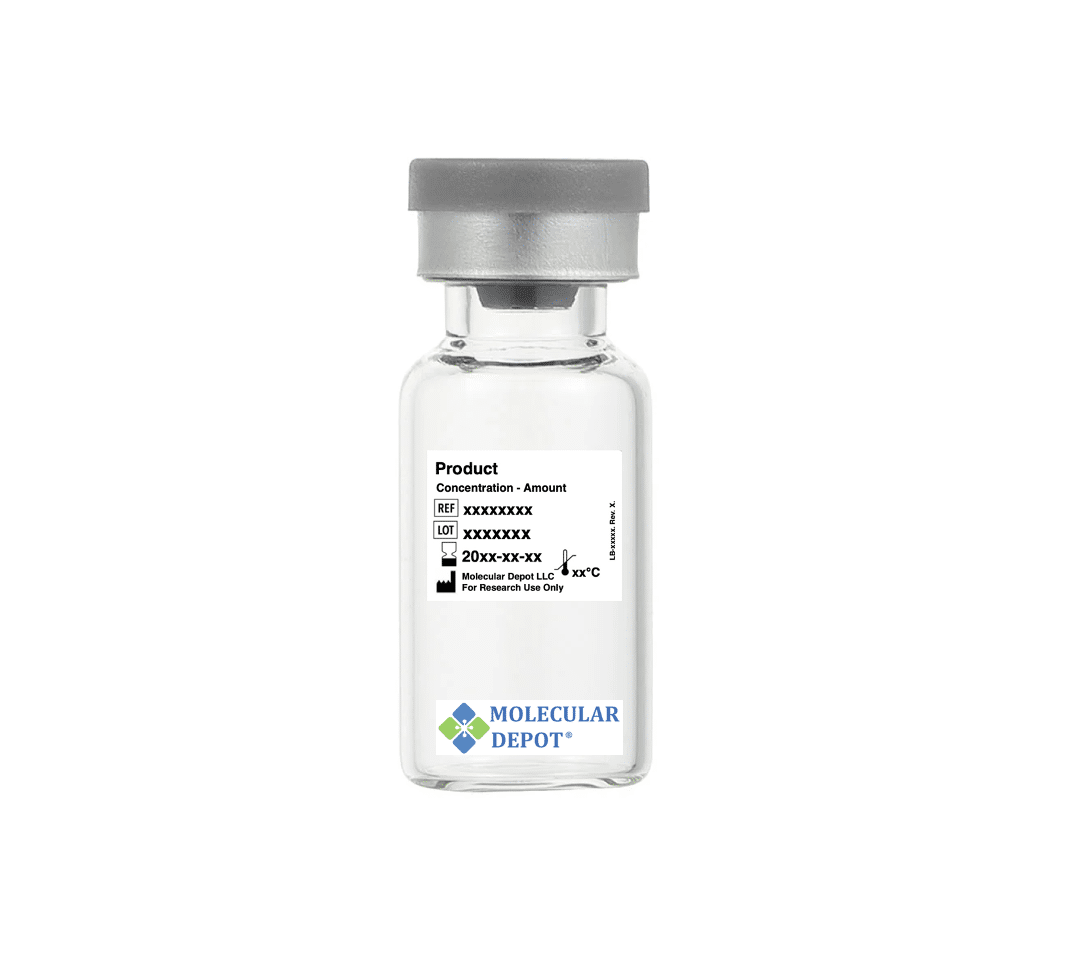

Amine-Modified Polystyrene Latex Beads (3.0–3.9 μm) – Catalog #B202648

Amine-Modified Polystyrene Latex Beads (Catalog #B202648) are carboxyl-free, monodisperse microspheres with amino groups covalently attached to the surface. The 3.0–3.9 μm size range offers a balance between high surface area per unit volume and adequate visibility and handling in most optical and separation systems. These beads are ideal for applications where protein binding capacity and assay sensitivity are both critical.

Scientific Overview

Polystyrene latex beads have become a standard tool in biological research because their uniform size, smooth surface, and optical properties make them ideal carriers for binding proteins, nucleic acids, and small molecules. The addition of amine groups to the surface converts these inert particles into reactive carriers suitable for covalent immobilization of biomolecules.

Amine groups react readily with carboxyl groups (via EDC/NHS cross-linking) and with aldehyde-modified molecules (Schiff base formation), allowing researchers to conjugate antibodies, antigens, and other proteins to the bead surface. The 3.0–3.9 μm size is large enough to be easily handled and visualized by light microscopy, while still offering significant surface area for biomolecule loading.

Multiplexed bead-based assays, where different-sized beads are each coated with different antibodies or capture molecules, represent a key innovation in high-throughput protein detection. Because the beads are distinguishable by size and/or fluorescent internal labeling, a single flow cytometer run can measure dozens of targets simultaneously from a single sample.

Key applications include:

• Multiplexed flow cytometric immunoassays (sandwich assays for cytokines, growth factors, and other proteins)
• Solid-phase capture of antibodies or antigens for turbidimetric immunoassays
• Affinity purification of target proteins from crude cell lysates or tissue extracts
• Functional studies of ligand–receptor interactions
• Preparation of custom immunological reagents

Usage & Handling Guidance

Store at 2–8°C in the dark. The beads will settle over time; invert the bottle gently to resuspend before use. Do not vortex vigorously, as this can cause aggregation.

• Protein coupling: Amine groups are most effectively coupled to proteins via NHS ester activation or EDC/NHS chemistry. Optimized protocols and coupling kits are available from multiple commercial suppliers.
• Antibody immobilization: Use anti-species antibodies (e.g., anti-mouse IgG, anti-rabbit IgG) to coat the beads for sandwich immunoassays.
• Washing: Use gentle centrifugation (e.g., 2,000 × g for 2 minutes) rather than harsh magnetic separation to preserve bead integrity.
• Flow cytometry: Ensure beads are adequately resuspended and instrument gain settings are optimized for the bead size; acquire 10,000–50,000 bead events per sample.
• Blocking and storage: After protein conjugation, store bead conjugates at 4°C in phosphate-buffered saline containing 0.05% sodium azide and 1% bovine serum albumin to prevent aggregation and microbial contamination.

What You Get

• 5 mL of amine-modified polystyrene latex beads, 3.0–3.9 μm diameter
• Uniform monodisperse particles suitable for multiplexing
• Reactive amine surface for protein immobilization
• Ready-to-use suspension in phosphate-buffered saline
• For research use only (RUO)

Why Researchers Choose It

• Well-defined, uniform size ideal for optical sorting and flow cytometry
• Amine surface for straightforward covalent protein conjugation
• Compatible with standard immunoassay protocols and multiplexing workflows
• High binding capacity and minimal background in typical assay conditions
• Decades of published literature supporting bead-based multiplex assays

Frequently Asked Questions (FAQ)

• How do I conjugate proteins to these beads?
  Amine groups on the bead surface are most commonly conjugated using NHS ester or EDC/NHS cross-linking chemistry. Commercial kits for protein conjugation to amine beads are available from Luminex, Bio-Rad, and other suppliers.
• Can I use these beads for magnetic separation?
  These beads are polystyrene and not inherently magnetic. For magnetic separation workflows, look for magnetic amine-modified beads, or coat these beads with streptavidin and use biotin-labeled magnetic particles.
• What is the particle concentration?
  Particle concentration varies by lot. Request the certificate of analysis (COA) or technical data sheet (TDS) for lot-specific particle count.
• How do I prevent bead aggregation during storage?
  Store at 2–8°C, protected from light, and avoid repeated freeze–thaw cycles. After protein conjugation, addition of bovine serum albumin and sodium azide helps maintain stability.
• Can I use these for ELISA or other solid-phase immunoassays?
  Yes. These beads work well in ELISA-like formats where capture antibodies are immobilized, but the bead format offers advantages in multiplexing and automation compared to traditional microtiter plates.
• How do these compare to magnetic beads?
  Amine polystyrene beads offer simpler handling and no magnetic interference, but magnetic beads allow faster, field-based separation. Choice depends on your workflow and instrumentation.

References

• Vignali DA. Multiplexed particle-based flow cytometric assays. J Immunol Methods. 2000;243(1-2):243-55.
• Kellar KL, Iannone MA. Multiplexed microsphere-based flow cytometric assays. Exp Hematol. 2002;30(11):1227-37.
• Kumada Y, Miyamura Y, Tanibata R, Takahashi K, Ogasawara S, Gondaira F, Horiuchi JI. Design and site-directed immobilization of single-chain Fv antibody to polystyrene latex beads via material-binding peptides and application to latex turbidimetric assay. J Biosci Bioeng. 2021;131(1):84-89.
• Graham H, Chandler DJ, Dunbar SA. The genesis and evolution of bead-based multiplexing. Methods. 2019;158:2-11.
