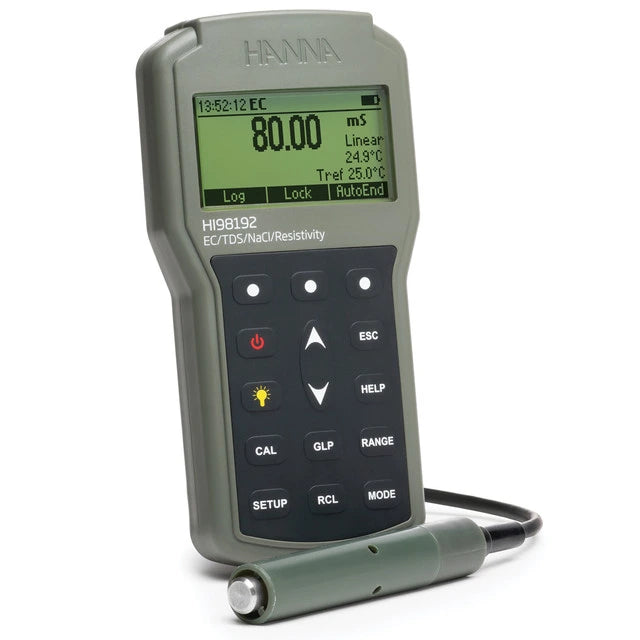

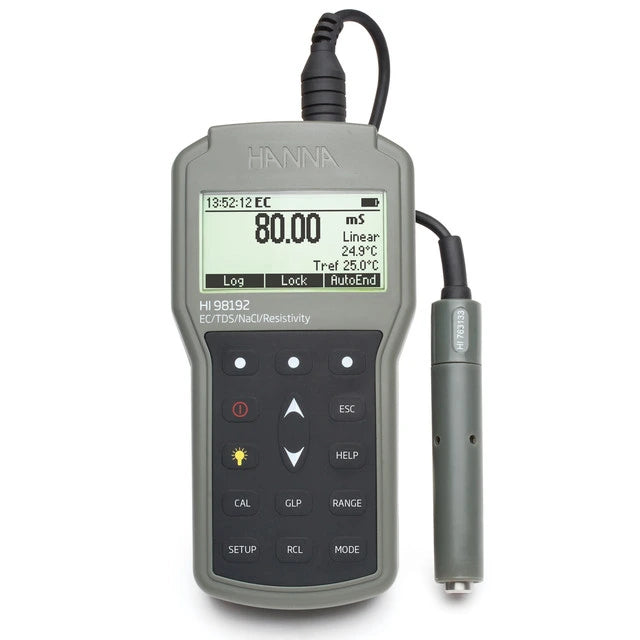

Hanna Instruments HI98192 Portable EC/TDS/Salinity/Resistivity Meter (Waterproof)

Hanna Instruments HI98192 Portable EC/TDS/Salinity/Resistivity Meter (Waterproof)

$904.99

Experience benchtop-level accuracy and versatility in a truly portable design with the HI98192 EC/TDS/Resistivity/Salinity meter. Built for demanding applications, this professional-grade instrument boasts a robust, waterproof construction meeting IP67 standards, ensuring reliable performance even in challenging environments. The HI98192 comes fully equipped with all necessary accessories for comprehensive conductivity, total dissolved solids, resistivity, and salinity measurements, conveniently housed in a durable carrying case for easy transport and field use.

Advanced Four-Ring Probe Technology: Ensures highly accurate and stable conductivity measurements across various ranges.

Effortless Quick Connect System: Facilitates rapid and secure probe attachment and removal, streamlining your workflow.
Designed for Comfortable Single-Handed Use: The ergonomic design allows for comfortable and secure operation, even with one hand, making field measurements easier.

Probe?

See All Specs

aeroplane.png__PID:119d4b1a-2623-400c-8fa4-aec5b49a3bf0

Fast Delivery

Most items ship same day

protection.png__PID:4b1a2623-e00c-4fa4-aec5-b49a3bf05f92

Manufacturer Warranty

All products are covered by manufacturer warranty

technical-support.png__PID:e00c8fa4-aec5-449a-bbf0-5f923431936b

After-Sale Support

24/7 support

What's Included

download (70).webp__PID:7ab0a366-c50a-41ee-ae3a-ab9ed2dfc0ad

VR Headset

download (71).webp__PID:547ab0a3-66c5-4a41-aeae-3aab9ed2dfc0

2 Touch Controllers

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Charging Cable

Power Adapter

Glasses Spacer

download (69).webp__PID:26576cae-f878-4c99-ab7c-894d76af129b

The HI98192 portable multi-parameter meter offers exceptional accuracy and versatility for comprehensive water analysis. Supplied with the advanced HI763133 four-ring conductivity probe featuring an integrated temperature sensor, it ensures precise readings across a wide range with a single probe. The four-ring technology eliminates polarization, and the unique quick-connect, waterproof DIN connector provides secure and easy probe attachment.

This meter features an expanded conductivity range (0.000 µS/cm to 1000 mS/cm), along with dedicated ranges for TDS, resistivity, and three salinity scales. It automatically recognizes the probe type and allows for cell constant adjustment. The HI98192 is also capable of performing all three stages of the USP <645> method for ultrapure water EC measurement and can generate compliance reports.

Calibration options are extensive, with seven memorized conductivity standards and up to five-point calibration. EC and TDS measurements are highly customizable, including cell constant selection, temperature compensation (linear, non-linear, or none), a configurable temperature coefficient, and an adjustable TDS conversion factor. The instrument also allows for the creation of 10 personalized measurement profiles to streamline various testing needs.

Efficient data management is supported through log-on-demand (up to 400 readings) and interval lot logging (up to 1000 readings), with easy transfer to a PC using optional software. Comprehensive GLP data is readily accessible, and a contextual help system is available at the press of a button. The HI98192 is supplied with a durable carry case for convenient field use.

On-Screen Features

Three stages of conformity

Performs all 3 stages of USP water quality testing requirements.

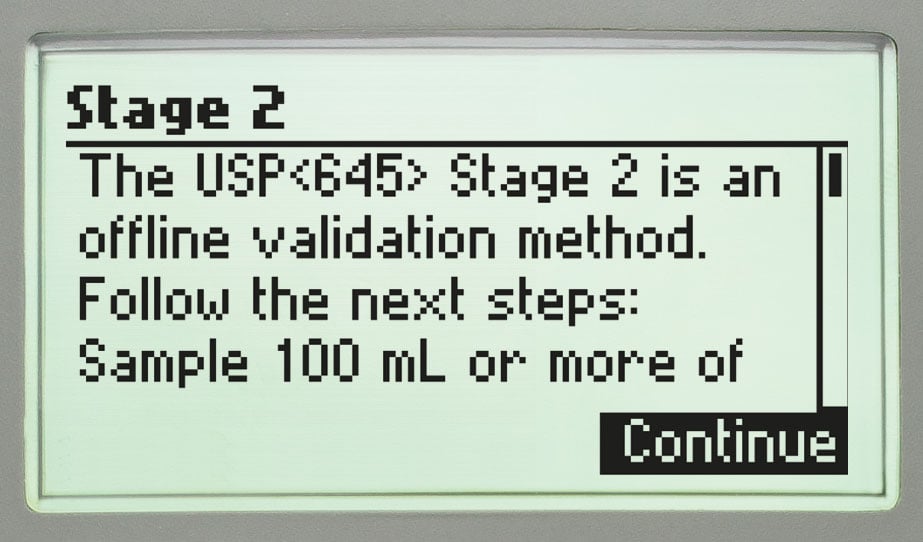

On-screen guide

Users are provided with on-screen instructions for each USP stage.

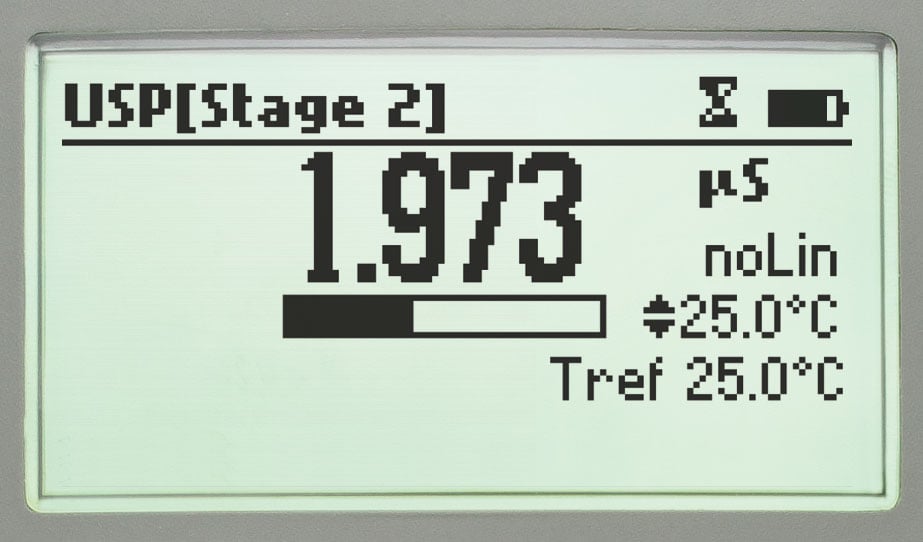

Progress bar

Displays progress towards meeting stage 2 stability requirements.

Key Features:

Compact, rugged, waterproof (IP67) design for reliable field use.
Performs USP <645> testing, ensuring pharmaceutical water quality.
Offers versatile salinity readings: % NaCl, natural seawater, PSU.
Provides auto-ranging and fixed range measurement flexibility.
Supports up to five-point conductivity calibration for accuracy.
Comprehensive GLP data for calibration and measurement records.
Calibration timeout alerts to ensure timely meter recalibration.
Auto Hold function stabilizes and freezes the first stable reading.
Supports multiple languages for enhanced user convenience.
Ideal for diverse applications: environmental, pharma, water treatment.

Key Benefits:

Ensures accurate readings across temperatures with flexible compensation options.
Simplifies data recording with on-demand and interval logging features.
Facilitates easy data transfer to PC for in-depth analysis and reporting.
Offers extended operation with approximately 100 hours of battery life.
Provides an intuitive user experience with a clear, menu-driven interface.
Offers immediate assistance with integrated contextual help at your fingertips.
Features a clear, backlit graphic LCD for easy reading in any environment.
Enables seamless PC connectivity via a sealed opto-isolated micro USB port.
Allows for customizable measurement profiles to suit specific testing needs.
Supplied in a durable carry case for convenient portability and instrument protection.

Specification	Detail
sku	HI98192
Temperature Range	-20.0 to 120.0 °C (-4.0 to 248.0 °F)
Temperature Resolution	0.1 °C (0.1 °F)
Temperature Accuracy @ 25°C / 77°F	±0.2 °C (±0.4 °F) (excluding probe error)
Temperature Calibration	one or two points
EC Range	0 to 400 mS/cm (shows values up to 1000 mS/cm) Actual conductivity 1000 mS/cm 0.001 to 9.999 µS/cm* 10.00 to 99.99 µS/cm 100.0 to 999.9 µS/cm 1.000 to 9.999 mS/cm 10.00 to 99.99 mS/cm 100.0 to 1000.0 mS/cm (autoranging)
EC Resolution	0.001 µS/cm* / 0.01 µS/cm / 0.1 µS/cm 0.001 mS/cm / 0.01 mS/cm / 0.1 mS/cm
EC Accuracy @25°C/77°F	±1% of reading (±0.01 µS/cm or 1 digit whichever greater)
EC Calibration	automatic up to five points with seven memorized standards (0.00 μS/cm, 84.0 μS/cm, 1.413 mS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm, 111.8 mS/cm)
TDS Range	0.00 to 99.99 ppm 100.0 to 999.9 ppm 1.000 to 9.999 g/L 10.00 to 99.99 g/L 100.0 to 400.0 g/L (autoranging)
TDS Resolution	0.01 ppm / 0.1 ppm / 0.001 g/L / 0.01 g/L / 0.1 g/L
TDS Accuracy @ 25°C / 77°F	±1% of reading (±0.05 ppm or 1 digit whichever greater)
TDS Conversion Factor	0.40 to 1.00
Resistivity Range	1.0 to 99.9 Ω•cm 100 to 999 Ω•cm 1.00 to 9.99 KΩ•cm 10.0 to 99.9 KΩ•cm 100 to 999 KΩ•cm 1.00 to 9.99 MΩ•cm 10.0 to 100.0 MΩ•cm* (autoranging)
Resistivity Resolution	0.1 Ω•cm / 1 Ω•cm / 0.01 KΩ•cm / 0.1 KΩ•cm / 1 KΩ•cm 0.01 MΩ•cm / 0.1 MΩ•cm*
Resistivity Accuracy (@25°C/77°F)	±1% of reading (±10 Ω•cm or 1 digit whichever greater)
Salinity Range	% NaCl: 0.0 to 400.0 % Seawater scale: 0.00 to 80.00 (ppt) Practical salinity: 0.01 to 42.00 (PSU)
Salinity Resolution	0.1 % / 0.01 ppt / 0.01 PSU
Salinity Accuracy (@25°C/77°F)	±1% of reading
Salinity Calibration	max. one point only in % range (with HI7037 standard) use conductivity calibration for all other ranges
Temperature Compensation	NoTC, Linear, Non Linear ISO/DIS 7888 std
Log Feature	on-demand: 400 samples lot logging: 5, 10, 30 sec, 1, 2, 5, 10, 15, 30, 60, 120, 180 min (max 1000 samples)
Connectivity	PC Connectivity opto-isolated USB with optional HI 92000 software and micro USB cable
Power Supply	1.5V AA batteries (4)
Power Consumption	approximately 100 hours of continuous use (without backlight), 25 hours with backlight
Environment	0 to 50 °C (32 to 122 °F) max. RH 100% IP67
Dimensions	185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.)
Weight	400 g (14.2 oz)
Ordering Information	HI98192 is supplied with HI763133 stainless steel conductivity probe, HI7031M 1413 μS/cm calibration solution (230 mL), HI7035M 111.8 mS/cm calibration solution (230 mL), 100 mL plastic beaker (2), HI92000 PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality certificate and HI720192 rugged carrying case.
Warranty	2 years
Recommended Probe	HI763133 four-ring conductivity/TDS probe with internal temperature sensor and 1.5 m (4.9') cable (included)
