Hanna Instruments HI99131 Portable pH Meter for Plating Baths Portable pH Meter Hanna Instruments

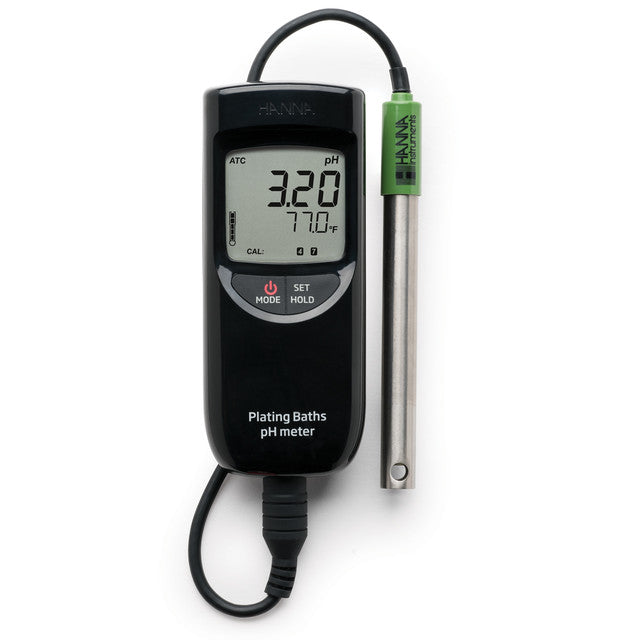

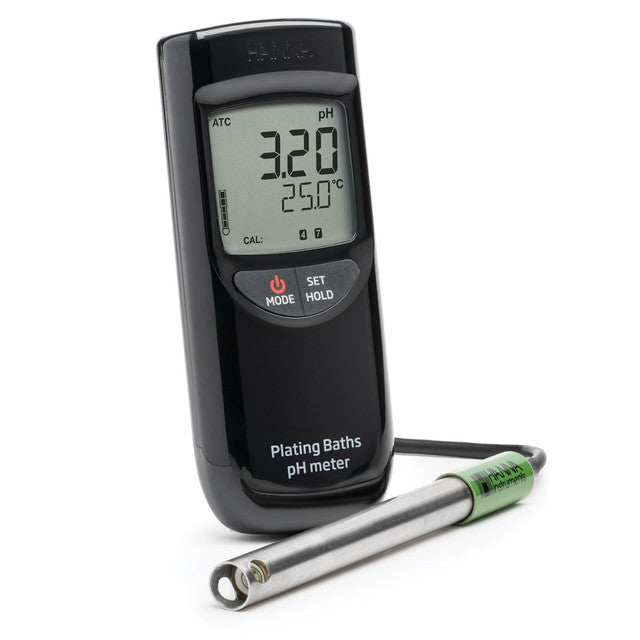

Hanna Instruments HI99131 Portable pH Meter for Plating Baths

$584.99

Achieve precise and consistent plating with the Hanna Instruments HI99131, a portable pH meter specifically engineered for direct measurement in challenging plating baths. Its specialized titanium probe ensures accurate readings, optimizing your chemical processes for superior metal finishing results.

• Optimized for Plating: Designed with a robust titanium probe and flat tip for direct, reliable pH testing in electroplating baths.

• High Accuracy: Delivers precise ±0.02 pH accuracy, critical for maintaining optimal bath chemistry.

• Complete Kit: Includes all necessary solutions and batteries for immediate use, ensuring quick setup and accurate measurements.

See All Specs

aeroplane.png__PID:119d4b1a-2623-400c-8fa4-aec5b49a3bf0

Fast Delivery

Most items ship same day

protection.png__PID:4b1a2623-e00c-4fa4-aec5-b49a3bf05f92

Manufacturer Warranty

All products are covered by manufacturer warranty

technical-support.png__PID:e00c8fa4-aec5-449a-bbf0-5f923431936b

After-Sale Support

24/7 support

What's Included

download (70).webp__PID:7ab0a366-c50a-41ee-ae3a-ab9ed2dfc0ad

VR Headset

download (71).webp__PID:547ab0a3-66c5-4a41-aeae-3aab9ed2dfc0

2 Touch Controllers

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Charging Cable

Power Adapter

Glasses Spacer

download (69).webp__PID:26576cae-f878-4c99-ab7c-894d76af129b

Hanna Instruments HI99131 Portable pH Meter for Plating

Optimal Probe Performance Indicator

An on-screen indicator provides instant visual confirmation that your pH probe is operating at its best, ensuring reliable and accurate measurements for your plating baths.

Extended Battery Life with Smart Alerts

Enjoy up to 1200 hours of continuous use with the included batteries. A blinking warning symbol alerts you when power drops below 10%, and the meter automatically shuts down at critically low levels to prevent erroneous readings.

Customizable Automatic Shut-off

Conserve battery life with a selectable auto-off feature, settable to 8 or 60 minutes, or easily disabled for continuous operation. This feature ensures prolonged usage and peace of mind during extended measurement sessions.

Rugged IP67 Waterproof Construction

Engineered to withstand real-life conditions, the HI99131 boasts an IP67-rated waterproof body, providing robust protection against dust and water intrusion from any direction for reliable performance in demanding plating environments.

Ergonomic Portable Design

Designed for comfortable handheld use, this portable pH meter features a clear, multilevel LCD display for simultaneous pH and temperature readings. Its intuitive dual-button operation simplifies the testing process for any user.

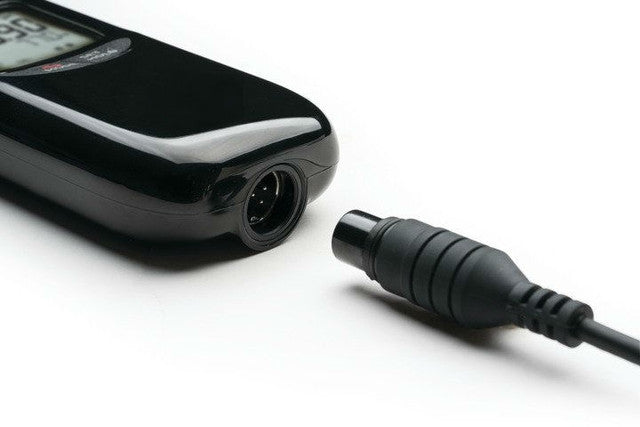

Secure Quick Connect Probe System

The innovative Quick Connect DIN connector allows for effortless probe attachment and removal. A protective rubber coating ensures a watertight seal and enhances durability, providing secure and consistent connections in your plating applications.

Hanna Instruments HI99131 Quick Connect Probe

Hanna Instruments HI1297 Plating pH Electrode

Achieve optimal pH analysis in your plating baths with the HI99131's specialized, replaceable HI1297 electrode, meticulously designed for precise performance in challenging chemical environments.

Robust Titanium Body & Matching Pin

The durable titanium body protects your pH electrode from accidental breakage, making it ideal for the demanding conditions of plating baths. It also serves as a matching pin to reduce electrical interference for stable readings.

Flat Glass Tip for Easy Cleaning

The recessed flat tip bulb is specifically designed for easy cleaning and prevents solids and residues common in plating solutions from accumulating on the sensor, significantly reducing maintenance and ensuring consistent accuracy.

Clog-Resistant Porous PTFE Junction

This electrode features a unique, clog-resistant PTFE (polytetrafluoroethylene) junction, which enhances both probe lifespan and measurement accuracy. PTFE's chemical resistance makes it ideal for industrial plating applications.

The HI99131 Plating pH Portable Meter comes as a comprehensive kit, providing everything needed for immediate, accurate, and successful pH testing in your metal finishing processes, right out of the box.

Dedicated Electrode Cleaning Solution

Your Plating pH Portable Meter includes specialized cleaning solution engineered to keep your electrode free from the unique residues found in plating baths. This concentrated formula cleans your meter quickly and effectively, maintaining optimum performance and extending its lifespan.

Reliable pH 4 & 7 Buffer Sachets

Ensure precise calibrations with individually sealed pH 4.01 and pH 7.01 buffer sachets. These single-use packets guarantee fresh, uncontaminated standards for dependable pH meter calibration every time, crucial for accurate plating bath analysis.

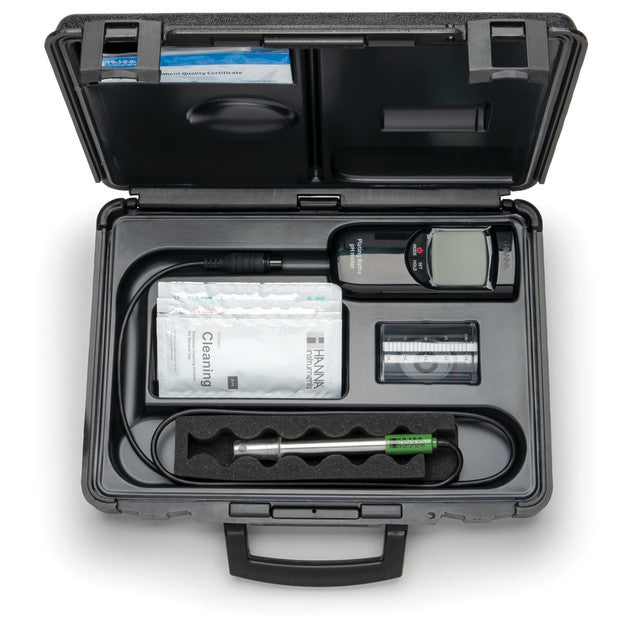

Hanna Instruments HI99131 Plating pH Meter Kit

Hanna Instruments HI99131 Probe Connectors Old vs New

HI99131 Models and Compatible Accessories

Older HI99131 Models (Left)

Uses the HI62911D pH probe with DIN Connector
Compatible with the HI710023 Shockproof Boot

Current HI99131 Models (Right)

Utilizes the HI629113 pH probe with Quick DIN Connector
Compatible with the HI710028 Shockproof Boot

*Note: The new Quick DIN probe connection is compatible with the old body design, however, the old DIN probe connections are not compatible with the new body design.

Specification	Detail
sku	HI99131
pH Range	-2.00 to 16.00 pH / -2.0 to 16.0 pH
pH Resolution	0.01 pH / 0.1 pH
pH Accuracy @ 25°C / 77°F	±0.02 pH / ±0.1 pH
pH Calibration	automatic, at one or two points with two sets of standard buffers (pH 4.01 / 7.01 / 10.01 or pH 4.01 / 6.86 / 9.18)
mV Range	±825 mV (pH-mV)
mV Resolution	4 mV
mV Accuracy	±1 mV (pH-mV)
Temperature Range	-5.0 to 105.0 °C/23.0 to 221.0 °F
Temperature Resolution	0.1 °C/0.1 °F
Temperature Accuracy @ 25°C / 77°F	±0.5 °C up to 60 °C ±1.0 °C outside ±1.0 °F up to 140 °F ±2.0 °F outside
Temperature Compensation	Automatic -5.0 to 105.0 °C/23.0 to 221.0 °F
Power Supply	1.5V AAA batteries (3 pcs.)
Power Consumption	approx. 1400 hours of continuous use
Environment	0 to 50°C (32 to 122°F) RH max 100%
Dimensions	154 x 63 x 30 mm (6.1 x 2.5 x 1.2 in.)
Weight	199 g (6.91 oz.) with batteries
Ordering Information	Each meter is supplied complete with: • HI629113 preamplified pH probe with built‑in temperature sensor and titanium body, Quick DIN connector with 1m (3.3') cable • pH 4.01 & 7.01 Buffer sachet • HI700601 Electrode cleaning solution (2 sachets) • 100 mL beaker (1 pc.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual
Warranty	2 years
Recommended Probe	HI629113 preamplified pH probe with built‑in temperature sensor and titanium cage working as matching pin, Quick DIN connector with 1m (3.3') cable (included)
