Hanna Instruments HI98196 Multiparameter Waterproof Meter – pH, ORP, Dissolved Oxygen, Pressure & Temperature Measurement

$1,314.99

    The HI98196 Waterproof Multiparameter Meter is a professional-grade portable instrument designed to measure up to seven key water quality parameters in the field. Built for durability and accuracy, it’s the go-to solution for environmental monitoring, wastewater testing, and industrial water applications.


    • Simultaneously measures pH, ORP, dissolved oxygen (DO), pressure, and temperature, with two additional calculated parameters.

    • Ensures stable, interference-free readings with digital signal transmission over long cable lengths (up to 100 meters).

    • View all essential data points clearly on a single screen with backlit visibility.

    • Easily export logged data for reporting, analysis, or archiving.

    • Built to withstand harsh field conditions with an IP67-rated enclosure.

    Ideal for professionals who need fast, reliable measurements in real-world conditions, the HI98196 simplifies sampling and ensures data integrity where it matters most.

    *Products classified as Dangerous Goods can only be shipped via ground.

See All Specs

aeroplane.png__PID:119d4b1a-2623-400c-8fa4-aec5b49a3bf0

Fast Delivery

Most items ship same day

protection.png__PID:4b1a2623-e00c-4fa4-aec5-b49a3bf05f92

Manufacturer Warranty

All products are covered by manufacturer warranty

technical-support.png__PID:e00c8fa4-aec5-449a-bbf0-5f923431936b

After-Sale Support

24/7 support

What's Included

download (70).webp__PID:7ab0a366-c50a-41ee-ae3a-ab9ed2dfc0ad

VR Headset

download (71).webp__PID:547ab0a3-66c5-4a41-aeae-3aab9ed2dfc0

2 Touch Controllers

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Charging Cable

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Power Adapter

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Glasses Spacer

download (69).webp__PID:26576cae-f878-4c99-ab7c-894d76af129b

The HI98196 Waterproof Multiparameter Meter is engineered for comprehensive water quality analysis in demanding environments. This portable system offers precision measurement of pH, ORP, dissolved oxygen, and temperature via a digital probe with field-replaceable sensors. Designed for ease of use, reliable performance, and long battery life, the HI98196 is ideal for environmental monitoring, wastewater testing, and industrial water treatment.

Features at a Glance

• Simultaneous Multi-Parameter Display – View up to 9 water quality parameters at once on a large, backlit graphic LCD with intuitive navigation.

• Waterproof Durability – Meter features IP67 protection; probe is IP68-rated for continuous submersion.

• Digital Quick Connect Probe – Secure, waterproof DIN-style connector ensures stable signal transmission and fast setup.

• Replaceable, Color-Coded Sensors – Easily swap sensors in the field using screw-type connectors, with color indicators for hassle-free installation.

• Quick & Standard Calibration – Single-point quick calibration or full pH/conductivity calibration using standard or custom buffers and solutions.

• GLP Compliance – Stores calibration data with time/date stamps for traceable, audit-ready reporting.

• Massive Data Logging – Log up to 45,000 readings automatically or on demand, with flexible interval settings.

• USB Connectivity – Transfer logged data directly to your PC via USB with HI9298194 software.

• Long Battery Life – Get up to 360 hours of operation on four standard AA batteries—perfect for extended fieldwork.

• Rugged Transport Case – Includes a thermoformed carrying case with custom compartments for the meter, probe, sensors, and accessories.


On-Screen Features

Setup Screen HI98194

Setup Screen

Easily configure your meter’s time, date, temperature unit, and language preferences for a fully personalized user experience.

Quick Calibration HI98194

Quick Calibration

Save time with one-touch Quick Calibration for pH, conductivity, and dissolved oxygen—ensuring fast, accurate field results.


HI7698196 Multiparameter Probe

HI7698196 Multiparameter Probe

Designed for use with the HI98196, this probe includes auto-sensor recognition, color-coded field-replaceable sensors, and rugged waterproof construction. With available cable lengths of 4m, 10m, 20m, and 40m, it’s built for demanding field environments and flexible deployment.

Color Coded Sensors

Color Coded Sensors

Field-replaceable with screw-type connectors for quick identification and setup.

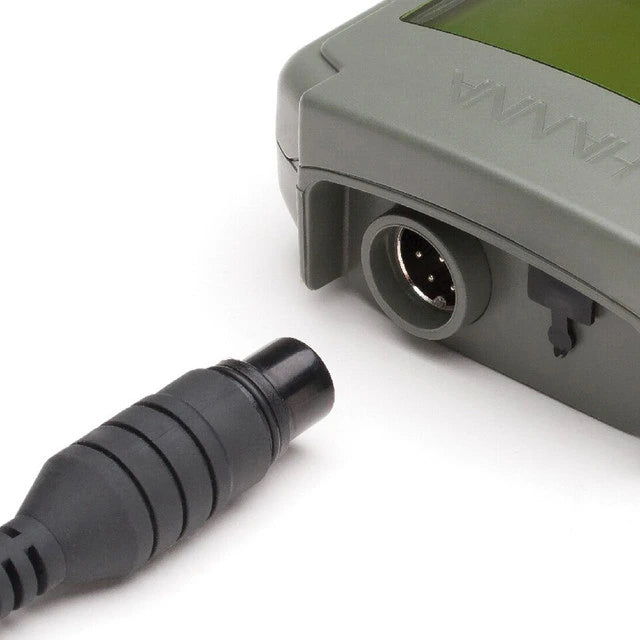

Quick Connect

Quick Connect

DIN-style waterproof connector ensures fast and secure connection to the meter.

Quick Calibration

Quick Calibration

Perform fast, one-point calibration for pH and conductivity simultaneously.

Color-Coded, Field-Replaceable Sensors

Sensor Model Function
HI7698194-0 Double ceramic junction pH sensor
HI7698194-1 Combination pH and ORP sensor with platinum pin
HI7698194-3 Four-ring stainless steel conductivity sensor

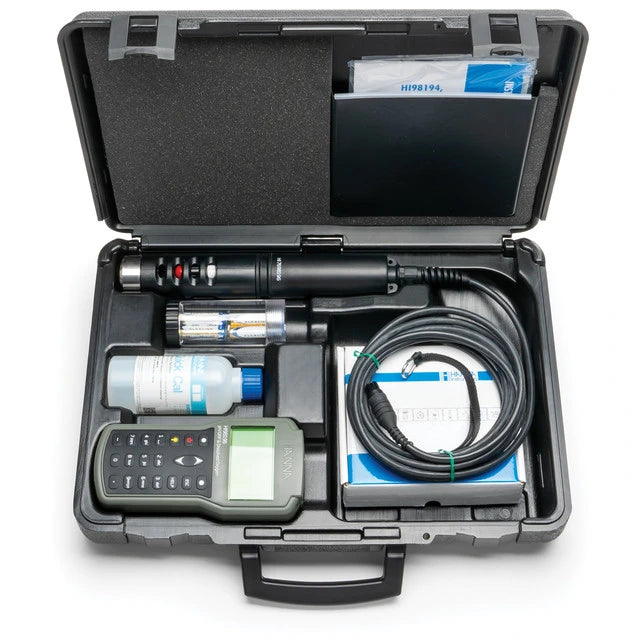

HI98196 Rugged Carrying Case

Rugged Carrying Case

The HI98196 meter, probe, and accessories are packaged in a durable carrying case built to endure field conditions. A thermoformed interior securely holds each component in place, offering protection and long-lasting reliability for transport and storage.

    Specification Detail
    SKUHI98196-web
    pH Accuracy (@25°C/77°F)± 0.02 pH
    mV Range± 600.0 mV
    mV Accuracy± 0.5 mV
    ORP Range± 2000.0 mV
    ORP Accuracy (@25°C/77°F)± 1.0 mV
    Temperature Range-5.00 to 55.00 °C,
    23.00 to 131.00 °F,
    268.15 to 328.15 K
    Temperature Resolution0.01 °C,
    0.01 °F,
    0.01 K
    Temperature Accuracy (@25°C/77°F)± 0.15 °C,
    ± 0.27 °F,
    ±0.15 K
    DO Accuracy (@25°C/77°F)0.0 to 300.0% saturation: ±1.5% or ±1.0% whichever is greater,
    0.00 to 30.00 ppm: ±1.5% or ±0.10 ppm (whichever is greater),
    30.00 to 50.00 ppm: ±3%
    ConnectivityUSB to PC with HI9298194 Hanna software installed
    GLPYes
    Power Supply1.5V AA batteries (4)
    Power ConsumptionApprox. 360 hours without backlight / 50 hours with backlight
    Dimensions185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.)
    Order InformationSupplied with:
    HI7698196 probe,
    HI7698194-1 pH/ORP sensor,
    HI7698194-2 DO sensor,
    HI76981942 maintenance kit with electrolyte solution, membrane caps (5), O-rings (5), grease syringe
    Warranty2 years
    Recommended ProbeHI7698196 probe,
    HI7698194-1 pH/ORP sensor,
    HI7698194-2 DO sensor
