Hanna Instruments HI98193 Waterproof Dissolved Oxygen & BOD Meter – Portable Field Design Portable DO/BOD Meter Hanna Instruments

Hanna Instruments HI98193 Waterproof Dissolved Oxygen & BOD Meter – Portable Field Design

$1,024.99

Engineered for field and lab reliability, the Hanna Instruments HI98193 Waterproof Portable Dissolved Oxygen & BOD Meter delivers precise DO, BOD, barometric pressure, and temperature measurements in a rugged IP67-rated design. This portable meter is ideal for environmental, wastewater, and process applications, and comes complete with all necessary accessories in a durable carrying case.

• Preformed PTFE membrane and quick-connect probe for fast setup

• Ergonomic design supports single-handed operation in the field

• Complies with EPA and international standards for dissolved oxygen testing

Meter Configuration

See All Specs

aeroplane.png__PID:119d4b1a-2623-400c-8fa4-aec5b49a3bf0

Fast Delivery

Most items ship same day

protection.png__PID:4b1a2623-e00c-4fa4-aec5-b49a3bf05f92

Manufacturer Warranty

All products are covered by manufacturer warranty

technical-support.png__PID:e00c8fa4-aec5-449a-bbf0-5f923431936b

After-Sale Support

24/7 support

What's Included

download (70).webp__PID:7ab0a366-c50a-41ee-ae3a-ab9ed2dfc0ad

VR Headset

download (71).webp__PID:547ab0a3-66c5-4a41-aeae-3aab9ed2dfc0

2 Touch Controllers

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Charging Cable

Power Adapter

Glasses Spacer

download (69).webp__PID:26576cae-f878-4c99-ab7c-894d76af129b

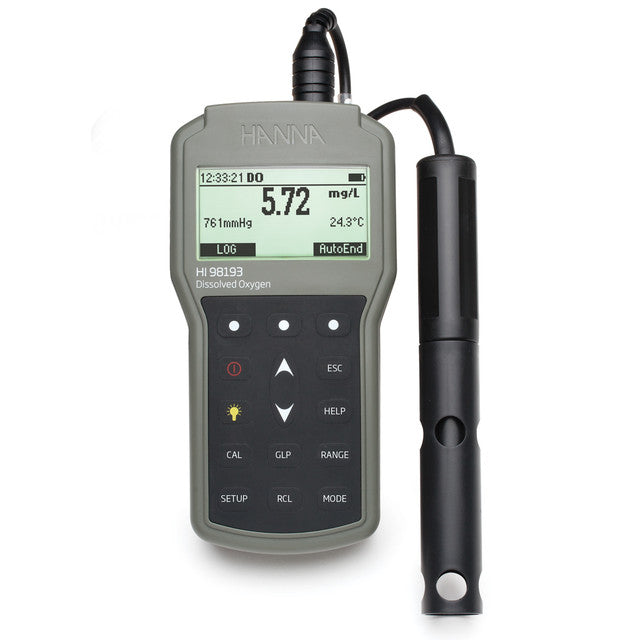

Designed for precision in the field, the HI98193 Portable DO and BOD Meter delivers reliable dissolved oxygen measurements with advanced compensation features and intuitive operation. This waterproof IP67-rated meter is compatible with the HI764073 polarographic DO probe, which features preformed, field-replaceable PTFE membranes and a secure, waterproof DIN connector for quick setup and dependable performance.

With an extended DO range up to 50.00 mg/L and 600% saturation, the HI98193 offers accurate readings even in challenging environments. Pressure compensation is automatic via the built-in barometer or manually adjustable, and pressure readings are available in multiple units including mmHg, atm, and psi. The built-in temperature sensor ensures real-time automatic temperature compensation with calibration support at one or two points.

The meter also supports manual salinity input for DO compensation in saltwater and includes built-in BOD, OUR, and SOUR calculation methods for advanced testing workflows. Up to 400 readings can be logged on-demand and transferred via USB to a PC using Hanna's HI92000 software.

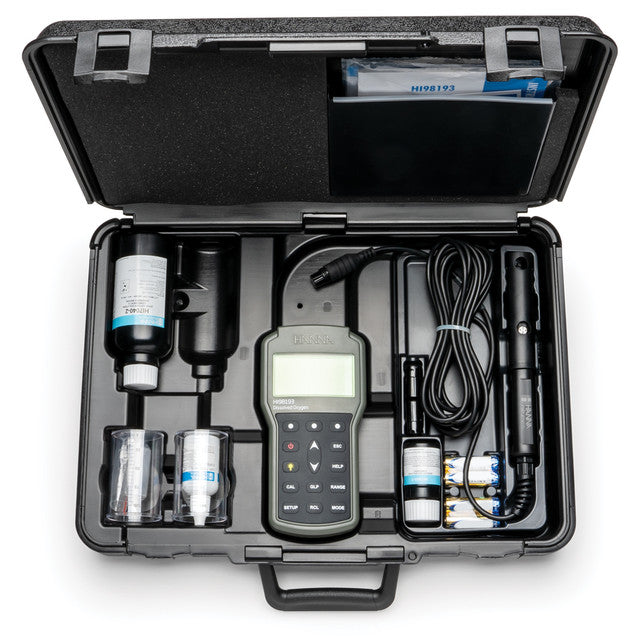

The HI98193 is available in three configurations to suit different needs: the HI98193/10 includes the DO probe with a 10-meter cable; the HI98193 standard kit includes the meter and accessories; and the HI98193-03 offers a meter-only version. Each configuration includes the rugged carrying case with space for calibration supplies, beakers, and accessories for convenient field or lab use.

Key On-Screen Features

BOD Results

BOD is automatically calculated based on the difference between initial and final DO concentrations.

BOD Parameters & Records

Set test parameters and view a complete list of saved BOD test data directly on-screen.

OUR Results

Oxygen Uptake Rate displayed in mg/L/hour for process control analysis.

SOUR Results

Specific Oxygen Uptake Rate calculated in mg/g VSS/hr for wastewater analysis.

Key Features:

Waterproof IP67 design with compact, ergonomic layout
Barometric pressure compensation with built-in barometer and 1-point calibration
Automatic temperature compensation via integrated temperature sensor
Manual salinity adjustment for saline water DO accuracy
Preloaded BOD, OUR, and SOUR test protocols
400-reading on-demand logging with USB data transfer

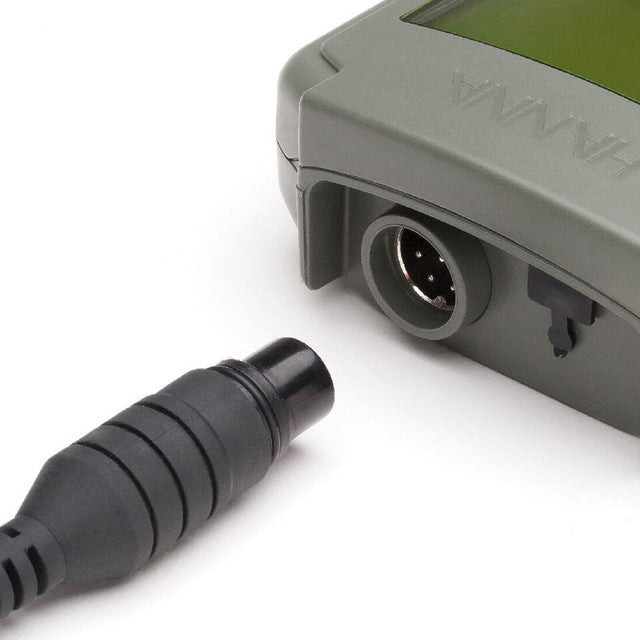

Quick-connect DIN connector and field-replaceable PTFE membrane caps

Key Benefits:

Accurate DO and BOD results in the field or lab
Reduces setup time with quick-connect probe interface
Minimizes errors with advanced GLP tracking and logging
Offers flexibility for environmental, aquaculture, or wastewater professionals
Reliable performance even in high humidity or wet conditions
Accessible contextual help and multi-language interface
Bright, backlit LCD ensures visibility in all lighting conditions

IDEAL APPLICATIONS: Environmental monitoring, aquaculture, wastewater analysis, food and beverage production, and process water quality control.

Specification	Detail
SKU	HI98193
Temperature Range	-20.0 to 120.0 °C (-4.0 to 248.0 °F)
Temperature Resolution	0.1 °C (0.1 °F)
Temperature Accuracy @ 25°C / 77°F	±0.2 °C (±0.4 °F), excluding probe error
Temperature Calibration	One or two-point at any temperature value in range
DO Range	0.00 to 50.00 mg/L / 0.0 to 600.0 % saturation
DO Resolution	0.01 mg/L / 0.1 % saturation
DO Accuracy (@25°C/77°F)	±1.5 % of reading ±1 digit
Barometric Pressure Range	450 to 850 mmHg
Barometric Pressure Resolution	1 mmHg
Barometric Accuracy	±3 mmHg within ±15 % from calibration point
Temperature Compensation	Automatic from 0.0 to 50.0 °C (32.0 to 122.0 °F)
Calibration	Automatic: one or two points (0 % and 100 %) Manual: one point entry in % saturation or mg/L
Log Feature	Log-on-demand up to 400 samples
Connectivity	PC connectivity via opto-isolated USB
GLP	Yes
Power Supply	4 x 1.5V AA batteries
Power Consumption	Approx. 200 hours (50 hours with backlight)
Environment	0 to 50 °C (32 to 122 °F), max RH 100 %, IP67 rated
Dimensions	185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4 in.)
Weight	400 g (14.2 oz)
Ordering Information	Includes HI764073 DO probe, PTFE membrane caps (2), HI7041S electrolyte, zero oxygen solution, 100 mL beakers (2), PC software, USB cable, batteries, manuals, and rugged carrying case
Warranty	2 years
Recommended Probe	HI764073 polarographic DO probe with temp sensor, DIN connector, and 4 m (13') cable

Shipping, Return, and Warranty Policy

At Blue Tiger Scientific, we are proud to distribute authentic Hanna Instruments products. The following policies apply to all purchases made through our store.

Shipping Policy

All orders are shipped via FedEx from Hanna Instruments' fulfillment center in Smithfield, Rhode Island.
FedEx Ground is the standard method; expedited options (2-Day, Overnight) are available for an additional cost.
Hanna Instruments only ships to residential or business addresses within the United States (no PO Boxes).
Orders placed after business hours, weekends, or holidays will ship the next business day, pending product and carrier availability.
Shipping timelines may vary depending on product availability, order size, and carrier logistics.
Blue Tiger Scientific and Hanna Instruments are not responsible for carrier delays, weather-related disruptions, or other unforeseen delivery issues once the order has shipped.

Return Policy

All return requests must be coordinated directly with Blue Tiger Scientific before a product is sent back.
Products must have a Return Merchandise Authorization (RMA) number issued by Blue Tiger Scientific before being returned.
Products must be returned in new or like-new condition, with the original packaging and proof of purchase (such as an invoice or packing slip).
Customers are responsible for return shipping costs unless otherwise stated.
Unauthorized returns (without an RMA) will be refused and returned at the customer's expense.
Returns are subject to inspection and approval. Products not in acceptable condition may be denied credit.
Some products, such as custom-built, special order, and hazardous materials, may not be eligible for return.

Warranty Policy

Hanna Instruments' products are covered by their Limited Warranty against defects in materials and workmanship under normal use.
All warranty claims and services are handled directly by Hanna Instruments.
Warranty periods vary by product. If unspecified, the standard warranty term is 18 months from the Hanna Instruments factory ship date.
If you experience an issue believed to be covered under warranty, please contact Hanna Instruments for guidance on how to submit your warranty request to Hanna Instruments.
Customers must follow Hanna Instruments' warranty submission process, including providing a claim number, product model and serial number, and a detailed description of the issue.
Hanna Instruments will determine whether products are repaired, replaced, or otherwise serviced under warranty.
Note: Warranty coverage does not apply to damage caused by misuse, accidents, unauthorized repairs, or improper storage and handling.

Important Notes

Some Hanna Instruments products are custom-made or built to order. Shipping will occur once the product is ready.
In the event of backorders, you may request partial shipments.
Delays beyond our control (e.g., material shortages, import delays, or carrier issues) may occasionally occur.

HI98193 Portable DO & BOD Meter Instruction Manual

Download

Product Resources:

Manual

Brochure

Copy of Technical Specifications
