Hanna Instruments HI98165 Professional Portable Cheese pH Meter with FC2423 Electrode Portable Food pH Meter Hanna Instruments

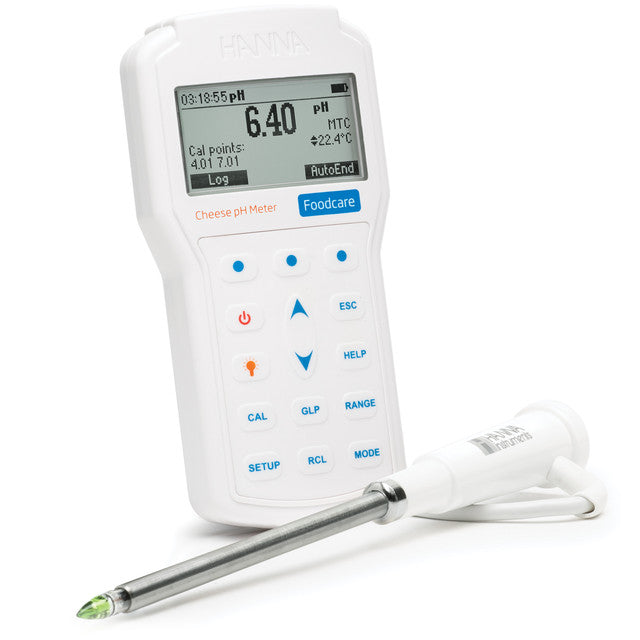

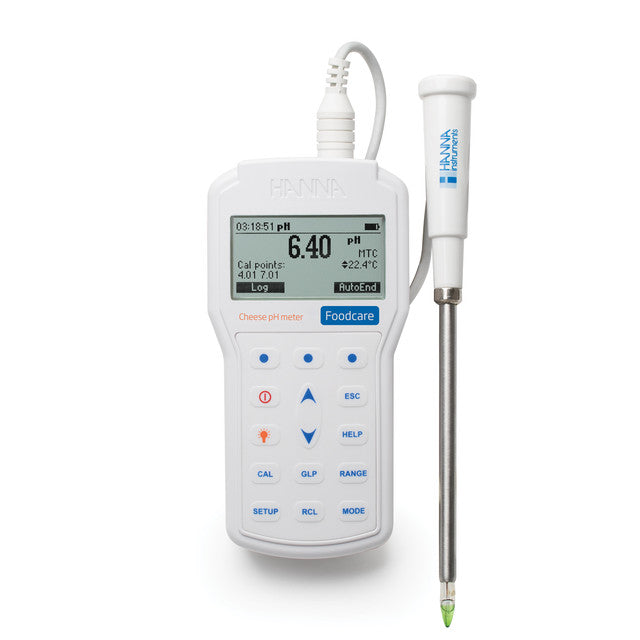

Hanna Instruments HI98165 Professional Portable Cheese pH Meter with FC2423 Electrode

$824.99

Ensure precision in every batch with the Hanna Instruments HI98165 Portable Cheese pH Meter, designed specifically for cheesemakers who demand accuracy and durability. Featuring a specialized stainless steel FC2423 electrode, this waterproof meter delivers reliable pH and temperature readings directly on the production floor. Its rugged IP67-rated design, multilingual interface, and convenient USB data transfer make it the ultimate tool for quality control in artisanal and commercial cheese production.

• Engineered for accurate pH testing in soft, semi-solid, and hard cheeses

• Durable, waterproof IP67 casing with easy USB data export

• Comes complete with electrode, calibration buffers, and a protective carrying case

See All Specs

aeroplane.png__PID:119d4b1a-2623-400c-8fa4-aec5b49a3bf0

Fast Delivery

Most items ship same day

protection.png__PID:4b1a2623-e00c-4fa4-aec5-b49a3bf05f92

Manufacturer Warranty

All products are covered by manufacturer warranty

technical-support.png__PID:e00c8fa4-aec5-449a-bbf0-5f923431936b

After-Sale Support

24/7 support

What's Included

download (70).webp__PID:7ab0a366-c50a-41ee-ae3a-ab9ed2dfc0ad

VR Headset

download (71).webp__PID:547ab0a3-66c5-4a41-aeae-3aab9ed2dfc0

2 Touch Controllers

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Charging Cable

Power Adapter

Glasses Spacer

download (69).webp__PID:26576cae-f878-4c99-ab7c-894d76af129b

Cheese production relies heavily on precise pH measurements from milk to maturation. The acidification process, rennet efficiency, curd firmness, brining balance, and microbial aging all depend on maintaining exact pH ranges. Even minor deviations can result in spoilage, structural defects, or unwanted bacterial interference.

Whether monitoring whey pH during drainage or evaluating finished ripened products, the HI98165 is engineered for dependable accuracy in semi-solid dairy environments. The supplied FC2423 electrode is tailored for cheese testing, featuring a rugged stainless steel body, clog-resistant open junction, and quick-connect DIN design for seamless waterproof integration.

FSMA Compliant

This pH meter meets the FDA Food Safety Modernization Act (FSMA) compliance standards.

The FC2423 electrode is purpose-built for the demanding conditions of cheese testing, from soft curds to aged hard cheeses. Its durable stainless steel sheath penetrates semi-solids without damaging the product, while the conic glass tip ensures stable surface contact for reliable pH readings.

Stainless Steel Body

AISI 316 stainless steel resists corrosion in dairy environments and ensures long-term durability during field and in-plant use.

Conic Glass Tip

Optimized for semi-solid contact, the cone-shaped tip allows deep insertion into cheese samples without compromising structure.

Built-In Temperature Sensor

Eliminates calibration errors by automatically compensating for temperature fluctuations during measurement.

Hanna’s CAL Check™ diagnostic system proactively ensures measurement reliability, alerting users to electrode issues, contamination, or outdated buffers during calibration. A post-calibration percentage score indicates probe health, factoring slope and offset data for transparent performance tracking.

The AutoHold feature freezes a stable measurement automatically, minimizing human error. When working within production-specific calibration ranges, an optional out-of-range warning further protects batch consistency.

Users can log and store up to 200 measurement entries, each paired with full GLP metadata including calibration time, offset, and slope. Data can be recalled on screen or transferred via USB for secure recordkeeping.

Integrated contextual help is available via a dedicated key, providing tailored support for each screen—ideal for field users or multi-lingual teams.

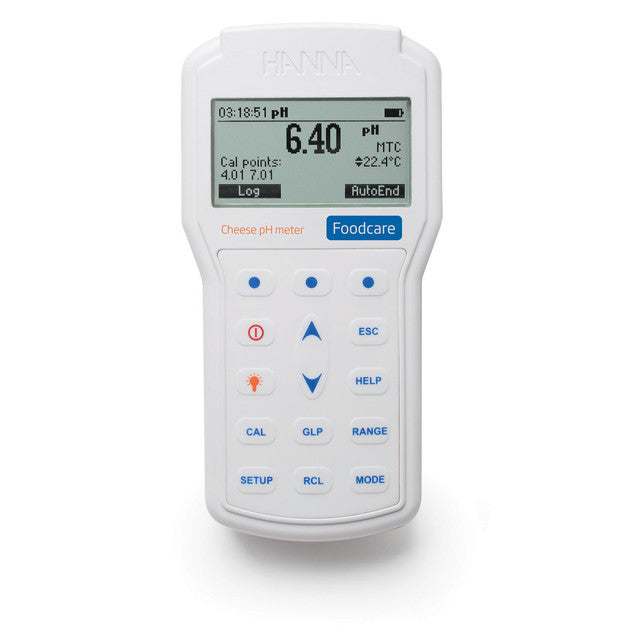

A backlit graphic LCD ensures clarity in dark storage areas or bright processing rooms, while intuitive button placement and multilingual support streamline user operation.

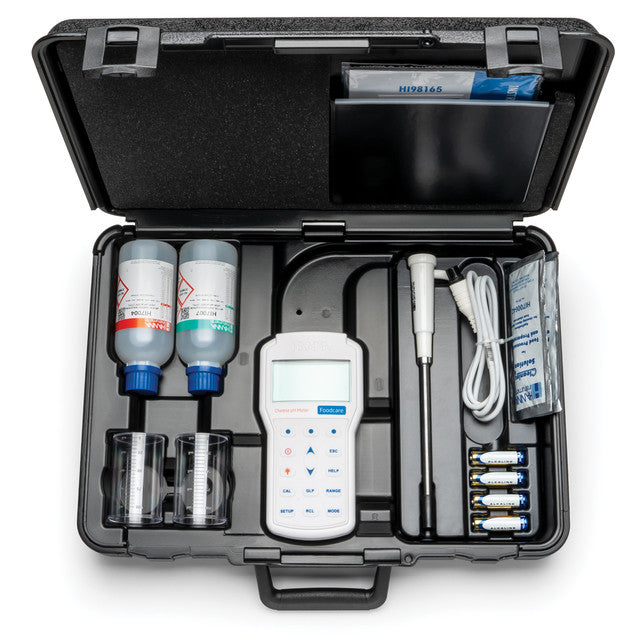

The rugged HI720165 carrying case holds all necessary accessories for mobile pH testing, including meter, electrode, beakers, buffer packets, and cleaning solutions.

Key On-Screen Features

Setup Options

Configure date, time, language, and unit preferences directly from the intuitive setup menu.

Guided Calibration

Step-by-step prompts and CAL Check™ warnings support accurate buffer use and proper electrode condition.

GLP Records

Quickly review calibration logs with timestamps, slope, offset, and buffer values for traceable audit history.

Key Features

Waterproof, portable IP67-rated housing for field durability
Specialized FC2423 pH/temperature electrode with DIN quick connect
Open junction design resists clogging from dairy solids
Five-point calibration with seven standard and five custom buffer options
AutoHold, CAL Check™, and out-of-range alerts for accurate field readings
200 measurement memory capacity with GLP-tracked logging
Micro USB interface for secure PC connectivity and data transfer

Key Benefits

Designed for accurate pH monitoring in semi-solid and soft cheeses
Improves quality control across all cheesemaking stages
Reduces measurement errors with built-in temperature compensation
Minimizes downtime with intuitive menus and multilingual support
Complies with FSMA standards for food safety and traceability

Specification	Detail
sku	HI98165
pH Range	-2.0 to 20.0 pH / -2.00 to 20.00 pH / -2.000 to 20.000 pH
pH Resolution	0.1 pH / 0.01 pH / 0.001 pH
pH Accuracy @ 25°C / 77°F	±0.1 pH / ±0.01 pH / ±0.002 pH
pH Calibration	Up to five point calibration, seven standard buffers available (pH 1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45), and five custom buffers
mV Range	±2000.0 mV
mV Resolution	0.1 mV
mV Accuracy	±0.2 mV
Temperature Range	-20.0 to 120.0 °C (-4.0 to 248.0 °F)
Temperature Resolution	0.1 °C (0.1 °F)
Temperature Accuracy @ 25°C / 77°F	±0.4 °C (±0.8 °F) (excluding probe error)
Temperature Compensation	Automatic
Log Feature	On demand, 200 samples (100 pH and 100 mV)
Connectivity	PC Connectivity opto-isolated USB
GLP	Yes
Power Supply	1.5V AA batteries (4 pcs.)
Power Consumption	approx. 200 hours of continuous use without backlight (50 hours with backlight)
Environment	1 to 50 °C (32 to 122 °F) max. RH 100% IP67
Dimensions	186 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.)
Weight	401 g (14.2 oz)
Ordering Information	HI98165 is supplied with FC2423 PVDF body pH electrode, HI7004M pH 4.01 buffer solution (230 mL), HI7007M pH 7.01 buffer solution (230 mL), HI700642 electrode cleaning solution for cheese residues sachet (2), 100 mL plastic beaker (2), 1.5V AA batteries (4), HI92000 PC software, HI920015 micro USB cable, instruction manual with quick start guide, instrument quality certificate and HI720165 hard carrying case.
Warranty	2 years
Recommended Probe	FC2423 Pre-amplified pH and temperature probe with stainless steel sheath

Shipping, Return, and Warranty Policy

At Blue Tiger Scientific, we are proud to distribute authentic Hanna Instruments products. The following policies apply to all purchases made through our store.

Shipping Policy

All orders are shipped via FedEx from Hanna Instruments' fulfillment center in Smithfield, Rhode Island.
FedEx Ground is the standard method; expedited options (2-Day, Overnight) are available for an additional cost.
Hanna Instruments only ships to residential or business addresses within the United States (no PO Boxes).
Orders placed after business hours, weekends, or holidays will ship the next business day, pending product and carrier availability.
Shipping timelines may vary depending on product availability, order size, and carrier logistics.
Blue Tiger Scientific and Hanna Instruments are not responsible for carrier delays, weather-related disruptions, or other unforeseen delivery issues once the order has shipped.

Return Policy

All return requests must be coordinated directly with Blue Tiger Scientific before a product is sent back.
Products must have a Return Merchandise Authorization (RMA) number issued by Blue Tiger Scientific before being returned.
Products must be returned in new or like-new condition, with the original packaging and proof of purchase (such as an invoice or packing slip).
Customers are responsible for return shipping costs unless otherwise stated.
Unauthorized returns (without an RMA) will be refused and returned at the customer's expense.
Returns are subject to inspection and approval. Products not in acceptable condition may be denied credit.
Some products, such as custom-built, special order, and hazardous materials, may not be eligible for return.

Warranty Policy

Hanna Instruments' products are covered by their Limited Warranty against defects in materials and workmanship under normal use.
All warranty claims and services are handled directly by Hanna Instruments.
Warranty periods vary by product. If unspecified, the standard warranty term is 18 months from the Hanna Instruments factory ship date.
If you experience an issue believed to be covered under warranty, please contact Hanna Instruments for guidance on how to submit your warranty request to Hanna Instruments.
Customers must follow Hanna Instruments' warranty submission process, including providing a claim number, product model and serial number, and a detailed description of the issue.
Hanna Instruments will determine whether products are repaired, replaced, or otherwise serviced under warranty.
Note: Warranty coverage does not apply to damage caused by misuse, accidents, unauthorized repairs, or improper storage and handling.

Important Notes

Some Hanna Instruments products are custom-made or built to order. Shipping will occur once the product is ready.
In the event of backorders, you may request partial shipments.
Delays beyond our control (e.g., material shortages, import delays, or carrier issues) may occasionally occur.

HI98165 Portable Cheese pH Meter Instruction Manual

Download

Product Resources:

Manual

Brochure

Copy of Technical Specifications
