Hanna Instruments HI98161 Professional Foodcare Portable pH Meter – Waterproof, HACCP-Compliant, Built for Food & Dairy Portable Food pH Meter Hanna Instruments

Hanna Instruments HI98161 Professional Foodcare Portable pH Meter – Waterproof, HACCP-Compliant, Built for Food & Dairy

$824.99

Built for the rigors of food production environments, the Hanna Instruments HI98161 Portable Foodcare pH Meter delivers accurate pH and temperature readings with a specialized food-grade electrode, all in a waterproof, IP67-rated design. Ideal for on-the-go testing, this durable meter helps ensure product quality and safety with professional-grade precision.

• Food-safe FC2023 electrode ideal for measuring pH in semi-solid food products

• USB connectivity allows for easy data transfer and documentation

• Multilingual interface supports global operations and simplifies training

See All Specs

aeroplane.png__PID:119d4b1a-2623-400c-8fa4-aec5b49a3bf0

Fast Delivery

Most items ship same day

protection.png__PID:4b1a2623-e00c-4fa4-aec5-b49a3bf05f92

Manufacturer Warranty

All products are covered by manufacturer warranty

technical-support.png__PID:e00c8fa4-aec5-449a-bbf0-5f923431936b

After-Sale Support

24/7 support

What's Included

download (70).webp__PID:7ab0a366-c50a-41ee-ae3a-ab9ed2dfc0ad

VR Headset

download (71).webp__PID:547ab0a3-66c5-4a41-aeae-3aab9ed2dfc0

2 Touch Controllers

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Charging Cable

Power Adapter

Glasses Spacer

download (69).webp__PID:26576cae-f878-4c99-ab7c-894d76af129b

pH measurement is fundamental in food production, impacting flavor, texture, appearance, fermentation, and shelf stability. Foods are categorized into acid foods (pH 4.6 or below) and low-acid foods (pH greater than 4.6 with water activity above 0.85). Low-acid foods can be acidified to a lower pH to prevent bacterial growth.

Measuring pH in food presents challenges due to solid, semi-solid, or slurry consistencies that can coat the glass membrane or clog the reference junction. The HI98161 includes the FC2023 electrode, specifically designed for food pH analysis. It features a conical tip for easy penetration, an open junction to resist clogging, and a food-grade Polyvinylidene Fluoride (PVDF) body. PVDF is resistant to most chemicals, solvents (including sodium hypochlorite), abrasion, mechanical stress, UV and nuclear radiation, and fungal growth. The FC2023 connects to the HI98161 with a secure, waterproof DIN connector.

FSMA Compliant

This pH meter meets the FDA Food Safety Modernization Act (FSMA) compliance standards.

The FC2023 electrode is ideal for measuring the pH of a wide range of food products, including milk, yogurt, meats, cheeses, fruits, sushi, rice, jams, jellies, dough, and ice cream.

Conical Glass Tip

The conical tip design allows for easy penetration into solids, semi-solids, and emulsions, enabling direct pH measurement in diverse food products like meat, cheese, yogurt, and milk.

Open Junction Reference

Featuring an open junction with a solid viscolene gel interface between the sample and internal Ag/AgCl reference, this design prevents silver contamination and clogging, ensuring fast, stable readings.

PVDF Body

The PVDF body, a food-grade plastic, offers exceptional resistance to most chemicals and solvents, including sodium hypochlorite. It also provides high abrasion resistance, mechanical strength, resistance to UV and nuclear radiation, and inhibits fungal growth.

Beyond its specialized foodcare pH electrode, the HI98161 features Hanna's unique CAL Check™ system. This system alerts users to potential calibration issues, crucial in food processing where solid coatings on the probe can lead to inaccuracies. By comparing current and previous calibration data, the meter provides on-screen prompts indicating the need for probe cleaning, replacement, or possible buffer contamination. Post-calibration, the electrode's overall condition is displayed as a percentage (0-100% in 10% increments), reflecting its offset and slope characteristics, both available in GLP data.

In measurement mode, pressing the "AutoHold" virtual key freezes and automatically logs a stable reading. An optional "out of calibration range" warning can be enabled to notify users if a reading falls outside the calibrated pH values.

The log-on-demand mode allows saving up to 200 samples. This logged data, along with associated GLP information, can be recalled or transferred to a PC using Hanna's HI920015 micro USB cable and HI92000 software, ensuring traceability for specific product batches. GLP data includes date, time, calibration buffers, offset, and slope, directly accessible via the dedicated GLP key.

A context-sensitive help menu, relevant to the current screen, is accessible at any time with a dedicated button.

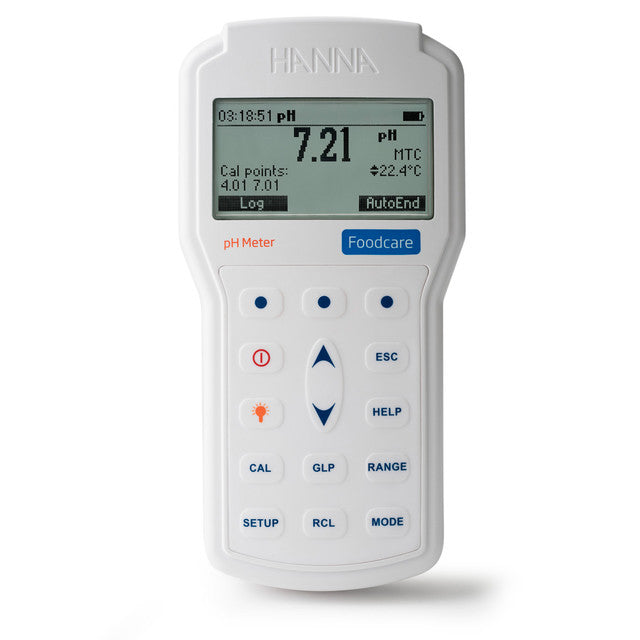

The high-contrast graphic LCD screen provides excellent visibility in both bright sunlight and low-lit areas, enhanced by an adjustable backlight. A combination of dedicated and virtual keys ensures intuitive meter operation with multiple language options.

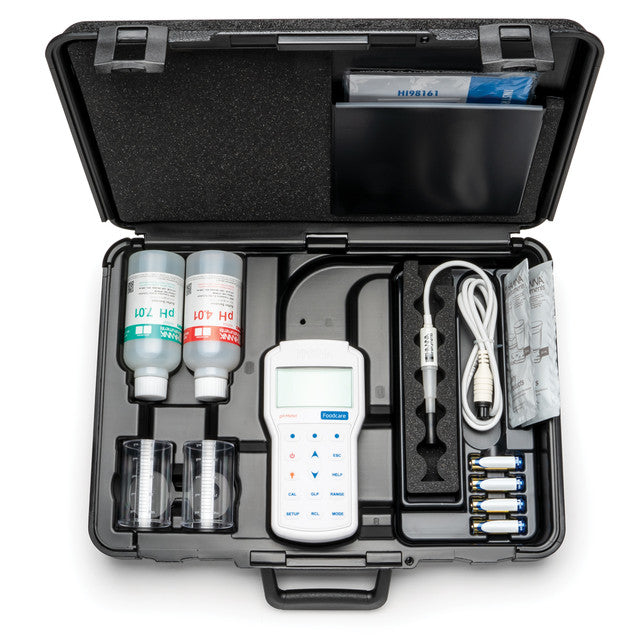

The compact, durable HI720161 carrying case is thermoformed to securely hold all necessary components for field measurements, including the meter, electrode, beakers, buffer solutions, and cleaning solutions.

Key On-Screen Features

Intuitive Setup

Configure essential settings such as time, date, temperature units, and language for user interface elements and help guides with ease.

Guided Calibration with CAL Check™

Ensure accurate calibrations with step-by-step on-screen prompts and Hanna's CAL Check™ system messages for reliable results.

Comprehensive GLP Data

Access detailed Good Laboratory Practice (GLP) information, including a complete history of calibrations (date, time, buffers used, offset, and slope).

Key Features:

Ergonomic, rugged, and waterproof (IP67) design for reliable field use.
Supplied with the specialized FC2023 Foodcare pH/Temperature electrode.
CAL Check™ alerts for calibration issues and displays overall electrode condition.
Automatic Temperature Compensation ensures accurate readings in varying conditions.
Offers five-point pH calibration with seven standard and five custom buffers for accuracy.
Log-on-demand allows for immediate storage of measurement data.
AutoHold function freezes stable readings on the display for easy recording.
Detailed GLP data includes date, time, calibration buffers, offset, and slope.
Logged data is stored with associated GLP information for complete traceability.
A dedicated GLP key provides direct access to calibration history.

Key Benefits:

Ensures reliable and accurate pH measurements in diverse food processing environments.
The FC2023 electrode is specifically designed to overcome challenges in food pH measurement.
Maximizes measurement confidence by alerting to potential calibration and electrode issues.
Provides accurate pH values regardless of temperature fluctuations in the sample.
Offers flexibility and high precision in pH calibration to meet specific requirements.
Simplifies the process of recording critical pH data for quality control and traceability.
Facilitates easy documentation of stable readings, reducing potential errors.
Comprehensive GLP data ensures thorough record-keeping and compliance.
Calibration timeout alerts help maintain measurement accuracy over time.
Multiple language options enhance user experience for diverse teams.
Long battery life supports extended use in the field without frequent changes.
Intuitive menu navigation makes operation straightforward and efficient.
Contextual help provides immediate guidance, minimizing downtime.
Clear, backlit display ensures readability in any lighting condition.
Seamless PC connectivity streamlines data transfer for analysis and reporting.

Specification	Detail
SKU	HI98161
pH Range	-2.0 to 20.0 pH / -2.00 to 20.00 pH / -2.000 to 20.000 pH
pH Resolution	0.1 pH / 0.01 pH / 0.001 pH
pH Accuracy @ 25°C / 77°F	±0.1 pH / ±0.01 pH / ±0.002 pH
pH Calibration	Up to five point calibration, seven standard buffers available (pH 1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45), and five custom buffers
mV Range	±2000.0 mV
mV Resolution	0.1 mV
mV Accuracy	±0.2 mV
Temperature Range	-20.0 to 120.0 °C (-4.0 to 248.0 °F)
Temperature Resolution	0.1 °C (0.1 °F)
Temperature Accuracy @ 25°C / 77°F	±0.4 °C (±0.8 °F) (excluding probe error)
Temperature Compensation	Automatic
Log Feature	On demand, 200 samples (100 pH and 100 mV)
Connectivity	PC Connectivity opto-isolated USB
GLP	Yes
Power Supply	1.5V AA batteries (4 pcs.)
Power Consumption	approx. 200 hours of continuous use without backlight (50 hours with backlight)
Environment	5 to 50 °C (32 to 122 °F) max. RH 100% IP67
Dimensions	190 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.)
Weight	405 g (14.2 oz)
Ordering Information	HI98161 is supplied with FC2023 PVDF body pH electrode, HI7004M pH 4.01 buffer solution (230 mL), HI7007M pH 7.01 buffer solution (230 mL), HI700641 electrode cleaning solution for dairy products sachet (2), 100 mL plastic beaker (2), 1.5V AA batteries (4), HI92000 PC software, HI920015 micro USB cable, instruction manual with quick start guide, instrument quality certificate and HI720161 hard carrying case.
Warranty	2 years
Recommended Probe	FC2023 pH probe with internal temperature sensor, PVDF probe

Shipping, Return, and Warranty Policy

At Blue Tiger Scientific, we are proud to distribute authentic Hanna Instruments products. The following policies apply to all purchases made through our store.

Shipping Policy

All orders are shipped via FedEx from Hanna Instruments' fulfillment center in Smithfield, Rhode Island.
FedEx Ground is the standard method; expedited options (2-Day, Overnight) are available for an additional cost.
Hanna Instruments only ships to residential or business addresses within the United States (no PO Boxes).
Orders placed after business hours, weekends, or holidays will ship the next business day, pending product and carrier availability.
Shipping timelines may vary depending on product availability, order size, and carrier logistics.
Blue Tiger Scientific and Hanna Instruments are not responsible for carrier delays, weather-related disruptions, or other unforeseen delivery issues once the order has shipped.

Return Policy

All return requests must be coordinated directly with Blue Tiger Scientific before a product is sent back.
Products must have a Return Merchandise Authorization (RMA) number issued by Blue Tiger Scientific before being returned.
Products must be returned in new or like-new condition, with the original packaging and proof of purchase (such as an invoice or packing slip).
Customers are responsible for return shipping costs unless otherwise stated.
Unauthorized returns (without an RMA) will be refused and returned at the customer's expense.
Returns are subject to inspection and approval. Products not in acceptable condition may be denied credit.
Some products, such as custom-built, special order, and hazardous materials, may not be eligible for return.

Warranty Policy

Hanna Instruments' products are covered by their Limited Warranty against defects in materials and workmanship under normal use.
All warranty claims and services are handled directly by Hanna Instruments.
Warranty periods vary by product. If unspecified, the standard warranty term is 18 months from the Hanna Instruments factory ship date.
If you experience an issue believed to be covered under warranty, please contact Hanna Instruments for guidance on how to submit your warranty request to Hanna Instruments.
Customers must follow Hanna Instruments' warranty submission process, including providing a claim number, product model and serial number, and a detailed description of the issue.
Hanna Instruments will determine whether products are repaired, replaced, or otherwise serviced under warranty.
Note: Warranty coverage does not apply to damage caused by misuse, accidents, unauthorized repairs, or improper storage and handling.

Important Notes

Some Hanna Instruments products are custom-made or built to order. Shipping will occur once the product is ready.
In the event of backorders, you may request partial shipments.
Delays beyond our control (e.g., material shortages, import delays, or carrier issues) may occasionally occur.

HI98161 Foodcare Portable pH Meter Instruction Manual

Download

Product Resources:

Manual

Brochure

Copy of Technical Specifications
