Hanna Instruments HI83414-01 EPA Benchtop Turbidity & Chlorine Meter Turbidity & Chlorine Meter Hanna Instruments
Hanna Instruments HI83414-01 EPA Benchtop Turbidity & Chlorine Meter Turbidity & Chlorine Meter Hanna Instruments

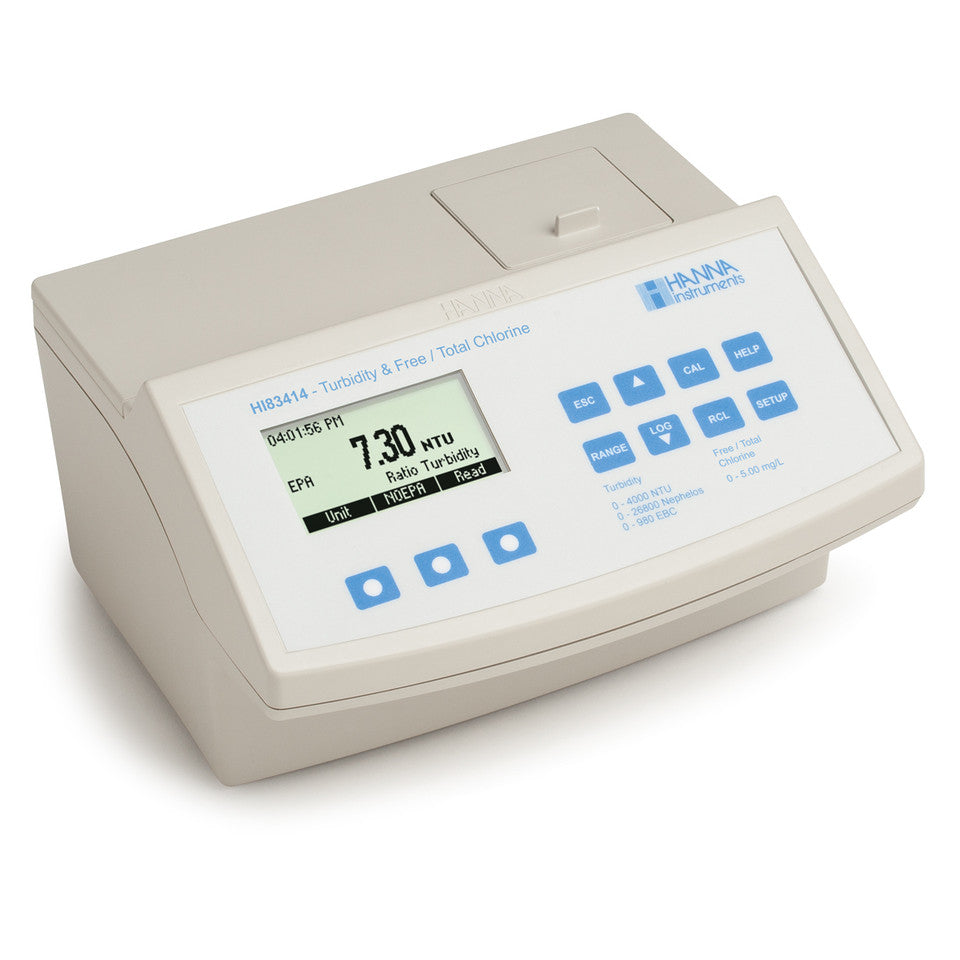

Hanna Instruments HI83414-01 EPA Benchtop Turbidity & Chlorine Meter

$2,474.99

    Optimize your water quality monitoring with the Hanna Instruments HI83414-01, an EPA-compliant benchtop meter delivering high-accuracy turbidity and chlorine measurements. This versatile instrument combines a nephelometer and photometer, making it ideal for comprehensive drinking water analysis and ensuring regulatory compliance.

    • EPA compliant for reliable turbidity and chlorine testing.

    • Highly accurate with USB data transfer for seamless reporting.

    • Includes primary turbidity standards and chlorine standards for quick setup and verification.

    *Products classified as Dangerous Goods can only be shipped via ground.

See All Specs

aeroplane.png__PID:119d4b1a-2623-400c-8fa4-aec5b49a3bf0

Fast Delivery

Most items ship same day

protection.png__PID:4b1a2623-e00c-4fa4-aec5-b49a3bf05f92

Manufacturer Warranty

All products are covered by manufacturer warranty

technical-support.png__PID:e00c8fa4-aec5-449a-bbf0-5f923431936b

After-Sale Support

24/7 support

What's Included

download (70).webp__PID:7ab0a366-c50a-41ee-ae3a-ab9ed2dfc0ad

VR Headset

download (71).webp__PID:547ab0a3-66c5-4a41-aeae-3aab9ed2dfc0

2 Touch Controllers

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Charging Cable

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Power Adapter

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Glasses Spacer

download (69).webp__PID:26576cae-f878-4c99-ab7c-894d76af129b

The Hanna Instruments HI83414-01 is an advanced EPA compliant benchtop meter designed for comprehensive water quality analysis, expertly measuring both turbidity and chlorine with high accuracy. This versatile instrument combines a nephelometer and photometer, providing reliable and precise results essential for drinking water monitoring and regulatory compliance.

Key Features at a Glance:

  • EPA Compliant: Engineered to meet and exceed stringent EPA Method 180.1 and Standard Methods for turbidity, alongside EPA Method 330.5 for chlorine.
  • High Accuracy: Delivers precise readings with up to ±2% of reading plus 0.02 NTU for turbidity, ensuring confidence in your results.
  • Data Management: Features USB connectivity for effortless data transfer, allowing for convenient logging and analysis of up to 200 measurements.

Turbidity is a crucial indicator of drinking water quality, significantly impacting both aesthetics and public health by signaling the potential presence of waterborne pathogens. In various applications, from assessing natural water sources for aquatic life compatibility to verifying wastewater treatment efficacy, controlling and monitoring turbidity remains paramount for regulatory compliance. This optical property, driven by suspended solids, describes how light is scattered and absorbed, with higher turbidity indicating greater light dispersion. Even the purest liquids exhibit some light scattering, meaning achieving absolute zero turbidity is practically impossible.

Drinking water treatment facilities utilizing surface water, such as lakes and rivers, are mandated by the EPA to continuously monitor and report turbidity levels. The EPA Method 180.1 establishes strict criteria for nephelometers and outlines specific reporting requirements, including an applicable range of 0-40 NTU, a tungsten lamp light source, a maximum 10 cm light path, and a 90° detector with a spectral peak response between 400 nm and 600 nm. The instrument must also possess the sensitivity to detect turbidity differences of 0.02 NTU or less in low turbidity waters.

Reporting Requirements According to EPA Method 180.1:

NTU reading Rounded to nearest
0.0 - 1.0 0.05
1 - 10 0.1
10 - 40 1
40 - 100 5
100 - 400 10
400 - 1000 50
> 1000 100

The HI83414 turbidity and chlorine meter consistently meets and exceeds the rigorous performance criteria set forth by EPA Method 180.1 and Standard Methods for the Examination of Water and Wastewater 2130 B, ensuring dependable and compliant water analysis.

HI83414 Turbidity and Chlorine Meter Light Diagram

Principle of Operation

The HI83414's advanced optical system precisely measures turbidity by analyzing how a light beam scatters and transmits through a sample. Light scattering is influenced by factors like wavelength, particle size, shape, refractive index, and color. The instrument incorporates a tungsten filament lamp, a 90° scattered light detector, and a 180° transmitted light detector to capture these critical interactions.

In ratio turbidimeter mode, the meter's microprocessor utilizes an effective algorithm to calculate the NTU value from both detectors. This intelligent processing corrects and compensates for color interference, while also minimizing the impact of lamp intensity fluctuations, thereby reducing the need for frequent calibration.

For non-ratio turbidity measurements, the NTU value is derived solely from the 90° scattered light detector. While this method offers excellent linearity in the low range, it is more susceptible to variations in lamp intensity. The HI83414's optical design significantly reduces stray light, which is crucial for determining the lower detection limit, enabling highly accurate results even for very low turbidity samples.

The HI98703-11 AMCO AEPA-1 primary turbidity standards are essential for ensuring measurement traceability. These high-quality standards are specifically used for the calibration and verification of your HI83414 turbidity meter, providing consistent and reliable performance.

Supplied with Certificate of Analysis:

  • Lot number
  • Expiration date
  • Standard value @ 25 °C
  • Reference meter NIST traceable

Provided storage containers:

  • Light tight
  • Protects from accidental breakage
AMCO AEPA-1 Turbidity Standards for HI93414
HI93414 CAL Check Chlorine Standards

CAL Check™ standards with certificate

The HI93414-11 free and total chlorine CAL Check™ standards are specifically designed for the calibration and performance verification of your HI83414 meter, ensuring reliable and accurate chlorine measurements.

Supplied with Certificate of Analysis:

  • Lot number
  • Expiration date
  • Standard value @ 25 °C
  • Reference meter NIST traceable

Provided storage containers:

  • Light tight
  • Protects from accidental breakage
    Specification Detail
    sku HI83414-01
    NTU ratio Range 0.00 to 9.99 NTU
    10.0 to 99.9 NTU
    100 to 4000 NTU
    0.0 to 99.9 Nephelos
    100 to 26800 Nephelos
    0.00 to 9.99 EBC
    10.0 to 99.9 EBC
    100 to 980 EBC
    NTU ratio Resolution 0.01 NTU (0.00 to 9.99 NTU)
    0.1 NTU (10.0 to 99.9 NTU)
    1 NTU (100 to 4000 NTU)
    0.1 Nephelos (0.0 to 99.9 Nephelos)
    1 Nephelos (100 to 26800 Nephelos)
    0.01 EBC (0.00 to 9.99 EBC)
    0.1 EBC (10.0 to 99.9 EBC)
    1 EBC (100 to 980 EBC)
    NTU non ratio Range 0.00 to 9.99 NTU
    10.0 to 40.0 NTU
    0.0 to 99.9 Nephelos
    100 to 268 Nephelos
    0.00 to 9.80 EBC
    NTU non ratio Resolution 0.01 NTU (0.00 to 9.99 NTU)
    0.1 NTU (10.0 to 40.0 NTU)
    0.1 Nephelos (0.0 to 99.9 Nephelos)
    1 Nephelos (100 to 268 Nephelos)
    0.01 EBC (0.00 to 9.80 EBC)
    NTU Accuracy ±2% of reading plus 0.02 NTU (0.15 Nephelos, 0.01 EBC)
    ±5% of reading above 1000 NTU (6700 Nephelos, 245 EBC)
    Range Selection Automatic
    Turbidity Repeatability ±1% of reading or 0.02 NTU (0.15 Nephelos, 0.01 EBC) whichever is greater
    Stray Light < 0.02 NTU (0.15 Nephelos, 0.01 EBC)
    Free Chlorine Range 0.00 to 5.00 mg/L
    Total Chlorine Range 0.00 to 5.00 mg/L
    Chlorine Resolution 0.01 mg/L (0.00 to 3.50 mg/L)
    0.10 mg/L (above 3.50 mg/L)
    Chlorine Accuracy ±0.02 mg/L @ 1.00 mg/L
    Chlorine Detector Silicon photocell with 525 nm narrow band interference filters
    Chlorine Method Adaptation of the USEPA Method 330.5 and Standard Method 4500-Cl G. The reaction between chlorine and DPD reagent causes a pink tint in the sample.
    Chlorine Standards 1 mg/L free chlorine, 1 mg/L total chlorine
    Chlorine Calibration One-point calibration
    Turbidity Light Detector Silicon Photocell
    Turbidity Method Nephelometric method (90°) or Ratio Nephelometric Method (90° & 180°)
    Adaptation of the USEPA Method 108.1 and Standard Method 2130 B.
    Measuring mode Normal, Average, Continuous
    Turbidity Standards <0.1, 15, 100, 750 and 2000 NTU
    Calibration Two, three, four or five-point calibration
    Light Source Tungsten filament lamp
    Lamp Life greater than 100,000 readings
    Display 40 x 70mm graphic LCD (64x128 pixels) with backlight
    LOG Memory 200 records
    Serial Interface USB
    Environment 0°C (32°F) to 50°C (122°F) max 95% RH non-condensing
    Power Supply 230 V/50 Hz or 115 V/60 Hz 20 W
    Auto Shut-Off After 15 minutes of non-use
    Dimensions 230 x 200 x 145 mm (9 x 7.9 x 5.7in.) L x W x H
    Weight 2.5 Kg (88 oz.)
    Warranty 2 years
