Hanna HI2003-01 edge® Conductivity TDS Salinity Meter - Benchtop & Portable Multiparameter Meter Hanna Instruments

Hanna HI2003-01 edge® Conductivity TDS Salinity Meter - Benchtop & Portable

$774.99

Experience unparalleled precision for lab and field measurements with the Hanna HI2003-01 edge® Conductivity, TDS, and Salinity Meter, combining innovative design with intuitive functionality. This advanced meter ensures accurate results across a wide range of samples, making it the ideal solution for diverse water quality testing needs.

• Versatile 4-Ring Probe: Measure very low to very high conductivity, TDS, and salinity with exceptional accuracy.

• Capacitive Touch Keypad: Seamless operation, even with gloves, for a modern and responsive user experience.

• Large 5.5" LCD Display: Crystal-clear readings from any angle, enhancing readability in any environment.

See All Specs

aeroplane.png__PID:119d4b1a-2623-400c-8fa4-aec5b49a3bf0

Fast Delivery

Most items ship same day

protection.png__PID:4b1a2623-e00c-4fa4-aec5-b49a3bf05f92

Manufacturer Warranty

All products are covered by manufacturer warranty

technical-support.png__PID:e00c8fa4-aec5-449a-bbf0-5f923431936b

After-Sale Support

24/7 support

What's Included

download (70).webp__PID:7ab0a366-c50a-41ee-ae3a-ab9ed2dfc0ad

VR Headset

download (71).webp__PID:547ab0a3-66c5-4a41-aeae-3aab9ed2dfc0

2 Touch Controllers

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Charging Cable

Power Adapter

Glasses Spacer

download (69).webp__PID:26576cae-f878-4c99-ab7c-894d76af129b

Hanna HI2003-01 edge® Conductivity TDS Salinity Meter

Experience unmatched accuracy and ease of use with the Hanna HI2003-01 edge® Conductivity, TDS, and Salinity Meter, engineered for advanced water quality analysis.

Digital EC Electrode Technology

The edge® EC electrode boasts a sophisticated built-in microchip, intelligently storing vital calibration data including model and serial numbers, plus calibration specifics with timestamps. This ensures seamless automatic retrieval of settings when connected, delivering consistent, reliable performance every time.

Advanced Four-Ring Platinum Probe

Equipped with the HI763100 four-ring platinum conductivity probe, the edge® meter provides highly accurate measurements across a broad range of conductivity, TDS, and salinity values. Its integrated temperature sensor ensures automatic temperature compensation, while the durable glass and PVDF body resists aggressive chemicals, outperforming traditional two-pole probes.

Effortless 3.5 mm Probe Connection

Connecting your probe is incredibly simple with the edge® meter’s standard 3.5 mm input. Say goodbye to fragile pins and complex alignments; just plug it in and start measuring with complete confidence and ease.

Designed for adaptability, the Hanna edge® Conductivity Meter offers versatile deployment options, delivering high-performance measurements without occupying critical benchtop space.

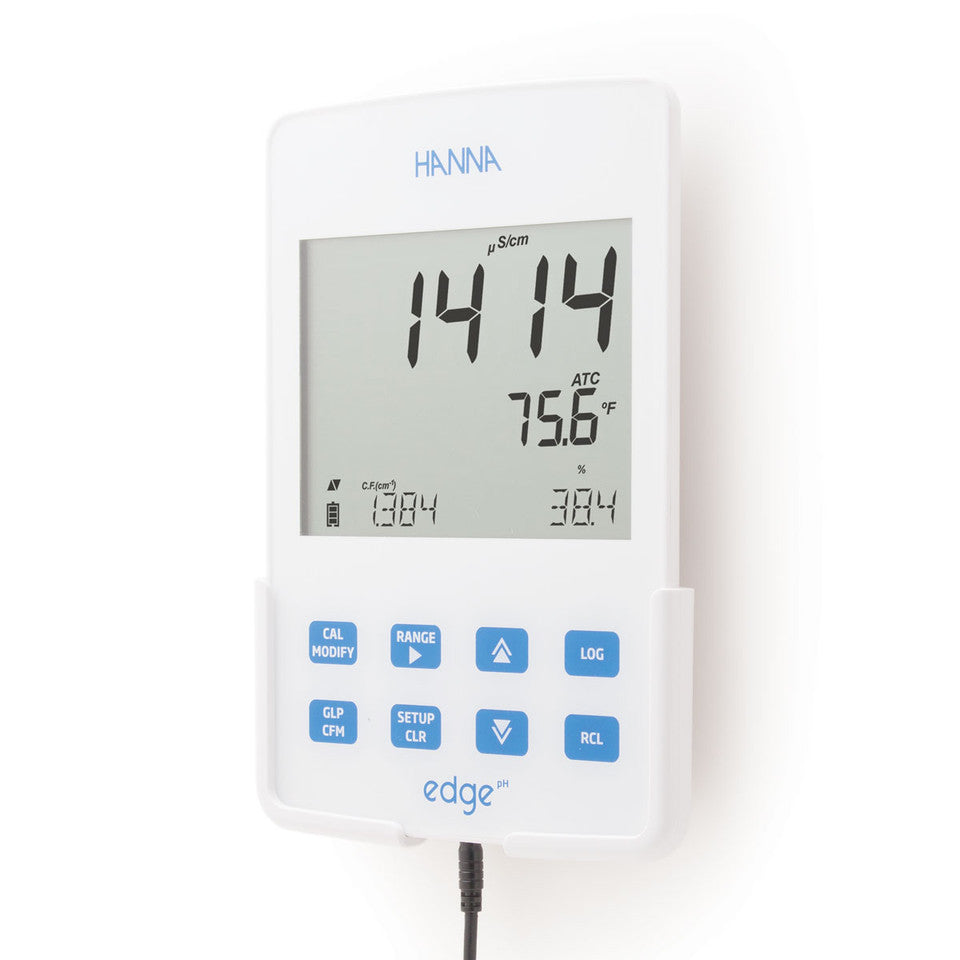

Space-Saving Wall Mount Capability

Utilize the included wall mount cradle to securely position your edge® meter on any wall, completely freeing up valuable benchtop real estate. The integrated connector ensures continuous power and battery charging while mounted, making it perfect for compact laboratories and efficient workspaces.

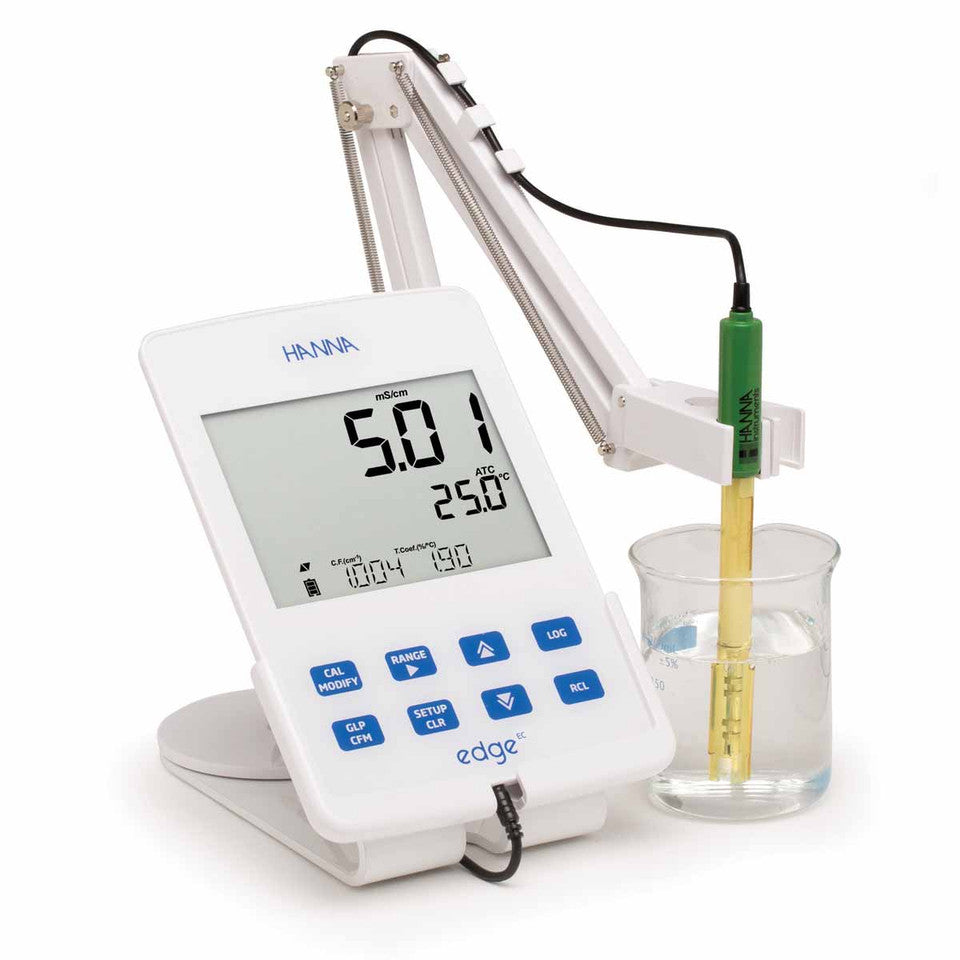

Ergonomic Cradle with Electrode Holder

The edge® comes with a robust benchtop cradle, featuring an adjustable swivel electrode holder. This allows you to securely charge and position the meter and its electrode at the optimal viewing angle, ensuring comfortable and precise operation during all your measurements.

Lightweight and highly portable at only 8.8 oz, the Hanna edge® Conductivity Meter features dual USB connectivity and an impressive 8-hour battery life for extended field use.

Dual USB Connectivity for Data Transfer & Charging

The edge® is equipped with two convenient USB ports: a standard USB for effortless data export via flash drive and a micro-USB port for direct connection to a computer. This allows for seamless file transfers and flexible charging, even when the cradle isn't available.

Comprehensive Data Logging Capabilities

Store up to 1,000 detailed log records with the edge® meter, capturing measurement readings, essential GLP (Good Laboratory Practice) data, and precise timestamps. This robust data logging feature ensures thorough documentation for compliance, analysis, and comprehensive reporting.

Flexible Dual Operating Modes

The edge® offers both Basic and Standard operating modes to suit your specific needs. Basic Mode streamlines operation by simplifying features, ideal for quick, straightforward measurements with automatic temperature compensation and auto-ranging. Switch to Standard Mode for full user control over settings, including temperature correction coefficients and interval logging, providing ultimate flexibility for advanced applications.

Specification	Detail
SKU	HI2003-01
EC Range	0.00 to 29.99 μS/cm, 3.00 to 29.99 μS/cm, 30.0 to 299.9 μS/cm, 300 to 2999 μS/cm, 3.00 to 29.99 mS/cm, 30.0 to 200.0 mS/cm, up to 500.0 mS/cm
EC Resolution	0.01 μS/cm, 0.1 μS/cm, 0.01 mS/cm, 0.1 mS/cm
EC Accuracy	±1% of reading (±0.05 μS/cm or 1 digit, whichever is greater)
EC Calibration	1 Cell Factor calibration; 6 standards available: 84, 1413 μS/cm, 5.00, 12.88, 80.0, 111.8 mS/cm; 1 point offset: 0.00 μS/cm
TDS Range	0.00 to 14.99 ppm (mg/L), 15.0 to 149.9 ppm (mg/L), 150. to 1499. ppm (mg/L), 1.50 to 14.99 g/L, 15.0 to 100.0 g/L, up to 400.0 g/L absolute TDS ‡ (with 0.80 factor)
TDS Resolution	0.01 ppm, 0.1 ppm, 1 ppm, 0.01 g/L, 0.1 g/L
TDS Accuracy	±1% of reading (±0.03 ppm or 1 digit, whichever is greater)
TDS Calibration	Through EC calibration
EC/TDS Temperature Compensation	Automatic -5 to 100 ºC (23 to 212 ºF); NoTC - can be selected to measure absolute conductivity.
Temperature Correction Coefficient	0.00 to 6.00% / ºC (for EC and TDS only). Default value is 1.90% / ºC
EC to TDS Conversion Factor	0.40 to 0.80 (default value is 0.50)
Salinity Range	0.0 to 400.0% NaCl, 0.01 to 42.00 PSU, 0.0 to 80.0 g/L*
Salinity Resolution	0.1% NaCl, 0.01 PSU, 0.01 g/L
Salinity Accuracy	±1% of reading
Salinity Calibration	1 point with HI 7037L 100% NaCl sea water standard (other scales through EC calibration)
Salinity Temperature Compensation	0 to 40 g/L (with 1 g/L resolution)
Sodium Chloride Range	0.0 to 400.0% NaCl
Sodium Chloride Resolution	0.1% NaCl
Sodium Chloride Accuracy	±1% of reading
Sodium Chloride Calibration	1 point with HI 7037L 100% NaCl sea water standard (other scales through EC calibration)
EC/TDS Probe	HI763100 EC/temperature probe
Power Supply	5 VDC adapter (included)
Environment	0 to 50°C (32 to 122°F), RH max 95% non-condensing

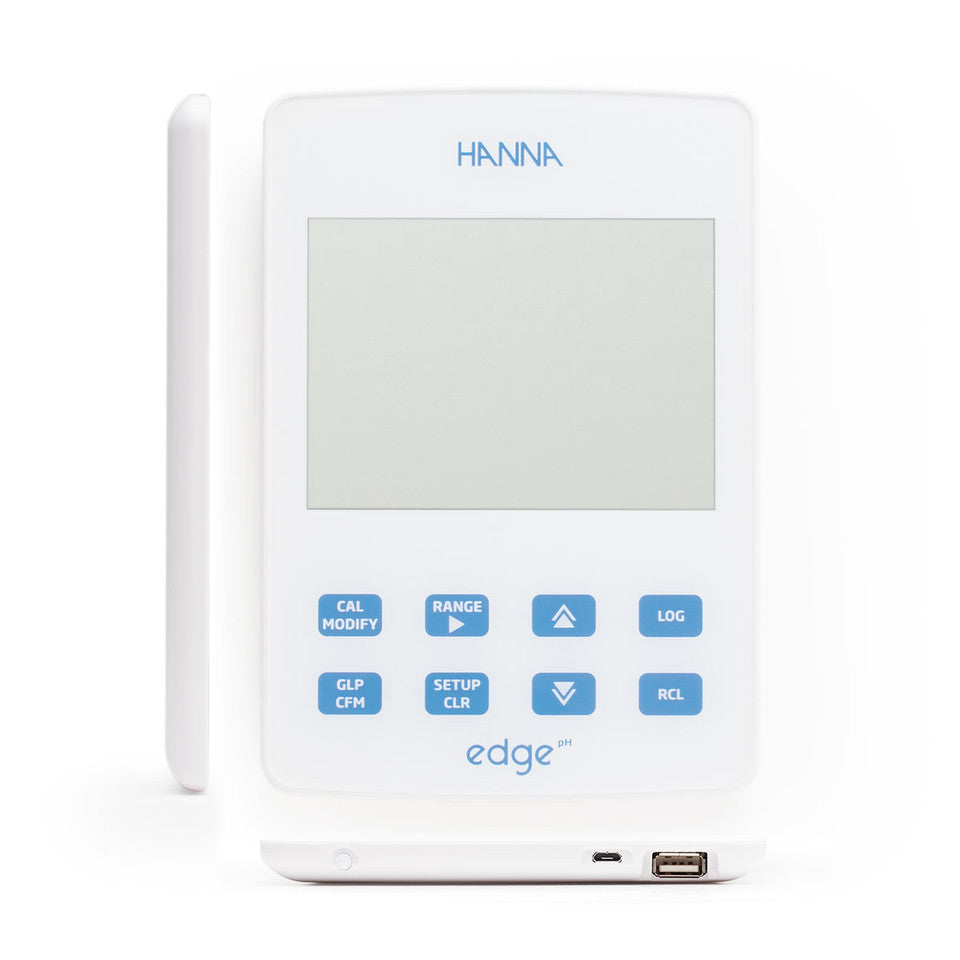

Dimensions	204 x 140 x 12.7mm (8in. x 5.5in. x 0.5in.)
Weight	251 g (8.82 oz)
Ordering Information	edge®EC HI2003 includes: HI763100 Conductivity probe, 4 sachets of 1413 μS/cm conductivity standard, 2 sachets of 5000 μS/cm conductivity standard, 2 sachets of 12880 μS/cm conductivity standard, 2 sachets general purpose rinse solution, benchtop docking station with electrode holder, wall-mount cradle, USB cable, 5 VDC power adapter, quality certificate and instruction manual.
Special Notes	‡ absolute conductivity *temperature limits will be reduced to actual probe/sensor limits
Warranty	2 years

Shipping, Return, and Warranty Policy

At Blue Tiger Scientific, we are proud to distribute authentic Hanna Instruments products. The following policies apply to all purchases made through our store.

Shipping Policy

All orders are shipped via FedEx from Hanna Instruments' fulfillment center in Smithfield, Rhode Island.
FedEx Ground is the standard method; expedited options (2-Day, Overnight) are available for an additional cost.
Hanna Instruments only ships to residential or business addresses within the United States (no PO Boxes).
Orders placed after business hours, weekends, or holidays will ship the next business day, pending product and carrier availability.
Shipping timelines may vary depending on product availability, order size, and carrier logistics.
Blue Tiger Scientific and Hanna Instruments are not responsible for carrier delays, weather-related disruptions, or other unforeseen delivery issues once the order has shipped.

Return Policy

All return requests must be coordinated directly with Blue Tiger Scientific before a product is sent back.
Products must have a Return Merchandise Authorization (RMA) number issued by Blue Tiger Scientific before being returned.
Products must be returned in new or like-new condition, with the original packaging and proof of purchase (such as an invoice or packing slip).
Customers are responsible for return shipping costs unless otherwise stated.
Unauthorized returns (without an RMA) will be refused and returned at the customer's expense.
Returns are subject to inspection and approval. Products not in acceptable condition may be denied credit.
Some products, such as custom-built, special order, and hazardous materials, may not be eligible for return.

Warranty Policy

Hanna Instruments' products are covered by their Limited Warranty against defects in materials and workmanship under normal use.
All warranty claims and services are handled directly by Hanna Instruments.
Warranty periods vary by product. If unspecified, the standard warranty term is 18 months from the Hanna Instruments factory ship date.
If you experience an issue believed to be covered under warranty, please contact Hanna Instruments for guidance on how to submit your warranty request to Hanna Instruments.
Customers must follow Hanna Instruments' warranty submission process, including providing a claim number, product model and serial number, and a detailed description of the issue.
Hanna Instruments will determine whether products are repaired, replaced, or otherwise serviced under warranty.
Note: Warranty coverage does not apply to damage caused by misuse, accidents, unauthorized repairs, or improper storage and handling.

Important Notes

Some Hanna Instruments products are custom-made or built to order. Shipping will occur once the product is ready.
In the event of backorders, you may request partial shipments.
Delays beyond our control (e.g., material shortages, import delays, or carrier issues) may occasionally occur.

edge® Conductivity Meter Instruction Manual

Download

Product Resources:

Manual

Brochure

Copy of Technical Specifications
