System 374PFSTRT-DMLED-HOHD with 1X LENS Microscope LUXO Microscopes by UNITRON®
System 374PFSTRT-DMLED-HOHD with 1X LENS Microscope LUXO Microscopes by UNITRON®

System 374PFSTRT-DMLED-HOHD with 1X LENS

$5,638.00

    Upgrade your laboratory with the LUXO Microscopes by UNITRON® System 374PFSTRT-DMLED-HOHD. Featuring a high-quality 24mm optics system and an ergonomic design, this microscope delivers superior magnification and comfort for extended use. The dimmable LED ring light and Excelis HD 6MP Camera ensure exceptional illumination and precise documentation. Perfect for industrial, medical, and forensic applications, this versatile tool enhances productivity and accuracy.

See All Specs

aeroplane.png__PID:119d4b1a-2623-400c-8fa4-aec5b49a3bf0

Fast Delivery

Most items ship same day

protection.png__PID:4b1a2623-e00c-4fa4-aec5-b49a3bf05f92

Manufacturer Warranty

All products are covered by manufacturer warranty

technical-support.png__PID:e00c8fa4-aec5-449a-bbf0-5f923431936b

After-Sale Support

24/7 support

What's Included

download (70).webp__PID:7ab0a366-c50a-41ee-ae3a-ab9ed2dfc0ad

VR Headset

download (71).webp__PID:547ab0a3-66c5-4a41-aeae-3aab9ed2dfc0

2 Touch Controllers

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Charging Cable

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Power Adapter

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Glasses Spacer

download (69).webp__PID:26576cae-f878-4c99-ab7c-894d76af129b

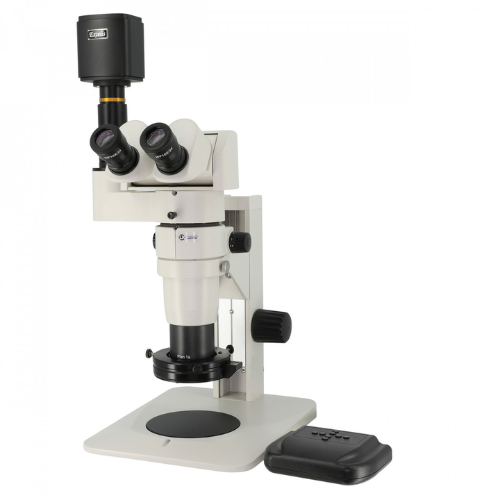

Enhance Your Laboratory's Research Capabilities with the LUXO Microscopes by UNITRON® System 374PFSTRT-DMLED-HOHD. This advanced stereo microscope features a high-quality 24mm optics system, providing a magnification range of 8X to 50X with a 1X objective lens. The ergonomic design includes adjustable inclination eyetubes and a 180° rotation capability, ensuring comfortable viewing for prolonged use. The dimmable LED high-output ring light with a 5600K color temperature and 50,000-hour rated lamp life delivers exceptional illumination, making it perfect for detailed examination and documentation of samples.

Equipped with the Excelis HD 6MP Camera, this microscope allows simultaneous viewing of live images through the eyepieces and on an HD monitor via USB 2.0, enhancing productivity and precision in your research. The system also includes CaptaVision software for measurements on live HD images, a video adapter, HDMI and USB 2.0 cables, a 12V power adapter, an 8GB SD card, and a USB mouse. With its robust build and comprehensive features, the Unitron System 374PFSTRT-DMLED-HOHD is an invaluable tool for industrial, metallurgical, materials science, and educational applications.

    Specification Chart
    Feature Details
    Viewing Body Ergonomic trinocular viewing body with 0° to 30° adjustable inclination eyetubes; eyetubes rotate 180°, increasing height by up to 3 inches.
    Eyepieces WF10X/24mm field of view focusing eyepieces with roll-down eyeguards.
    Magnification Range 8X to 50X (with 10X eyepieces).
    Working Distance 78mm.
    Objective Lens 1.0X Objective lens included.
    Focusing Stand Plain focusing stand with 125mm of focusing travel; dimensions: 175mm (L) x 225mm (D) x 219mm (H).
    LED Ring Light Dimmable LED high-output ring light (part number 18743), 5600K color temperature, 50,000-hour rated lamp life, and produces 5800 foot-candles at 4.5" working distance.
    Camera Excelis™ HD 6MP camera for viewing and capturing images with or without a PC. Features include:
    • Perform measurements on live HD images.
    • Simultaneously view live images through the eyepieces and output to an HD monitor directly or to a PC via USB2.0 using CaptaVision software.
    (Monitor and PC not included.)
    Included Accessories Video adapter, HDMI and USB 2.0 cables, 12V power adapter, 8GB SD card, USB mouse, and CaptaVision PC imaging software.
    Simultaneous Viewing Simultaneous view of images on screen and through the eyepieces.
    Shipping Weight 21 lbs.

    WARRANTY

    This microscope is warranted to be free fromdefects in material and workmanship for a period of five (5) years for mechanical and optical components and one (1) year for electrical components from the date of invoice to the original (end user) purchaser. This warranty does not cover damage caused in-transit, misuse, neglect, abuse or damage resulting from improper servicing or modification by other than UNITRON® approved service personnel. This warranty does not cover any routine maintenance work or any other work, which is reasonably expected to be performed by the purchaser. Normal wear is excluded from this warranty.

    No responsibility is assumed for unsatisfactory operating performance due to environmental conditions such as humidity, dust, corrosive chemicals, deposition of oil or other foreign matter, spillage or other conditions beyond the control of Unitron Ltd. This warranty expressly excludes any liability by Unitron Ltd. for consequential loss or damage on any grounds, such as (but not limited to) the non-availability to the End User of the product(s) under warranty or the need to repair work processes. Should any defect in material, workmanship or electronic component occur under this warranty contact your UNITRON® distributor or UNITRON® at (631) 543-2000. This warranty is limited to the continental United States of America. All items returned for warranty repair must be sent freight prepaid and insured to Unitron Ltd., 73 Mall Drive, Commack, NY 11725 – USA. All warranty repairs will be returned freight prepaid to any destination within the continental United States of America. For all foreign warranty repairs, return freight charges are the responsibility of the individual/company who returned the merchandise for repair.

Product Resources:

Copy of Technical Specifications

FeatureDetails
Viewing Head Siedentopf type trinocular head, inclined at 30°, Interpupillary adjustment 53mm to 75mm, graduated diopter on left eyetube (30mm I.D. eyetubes)
Eyepieces SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
Nosepiece Quintuple
Quintuple LWD Planachromat Phase 10x, 20x
Condenser TC Condenser N.A. 0.30, W.D. 73.0mm
Stage180mm(X) x 245mm(Y) plain stage with replaceable glass insert with 45mm opening, Glass Stage plate insert
IlluminationKoehler without iris, with phase slider, 3W LED
WarrantyLIMITED LIFETIME WARRANTY
