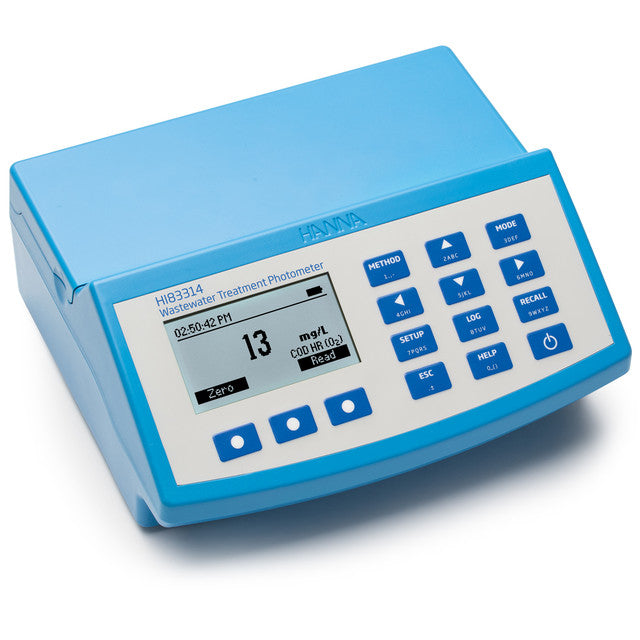

Hanna HI83314 Wastewater Multiparameter Photometer with COD & pH Meter

$1,659.99

The Hanna HI83314 is a compact, lab-grade photometer designed for wastewater professionals who need precision across multiple parameters. With 20 methods covering COD, ammonia, Total Nitrogen, and Phosphorus, it delivers reliable results using an advanced optical system that minimizes error. Its dual functionality as a digital pH meter saves bench space while streamlining lab workflows.

• Measures COD, ammonia, nitrogen, phosphorus, and more with high accuracy

• Combines photometric and pH testing in one compact benchtop unit

• Ideal for wastewater labs, nutrient monitoring, and custom absorbance curve development

See All Specs

aeroplane.png__PID:119d4b1a-2623-400c-8fa4-aec5b49a3bf0

Fast Delivery

Most items ship same day

protection.png__PID:4b1a2623-e00c-4fa4-aec5-b49a3bf05f92

Manufacturer Warranty

All products are covered by manufacturer warranty

technical-support.png__PID:e00c8fa4-aec5-449a-bbf0-5f923431936b

After-Sale Support

24/7 support

What's Included

download (70).webp__PID:7ab0a366-c50a-41ee-ae3a-ab9ed2dfc0ad

VR Headset

download (71).webp__PID:547ab0a3-66c5-4a41-aeae-3aab9ed2dfc0

2 Touch Controllers

download (72).webp__PID:dc547ab0-a366-450a-81ee-ae3aab9ed2df

Charging Cable

Power Adapter

Glasses Spacer

download (69).webp__PID:26576cae-f878-4c99-ab7c-894d76af129b

The HI83314 benchtop photometer is designed for wastewater professionals who need accuracy, flexibility, and efficiency in one compact unit. It measures 10 key parameters using 20 methods, giving users multiple ranges and chemistry options. Parameters include COD (Chemical Oxygen Demand), phosphorus, and nitrogen—essential for both municipal and industrial monitoring. The advanced optical system combines LEDs, narrow band filters, a focusing lens, and dual detectors (absorbance and reference) to ensure stable, repeatable measurements every time.

Integrated pH capability makes the HI83314 even more versatile. Its digital pH input works with intelligent glass electrodes that store calibration data on an internal microchip, allowing hot-swapping without recalibration. Automatic temperature compensation is built in, with a fast-response thermistor at the sensing tip.

Connectivity is streamlined with two USB ports: USB-A for flash drives and micro USB-B for PC connection or power. An internal 3.7 V rechargeable lithium-polymer battery provides portable operation.

The absorbance mode allows system validation using CAL Check™ standards and supports five selectable wavelengths (420, 466, 525, 575, 610 nm) for custom curve plotting—ideal for method development or teaching Beer–Lambert law concepts.

Note: Reagents are sold separately.

Features and Benefits

Digital pH Electrode Input

Single-probe convenience: Measure pH and temperature together.
GLP traceability: Stores date, time, buffer set, offset, and slope.
pH CAL Check™ guidance: Alerts to issues during calibration.
Space-saving integration: pH meter and photometer in one platform.

Data Logging

Dedicated LOG button: Store up to 1000 photometric and pH measurements.
Context-rich records: Add Sample ID and User ID via alphanumeric keypad.

Connectivity

Flexible transfer: Export to flash drive (USB-A) or PC (micro USB-B).
Spreadsheet-ready: Data exported as .CSV for easy analysis.

Battery Status Indicator

Clear power visibility: Monitor remaining battery life at a glance.

Error Messages

Photometric prompts: No cap, high zero, standard too low.
pH calibration prompts: Clean electrode, check buffer, check probe.

Backlit 128 × 64 Pixel Graphic LCD Display

Readable anywhere: Backlighting supports low-light environments.
Guided operation: 128 × 64 pixel interface with virtual keys and on-screen help.

Built-in Reaction Timer for Photometric Measurements

Timed consistency: Readings are taken automatically at countdown completion.
Operator-independent results: Standardized intervals improve repeatability.

Absorbance Mode

System verification: Use CAL Check™ cuvettes to validate light source and detector.
Custom method support: Plot concentration versus absorbance at a selected wavelength for user-supplied chemistry or instruction.

Units of Measure

Clear readouts: Displays the appropriate unit and chemical form with each result.

Result Conversion

One-touch flexibility: Convert results to alternate chemical forms directly on the meter.

Cuvette Cover

Stray-light protection: Shielded measurement cell supports stable readings.

Key On-Screen Features

Method Selection

Quickly access 20 measurement methods and four absorbance modes using the dedicated METHOD button.

Advanced Data Logging

Store up to 1000 readings with user and sample IDs for comprehensive tracking and recall.

Professional pH Measurement

Use the photometer as a professional pH meter with automatic temperature compensation, two-point calibration, and GLP tools.

Digestion Parameters Features

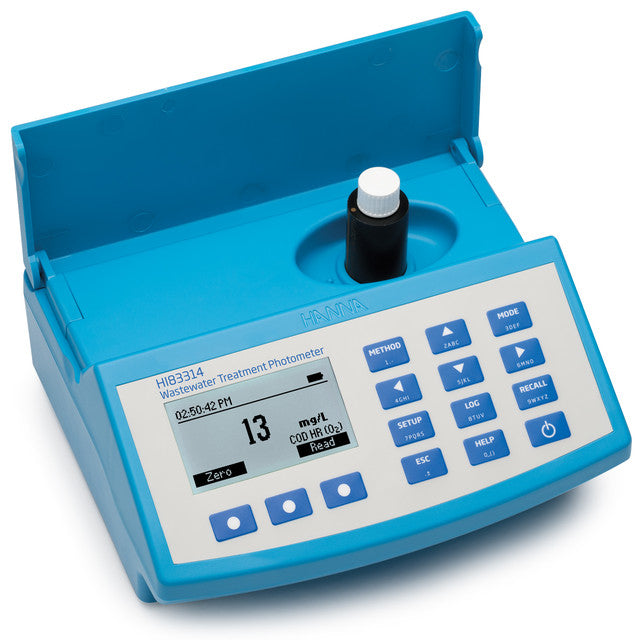

Cuvette Adapter

Supplied 16 mm adapter accepts digestion vials for COD, nitrogen, and phosphorus workflows.

Digestion Vial Methods

Compatible with COD (EPA, ISO, mercury-free), nitrogen, and phosphorus reagents packaged in 16 mm vials. Reagents sold separately.

COD Reactor

The HI839800 reactor heats digestion vials to setpoints for required durations—an essential accessory for complete wastewater monitoring.

Advanced Optical System

Innovative Design

Dual-detector stability: A beam splitter directs light to both the absorbance and reference detectors, compensating for drift and ensuring consistent performance.

High Efficiency LED Source

Bright, cool, efficient: LEDs provide high luminous output with low heat, delivering excellent performance across visible wavelengths.

Narrow Band Interference Filters

Accurate and efficient: ±1 nm wavelength accuracy and up to 95% light transmission yield stable, precise readings.

Reference Detector

Reliable consistency: Monitors light output to stabilize blank and sample measurements, even with temperature or power fluctuations.

Large Cuvette Size

25 mm path length: Larger cuvette size improves sensitivity, particularly in low absorbance samples.

Focusing Lens

Maximized light yield: Lens gathers and directs light to the detector, minimizing cuvette imperfections and eliminating indexing.

Specification	Detail
SKU	HI83314-01
Wavelength Accuracy	±1 nm
Light Source	5 LEDs with 420 nm, 466 nm, 525 nm, 575 nm, and 610 nm narrow band interference filters
Spectral Bandwidth	8 nm
Input Channels	1 pH electrode input and 5 photometer wavelengths
pH Electrode	Digital pH electrode (not included)
Logging Type	Log on demand with user name and sample ID optional input
Logging Memory	1000 readings
Connectivity	USB-A host for flash drive, micro-USB-B for power and computer connectivity
GLP	Calibration data for connected pH electrode
Display	128 x 64 pixel LCD with backlight
Battery Type / Life	3.7 VDC Li-polymer rechargeable battery / >500 photometric measurements or 50 hours of continuous pH measurement
Power Supply	5 VDC USB 2.0 power adapter with USB-A to micro-USB-B cable (included)
Environment	0 to 50.0 °C (32 to 122.0 °F), 0 to 95% RH, non-condensing
Dimensions	206 x 177 x 97 mm (8.1 x 7.0 x 3.8 in.)
Weight	1.0 kg (2.2 lbs.)
Photometer Light Detector	Silicon photodetector
Cuvette Type	Round, 24.6 mm
Number of Methods	128 max.
Ordering Information	Supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable, power adapter, and instruction manual
Warranty	2 years
Note	*Reagents are not included
